so i'm pulling out the vacuum lines that connect the OMP valves to a black 4 to 1 black plastic cylinder and in doing so the vacuum line slips and I break 2 of the 4 plastic nipples coming off the plastic cylinder type thing (purge valve?).

does anyone know the exact name of it so i can call mazda?



A decent parts guy at the parts counter at your local mazda dealer should beable to tell you what part it is and order it for you

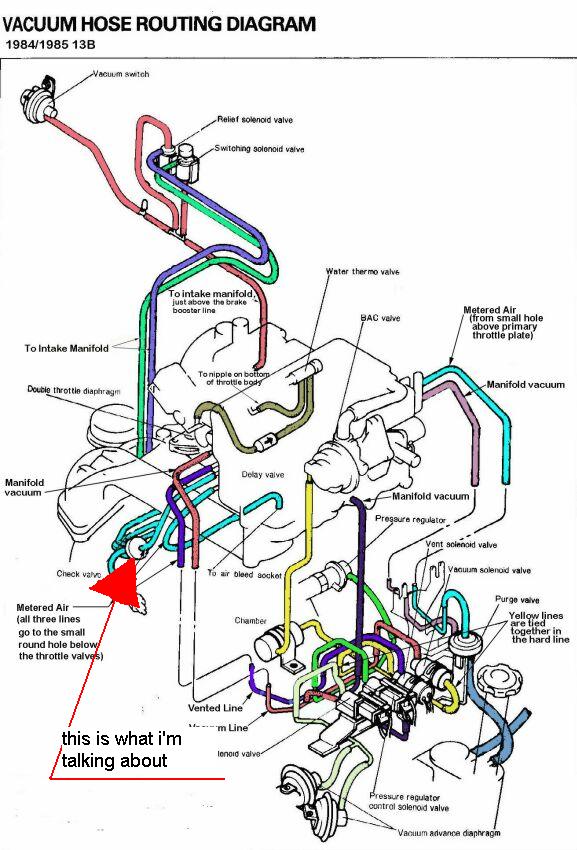

Pic of what i'm referring to...



I looked up the part number off an electronic version of the parts microfiche. The part number should be:

N304-14-617A

You could have the dealership verify this number. It is under the oil pump & filter section in the microfiche (page 1 - F5). Also, mazdatrix has one with the vacuum lines connected and it is $41.61. It says it is for 86-88, but it will probably still work.

http://www.mazdatrix.com/c-5.htm

The cheapest route would probably to get one used from a wrecking yard if you could find one. Hope this helps.

Kent



Just get some epoxy and put the plastic nipples back on.



I actually broke one of those the first time I took the manifold/vaccum lines off. IIRC the stupid part was $16 from the dealer. I'd say look for some connectors (the T connectors for washer fluid) at your local parts store and mickey-mouse it back.



that don't work at all. I tried it w/ the pruge control valve. Lasted about 20 miles.

I agree w/ rotary13b1. I'd just get a tee.



Some kinds of plastic have an almost greasy feel to them and epoxy doesn't stick well to that kind of plastic.
For that kind of plastic I've had good results using "Black Max" which is a black toughened cyanoacrylate made by Loctite. Also, it helps if you clean the parts with alcohol prior to gluing them.
Personally, I'd just take a piece of brass tubing, heat up the end and melt it into the plastic, then fillet the hell out of it with either Black max, JB weld, or my secret weapon baking soda and super glue.



i'd do it if it were for just a regular vacuum but these are going into the OMP valves...don't wanna risk using the wrong part to save $10 and kill the seals



Awww come'on..... don't leave us hang'n like that.
