Will these work as Fusable links?
12-14-04, 11:51 PM
#1
Will these work as Fusable links?

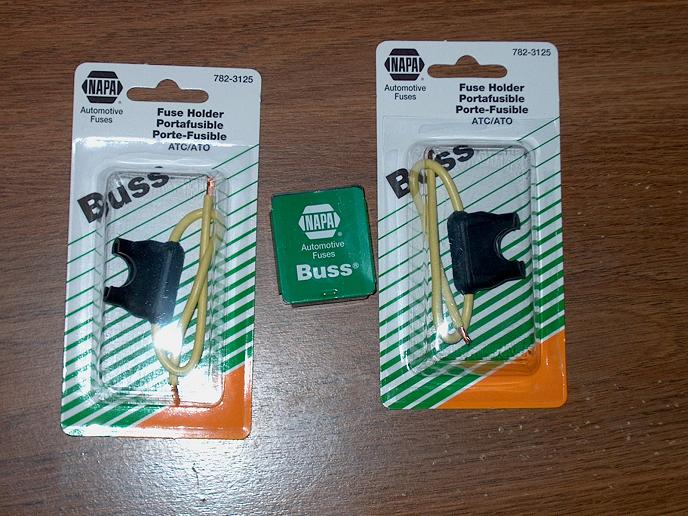

well im troubleshooting an ignition problem and am replacing the fusable links i went into napa and they gave me a couple fuse holders... i dont know anything about fusable links so im wondering if these will work and if so how?
12-15-04, 01:32 AM
#2
Ryan
IMO. Just make sure you get the CORRECT AMPERAGE.
Good Idea, Imma do this mod tomorrow. Better than jacking all the ones at the yard.
Till I do the 2nd gen upgrade.
Good Luck
-Ryan
Good Idea, Imma do this mod tomorrow. Better than jacking all the ones at the yard.
Till I do the 2nd gen upgrade.
Good Luck-Ryan
12-15-04, 01:51 AM
#3
Um, good luck finding fuses larger enough for those. You need like two 30s and a 50 or something like that, I used two 40s and a 60 when I swapped mine out. They make actual replacement fuses that plug in there, take those back and get the right thing.
~T.J.
EDIT: If you WERE to use them, you would just need to add female spade terminals to them to plug each end in, then put the right size fuse in the holder.
~T.J.
EDIT: If you WERE to use them, you would just need to add female spade terminals to them to plug each end in, then put the right size fuse in the holder.
12-15-04, 09:37 AM
#4
Full Member
Join Date: Jan 2002
Location: Illinois
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts
hi
try this link.
https://www.rx7club.com/1st-generation-specific-1979-1985-18/8-sq-mm-fusible-link-plus-what-heck-fusible-link-anyway-374239/
they show the different ones that TJ is talking about
Don
try this link.
https://www.rx7club.com/1st-generation-specific-1979-1985-18/8-sq-mm-fusible-link-plus-what-heck-fusible-link-anyway-374239/
they show the different ones that TJ is talking about
Don
12-15-04, 09:43 AM
#5
No, those are fuses, not fusable links. A fusable will absorb a surge (when lights get turned on etc) where a fuse will not. The fuse will work if you go to a higher amperage but that can be risky in it's own way as well. Buy bulk fusable link, get the bulk ends, a soldering iron and make your own.
12-15-04, 09:48 AM
#6
How About A Cup Of STFU
Join Date: Sep 2004
Location: ALBANY, GA
Posts: 1,552
Likes: 0
Received 0 Likes
on
0 Posts
I believe the Rx-7 fusible link problem is mostly due to poor connection(s) and degradation and not the links themselves being bothersome. I know my few run-ins have always been connection related. I agree with 84 stock: stay with fusible link material and just mod the connectivity.
12-15-04, 10:07 AM
#7
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 84stock
No, those are fuses, not fusable links. A fusable will absorb a surge (when lights get turned on etc) where a fuse will not. The fuse will work if you go to a higher amperage but that can be risky in it's own way as well. Buy bulk fusable link, get the bulk ends, a soldering iron and make your own.
Trending Topics
12-15-04, 12:44 PM
#11
Ryan
Originally Posted by 84stock
No, those are fuses, not fusable links. A fusable will absorb a surge (when lights get turned on etc) where a fuse will not. The fuse will work if you go to a higher amperage but that can be risky in it's own way as well. Buy bulk fusable link, get the bulk ends, a soldering iron and make your own.
Good information. Thanks. I'll stick to pocketing them everytime i go to the yard.
