Sidedraft Weber Questions
Im working on a DCOE45 9 as a test carb and I have a couple of requests. Float level and drop settings? And pics of the throttle linkage, specifically the brackets for the choke and throttle cable. Thanks
#3
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
hmmm, when i had my sidedraft i pretty much had the float as high as i could get it cause anything lower would make me run out of fuel too soon. it's not AS finicky as a nikki. but i'm sure someone on here could give you exact mm number of factory spec.
#5
Airflow is my life
Thread Starter
Dont make me edit your post Mel!
Thanks guys. I got a couple of great weber books but they dont list a level for a rotaty. And the specs are all over the map depending on the engine. This thing has almost no float shutoff, it cant be right.
Thanks guys. I got a couple of great weber books but they dont list a level for a rotaty. And the specs are all over the map depending on the engine. This thing has almost no float shutoff, it cant be right.
#6
Senior Member
Carl, ask on the SCCA prod board about the float level. I bet somebody can answer there. Mine was already set when I bought it from a person off of that board.

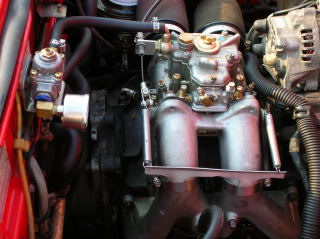

Regarding the linkage, check out the attached pic. I have a 1/4" thick aluminum plate that bolts up by the air horn that the cable sleeve mounts to. I cut off the round thingy (technical term) on the end of the stock cable itself, and attached a cable pull I got at Jegs. This attached to the lever on the throttle shaft.
The attached picture looks like it doesn't pull straight on the lever, but I have since fixed that by proper spacers where the pull attaches to the lever.
Now the throttle return spring setup I have is admittedly a little cheesy , but it does pull straight back on the lever and does not bind at all. I need to think of a more elegant setup.
Seems to work great. I did some research and there is a specific kit sold for these but it is expensive and looks complex.
One more thing: I don't have the choke connected. Makes it a bit cold blooded but I only drive it when it is nice out anyhow!
Regarding the linkage, check out the attached pic. I have a 1/4" thick aluminum plate that bolts up by the air horn that the cable sleeve mounts to. I cut off the round thingy (technical term) on the end of the stock cable itself, and attached a cable pull I got at Jegs. This attached to the lever on the throttle shaft.
The attached picture looks like it doesn't pull straight on the lever, but I have since fixed that by proper spacers where the pull attaches to the lever.
Now the throttle return spring setup I have is admittedly a little cheesy , but it does pull straight back on the lever and does not bind at all. I need to think of a more elegant setup.
Seems to work great. I did some research and there is a specific kit sold for these but it is expensive and looks complex.
One more thing: I don't have the choke connected. Makes it a bit cold blooded but I only drive it when it is nice out anyhow!
Last edited by 31rx7; 12-20-05 at 09:03 PM.
