since i'm a visual learner, and none of my manuals have a good structural diagram of this part, i'll ask here:

where is the temp gauge sensor, and what exactly does it measure? i've been told it measures coolant temp, but as far as i can tell it's in the oil pan. is it in the oil pan but close to the coolant passages to pick up the coolant temp that way? what gives?

anyhoo, here is my picture



neither my oil pressure gauge or temp gauge work right -- oil pressure doesn't read anything and the temp sensor pegs on H.

i wouldn't mind limping my car home to work on rather than having to drive across town to do anything to it, but if i'm not getting oil pressure, i'd rather not. is there a way to check for oil pressure without this gauge? is there a simple way to install an aftermarket oil pressure gauge?

txredneckmedic

Oil pressure guage is under the beehive. The water temp is over there also....if you do a search on some of my old posts....theres a good pic there.

cpt_gloval

iTrader: (1)

i don't have a beehive. this is on a '84 GSL-SE 6-port.

cdrad51

and what, you don't have a search button either? lazy bastard.

oil pressure sender:

cdrad51

water temp sensor:

cpt_gloval

iTrader: (1)

i did search! perhaps i didn't use the right terms..

anyhoo thanks. i guess i was looking in the wrong place.

what do the leads coming off the oil pan feed, then?

frode

the single-lead is for the oil-level sensor warning light.

trochoid

iTrader: (6)

In your diagram, the lead on the left is the oil level sender, the one on the right is for the sub-zero start assist.

Jeff20B

iTrader: (13)

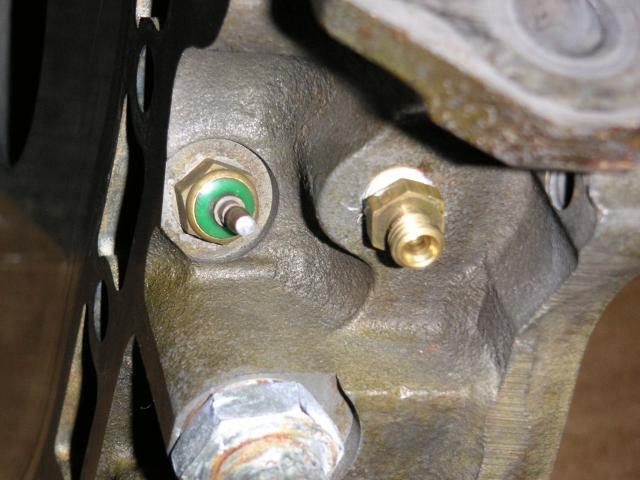

I'm a little late, and I know this probably won't help, but take a look at this.
