1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

Rear end pumkin damaged

Thread Tools

Search this Thread

Old Sep 28, 2022 | 09:13 AM
  #1
Rx7bgs366's Avatar
Thread Starter
Full Member

Joined: Oct 2021
Posts: 82
Likes: 3
From: Brooklyn

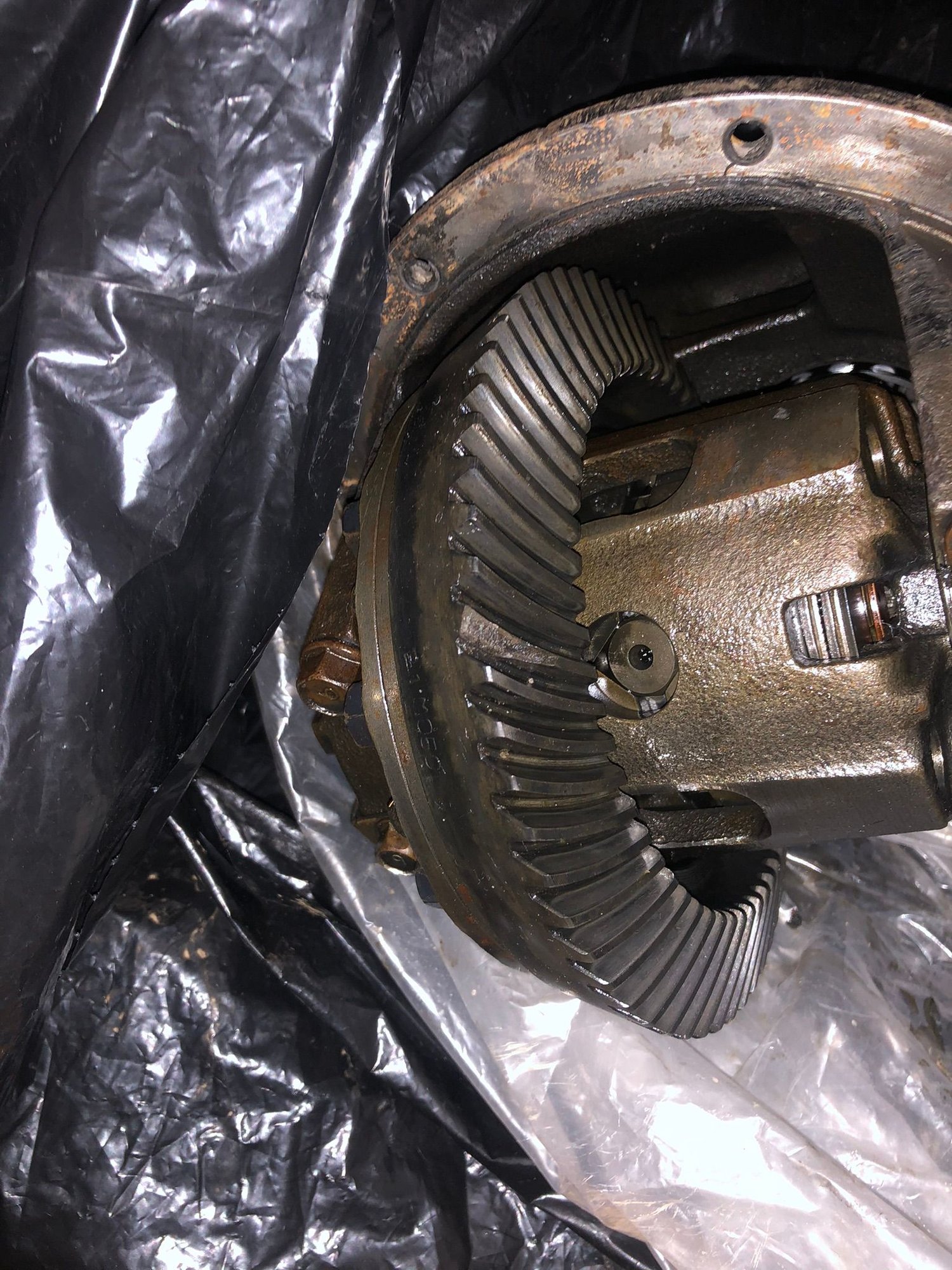

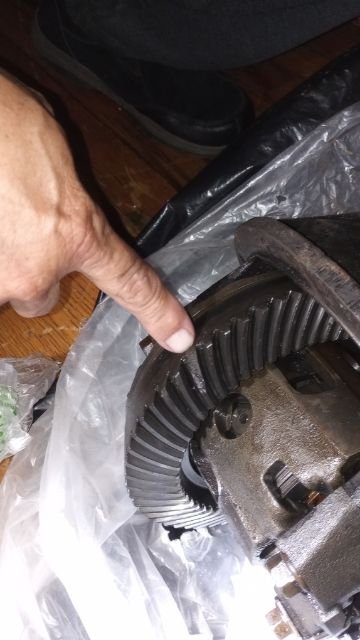

Rear end pumkin damaged

Only have a 12 streetport. Dont launch the car only weekend it took me a long time to find this part.finally got it for $300 usd is damaged on one tooth . Still Can be spung with out no issues . Was thinking of installing it as is ? Asked a couple machine shops and they said i can fether edge it and grind it down a bit ? Why would i grind down the only bad gear and take it down dont understand what feather edge is by the way. Guys what you suggest alot have told me buy the peace or racing beat yeah i know they sell them but they cost $900.




Last edited by Rx7bgs366; Sep 28, 2022 at 09:56 AM.
Reply
Old Sep 28, 2022 | 10:25 AM
  #2
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,704
Likes: 1,250
From: KC
I would not run it and ask to return it if the seller did not disclose the damage. The ring gear can be replaced but will require a new crush washer and setting lash. Not something a beginner should tackle.
Reply
Old Sep 28, 2022 | 10:27 AM
  #3
Seniorchief's Avatar
seniorchief
Veteran: Navy
Tenured Member: 25 Years
Liked
Community Favorite

Joined: Feb 2001
Posts: 622
Likes: 360
From: Indianapolis, IN
Grinding it down will remove the pieces that will eventually continue to break off the damaged tooth, and "feathering" it will produce a "smoother" engagement.
Reply
Old Sep 28, 2022 | 11:02 AM
  #4
TreeFittySeven's Avatar
Rotary Enthusiast
Tenured Member: 10 Years
Liked
Loved
Community Favorite

Joined: Jun 2013
Posts: 840
Likes: 2,410
From: Mom’s basement
Originally Posted by KansasCityREPU
I would not run it and ask to return it if the seller did not disclose the damage. The ring gear can be replaced but will require a new crush washer and setting lash. Not something a beginner should tackle.
Definitely not questioning your expertise. I would not run it either and would check for a return. But he can replace the ring gear w/o removing the pinion can't he.

I completely went through the same rear end and replaced the discs and all. I did not replace the crush washer or remove pinion. I did check the lash though and made sure on the ft lbs on the pinion.

been running fine since then
Reply
Old Sep 28, 2022 | 12:54 PM
  #5
j_tso's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (2)

Joined: Dec 2004
Posts: 1,973
Likes: 400
From: Austin, TX
Originally Posted by ATC529R
But he can replace the ring gear w/o removing the pinion can't he.
While the ring gear can be removed by itself, it's generally discouraged to mix and match ring and pinions especially used ones.
Reply
Old Sep 28, 2022 | 01:48 PM
  #6
TreeFittySeven's Avatar
Rotary Enthusiast
Tenured Member: 10 Years
Liked
Loved
Community Favorite

Joined: Jun 2013
Posts: 840
Likes: 2,410
From: Mom’s basement
gotcha thanks for clarification.
Reply
