Question for those with the Respeed brake kit

Reply Subscribe

Thread Tools

Search this Thread

Oct 24, 2006 | 12:35 AM

#51

13BT_RX3

The General RE

Joined: Apr 2003

Posts: 924

Likes: 13

From: San Diego, CA

Quote:

Originally Posted by Rico Suave

pics of the proyect

I see in your pics that the face of 4 bolt hub is higher than the face of your rotors. Do your wheels rest on the hub face or the rotor face?

Oct 24, 2006 | 12:42 AM

#52

13BT_RX3

The General RE

Joined: Apr 2003

Posts: 924

Likes: 13

From: San Diego, CA

Quote:

Originally Posted by Dan_s_young

I believe you first of all need the spindles from a 84-85. The bearing spacer that the kit comes with is press fitted onto the spindle.

TII 4 piston calipers, brake lines that mate into the stock hardline and into the calipers, brake pads, brake pad hardware kit, rotors, TII grease seals, and at a bare minimum the TII inner wheel bearings. It is probally a good idea to get new outter wheel bearings at the same time.

2nd gens are not the easiest cars to change front wheel bearing races on. And changing bearings without races isn't ideal. There is no relief to allow use the common removal tools. You need to either get creative or destructive or both. Mazdatrix recommends using a die grinder, which worked for me.

Oct 24, 2006 | 07:51 AM

#53

Dan_s_young

Turbo widebody FB

iTrader: (1)

Joined: May 2004

Posts: 3,733

Likes: 3

From: Alberta Canada

Yes I should have mentioned that, I grooved out 2 areas in the hubs, and then hammered out the old races.

Oct 24, 2006 | 03:11 PM

#54

Maguire

Born 2 Brap

iTrader: (1)

Joined: Jun 2002

Posts: 1,068

Likes: 3

From: Louisville, Ky

Quote:

Originally Posted by Dan_s_young

Same length yes, but where it connects into the caliper is different. As you can see the TII caliper uses 2 crush washers and a banjo bolt type design. I used the SS braided Mazdatrix TII lines (4 pot).

Note you may want to replace your brake hardlines because the stock hardline tends to rust and weaken (at least it did on my car).

Heres a picture of everything you need:

Where are your hubs? heheh

Oct 24, 2006 | 03:48 PM

#55

85rotarypower

love the braaaap

Joined: Jul 2003

Posts: 3,771

Likes: 5

From: Bognor, Ontario

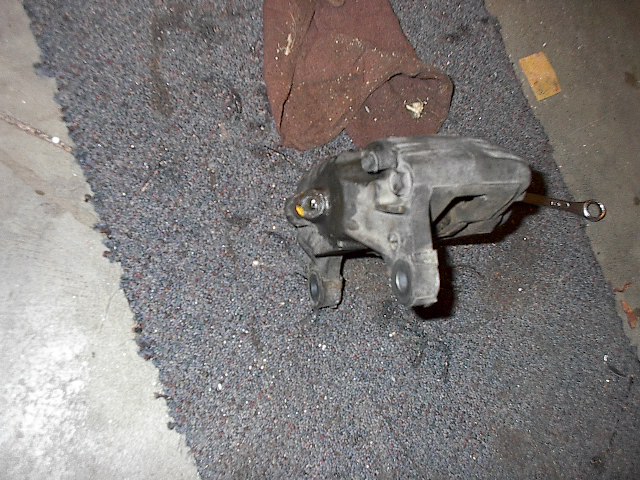

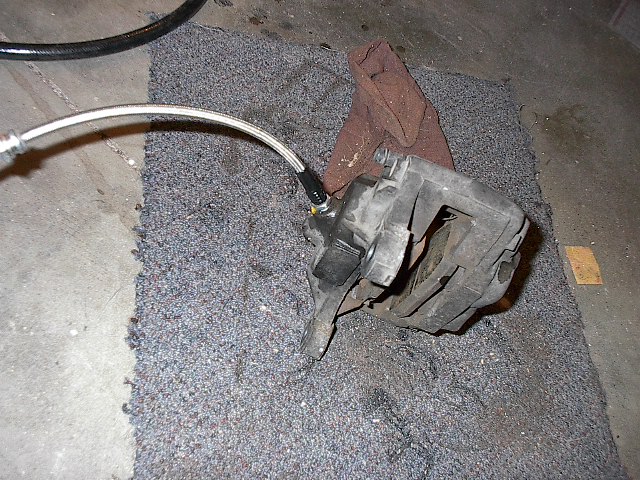

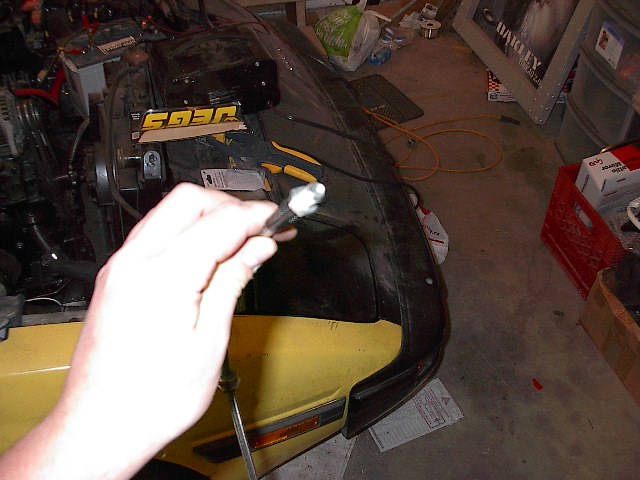

I don't believe you have to use the banjo fitting. Standard FB SS lines should work. The Mazdatrix lines have a flare like a regular brake line on the end that connects to the caliper, and the caliper has the inverted flare to accept a regular brake line, so the two just mate up like a regular steel hardline. All you would have to do if figure out a mounting location for the center of the flex line. Oh ya, there is no evidence of any banjo bolt ever being on these calipers.

The pics suck, I know. But mabey you can make them out?

Attached Thumbnails
