Question Power steering on SE

I bought a GSL-SE and I though all SE were power steering but this one is not. Now my question is, can I install a power steering system from another SE to mine? If possible, how hard it is and is it worth it? Had any one tried this before? Any help will be appreciated.

Thank you,

Luism12lm
Old 01-05-07, 09:10 PM
  #2
FD Daily

iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
was only an option.

i think you'd need the pump and assuciated lines, as well as a new steering box.
Old 01-05-07, 09:28 PM
  #3
Lives on the Forum

iTrader: (13)

Rx-7Doctor's Avatar

Join Date: Jul 2004
Location: Oregon
Posts: 10,584
Likes: 0
Received 11 Likes on 10 Posts
Originally Posted by FBDrifter
was only an option.

i think you'd need the pump and assuciated lines, as well as a new steering box.
It was standard equipment on the Se's in the US. I have only heard of Canadian models that some did not come with P/S.

The GSL was the model where it was an option.

Luism12lm, Does it look like there are lines run back into the steering box?
Old 01-05-07, 09:59 PM
  #4
JKM


JKM's Avatar

Join Date: Oct 2003
Location: Burlington, NC
Posts: 1,341
Likes: 0
Received 6 Likes on 2 Posts
My SE doesn't have power steering either.

I would leave it off, the 1st gen's power steering sucks. Just get a better steering wheel and all will be well.
Old 01-05-07, 11:52 PM
  #5
Rotary Enthusiast

iTrader: (1)

Nicholas P.'s Avatar

Join Date: Jun 2005
Location: Louisiana
Posts: 1,415
Received 0 Likes on 0 Posts
Originally Posted by JKM
My SE doesn't have power steering either.

I would leave it off, the 1st gen's power steering sucks. Just get a better steering wheel and all will be well.
Power steering is great. If your a race car driver needing every hp then its a problem. Its great to have.
Old 01-06-07, 07:26 AM
  #6
Full Member

Thread Starter

luism12lm's Avatar

Join Date: Apr 2003
Location: Orlando, Fl
Posts: 108
Likes: 0
Received 0 Likes on 0 Posts
The “steering gear” of a SE power steering system and the “steering gear” of a non-power steering SE, are they the same? Both “steering gears” look the same in the Mazda RX-7 1984 Workshop Manual.
Old 01-06-07, 07:53 AM
  #7
Can't Hear Now

iTrader: (62)

RX3SP's Avatar

Join Date: Feb 2006
Location: Georgia
Posts: 380
Received 4 Likes on 4 Posts
Originally Posted by rx7doctor
It was standard equipment on the Se's in the US. I have only heard of Canadian models that some did not come with P/S.

The GSL was the model where it was an option.

Luism12lm, Does it look like there are lines run back into the steering box?
Some of the US spec SE's had power steering and some didn't. It was an option here also.
Old 01-06-07, 12:28 PM
  #8
Lives on the Forum

iTrader: (13)

Rx-7Doctor's Avatar

Join Date: Jul 2004
Location: Oregon
Posts: 10,584
Likes: 0
Received 11 Likes on 10 Posts
Originally Posted by RX3SP
Some of the US spec SE's had power steering and some didn't. It was an option here also.
I have never seen a US non-P/S supplied model. I have seen alot of the pumps removed but still had the P/S Gear boxes in place.

luism12lm. The steering boxes are different.
Can you post up a picture of the box on your car? Thats all I need is view from the top, not the bottom.
Old 01-06-07, 01:49 PM
  #9
FD Daily

iTrader: (26)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,308
Likes: 0
Received 13 Likes on 13 Posts
my SE didn't come with P/S.
Old 01-06-07, 02:18 PM
  #10
Junior Member


jpre's Avatar

Join Date: Sep 2005
Location: SF Bay Area
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
My US 85 SE is manual steering.

I don't think horsepower is the only reason racers like manual steering. It helps them know when the front end is losing traction by getting too light more quickly than power steering can.
Old 01-06-07, 02:57 PM
  #11
Lives on the Forum

iTrader: (13)

Rx-7Doctor's Avatar

Join Date: Jul 2004
Location: Oregon
Posts: 10,584
Likes: 0
Received 11 Likes on 10 Posts
Ok guys, I want to see pictures of the tops of all the non-p/s steering boxes you guys have.
Old 01-06-07, 03:11 PM
  #12
Full Member

Thread Starter

luism12lm's Avatar

Join Date: Apr 2003
Location: Orlando, Fl
Posts: 108
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rx7doctor
Ok guys, I want to see pictures of the tops of all the non-p/s steering boxes you guys have.

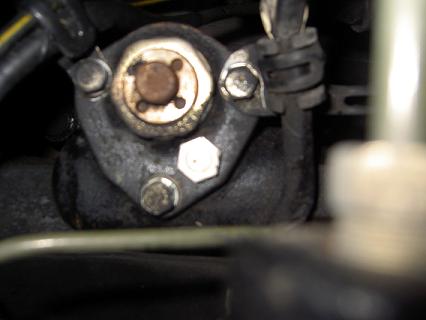

Photos Of Non- P/S
Attached Thumbnails Power steering on SE-pict3029.jpg   Power steering on SE-pict3030.jpg
