Does anyone have a picture of a brake master cylinder and booster from a 79/80 car? I have a RHD model and need to buy a new one and want to make sure the USDM part is the same. Thanks.

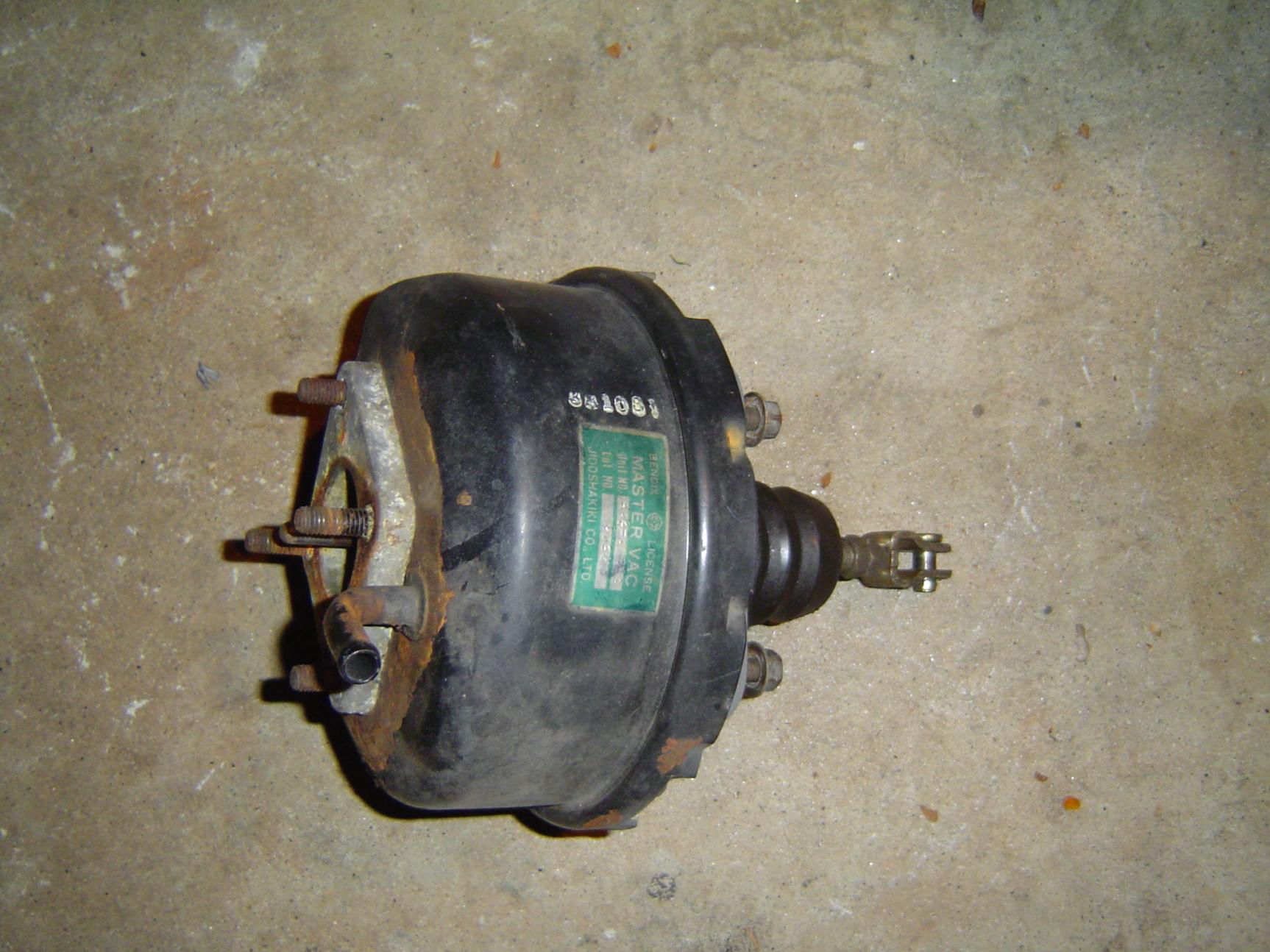

I am not sure if you mean in a car or out of a car, but here is a picture of my 79' booster I took out when I upgraded recently. Do you need any measurements?



Do you have a pic of the master cylinder? Trying to see what side the brake lines are on. Thanks again



On LHD the lines are -
-2 into the bottom (so same on LDH, RHD)
-one on RIGHT (engine) side going to front brake line, so this might be a problem unless you get a custom line made.

Since mazda no longer lists the LHD (US) Brake master as an available part (lots of remans on ebay), then getting even the correct RHD unit from Mazda is even more unlikely. maybe check on UK (britain) mazda site and see if anyone there can hook you up?
mazdarotaryclub.com

Stu Aull
80GS
Alaska

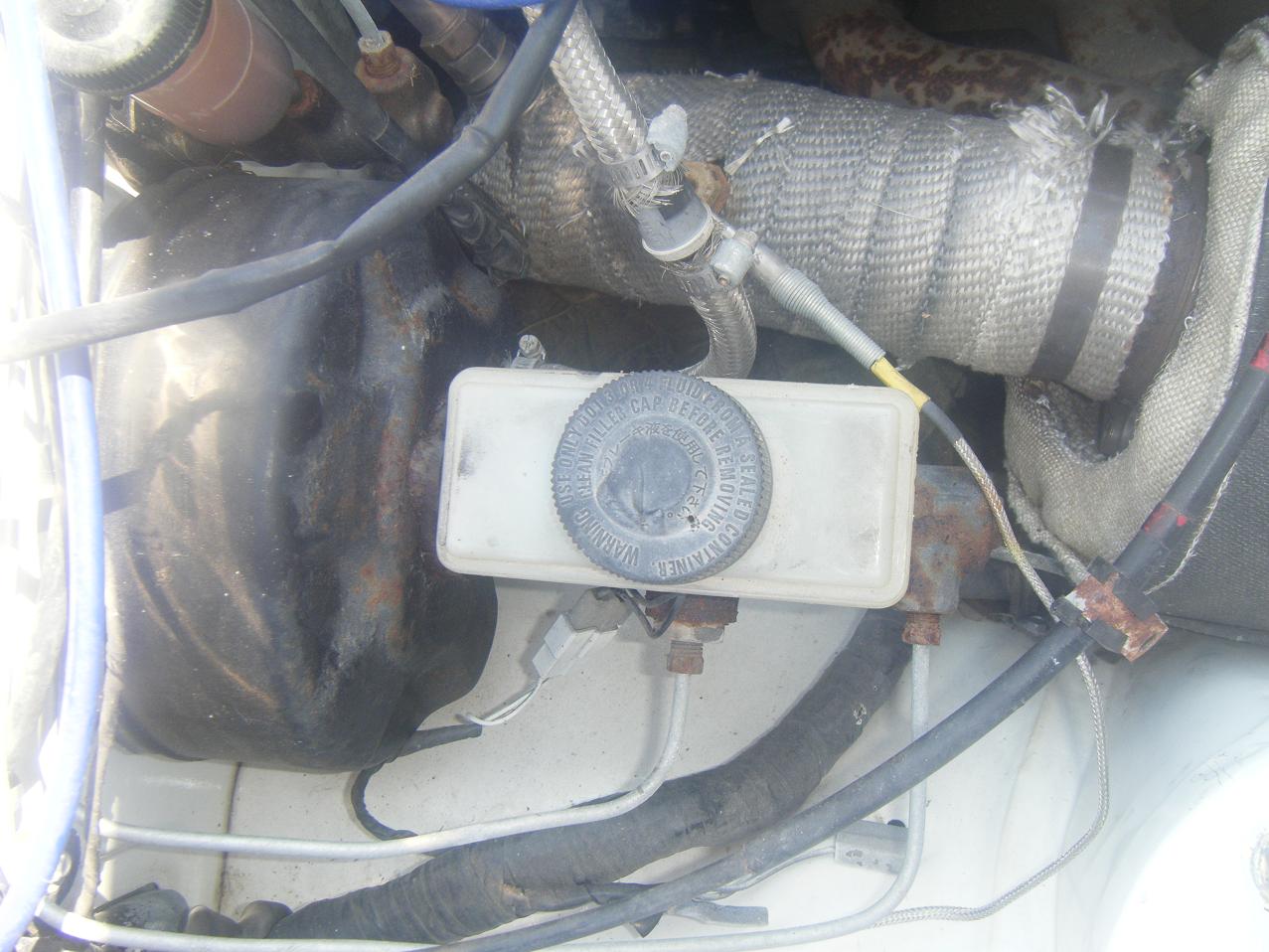

Pics from my 80 RHD master cylinder. 2ea lines on the side and 1ea line on the bottom.



Sorry, no pics of the master. It was pulled and swapped with an SE one a while back.



80 LHD:



Thanks



Anything special have to be done to swap it with a GSL-SE set?
