Panhard bar setup.
12-31-06, 04:11 PM
#1
Boinger
Thread Starter
iTrader: (3)
Join Date: Jun 2001
Location: Huntersville, NC
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Panhard bar setup.

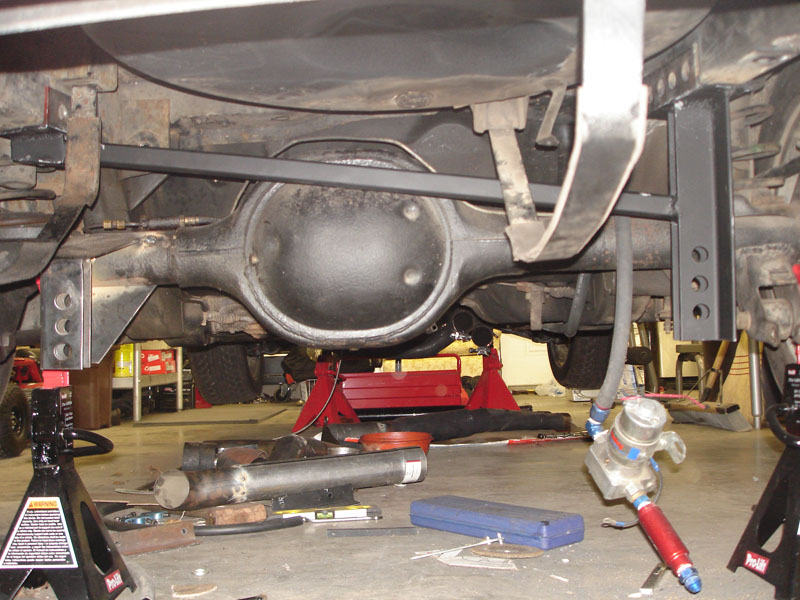

This past week I had time off and put together a panhard bar setup that I was thinking about doing for a few weeks. I took some pictures of the final assembly minus the installed bar and finish welding.
12-31-06, 04:28 PM
#4
Not bad work at all sir. Im glad you posted pics like this, I now have a better understanding of it and the install. Is this a track car for you by chance?
I cant stop looking at it, I like it alot haha.
I cant stop looking at it, I like it alot haha.
Last edited by Anex 570; 12-31-06 at 04:48 PM.
12-31-06, 05:31 PM
#7
Boinger
Thread Starter
iTrader: (3)
Join Date: Jun 2001
Location: Huntersville, NC
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Thanks. It's not a track car really. Pretty much just a toy.
The rear is a Ford 8".

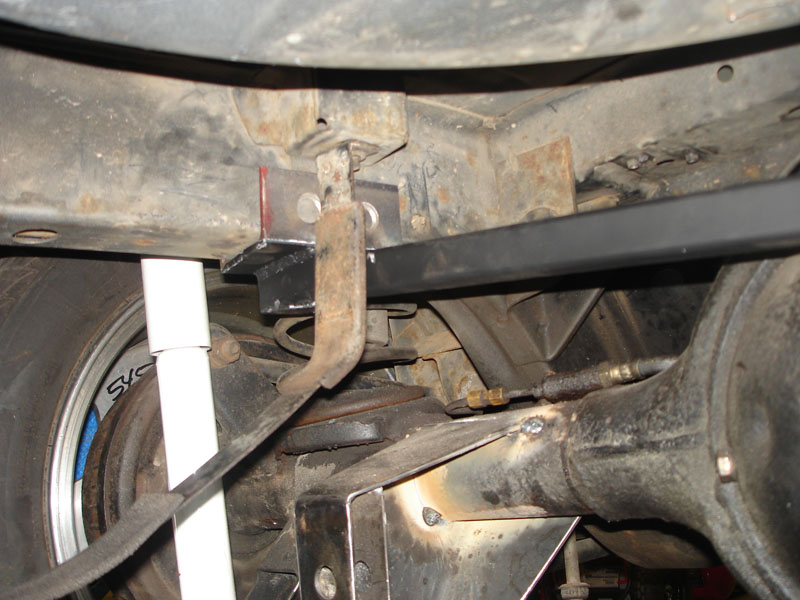

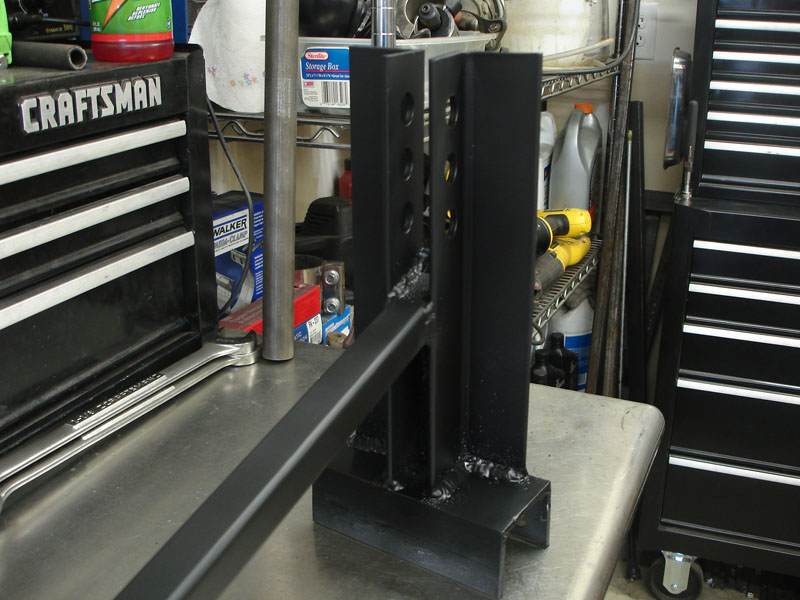

The holes are for welding so there will be more than just the edges along the rails. It's a little overkill. I still have to weld it all into place.
The rear is a Ford 8".
Originally Posted by 82transam

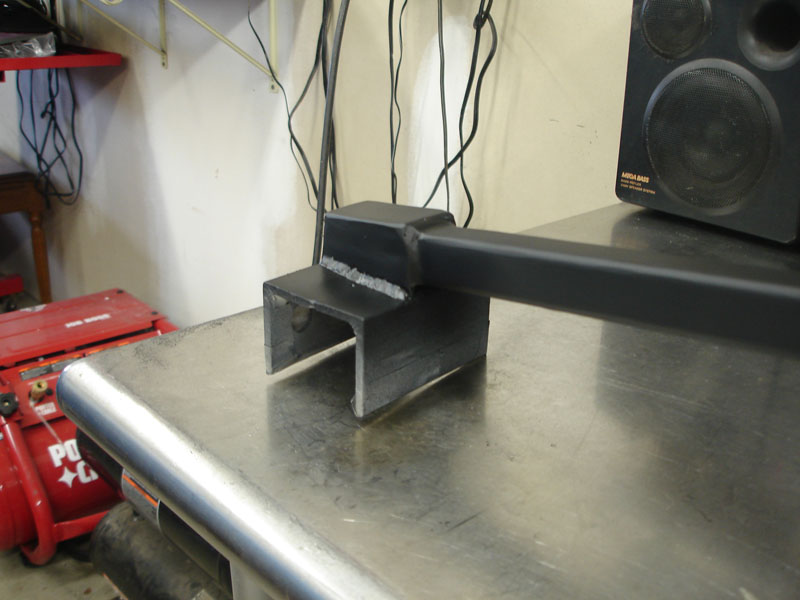

Very cool, nice work. how are you attaching it to the frame, just bolts through those holes you have drilled on the C-channel or are you gonna weld it too?
Trending Topics
12-31-06, 07:25 PM
#10
Senior Member
Originally Posted by aussiesmg
OK several points, from what i see it doesn't pivot and both ends of the panhard are hard welded, how can you suspension work? This is a serious issue and your car is dangerous without pivot points at both end of the panhard, do not drive it like this..............
Your panhard should be level when the car is at rest
Where your panhard crosses the center line of the car becomes your roll center, yours appears to be very high.
This bar must pivot for the suspension to operate................WARNING
Your panhard should be level when the car is at rest
Where your panhard crosses the center line of the car becomes your roll center, yours appears to be very high.
This bar must pivot for the suspension to operate................WARNING
12-31-06, 07:31 PM
#12
FB+FC=F-ME
I was a little lost at first too.....

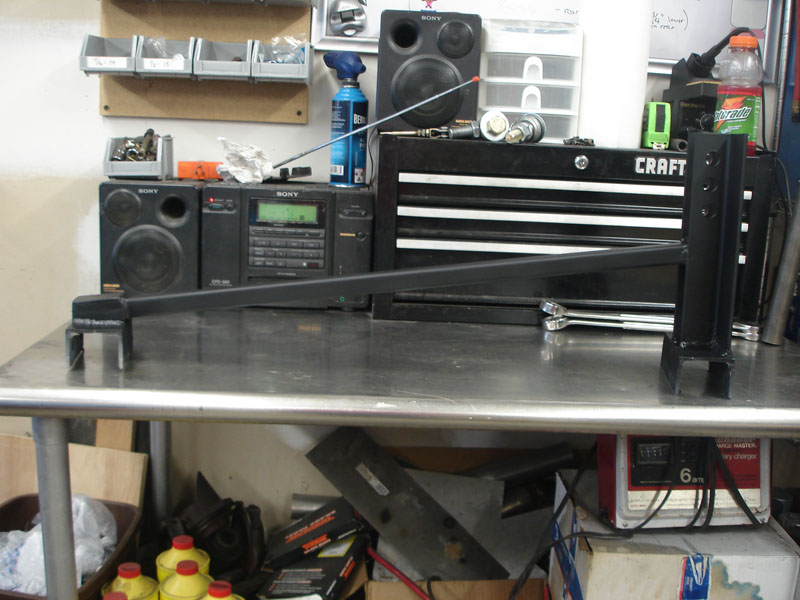

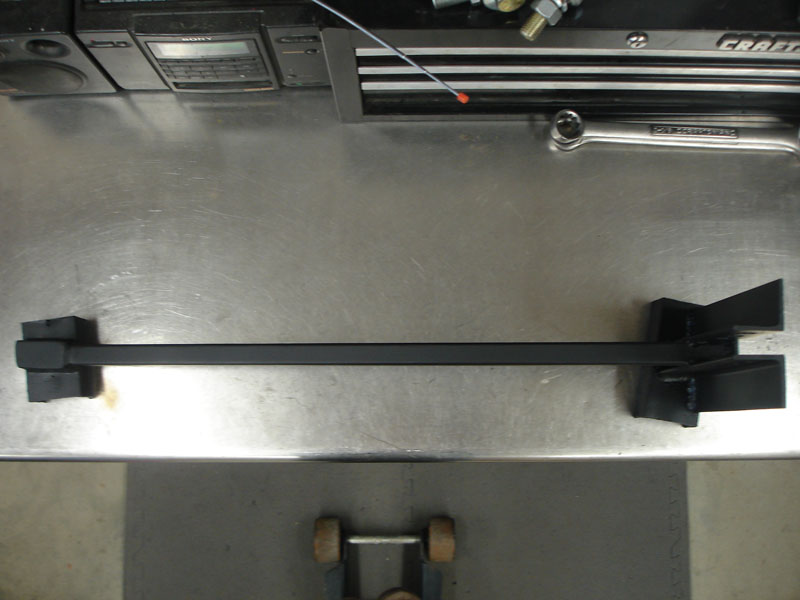

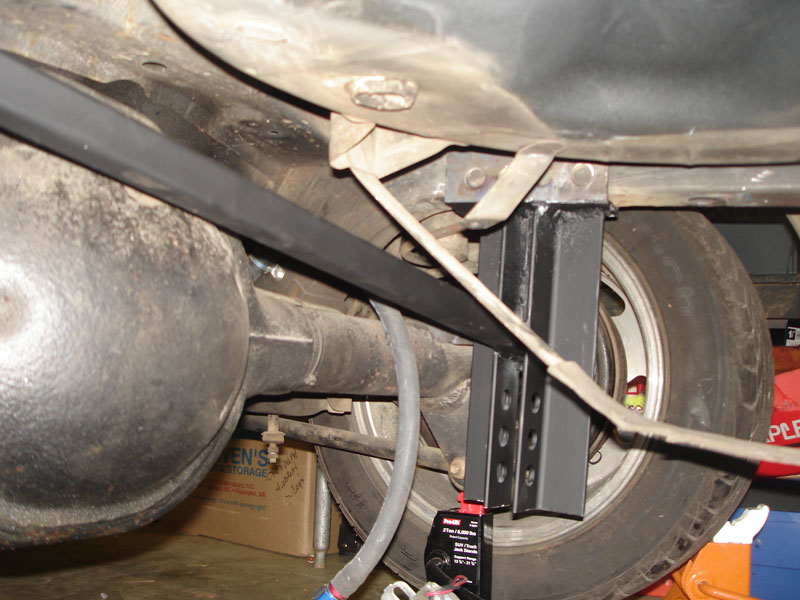

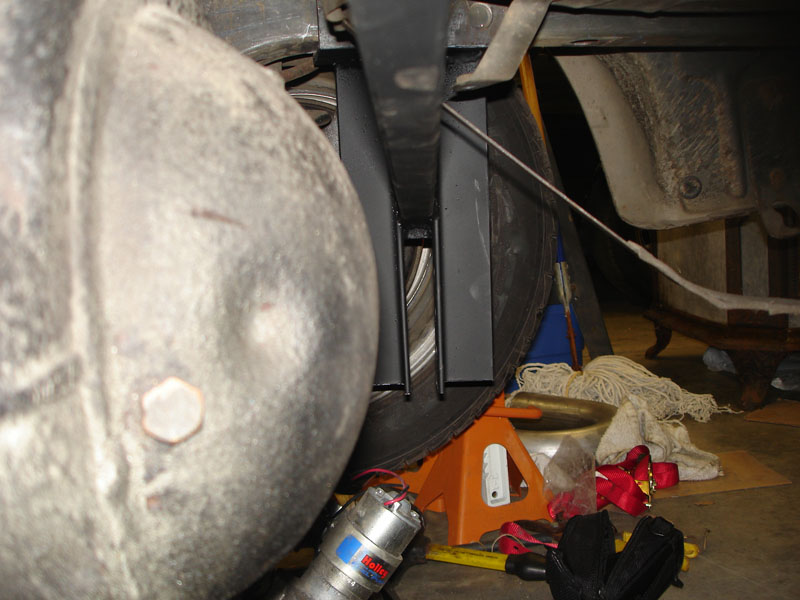

The black,welded bar in the last pics is a strut brace for the vertical mount on the right side of the car.At the bottom of that mount, are the holes for the jointed panhard which attaches to the mount welded to the axle.

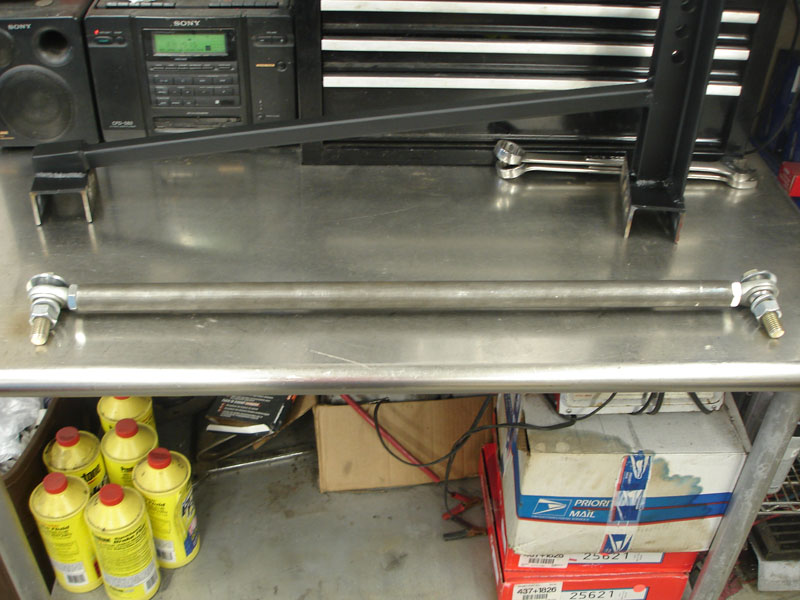

The actual panhard is shown in the first couple pics(silver, w/Heims)
The black,welded bar in the last pics is a strut brace for the vertical mount on the right side of the car.At the bottom of that mount, are the holes for the jointed panhard which attaches to the mount welded to the axle.
The actual panhard is shown in the first couple pics(silver, w/Heims)
12-31-06, 10:15 PM
#15
Boinger
Thread Starter
iTrader: (3)
Join Date: Jun 2001
Location: Huntersville, NC
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
2 questions. How far in each direction, side to side, do you expect the rearend to shift and would it be better to reverse it for clearance for the over axle exhaust?
3rd question, are you planning on going with a tri-link later on?
3rd question, are you planning on going with a tri-link later on?
I can't remember the exact number, but it's small. The bar is almost 30 inches long. And the exhaust is good. I'm doing that next.
I might add a tri link.
01-01-07, 04:12 PM
#16
Senior Member
iTrader: (2)
Join Date: Dec 2005
Location: Wauwatosa Wisconsin
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
***2 questions. How far in each direction, side to side, do you expect the rearend to shift***
Being that mattp said the Panhard bar is approx 30 inches long you could draw some lines at a 30 inch radius & get a fair idea of how little the chassis/rearend movement to each other is.
***and would it be better to reverse it for clearance for the over axle exhaust?**
The answer to this question is, yes you would have better clearance on the passenger side for the exhaust. The Panhard bar end that mounts to the chassis should be determined IMHJ (because of changing roll center height) by doing an analysis of the tracks you run if the car is a track car. On a strreet only car I would mount the chassis bracket to the drivers side of the car. More clearance for the exhaust on the passengers side.
The G-Force Tri-link is a nice piece.
Have Fun
David
Being that mattp said the Panhard bar is approx 30 inches long you could draw some lines at a 30 inch radius & get a fair idea of how little the chassis/rearend movement to each other is.
***and would it be better to reverse it for clearance for the over axle exhaust?**
The answer to this question is, yes you would have better clearance on the passenger side for the exhaust. The Panhard bar end that mounts to the chassis should be determined IMHJ (because of changing roll center height) by doing an analysis of the tracks you run if the car is a track car. On a strreet only car I would mount the chassis bracket to the drivers side of the car. More clearance for the exhaust on the passengers side.
The G-Force Tri-link is a nice piece.
Have Fun
David
01-01-07, 07:13 PM
#17
Boinger
Thread Starter
iTrader: (3)
Join Date: Jun 2001
Location: Huntersville, NC
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by David Dewhurst
***2 questions. How far in each direction, side to side, do you expect the rearend to shift***
Being that mattp said the Panhard bar is approx 30 inches long you could draw some lines at a 30 inch radius & get a fair idea of how little the chassis/rearend movement to each other is.
***and would it be better to reverse it for clearance for the over axle exhaust?**
The answer to this question is, yes you would have better clearance on the passenger side for the exhaust. The Panhard bar end that mounts to the chassis should be determined IMHJ (because of changing roll center height) by doing an analysis of the tracks you run if the car is a track car. On a strreet only car I would mount the chassis bracket to the drivers side of the car. More clearance for the exhaust on the passengers side.
The G-Force Tri-link is a nice piece.
Have Fun
David
Being that mattp said the Panhard bar is approx 30 inches long you could draw some lines at a 30 inch radius & get a fair idea of how little the chassis/rearend movement to each other is.
***and would it be better to reverse it for clearance for the over axle exhaust?**
The answer to this question is, yes you would have better clearance on the passenger side for the exhaust. The Panhard bar end that mounts to the chassis should be determined IMHJ (because of changing roll center height) by doing an analysis of the tracks you run if the car is a track car. On a strreet only car I would mount the chassis bracket to the drivers side of the car. More clearance for the exhaust on the passengers side.
The G-Force Tri-link is a nice piece.
Have Fun
David
I think if I had an off the shelf exhaust or there would most likely be a clearance issue, but I've made my own and worked on it along side the panhard bar to make sure things would clear. I actually think exhaust clearance would have been a little more tricky if it were switched.
It's all quite circumstantial anyway.
01-01-07, 07:39 PM
#18
Senior Member
iTrader: (2)
Join Date: Dec 2005
Location: Wauwatosa Wisconsin
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
***I actually think exhaust clearance would have been a little more tricky if it were switched. ***
mattp, I have a three inch over the axle with the Panhard bar chasis mounting on the drivers side.
Whatever serves the persons need.
mattp, I have a three inch over the axle with the Panhard bar chasis mounting on the drivers side.
Whatever serves the persons need.
01-02-07, 09:03 AM
#20
Senior Member
iTrader: (2)
Join Date: Dec 2005
Location: Wauwatosa Wisconsin
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
*** Fifty ways to skin a cat.***
If you want to play upsmen ship there is a reason on an ITA race car why the Panhard bar attaches to the chassis on the drivers side or the passengers side. With that said there are not Fifty ways to skin the cat.
If you want to play upsmen ship there is a reason on an ITA race car why the Panhard bar attaches to the chassis on the drivers side or the passengers side. With that said there are not Fifty ways to skin the cat.
Last edited by David Dewhurst; 01-02-07 at 09:12 AM.
