Brap_Brap_George

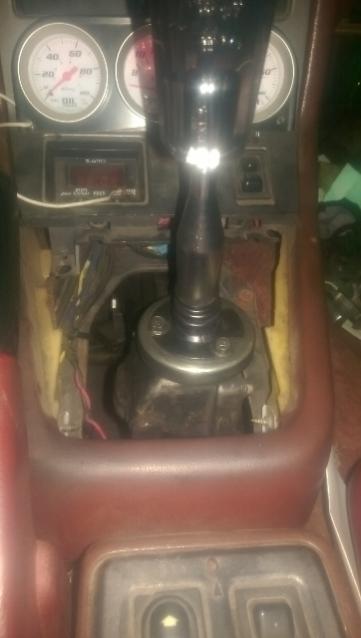

Last night I installed a spare first gen trans my brother had laying around. I also replaced the mount with an LRB Speed billlet aluminum mount. Now my tailhousing doesn't sit centered. Any of you ever encounter this?

Qingdao

iTrader: (3)

The mount is obviously the issue. That'll mess up the driveline angles for sure.

I'd dremel out the holes on the mount to get it strait. There might be some wiggle room on that mount though.

DivinDriver

iTrader: (15)

Are you sure you don't have the mount backwards? They are not L/R symmetrical.

Brap_Brap_George

I installed the mount the right way. Could it be that the motor moved when I was pulling the transmission?

Brap_Brap_George

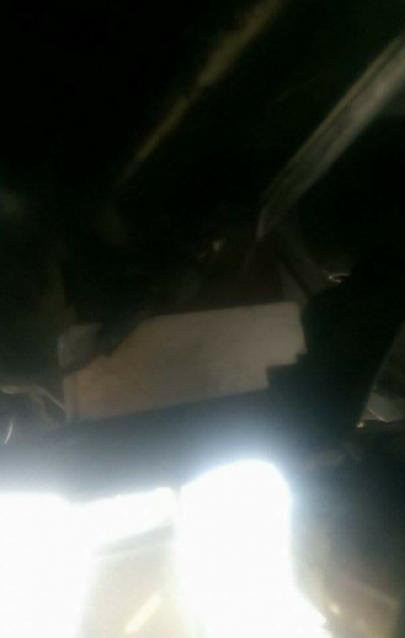

Blurry pic of the mount

j9fd3s

iTrader: (3)

no, try flipping the mount around, they aren't symmetrical.

t_g_farrell

iTrader: (1)

I doubt the motor moved. Whats an LRB Speed billet mount anyway? Is it made correctly for
an RX7?

As others said the stock mount is not symmetrical for the same reason that passenger
seat inner rail is different from the drivers side inner rail. The tranny tunnel does some weird
changes in shape on the passenger side.

Jeff20B

iTrader: (13)

It's a lump for the exhaust system, mostly for the cat. I tried a set of SA seats in
my rotary MG Midget because the originals were long gone. I had to put the
passenger seat on the driver's side due to fitment issues with the highback
release lever, and needed to add a 1x1 length of wood under one rail if I recall
correctly.

Keeping this thread related, I installed a competition trans mount in the MG and
it had to be flipped around due to fitment issues. It lets everything line up but I
had to fight the natural angle of the studs. At least being brand new and a
competition version, it should last a long time, even while installed backwards.

erick31876

iTrader: (8)

Here is a picture of how it is supposed to be mounted, this was taken out of a 85 GSL

Brap_Brap_George

I fixed the problem guys. Thanks for everyone's advice!!!!
