Modified Fuel Pickup To 3/8 Lines
#1
Modified Fuel Pickup To 3/8 Lines

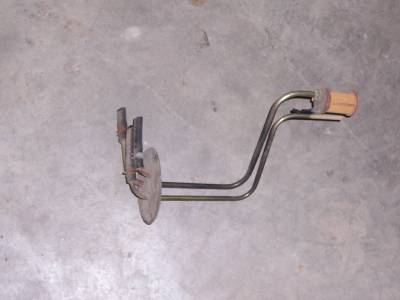

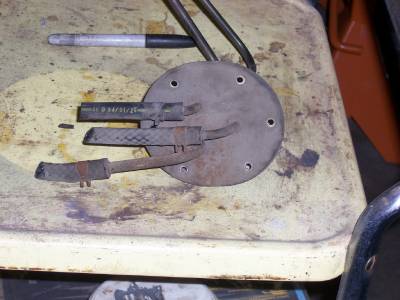

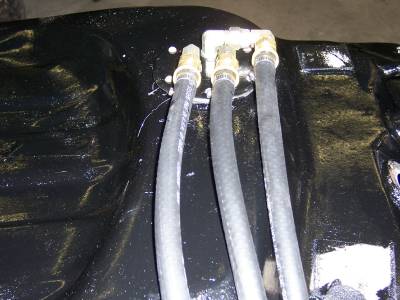

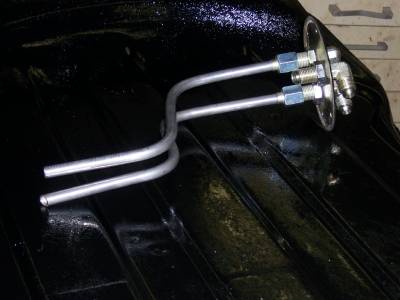

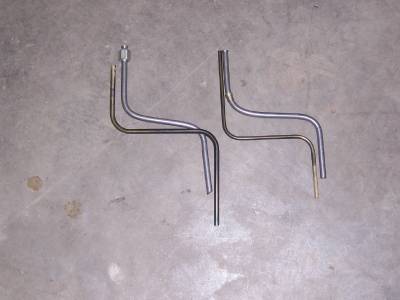

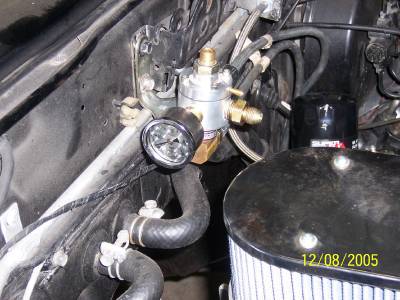

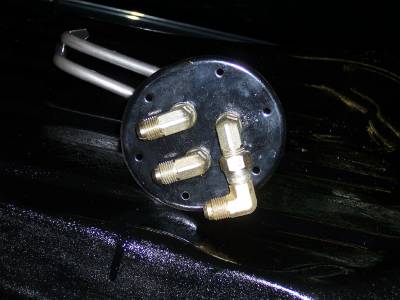

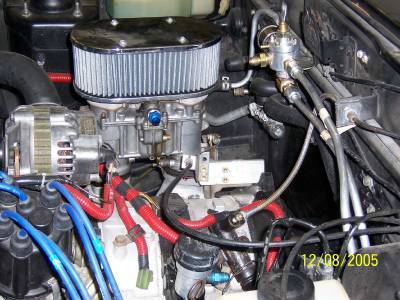

With the bigger carb I decided to switch to a 3/8 feed and return and vent lines from the tank to the carb. I removed the tank and modified the stock pickup using AN-6 bulk head fittings instead of the stock 1/4" and 5/16" lines. Then I ran a 3/8 feed and return line to a Mallory regulator and using a Holley blue pump to feed the carb. This should solve any fuel starvation problems. This was pretty easy to do because I ran the lines in the stock locations and used fittings from the Parker store instead of Earls or aircraft fittings
#6
The Shadetree Project
iTrader: (40)
I've never seen a GSL tank that the pick up and return were mounted to the plate. Real 12a factory tanks the lines were solderd into the tank. You got lucky and have an SE tank. Unless there's some Mazda conspiracy that I don't know of and I just keep getting the crappy unmodable tanks. Most likely the latter...
Trending Topics
#10
RX for fun
iTrader: (13)
Nice and very creative. Keep up the good work.
Originally Posted by broke7
With the bigger carb I decided to switch to a 3/8 feed and return and vent lines from the tank to the carb. I removed the tank and modified the stock pickup using AN-6 bulk head fittings instead of the stock 1/4" and 5/16" lines. Then I ran a 3/8 feed and return line to a Mallory regulator and using a Holley blue pump to feed the carb. This should solve any fuel starvation problems. This was pretty easy to do because I ran the lines in the stock locations and used fittings from the Parker store instead of Earls or aircraft fittings
#13
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
I did this for my blower setup. I wonder how many people replace all the lines ahead of the tank, but don't replace the lines into the tank? The system will only flow as much as the most constricted passage will allow it to flow, so it won't do any good to replace everything except the lines into the tank. I used JB Weld to fasten the new lines into the plate.
Rich
Rich
