dbragg

iTrader: (7)

i want to remove ths power steering off of my DD 85 GSL. the reason being that the pump is about gone and its leaking fluid like crazy and making my engine bay all gross. i dont care about either reduction and all that. ill probably redo the system one day, but as of now its too expensive.

can i just take the belt off and not have to worry about it leaking? i read about looping some line but i never saw any pictures or read any good descriptions.

any input is greatly appreciated. thanks.

nick812

I think tsi exteme looped his. Never really got a good look at it but I am sure he can help you.

dbragg

iTrader: (7)

i pmed TSI extreme a few days ago. he never responded.

Frostycrowd

iTrader: (9)

I looped mine like this. I removed the p/s cooler lines and linked it right at the solenoid. dont mind the dirt

nick812

Hmmm I havent seen him post in a couple of days. I might try and call him tomorrow I have a few questions for him. If i do I tell him about this post.

dbragg

iTrader: (7)

did you use an existing line or buy a new one? if you bought one, what size it is? did you fill it with fluid before doing this? is it leaking?

nick--thanks

Frostycrowd

iTrader: (9)

I took the line that went from the pump and cut the hard peice of. then after removing all the cooler lines and stuff linked the only remaining 2 openings with a fuel line. It is a pita to remove all the cooler lines, I got my dremel and just started hacking away at the p/s cooler lines so I could rip them out.

I will post pictures this weekend with it all clean. naturally when I took the p/s off I got oil everywhere and never cleaned it up. You will need to clean that area after you do the work.

Frostycrowd

iTrader: (9)

Oh it does not leak, and no I did not fill it with fluid, there was plenty in there.

Rx-7Doctor

iTrader: (13)

Before you start removing. Are you sure it's not just the pressure hose. 90% of the time its the hose and not the pump. The hose is not much money thru VB/BD.

Frostycrowd

iTrader: (9)

Screw P.S. I can turn my wheel while its sitting still with one hand. Not a problem at all.

dbragg

iTrader: (7)

doc-- the pump makes all kinds of gridning noises so im pretty sure its dying. i know the hoses are leaking like crazy. ill probably just remove it now and rebuild the system after i get settled in with college.

Rx-7Doctor

iTrader: (13)

It the shaft is not wobbling the pump is making grinding noises because it is low on fluid.
The are pretty tough pumps. On my last Se the pump had been leaking and the belt had been removed. The po left it that way and never bypassed the hose or anything.

One day after I had the car awhile I put some fluid in it and started it up. The pump still worked perfectly.

Siraniko

iTrader: (13)

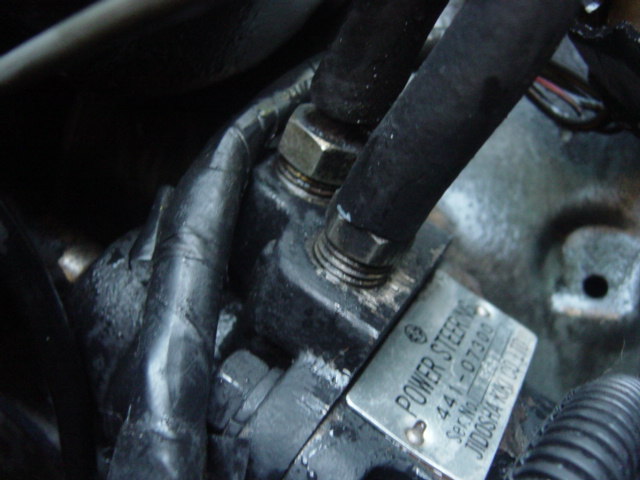

Loop the inlet and outlet fittings with a rubber hose on top of the steering box. Much cleaner.

dbragg

iTrader: (7)

ill take a closer look at it this weekend. ill also look into the prices of the hoses from BD. i may try looping a hose just to see how i like it.

Frostycrowd

iTrader: (9)

the 23 year old car tells me no. Bolts wont come loose

Siraniko

iTrader: (13)

here ya go

Frostycrowd

iTrader: (9)

ok lets just show Frostycrowd up some more. I may do that, I just cant get those bolt loose

Siraniko

iTrader: (13)

Soak it with 3-in-1 or WD or etc etc

ray green

iTrader: (14)

I think I'm missing something here, why do we need to do this looping stuff? Can't you just remove the belt and drive it like that? I hope so because this is what I've been doing for the last year and 25,000 miles, but please let me know if I'm messing something up!

Frostycrowd

iTrader: (9)

Your method is fine. but whats the point in removing it, if you dont get the simplicity and weight benefit.

ray green

iTrader: (14)

That would probably be a good idea but like AWS I was just having a problem with noise, not leaking, and was putting off fixing it until I get some time. But you get used to driving without the PS and rebuilding the pump has become a low priority. Also, when I looked at it with the idea of taking it out, it looked like there was quite a bit involved, so I didn't bother. Maybe I'll have another look this weekend.

Thanks for the feedback, someone else told me it was a bad idea to run without the belt but I couldn't get him to explain why.

dbragg

iTrader: (7)

i removed my belt today. i went on a 100+ mile trip to sign up for college and all. it does make turning while at slow speeds more difficult, but makes driving "spirited" seem better to me. i like it and i plan to keep the belt off for now.

ray green

iTrader: (14)

Yeh I got used to the no belt action real quick. So I guess we may as well take out the PS stuff, right? Anybody know how to do that?

Ray

dbragg

iTrader: (7)

ray-- look at wacys pics. i think all you have to do is make sure theres fluid in it and then route the lines back into itself. then just start removing the system. i doubt il remove mine. i dont see a reason to at this moment. im not worried about shedding the small amount of weight and its not in my weigh at the moment.
