Double alt pulley problems
#1
Junior Member
Thread Starter
Join Date: Mar 2009
Location: Powell River
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Double alt pulley problems
So I bought the WAI 24-83100 double alt pulley that's off of the chrysler mini vans.
http://foxed.ca/RX-7/WAI%20PART%20DESCRIPTION.pdf
When I got it I noticed that it will put the belts closer together than the water pump and crank do do to the smaller space between the grooves. I stuck it on anyways and got two new belts of the same brand. The inside belt runs true but the outside one was at a slight angle. Fast fwd 800miles and it's screwed up the outside belt and is (till I took it off just now) running on an / inside that outside groove on the alt. with rubber grindings all over the front of the engine.
So? I know more people have had this issue. Has anyone NOT had this issue with both belt backs almost touching on the alt pulley? Is there a brand where the belt backs are not so close?
I'll have to go the 3L220, L322, NBH257215 belt option if I can't figure this out.
For eg:
Here is my setup before it started to show wear:
http://foxed.ca/RX-7/WAI%20PART%20DESCRIPTION.pdf
When I got it I noticed that it will put the belts closer together than the water pump and crank do do to the smaller space between the grooves. I stuck it on anyways and got two new belts of the same brand. The inside belt runs true but the outside one was at a slight angle. Fast fwd 800miles and it's screwed up the outside belt and is (till I took it off just now) running on an / inside that outside groove on the alt. with rubber grindings all over the front of the engine.
So? I know more people have had this issue. Has anyone NOT had this issue with both belt backs almost touching on the alt pulley? Is there a brand where the belt backs are not so close?
I'll have to go the 3L220, L322, NBH257215 belt option if I can't figure this out.
For eg:
I bought a FD alternator modified for installation on earlier cars with a double pulley to replace the stock serpentine pulley. Someone on the forum was selling them years ago. I had it on my old RX-4 for several years. It worked great, but the belts broke regularly. For a while I figured it was because finding two matching belts was nearly impossible. I finally realized that was not the problem. The pulley that came with it did not align the belts properly. Instead of a ~1/4 inch space between the two belts, this pulley has virtually no spacing between them. This puts the front belt at an angle and wears it out. The space between the two grooves meets in a knife edge. I actually cut my finger when I ran it across the edge....
#2
Rotary Enthusiast
iTrader: (17)
I don't know about that pulley, but I have an aluminum one bought from a vendor that used to be on the forum. I finally found some some belts at Napa that were matched, and narrow enough to sit further down in the grooves so there wasn't so much rubber grinding off.
Being for a Chrysler van may be your problem, though I've seen posts on here stating you can use pulleys from other vehicles.
The one I bought was for a 2nd Gen, but seemed to work fine on my 85 12a.
If I remember, or you remind me, I'll dig it out and measure it with calipers if you like.
Being for a Chrysler van may be your problem, though I've seen posts on here stating you can use pulleys from other vehicles.
The one I bought was for a 2nd Gen, but seemed to work fine on my 85 12a.
If I remember, or you remind me, I'll dig it out and measure it with calipers if you like.
#3
Junior Member
Thread Starter
Join Date: Mar 2009
Location: Powell River
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
It wasn't the top grinding off really, more the inner side of the outside belt, never the less I'd like to find out if yours has a different spacing.
You'll see the drawing and specs on this one here
http://foxed.ca/RX-7/WAI%20PART%20DESCRIPTION.pdf
You'll see the drawing and specs on this one here
http://foxed.ca/RX-7/WAI%20PART%20DESCRIPTION.pdf
#4
Lives on the Forum
You can get the correct double-pulley for your application for like 16 bucks from www.re-speed.com
Not sure if you want to buy yet another part, but if you want to be sure this mod is done correctly it may be worth the extra money for the peace of mind it will bring.
Good luck.
Not sure if you want to buy yet another part, but if you want to be sure this mod is done correctly it may be worth the extra money for the peace of mind it will bring.
Good luck.
#5
Censored
iTrader: (14)
I haven't had that problem with the mitusbishi dual pulley, the grooves on the pulley are spaced a little more tightly than on the main pulley but not enough to make a difference in my experience.
Here's some photos of my set up, which has been doing fine since I put it on about two years ago, no belt wear, no problems:
And here's friend Mike's more recent set up with prettier belts, he hasn't reported any issues either
Here's some photos of my set up, which has been doing fine since I put it on about two years ago, no belt wear, no problems:
And here's friend Mike's more recent set up with prettier belts, he hasn't reported any issues either
#6
You can get the correct double-pulley for your application for like 16 bucks from www.re-speed.com
#9
Junior Member
Thread Starter
Join Date: Mar 2009
Location: Powell River
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the replies guys, I'm out of town for a bit so it is harder to keep up on things. Well it's great to know that that pulley has proven it works without belt problems. I guess my belts were just a little different sizes and that would make one spin faster and then chew off the one on the slight angle. I'll try it again with another set of belts.
#10
Junior Member
Thread Starter
Join Date: Mar 2009
Location: Powell River
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts

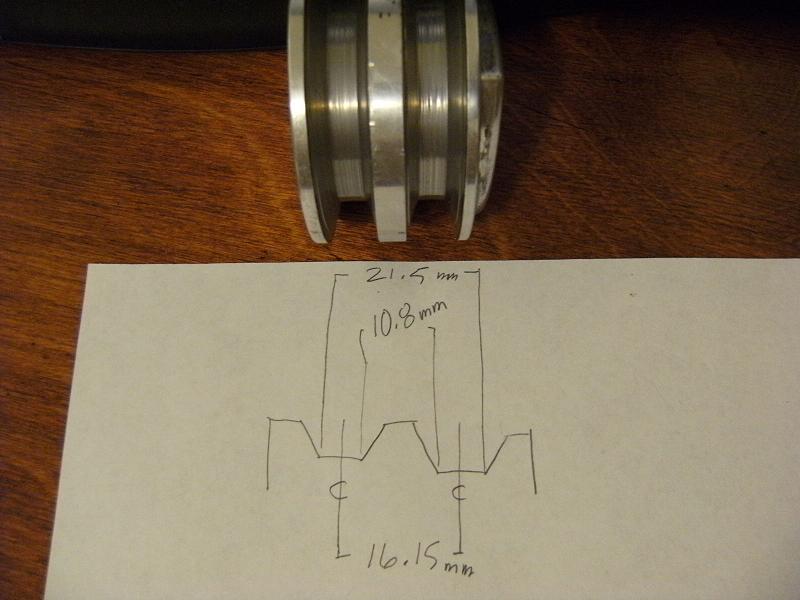

Thanks for doing that for me, that one would be straighter all right, but being that I'd have to deal with the cross border shipping wait and extra cost I'll give my setup another go.
Do you guys think that you'll get waterpump slip with a single belt and an e-fan? 2 is safer and that's what I'm going to keep trying for but who has one belt and an e-fan with no problems?
Do you guys think that you'll get waterpump slip with a single belt and an e-fan? 2 is safer and that's what I'm going to keep trying for but who has one belt and an e-fan with no problems?
#13
Senior Member
Join Date: Sep 2003
Location: Richmond, B.C
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Isint the point of having a dual seath pulley on your alt supposed to reduce engine rpms protecting the alternator from burning out? I burned out my 1st gen alt and now having a tough time getting the pulley off my replacement because It wont come off. Tried vise grips and a wrench today with no luck, now its soaking with deep creep overnight wish me luck tomorrow.
#14
Boosted Soon
iTrader: (1)
I've got an FD Double Pulley on my Isuzu Alternator and it works great. I just spaced it out properly to line up in the belt lines. Spacing on the pulley was already done for me.
AKA, Mazda setup the pulley width already. Dodge aparanetly had a different width in mind.
Do as above, get the right pulley. Cheap!
AKA, Mazda setup the pulley width already. Dodge aparanetly had a different width in mind.
Do as above, get the right pulley. Cheap!
#15
Banned. I got OWNED!!!
iTrader: (256)
Why not upgrade?
Switch over to the 100AMP FD alternator and my pulley?
Link: https://www.rx7club.com/1st-generation-rx-7-1979-1985-parts-101/brand-new-dual-belt-pulley-fd3s-100amp-alternator-upgrade-860871/
Upgrade all around..
Switch over to the 100AMP FD alternator and my pulley?
Link: https://www.rx7club.com/1st-generation-rx-7-1979-1985-parts-101/brand-new-dual-belt-pulley-fd3s-100amp-alternator-upgrade-860871/
Upgrade all around..
#18
Junior Member
Thread Starter
Join Date: Mar 2009
Location: Powell River
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
I figured it out.
24-83100 is for metric belts and the RX7 takes standard automotive belts and even though they don't look different in groove angle they are.
24-83100 is for metric belts and the RX7 takes standard automotive belts and even though they don't look different in groove angle they are.
