Adapting Wiper Arms to Hook-Style Wipers
This is a how-to for anyone who wants modern, hook-type wiper blades, but does not have access to a junkyard - with modifiable wiper arms - or the capability/desire to do any welding.
Items you'll need:

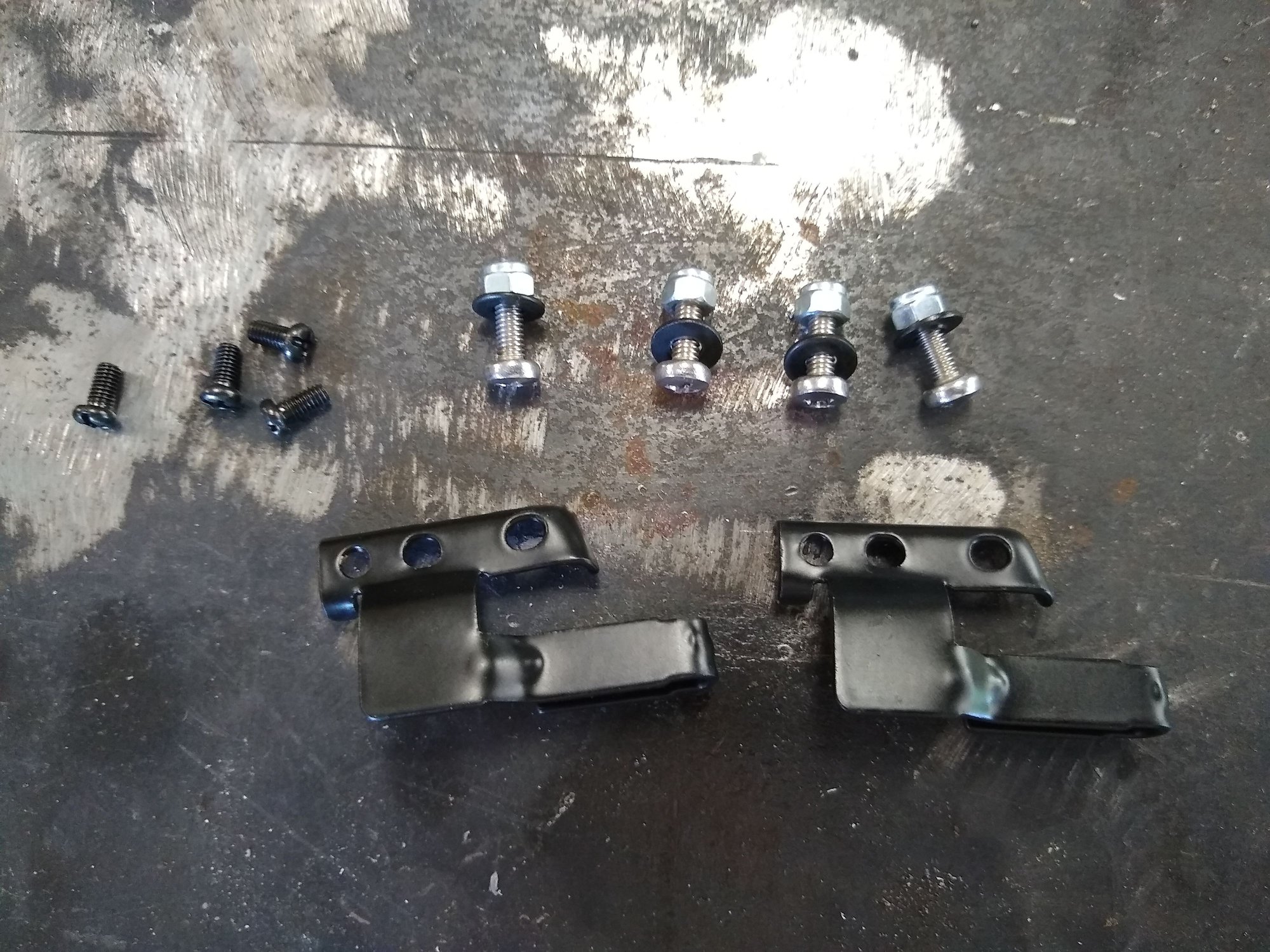

Everything in the kit plus the 4mm Fasteners:

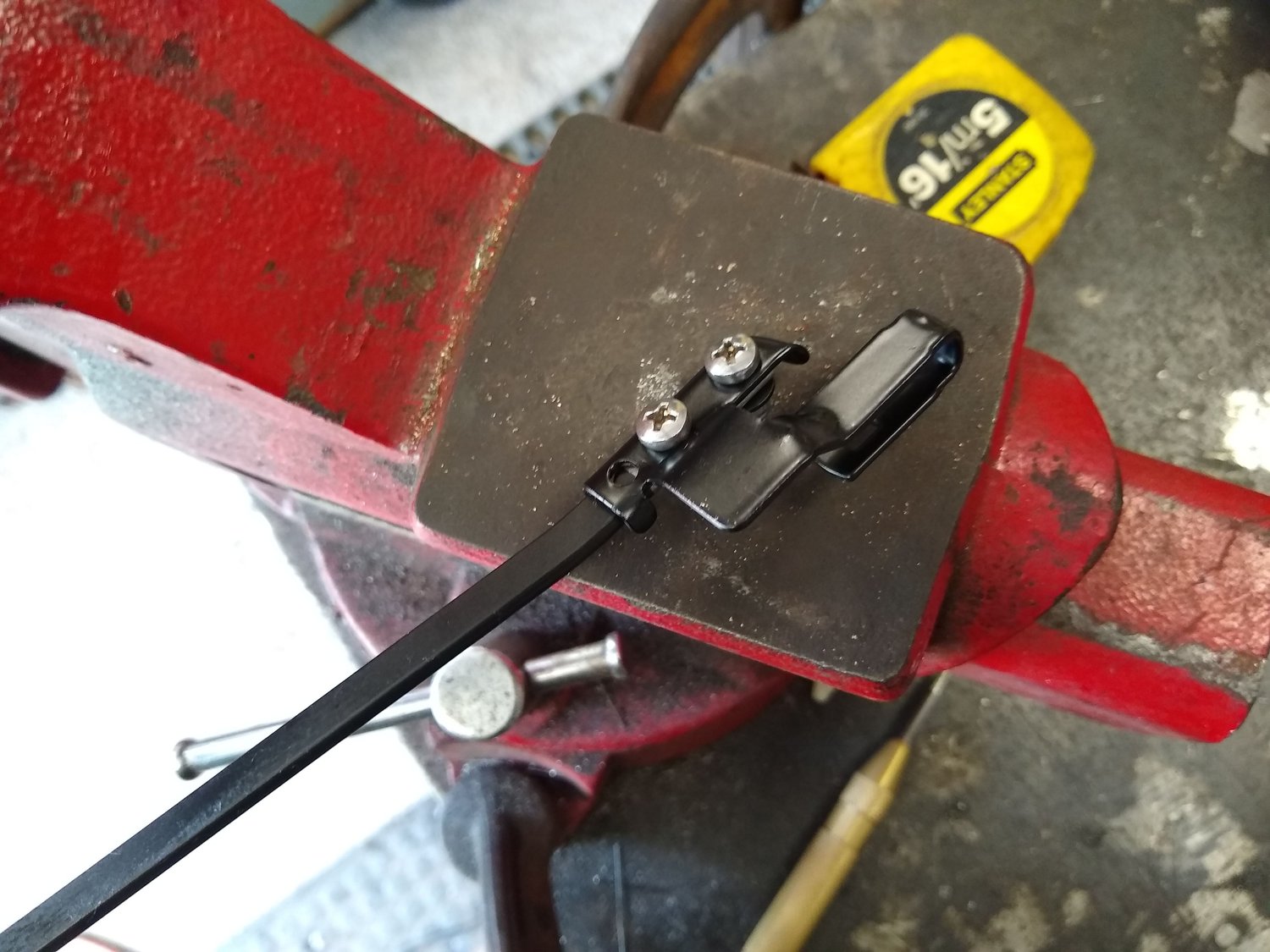

This is the stock rivet you will need to drill out. I drilled with a 5/32nds drill bit on the side that's showing in the image below until I could knock it out the rest of the way with a hammer and punch. I did it this way only because I wanted to be able to revert this mod if I ever chose to.

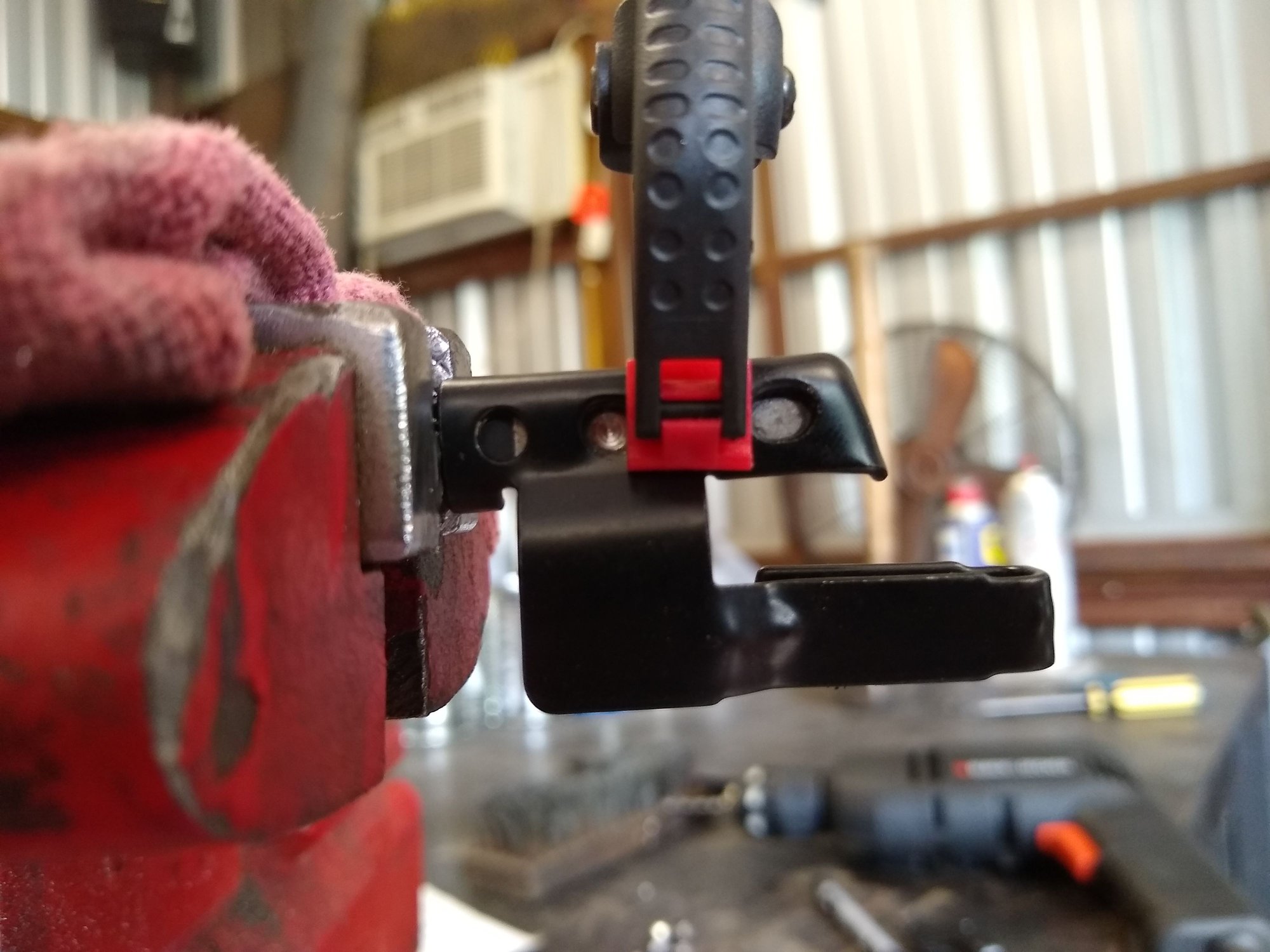

Once the rivet is out, the factory wiper arm holder should slide off the end of the arm. Line up the adaptor on the end of the arm. Make sure it is flat on the face of the arm and that the holes line up as close to the center of the arm as you can. One end of the adapter is diagonal, make sure this doesn't interfere with the adapter sitting square and flat to the arm.

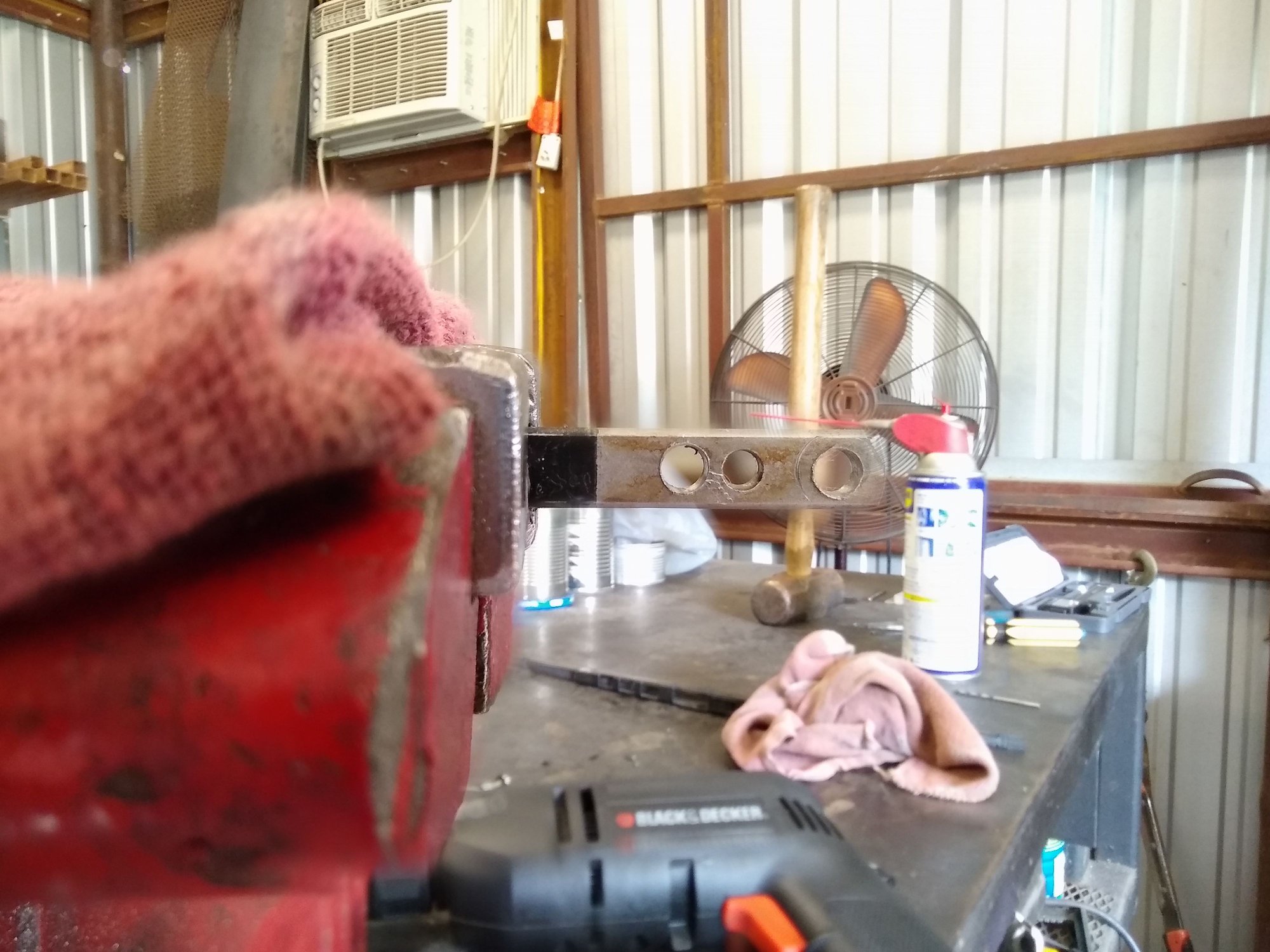

I used an automatic center punch and marked the centers of the two holes furthest from the pivot because these holes allowed for the M4 fasteners without modification. I then used a couple different sized drill bits up to a 5/32nd inch bit for the final size. I used a slightly larger drill bit to clean up the edges of the holes by hand.

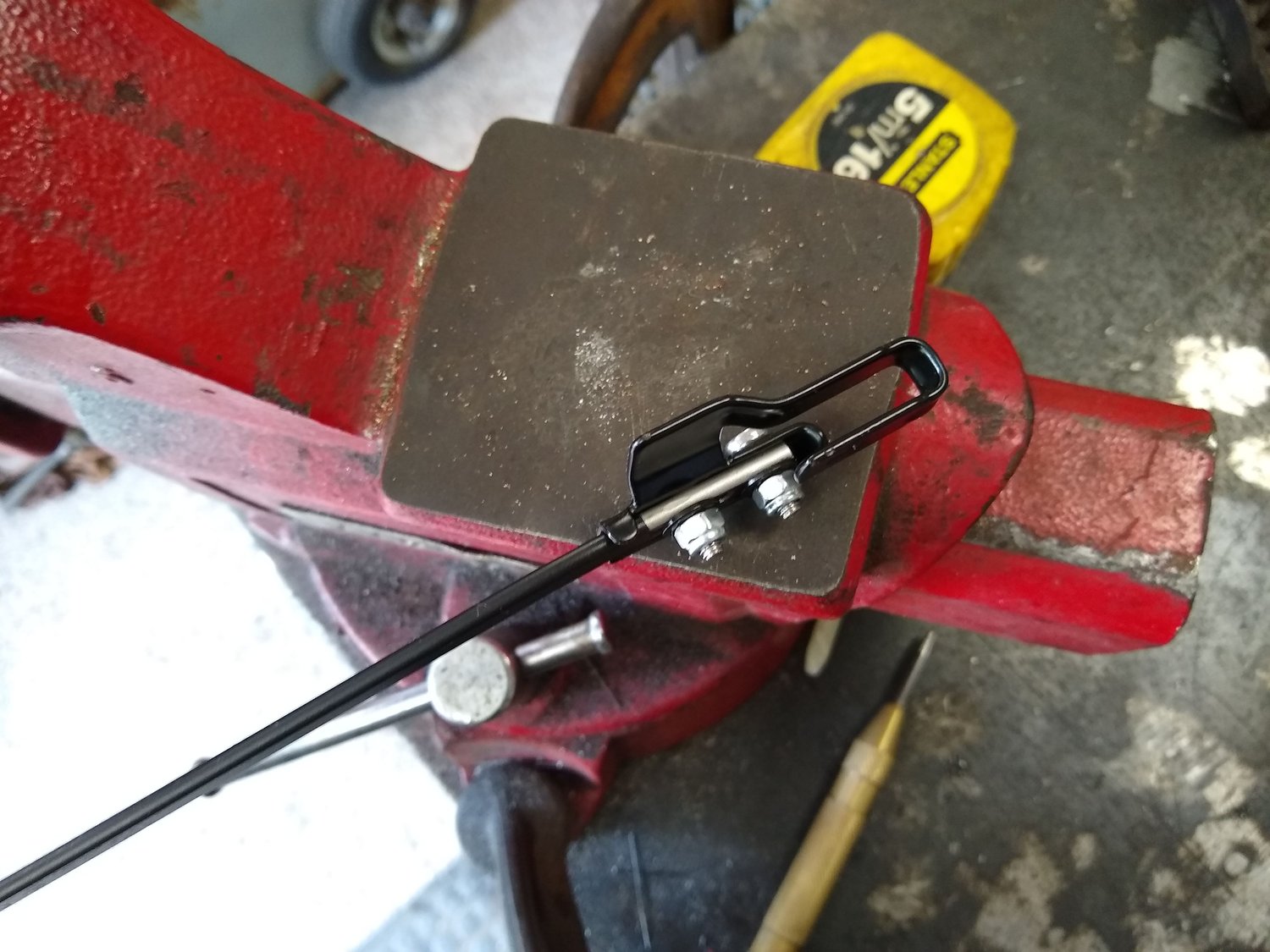

Put everything together and admire your handiwork. I recommend a bit of grease on the pivot splines to make removing these a little easier down the road, should you need to. Reinstall them on the car and enjoy your play-free windshield wipers. I bent in the small tab on the adapter in tight to the wiper arm. This is probably unnecessary with one fastener over stock already, but I consider it a bit of extra insurance.
Items you'll need:
- Kit #: 3392390298 by OTUAYAUTO, Left-hand side, on Amazon
- 14mm Socket or Wrench for removing wiper arm nuts
- 4 M4 bolts 12mm long and 4 M4 nuts or similar fasteners
- Tools for attaching the M4 fasteners.
- A few sizes of drill bits (5/32nds or 4mm being the final hole size for 4mm bolts)
- Fine point marker or similar marking utensil
- A basic set of pliers
Everything in the kit plus the 4mm Fasteners:
This is the stock rivet you will need to drill out. I drilled with a 5/32nds drill bit on the side that's showing in the image below until I could knock it out the rest of the way with a hammer and punch. I did it this way only because I wanted to be able to revert this mod if I ever chose to.
Once the rivet is out, the factory wiper arm holder should slide off the end of the arm. Line up the adaptor on the end of the arm. Make sure it is flat on the face of the arm and that the holes line up as close to the center of the arm as you can. One end of the adapter is diagonal, make sure this doesn't interfere with the adapter sitting square and flat to the arm.
I used an automatic center punch and marked the centers of the two holes furthest from the pivot because these holes allowed for the M4 fasteners without modification. I then used a couple different sized drill bits up to a 5/32nd inch bit for the final size. I used a slightly larger drill bit to clean up the edges of the holes by hand.
Put everything together and admire your handiwork. I recommend a bit of grease on the pivot splines to make removing these a little easier down the road, should you need to. Reinstall them on the car and enjoy your play-free windshield wipers. I bent in the small tab on the adapter in tight to the wiper arm. This is probably unnecessary with one fastener over stock already, but I consider it a bit of extra insurance.
