12a Rebuild: Rotor Housing condition question - water passages
#1
12a Rebuild: Rotor Housing condition question - water passages
Continuation....

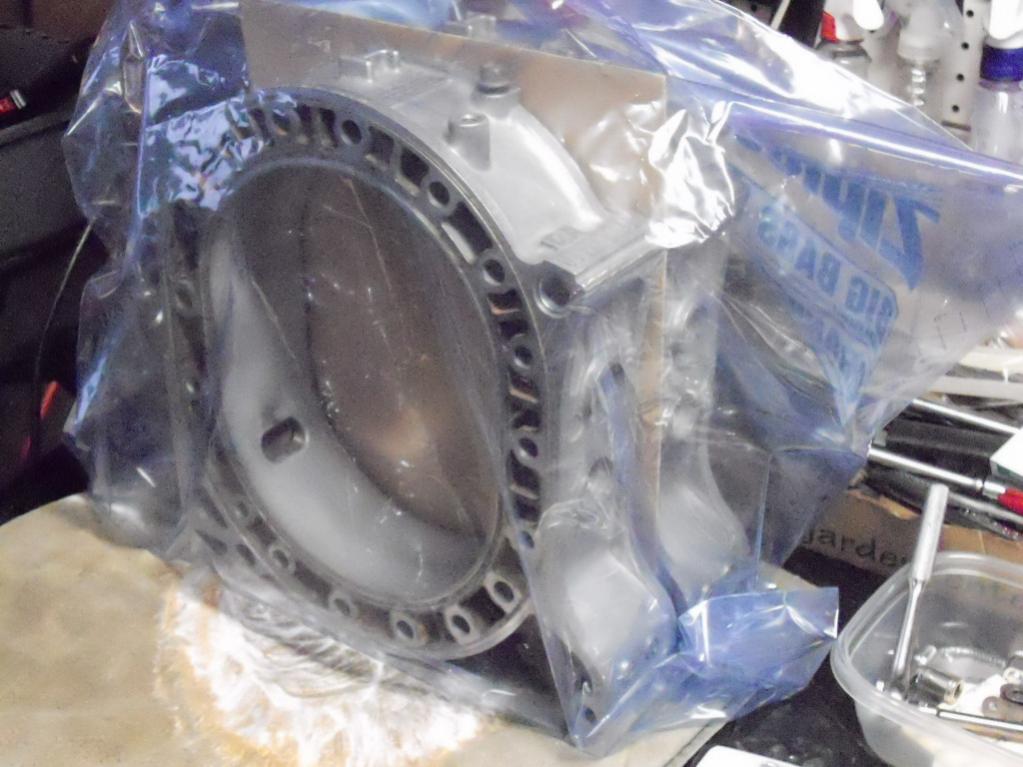

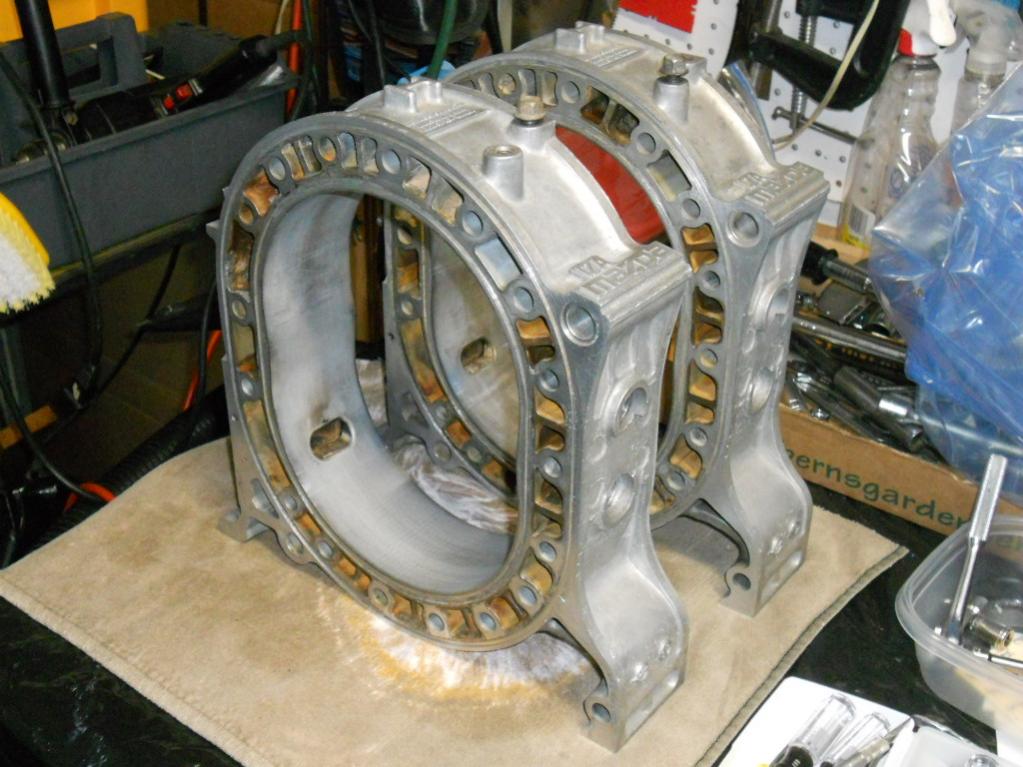

I acquired two used housings with good chrome.

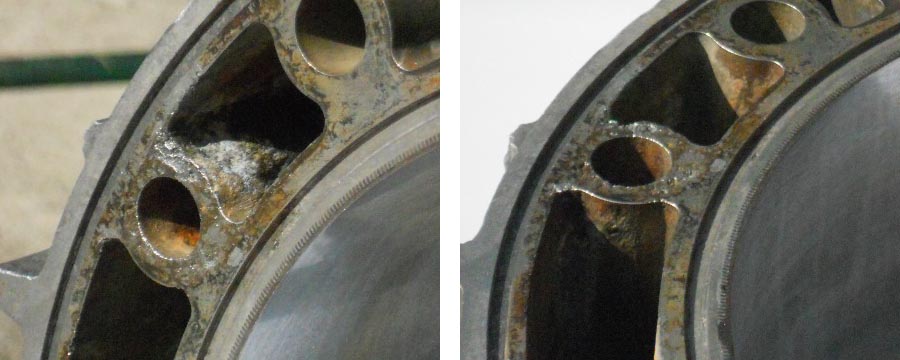

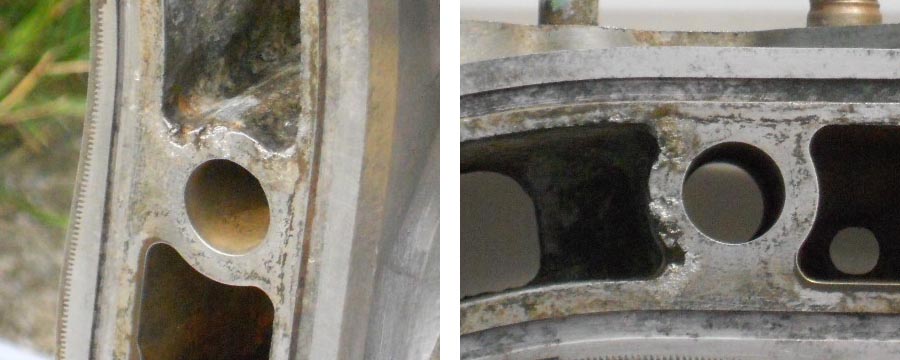

After cleaning the first one I noticed a rough area and some slight missing metal between the two water jackets. Images attached.
What should be my level of concern?
I did do a a through check of the second un-cleaned housing for similar conditions, but could find none.
Opinions welcomed.
I acquired two used housings with good chrome.
After cleaning the first one I noticed a rough area and some slight missing metal between the two water jackets. Images attached.
What should be my level of concern?
I did do a a through check of the second un-cleaned housing for similar conditions, but could find none.
Opinions welcomed.
#2
Rotary Freak
The corrosion in water galleries is not bad and will be ok to use them , is caused by bad coolant and or bad earth cables ,Just make sure you keep coolant fresh and add some extra earth cables from engine to body
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
you may wanna look at the spark plug bosses and exhaust ports for pitting, but other than that those are ok. the water seal lands are the critical parts
#6
Senior Member
Sorry to kinda jack the thread. But does anyone know what would be the best way to clean water passages that have rusted slightly more that the above pics? Would be for a display piece :P Haha.
#7
Quote:
Originally Posted by Jeff20B View Post
Fine brushes. Also a dremel with a small round brass brush. Or just get out what you can and don't worry about it. It's just a residue that won't really hurt heat transfer. Think about how thick and gross that was before you cleaned it, and it came out of a running engine that didn't overheat. You'll be fine.
Trending Topics
#10
Censored
iTrader: (14)

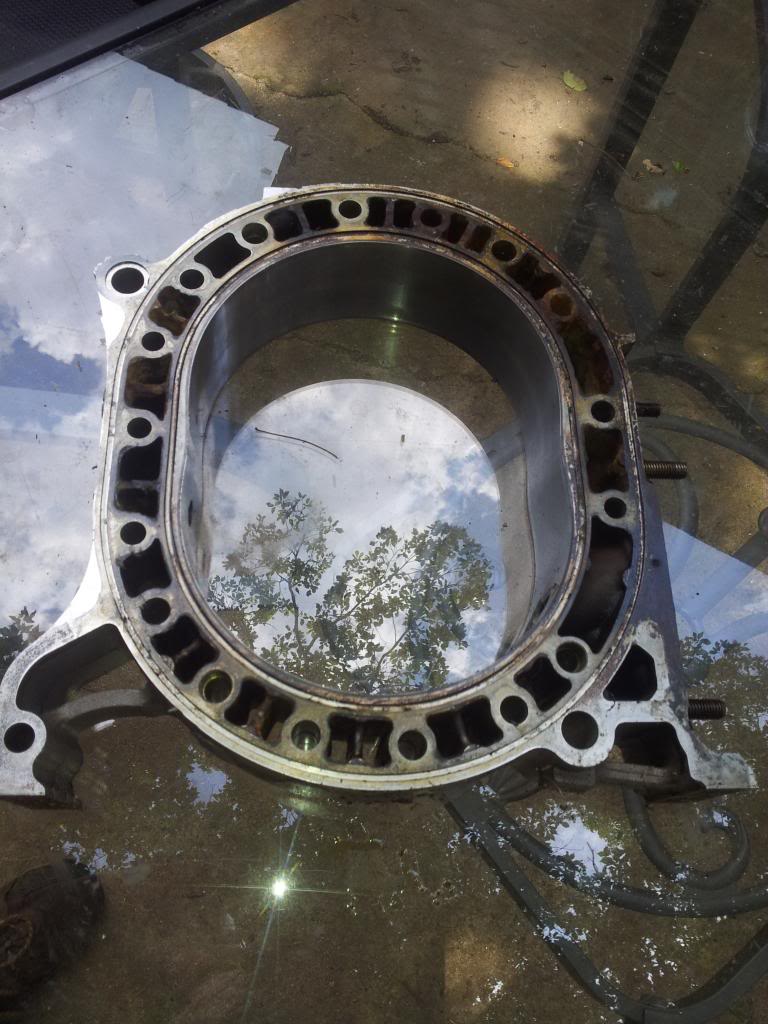

If Tim doesn't mind another hijack on his thread, I'd like to get the expert's opinions on whether this 12A rotor housing is reusable.

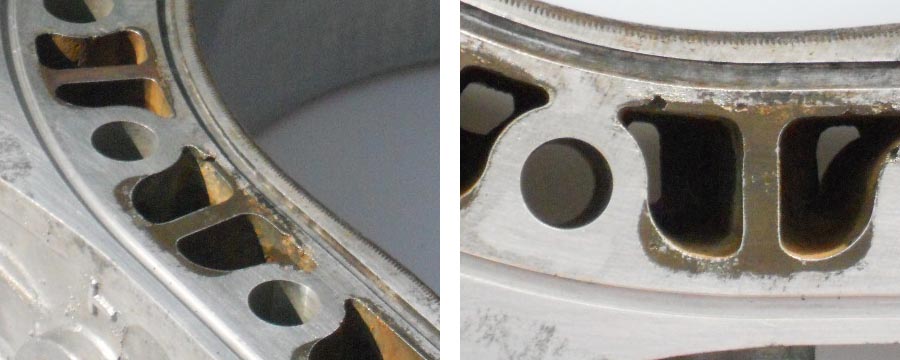

It has an excellent chrome finish, no flaking at all, but there was corrosion throughout the cooling passages in the engine which at one point ate into the septa between the coolant channels in one of the housings.
If this were your 12A rotor housing, would you use it to build an engine?
Thanks for the post Tim.
It has an excellent chrome finish, no flaking at all, but there was corrosion throughout the cooling passages in the engine which at one point ate into the septa between the coolant channels in one of the housings.
If this were your 12A rotor housing, would you use it to build an engine?
Thanks for the post Tim.
#12
Rotary Freak
If Tim doesn't mind another hijack on his thread, I'd like to get the expert's opinions on whether this 12A rotor housing is reusable.
It has an excellent chrome finish, no flaking at all, but there was corrosion throughout the cooling passages in the engine which at one point ate into the septa between the coolant channels in one of the housings.
If this were your 12A rotor housing, would you use it to build an engine?
Thanks for the post Tim.
It has an excellent chrome finish, no flaking at all, but there was corrosion throughout the cooling passages in the engine which at one point ate into the septa between the coolant channels in one of the housings.
If this were your 12A rotor housing, would you use it to build an engine?
Thanks for the post Tim.
#14
Rotary Freak
I have done it many times and got no distortion and motors have been running for many years since . When you cant find good housings sometimes you have to find a way to make them serviceable
#15
Censored
iTrader: (14)
My first impression when I saw that erosion in the septum was it was trash but maybe there is a way to reconstruct that part, kind of like a dentist reconstructs a tooth.
But then when I got to looking at things, I noticed the septum doesn't really do a whole lot, since the water passage opens up into a common channel in the iron anyway. The erosion in the septum just makes it open up a little bit sooner. I don't see how this could hurt, so I'm with Jeff on this one.
In other words, I think I lucked out and got a really nice 12A rotor housing out of a very heavily corroded 12A. And other rotor housing is in similar condition, but with less severe erosion in the water channels - both have excellent chrome. The Rotary Gods have been kind to me lately.
But then when I got to looking at things, I noticed the septum doesn't really do a whole lot, since the water passage opens up into a common channel in the iron anyway. The erosion in the septum just makes it open up a little bit sooner. I don't see how this could hurt, so I'm with Jeff on this one.
In other words, I think I lucked out and got a really nice 12A rotor housing out of a very heavily corroded 12A. And other rotor housing is in similar condition, but with less severe erosion in the water channels - both have excellent chrome. The Rotary Gods have been kind to me lately.
