Help with a sensor
02-26-20, 09:49 AM
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts

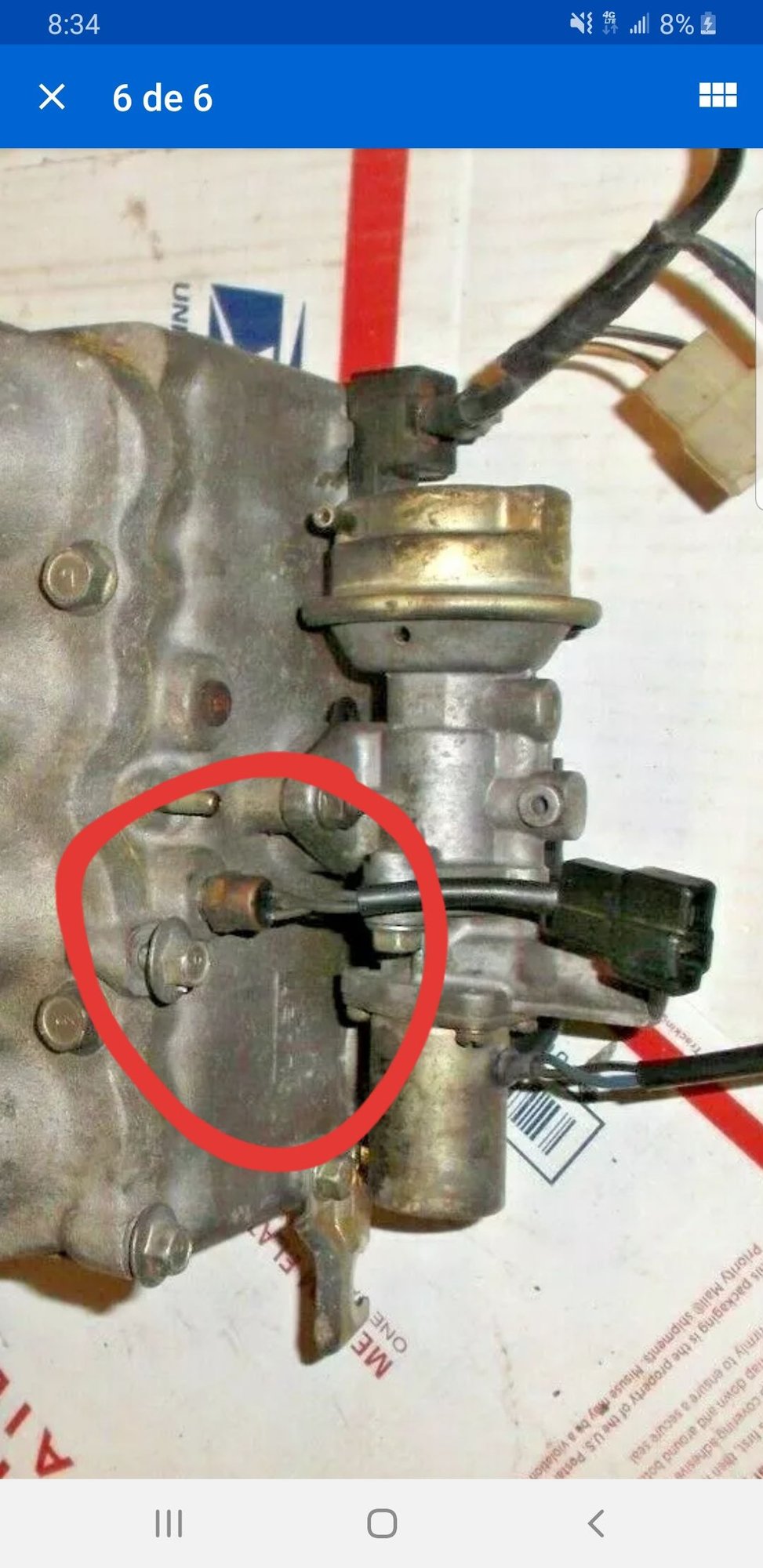

it would have been helpful to say its an intake air temp sensor for a GSL-SE....
the GSL-SE one is NLA, but you can use the FC part and put the GSL-SE wires on it. N326-18-845
the GSL-SE one is NLA, but you can use the FC part and put the GSL-SE wires on it. N326-18-845
02-26-20, 09:53 AM
#6
Newbie
Thread Starter
Join Date: Feb 2020
Location: Tampa
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
02-28-20, 02:03 AM
#7
84SE-EGI helpy-helperton
Typically, the way these fail is that the wiring gets frayed riht at the base of the temp sensor, and then breaks off. Know that you can use a hot soldering gun to melt down the black plastic material at the sensor to give you enough wire exposed to resolder the wire onto it. Easy job, and with some heat shrink tubing of proper size, it will never break again.
That #2 Intake Air Temp Sensor is used by the ECU as a comparison to the the same sensor located at the Air Flow Meter to determine EFI map conditions for a hot start, i.e., same = cold engine, different = hot restart.
That #2 Intake Air Temp Sensor is used by the ECU as a comparison to the the same sensor located at the Air Flow Meter to determine EFI map conditions for a hot start, i.e., same = cold engine, different = hot restart.
Trending Topics
02-28-20, 05:04 AM
#8
Newbie
Thread Starter
Join Date: Feb 2020
Location: Tampa
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Typically, the way these fail is that the wiring gets frayed riht at the base of the temp sensor, and then breaks off. Know that you can use a hot soldering gun to melt down the black plastic material at the sensor to give you enough wire exposed to resolder the wire onto it. Easy job, and with some heat shrink tubing of proper size, it will never break again.
That #2 Intake Air Temp Sensor is used by the ECU as a comparison to the the same sensor located at the Air Flow Meter to determine EFI map conditions for a hot start, i.e., same = cold engine, different = hot restart.
That #2 Intake Air Temp Sensor is used by the ECU as a comparison to the the same sensor located at the Air Flow Meter to determine EFI map conditions for a hot start, i.e., same = cold engine, different = hot restart.
