PFC map help with tuning settings.
Need help from the experts in pointing out what's wrong with this map, I get some abnormally high knock readings etc.
Point out anything you think may be off
here's my setup
-Stock port/engine
-T04E 57 trim, .60 comp/.82 exh
-9 Heat range spark plugs all 4 leading and trailing BUREQ9EP (may have the part # wrong)
-greddy 2 row fmic
-hks manifold
-hks downpipe
-hks wastegate
-hks Twin Power
-550 Primaries/1300Secondaries
-Cosmo 255 Fuel Pump
-Midpipe (No cat)
-RB Dual Exhaust
-Apex Power FC
-Apex Boost Control solenoid
-Greddy Pulleys (AirPump Removed)
-Stock sensors, acv, egr, etc

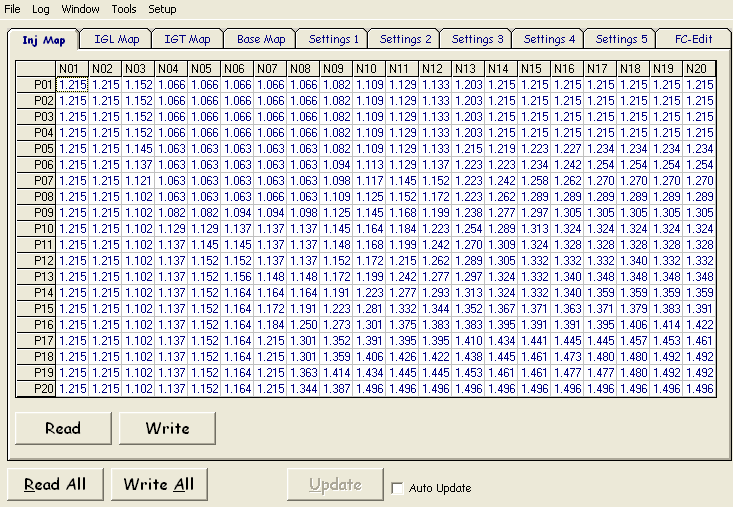

Injector Map

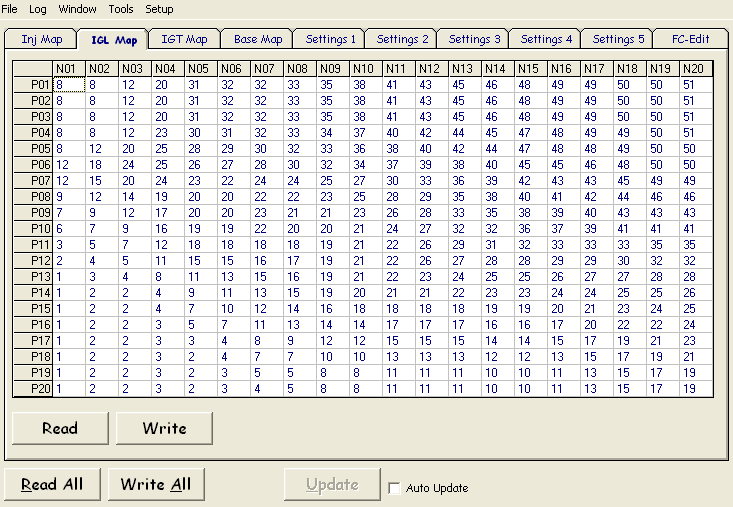

Ignition Leading

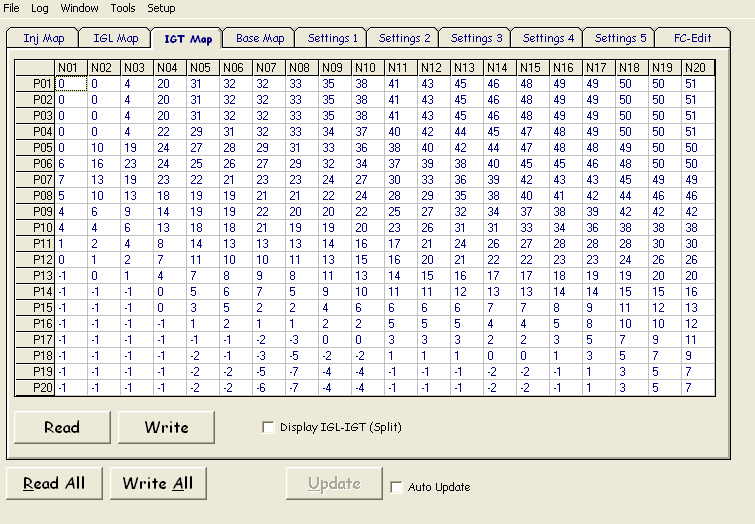

Ignition Trailing

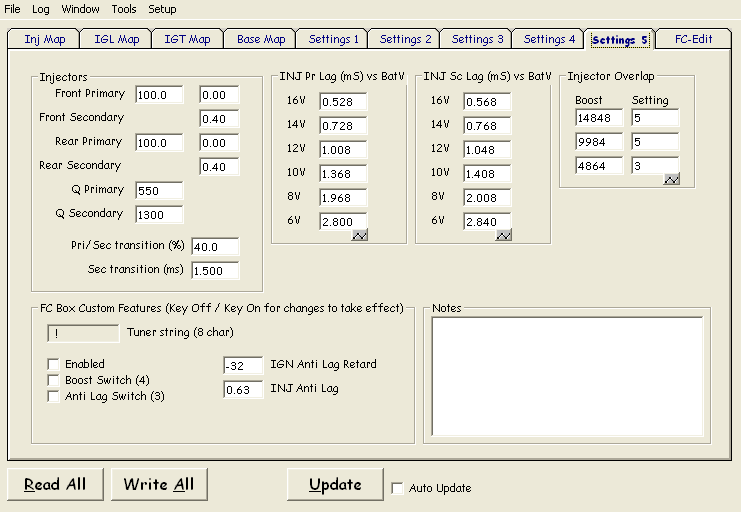

Settings

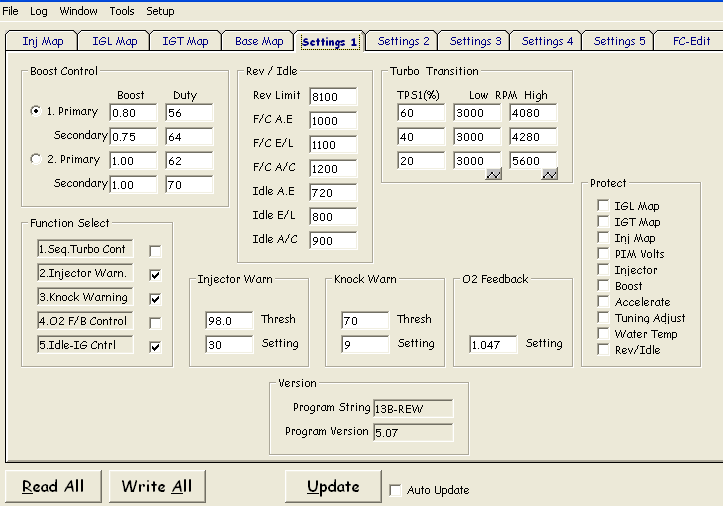

Boost
Point out anything you think may be off
here's my setup
-Stock port/engine
-T04E 57 trim, .60 comp/.82 exh
-9 Heat range spark plugs all 4 leading and trailing BUREQ9EP (may have the part # wrong)
-greddy 2 row fmic
-hks manifold
-hks downpipe
-hks wastegate
-hks Twin Power
-550 Primaries/1300Secondaries
-Cosmo 255 Fuel Pump
-Midpipe (No cat)
-RB Dual Exhaust
-Apex Power FC
-Apex Boost Control solenoid
-Greddy Pulleys (AirPump Removed)
-Stock sensors, acv, egr, etc
Injector Map
Ignition Leading
Ignition Trailing
Settings
Boost
Last edited by NeedFD; 04-11-07 at 05:35 AM.
