LS7 drysump widebody FD project 8/23/08

LS7 drysump widebody FD project 8/23/08

Old 09-17-09, 12:38 PM
  #26
Rotary Freak
Thread Starter
iTrader: (10)

Join Date: Mar 2001
Location: San Francisco, CA
Posts: 2,055
Thanks: 0
Thanked 3 Times in 3 Posts

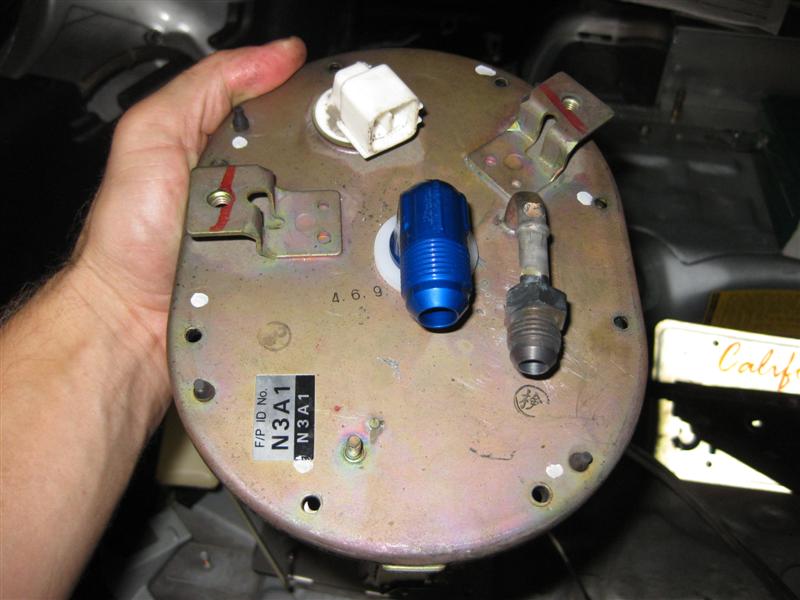

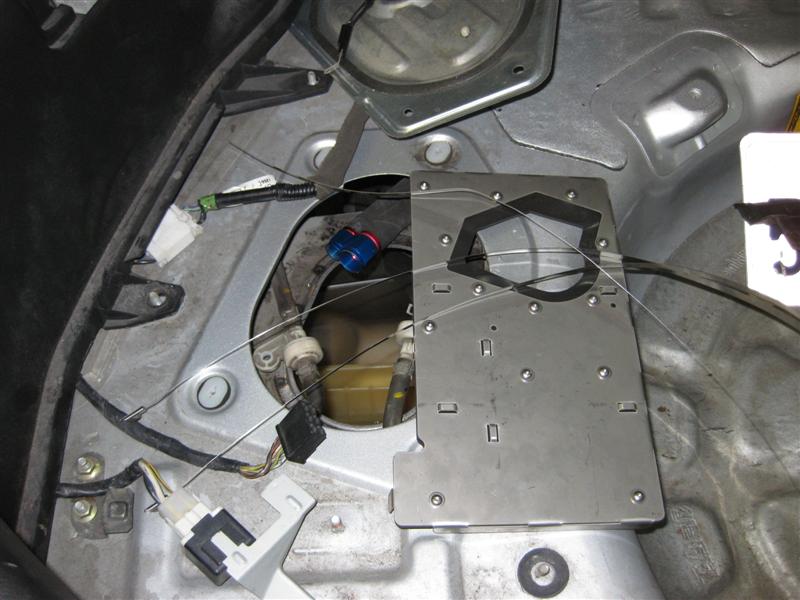

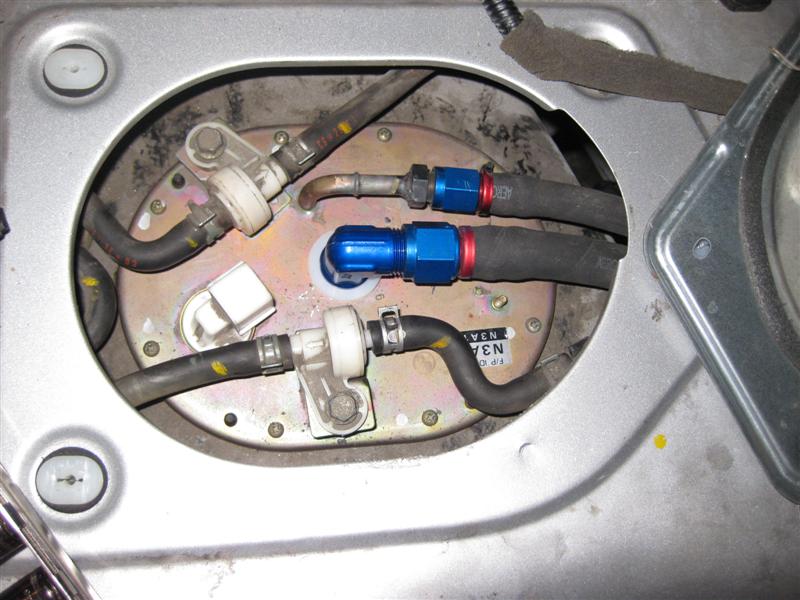

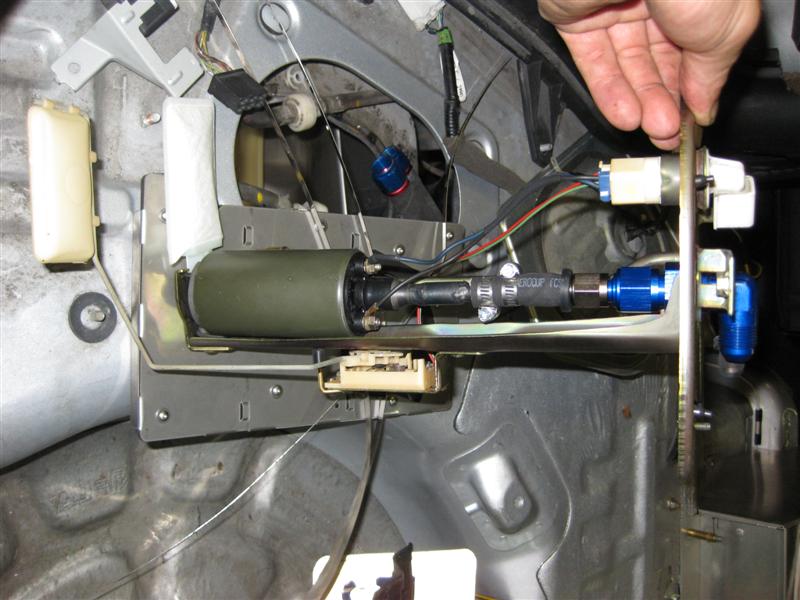

Fuel system done with Hyperion's "anti-surge" kit to prevent the pump from becoming uncovered under hard cornering. Supra Denso intank pump, -8AN line feed and -6AN line return. Magnafuel inline filter, and Magnafuel Fuel Pressure Regulator.

If the stars align it could fire up tonight.
Attached Thumbnails LS7 drysump widebody FD project 8/23/08-fuel-system-001.jpg   LS7 drysump widebody FD project 8/23/08-fuel-system-002.jpg   LS7 drysump widebody FD project 8/23/08-fuel-system-003.jpg   LS7 drysump widebody FD project 8/23/08-fuel-system-004.jpg
gnx7 is offline
Old 09-17-09, 12:44 PM
  #27
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,812
Thanked 12 Times in 11 Posts
Good luck!
gracer7-rx7 is offline
Old 09-17-09, 12:47 PM
  #28
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,983
Thanked 112 Times in 99 Posts
I think you may have a fast car on your hands.
GoodfellaFD3S is offline
Old 09-17-09, 04:59 PM
  #29
The Big Ugly!

rotordad's Avatar

Join Date: May 2009
Location: Fredericksburg, Va
Posts: 867
Thanked 0 Times in 0 Posts
Awsome car man, nice set up & the color suits the car.
rotordad is offline
Old 04-28-10, 12:17 AM
  #30
FEED me
iTrader: (26)

TRISPEEDFD3S's Avatar

Join Date: Jan 2004
Location: Bay Area, CA
Posts: 2,787
Thanks: 0
Thanked 0 Times in 0 Posts
When you're done can I ride in it? Please...
TRISPEEDFD3S is offline
Old 01-06-11, 02:24 AM
  #31
HARDCORE chest Thumper!
iTrader: (18)

Adam P's Avatar

Join Date: Mar 2005
Location: Los Angeles
Posts: 724
Thanked 0 Times in 0 Posts
Any reason why you didnt go wide infront as well?
Adam P is offline
Old 01-06-11, 05:44 AM
  #32
Living life 9 seconds at a time

iTrader: (2)

ErnieT's Avatar

Join Date: Feb 2001
Location: Abingdon, Md
Posts: 6,541
Thanks: 0
Thanked 0 Times in 0 Posts
Im usually not a fan of the transplants, but this looks like its gonna turn out very nice!
ErnieT is offline
Old 01-07-11, 02:32 PM
  #33
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,423
Thanked 82 Times in 60 Posts
Those welds on the exhaust are mad tyte, yo!!1!
That thing is going to be LOUD.
Narfle is offline
Old 01-09-11, 12:21 PM
  #34
Quietude of heart.
iTrader: (6)

MK3Brent's Avatar

Join Date: Jul 2010
Location: Greensboro, North Carolina
Posts: 486
Thanked 12 Times in 10 Posts
Very clean!
I look forward to see some vids.
MK3Brent is offline
Old 12-19-11, 11:45 AM
  #35
Rallye RX7
iTrader: (11)

fidelity101's Avatar

Join Date: May 2005
Location: MI/CHI
Posts: 2,220
Thanked 3 Times in 3 Posts
that exhaust is sexy.
fidelity101 is offline
Old 12-20-11, 07:58 PM
  #36
Senior Member

myfree7's Avatar

Join Date: May 2009
Location: troy
Posts: 446
Thanks: 0
Thanked 0 Times in 0 Posts
very nice build... keep up the good work!
myfree7 is offline
Old 12-20-11, 10:36 PM
  #37
Senior Member
5 Year Member
iTrader: (6)

Join Date: Jun 2007
Location: Tampa, Florida
Posts: 698
Thanks: 0
Thanked 0 Times in 0 Posts
I think he may have abandoned this build and parted it out (at least partly).
Troux is offline
Old 12-23-11, 02:27 AM
  #38
Junior Member

Join Date: Dec 2011
Location: Bay Area, CA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Troux View Post
I think he may have abandoned this build and parted it out (at least partly).
That's a shame. The build looked pretty awesome. Color was great and everything looked top notch. Not to mention the LS7...
LS1rob is offline
Old 08-27-18, 07:09 PM
  #39
Rotary Freak
Thread Starter
iTrader: (10)

Join Date: Mar 2001
Location: San Francisco, CA
Posts: 2,055
Thanks: 0
Thanked 3 Times in 3 Posts
update 7yrs later..... The LS7 was great; however the factory dry sump oiling system left a lot more to be expected! I sold the motor as I wanted more power and remedy the oiling shortcomings (it made 520rwhp)..... then built a crazy 441ci setup to make 700rwhp n/a.... finally a customer in FL bought my car last year and I stuffed a 416 inside with T56 Magnum transmission (I'm a dealer for them). Fun ride.... I bought my buddies LS9 turbo (88mm 1200rwhp) powered FD RX-7 to replace it.
gnx7 is offline
The Following User Says Thank You to gnx7 For This Useful Post:
MK3Brent (08-28-18)
Old 09-04-18, 05:06 PM
  #40
Junior Member
iTrader: (1)

Join Date: Sep 2012
Location: New Jersey
Posts: 17
Thanked 0 Times in 0 Posts
Sweet! How's the LS9 turbo? is it laggy? What rpms/gear are you building boost or full boost?
ZekeO is offline
Old 09-18-18, 06:11 AM
  #41
Junior Member

Join Date: Sep 2018
Location: ON
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
talk about a clean underbelly. wow.
patrickm is offline
Old 09-27-18, 09:56 PM
  #42
Rotary Freak
Thread Starter
iTrader: (10)

Join Date: Mar 2001
Location: San Francisco, CA
Posts: 2,055
Thanks: 0
Thanked 3 Times in 3 Posts
Originally Posted by ZekeO View Post
Sweet! How's the LS9 turbo? is it laggy? What rpms/gear are you building boost or full boost?
It had a Precision GTS76 (T4 rated at 1200hp) on it before and that was pretty responsive on a 6.2 liter engine running e85. That setup went [email protected] fully tapped out driving like a maniac all over the track. The new 88mm is also a Precision T4 and is rated at around 1450hp. While a little slower to spool up maybe 300rpm later (well under 4000 for full boost) it carries well over 7500rpm and pulls a hell of a lot stronger than the GTS76 albeit with a slightly slower spool time. Verdict...... the 88mm is worth the upgrade and so far has gone [email protected] with a ton left in it driving like Ms. Daisy and zero boost launch. I hope in 2019 to finally run an 8 second pass at around 170mph driving to/from the track running pump e85 ($2.50/gal).

An N/A V8 that runs low 10's is plenty fast and you can take it on the road course and push it HARD. There is no way in hell you are going to do that with a turbo V8. This is now a straight line car for the most part with 1000rwhp+. It was running an LS9 block, $100 cast LS1 crank, Compstar rods, Wiseco pistons, MAST LS3 heads, stock LS3 intake/90mm TB, ID1650 injectors, T56 Magnum, McLeod RXT 1200HD twin disc and 8.8" solid rear with 3.31 gears on a Wavetrac LSD. Believe it or not that stock crank lasted for 3 years and hundreds of street/strip passes plus lots of 1/2 mile racing. What finally killed the crankshaft was a 1-4 gear burnout and after letting off the throttle it got traction (should've put in clutch) and literally snapped the crank. Only thing holding it together were the 2 rear most rods! https://ls1tech.com/forums/forced-in...o-ls9-rx7.html
gnx7 is offline
