Stock turbo/9.4:1 rotors t2 dyno #s
S4 t2 motor with fresh rebuild by myself.
9.4:1 rotors
S5 t2 rotor housings
RA classic 2mm seals
Stock s5 turbo
550/1600 injectors
Fmic
3" DP to 2 1/2 straight pipe
Haltech e6k
3 bar map
Sard fpr
Walbro 255
11lb flywheel

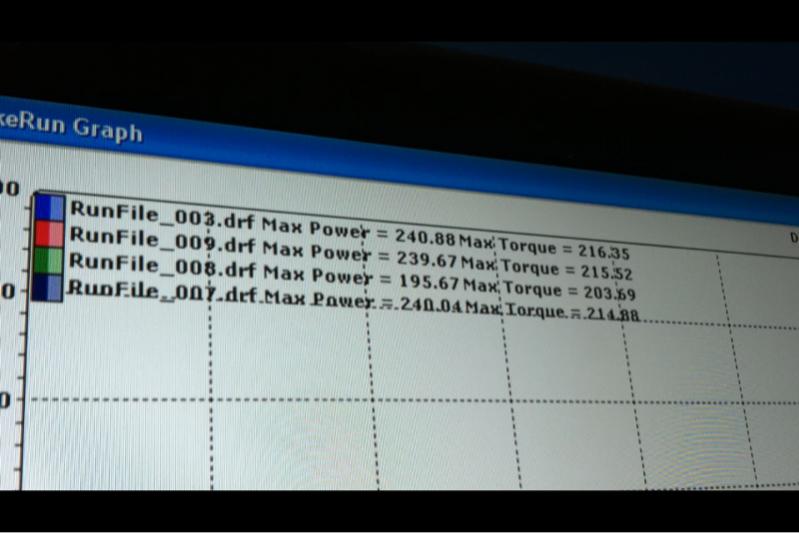

240hp and 216tq @8-10psi
Steve Kan did the tuning. Turbo dropped boost around 5500rpm. Im happy with the #s for now. When i upgrade turbos im looking to get about 350hp for my max goal. Here's a vid link. 4th gear pulls.
http://youtu.be/z5-1HPjz9FA
9.4:1 rotors
S5 t2 rotor housings
RA classic 2mm seals
Stock s5 turbo
550/1600 injectors
Fmic
3" DP to 2 1/2 straight pipe
Haltech e6k
3 bar map
Sard fpr
Walbro 255
11lb flywheel
240hp and 216tq @8-10psi
Steve Kan did the tuning. Turbo dropped boost around 5500rpm. Im happy with the #s for now. When i upgrade turbos im looking to get about 350hp for my max goal. Here's a vid link. 4th gear pulls.
http://youtu.be/z5-1HPjz9FA
#4
Magic man
Thread Starter
iTrader: (20)
Join Date: Nov 2010
Location: grants pass,oregon
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts

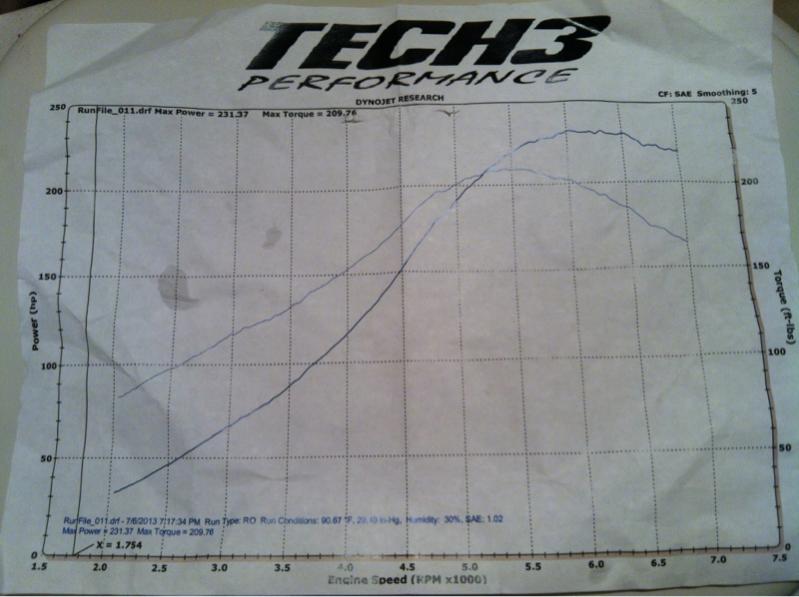

This was my first dyno session and i totally forgot a thumb drive for saving my run files. So i didnt get to save all my dyno runs on file. But the shop gave me one computer printout of a 231hp and 209tq run. Its not far off of what i maxed out at. The curves should be pretty similar.
And ya, its loud lol. Its my drift car so i dont care how loud it is. The louder the better as far as im concerned. I would never tolerate that noise on a street car.
And ya, its loud lol. Its my drift car so i dont care how loud it is. The louder the better as far as im concerned. I would never tolerate that noise on a street car.
#6
Magic man
Thread Starter
iTrader: (20)
Join Date: Nov 2010
Location: grants pass,oregon
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts
Well, i noticed after i got home from dyno session that the wastegate rod was just sitting there not connected the door arm. Idk how long it was disconnected. But i imagine i lost alot of spool up time with that be disconnected.
Trending Topics
#10
Magic man
Thread Starter
iTrader: (20)
Join Date: Nov 2010
Location: grants pass,oregon
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts
Idk, my s4 turbo was on its last leg. It had horrible in and out play and up and down and smoked alot at idle. My s5 turbo is off a Jdm motor. Unknown mileage. I ported it to help the boost creep. It had normal shaft play. No in and out play. I think you can get the s4 to spool a tad quicker if you utilize the twin scroll on the manifold. Most people take the flapper door out of the manifold and run it like a s5. The s5 turbo has a bigger wastgate to help control boost better. I've only driven the car twice since tuned. From what i can tell. The s4 turbo spooled a little quicker. BUT!!! It could be cause the manifold to turbo gasket was destroyed so i tried to get away with not using one when i got tuned. So that could be why it spools alittle slow. It leaks and sounds like doo doo during engine deceleration. I was hoping for alittle more hp and tq to be honest. But i was on a time crunch and apparently had some bugs to work out. But this will do for now. Gt35 will get me to my power goal in the future.
#12
Magic man
Thread Starter
iTrader: (20)
Join Date: Nov 2010
Location: grants pass,oregon
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts
I fixed the manifold to turbo gasket with a 4 layer metal one. Didnt fix anything...turbo still makes a horrible sound under decel. Almost like the blades are rubbing the housing. Kinda sounds like little springs bashing around in my DP...It has 0 leaks now. I think the turbo is just not happy anymore. It boosts fine. But that horrid sounds just makes my car sound like crap. Guess i better start saving for that new turbo...ha.
#13
Rotary Power
iTrader: (15)
I fixed the manifold to turbo gasket with a 4 layer metal one. Didnt fix anything...turbo still makes a horrible sound under decel. Almost like the blades are rubbing the housing. Kinda sounds like little springs bashing around in my DP...It has 0 leaks now. I think the turbo is just not happy anymore. It boosts fine. But that horrid sounds just makes my car sound like crap. Guess i better start saving for that new turbo...ha.
Rotary > Pistons
