NA = 193.9 HP and 141 TQ

Reply Subscribe

Thread Tools

Search this Thread

Jan 13, 2006 | 11:52 AM

#26

Dinnercoat

Caramelldansen

Joined: May 2005

Posts: 1,182

Likes: 0

From: SF Bay Area, California

Quote:

Originally Posted by buzz2

Just had my car dyno'ed again. 193.9 HP and 141 TQ. I'll post a copy of the print out as soon as I can get my hands on a scanner.

Here's a link to a previous test, before the addition of my Microtech LT10. During this test I made 184 HP and 135 TQ.

https://www.rx7club.com/showthread.p...1&page=1&pp=15

For you guys with custom intake manifolds/independent throttle bodies, can I make more HP with a custom intake setup or is there another reason that you've done this? I don't want to switch over to a carb.

Are you RobertB on that other link?

I didn't see any posts of dyno graphs from you, which I am greatly interested in seeing.

Jan 13, 2006 | 03:40 PM

#27

Jager

Tear you apart

iTrader: (10)

Joined: Aug 2004

Posts: 5,891

Likes: 38

From: Bemidji Minnesota

He is RobertB.

Jan 16, 2006 | 07:21 AM

#28

forcefed7

Full Member

Joined: Aug 2001

Posts: 235

Likes: 0

From: Maryland

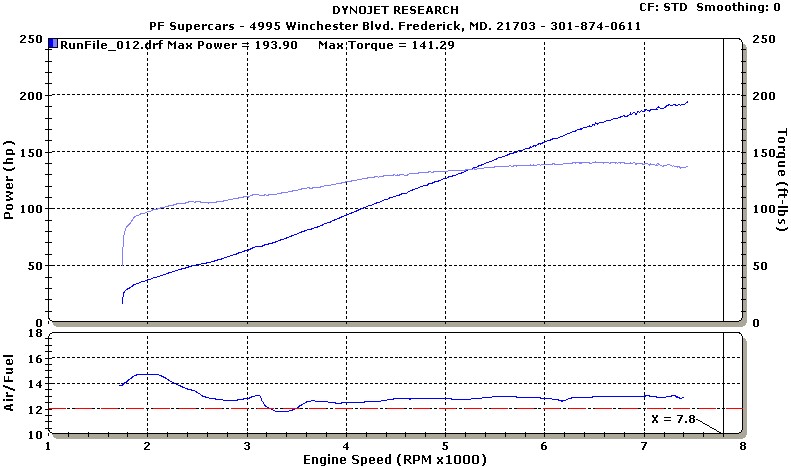

dyno graph

Attached Thumbnails

Jan 16, 2006 | 08:39 AM

#29

Roundabout

Village Idiot

iTrader: (8)

Joined: Jan 2002

Posts: 1,081

Likes: 1

From: Duluth, MN

Props man!! Nice numbers

Jan 16, 2006 | 01:58 PM

#30

Jager

Tear you apart

iTrader: (10)

Joined: Aug 2004

Posts: 5,891

Likes: 38

From: Bemidji Minnesota

That's one flat torque curve.

Jan 16, 2006 | 05:04 PM

#31

C-Murder

Whip it good

Joined: Jan 2004

Posts: 229

Likes: 0

From: Calgary

You couldn't get an extra 7hp? haha

Jan 16, 2006 | 10:03 PM

#32

swanton187

Registered 7 User

Joined: Jul 2005

Posts: 135

Likes: 0

From: Kitchener, Ont, Ca

Wow thats is a nice pull man....Any plans to try and break the 200hp.

Jan 17, 2006 | 04:57 AM

#33

RETed

Lives on the Forum

Joined: Feb 2001

Posts: 26,664

Likes: 22

From: n

PFS...makes you wonder?

Looks like if the engine were to spin up to 8kRPM, it would've made it!

-Ted

Jan 17, 2006 | 05:09 AM

#34

buzz2

Thread Starter

Full Member

Joined: Oct 2003

Posts: 70

Likes: 0

From: Sparks, MD

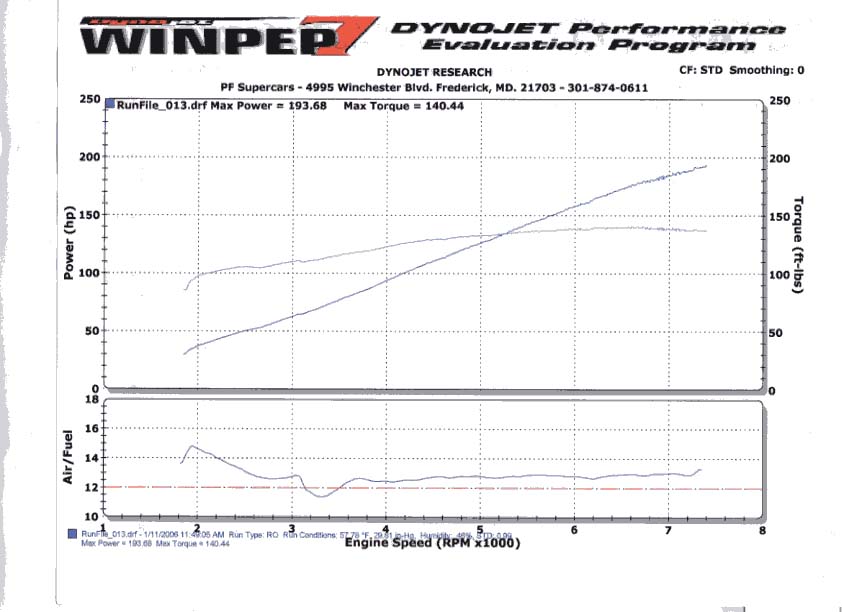

There were 2 pulls that reached 193. Attached is the other one. PFS did a great job and I highly recommend them.

Attached Thumbnails

Last edited by buzz2; Jan 17, 2006 at 05:27 AM.

Jan 17, 2006 | 05:33 AM

#35

buzz2

Thread Starter

Full Member

Joined: Oct 2003

Posts: 70

Likes: 0

From: Sparks, MD

Quote:

Originally Posted by C-Murder

You couldn't get an extra 7hp? haha

I know, I know. Reaching 200 was my goal. I'm open to suggestions. Uncollected exhaust? ITBs? Somebody throw me a bone of experience.

Jan 17, 2006 | 05:34 AM

#36

buzz2

Thread Starter

Full Member

Joined: Oct 2003

Posts: 70

Likes: 0

From: Sparks, MD

Quote:

Originally Posted by Jager

Have you thought of isolating the filter or anything of that like?

What filter? The fuel filter?

Jan 17, 2006 | 10:32 AM

#37

Jager

Tear you apart

iTrader: (10)

Joined: Aug 2004

Posts: 5,891

Likes: 38

From: Bemidji Minnesota

Quote:

Originally Posted by buzz2

What filter? The fuel filter?

The cone filter for your intake.

Jan 18, 2006 | 01:44 AM

#38

FB II

Banned. I got OWNED!!!

Joined: Dec 2002

Posts: 4,192

Likes: 0

From: wishing i was back in FL

Quote:

Originally Posted by RETed

Looks like if the engine were to spin up to 8kRPM, it would've made it!

-Ted

Jan 18, 2006 | 05:11 AM

#39

rbloyer

Junior Member

Joined: Nov 2004

Posts: 16

Likes: 0

From: Baltimore

Quote:

Originally Posted by RETed

PFS...makes you wonder?

Looks like if the engine were to spin up to 8kRPM, it would've made it!

-Ted

Believe me I'm thinking about it all the time. Since the curve seems to be settling, I want to make a few changes before I go back. I suppose I could remove my airpump and maybe cut down a few of the pulleys on my already under-driven main pulley (since I don't have AC or PS anyway). Otherwise I believe my options are to switch over to an uncollected race exhaust or ITBs. Both of these are expensive changes.

Jan 18, 2006 | 02:41 PM

#40

Jager

Tear you apart

iTrader: (10)

Joined: Aug 2004

Posts: 5,891

Likes: 38

From: Bemidji Minnesota

You should dyno once early in the day with the collected exhaust, then once later with the uncollected and see the gains

.

Why do you have so many user names?

Jan 18, 2006 | 10:22 PM

#41

Sideways7

Lives on the Forum

iTrader: (7)

Joined: Dec 2003

Posts: 6,598

Likes: 10

From: Temple, Texas (Central)

Quote:

Originally Posted by Jager

Why do you have so many user names?

Sometimes it will post your reply as someone else's user name. No idea why, forum quirk I guess.
Also, I would think that an uncollected exhuast would be cheaper, and definately easier, than an ITB.

Jan 19, 2006 | 05:29 AM

#42

rbloyer

Junior Member

Joined: Nov 2004

Posts: 16

Likes: 0

From: Baltimore

Quote:

Originally Posted by Jager

You should dyno once early in the day with the collected exhaust, then once later with the uncollected and see the gains

.

Why do you have so many user names?

I forgot my password for Buzz2 and for some reason I can't get the User/CP to send me a new one.

Jan 20, 2006 | 12:46 AM

#43

Roundabout

Village Idiot

iTrader: (8)

Joined: Jan 2002

Posts: 1,081

Likes: 1

From: Duluth, MN

First of all, you should have PFS crank on the ac, make sure you install one of those tornado things, gotta have the splitfire plugs, and one of those Bub Rubb whistles and you should be making 210 easy
