418rwhp FC Power
I know this isn't a FC, but its heart is an s4 T2 engine.
Intake ports are stock, only the exhaust is ported.

Don't mind the big dip in the torque curve it was cured, AFR was a 10.1 there.

To4B v1/v2 .96 P trim
3.5" exhaust
Open Tial 44mm wastegate
Chemical intercooler only( AI- 750cc 50/50 water alcohol)
Holley 600 4 barrel
Twin MSD 6AL, blaster coils etc
Locked timing at 15degree


418rwhp corrected @ 15psi of boost
Boost creep does show 19psi in this graph, but there was no difference in power above 15psi because of lack of an inter-cooler.

Dyno was stopped at 7500rpms as the owner said its got enough power for the 1600# vehicle.
http://www.youtube.com/watch?v=WQ5tbgnn-Fc

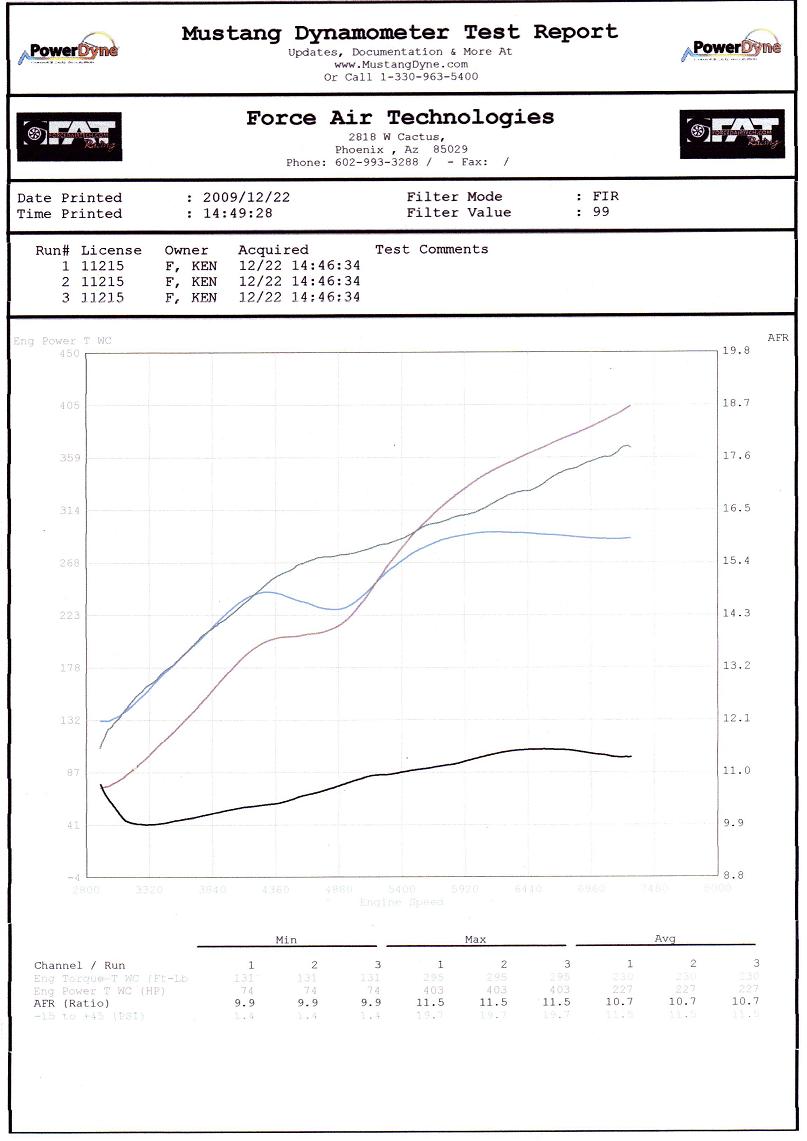

Attached Thumbnails 418rwhp FC Power-img106.jpg
Turblown is offline
Reply Like
Old 12-22-09, 08:32 PM
  #2
not a drifter

iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,337
Received 5 Likes on 5 Posts
nice
87 t-66 is offline
Reply Like
Old 12-22-09, 11:27 PM
  #3
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
Thanks.

Not bad for a 55mm(inducer) turbo! Thats smaller than a 57 trim To4E...
Turblown is offline
Reply Like
Old 12-23-09, 12:40 AM
  #4
Moderator

iTrader: (25)

Spirit-RE's Avatar

Join Date: Dec 2008
Location: Whitewater, WI
Posts: 2,941
Received 38 Likes on 22 Posts
Be fun to drive...
Spirit-RE is offline
Reply Like
Old 12-23-09, 12:08 PM
  #5
Rotary Freak

iTrader: (6)

Nick_d_TII's Avatar

Join Date: May 2002
Location: Beaverton, OR
Posts: 1,620
Received 6 Likes on 6 Posts
Wicked! I've heard of this, locked timing and a carb. No EFI or F'ing ECU there, just a turbo and gas. Nice, Big middle finger to Electronics and Technology...
Nick_d_TII is offline
Reply Like
Old 01-10-10, 02:49 PM
  #6
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
I won't do another carb; its just too much of a pain.

We took it out a few weeks ago and it did well, but we needed to make some changes.
We're doing a new turbo manifold to eliminate the boost creep, lowering the boost to 12psi, adding an intercooler, and switching to just pure water injection.

Owner never went more than 3/4 throttle either, he said he was too scared!
Turblown is offline
Reply Like
Old 01-10-10, 10:20 PM
  #7
Junior Member

Boosted_FC's Avatar

Join Date: Jan 2010
Location: Texas
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Bet that thing is a blast to drive
Boosted_FC is offline
Reply Like

Trending Topics

Old 01-11-10, 01:45 PM
  #8
F**K THE SYSTEM!!


junito1's Avatar

Join Date: Sep 2006
Location: Florida
Posts: 2,585
Likes: 0
Received 1 Like on 1 Post
thats wastegate was struggling.
junito1 is offline
Reply Like
Old 01-11-10, 02:53 PM
  #9
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
Originally Posted by junito1
thats wastegate was struggling.
This should fix it

Old on the right, new on the left..
Attached Thumbnails 418rwhp FC Power-kennewmanifold.jpg
Turblown is offline
Reply Like
Old 01-14-10, 11:00 AM
  #10
Leave my avatar alone!!!

iTrader: (8)

rotarycrazy's Avatar

Join Date: Feb 2005
Location: Spartanburg SC
Posts: 1,656
Likes: 0
Received 0 Likes on 0 Posts
who did you guys get to boost prep the carb?
rotarycrazy is offline
Reply Like
Old 01-14-10, 01:31 PM
  #11
F**K THE SYSTEM!!


junito1's Avatar

Join Date: Sep 2006
Location: Florida
Posts: 2,585
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 1Revvin7
This should fix it

Old on the right, new on the left..
Awsome.
junito1 is offline
Reply Like
Old 01-14-10, 01:37 PM
  #12
FC since 99

iTrader: (2)

stylEmon's Avatar

Join Date: Feb 2006
Location: PHL
Posts: 2,712
Likes: 0
Received 2 Likes on 2 Posts
haha, @ 1:38, the camera shakes from the wastegate gases!
stylEmon is offline
Reply Like
Old 01-14-10, 01:40 PM
  #13
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
Originally Posted by rotarycrazy
who did you guys get to boost prep the carb?
I did it all in house. Took me a while to figure it all out, and what a PITA
Turblown is offline
Reply Like
Old 02-28-10, 06:50 PM
  #14
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
http://www.youtube.com/watch?v=81YMRLYWJMw
Turblown is offline
Reply Like
Old 03-03-10, 09:25 PM
  #15
mattg prob nt coming back

iTrader: (3)

FC3S_nataku's Avatar

Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Received 0 Likes on 0 Posts
arent you guys scared to crack the rear iron at that power level?
FC3S_nataku is offline
Reply Like
Old 03-05-10, 12:41 PM
  #16
Full Member

BotieRacing954's Avatar

Join Date: Jul 2009
Location: South Florida
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
sweet I wish I can do Stuff like that Down here in South Florida with out going to jail lol
BotieRacing954 is offline
Reply Like
Old 03-05-10, 04:29 PM
  #17
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
Originally Posted by FC3S_nataku
arent you guys scared to crack the rear iron at that power level?

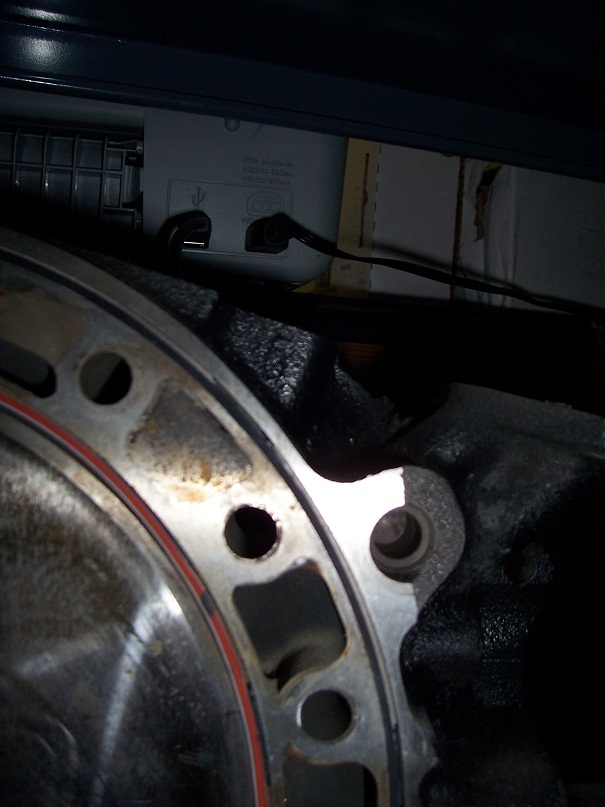

How about shearing right off?

We added an s5 plate and a set of our studs after this, haven't had a problem. Power is a lot higher now too with the inter-cooler than that dyno..
Attached Thumbnails 418rwhp FC Power-100_4877.jpg
Turblown is offline
Reply Like
Old 03-05-10, 05:10 PM
  #18
Rotary Freak

iTrader: (6)

Nick_d_TII's Avatar

Join Date: May 2002
Location: Beaverton, OR
Posts: 1,620
Received 6 Likes on 6 Posts
This is all on a To4b... Damn. What made it shear like that? Just running it at over 400HP? or Did something else cause it?
Nick_d_TII is offline
Reply Like
Old 07-24-10, 03:38 AM
  #19
35r 13b first gen

iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1Revvin7
This should fix it

Old on the right, new on the left..
looks similar to mine!! nice!!
zaridar is offline
Reply Like
Old 07-27-10, 09:32 PM
  #20
S5 T2
iTrader: (6)

Bamato's Avatar

Join Date: Jun 2010
Location: Mesa, AZ
Posts: 948
Likes: 0
Received 0 Likes on 0 Posts
Nice, I enjoyed watching the back end sink, and the tires expand at high rpm/speed
Bamato is offline
Reply Like
Old 08-05-10, 04:20 PM
  #21
Full Member

gearhead670's Avatar

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
that nova on there sounds like a lawn boy ----but it is a cool change of pace
gearhead670 is offline
Reply Like
Old 08-05-10, 04:30 PM
  #22
Full Member

gearhead670's Avatar

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
and honestly ---thats cool ---i like the way different
gearhead670 is offline
Reply Like
Old 08-17-10, 11:50 PM
  #23
BRAP!!

iTrader: (3)

cosmo7's Avatar

Join Date: Dec 2008
Location: california
Posts: 661
Likes: 0
Received 0 Likes on 0 Posts
wow
cosmo7 is offline
Reply Like
Old 08-18-10, 08:13 AM
  #24
Crash Auto?Fix Auto.

iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,831
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by 1Revvin7
Power is a lot higher now too with the inter-cooler than that dyno..
NO WAY!!
classicauto is offline
Reply Like
Old 08-27-10, 06:02 PM
  #25
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,066
Received 91 Likes on 77 Posts
lol... Wasn't my suggestion this time, I don't do without an intercooler anymore...
