Turblown IWG EFR 8374 26psi

Hey I just got done getting Turblowns IWG EFR 8374 Turbo kit dyno'd! It is soooo AWESOME.... my peak tq went from 6k to 3.6k and the car is making alot more HP in the lower RPM range. The car Scooots! I did have some voltage issue so there is def a lot of room for more HP.. I have them all sorted out and will be retuning shortly... 30PSI! so stay tuned! (no pun intended lol)

Turblown IWG EFR 8374 Turbo kit
Adaptronics 440 select ECU
Stock port motor
Fuel E85
4 x ID2000
xcessive LIM
Fuel lab 1500hp pump
4 x AEM smart coils
Vmount


The Car:

Name:  fd3S_zpsdb3ce63c.jpg
Views: 1108
Size:  83.1 KB

Name:  enginebay_zpsb28482de.jpg
Views: 1446
Size:  94.7 KB

Boost + HP:

Name:  1096946_10152348083178685_154760908_o_zpsd61b7bf0.jpg
Views: 1117
Size:  260.3 KB

TQ + HP:

Name:  1926031_10152348083448685_1945786666_o_zps15b2efc4.jpg
Views: 1110
Size:  258.8 KB
shawnm565 is offline
Old 04-23-14, 12:25 AM
  #2
bow leggin'
iTrader: (25)

Scrub's Avatar

Join Date: Jul 2002
Location: Delaware
Posts: 6,058
Received 1 Like on 1 Post
Gotta love that boost curve haha instant boost!
Scrub is offline
Old 05-25-14, 04:02 PM
  #3
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Sexy!

Do you know pricing and availability for this kit? Any idea if it fits well in a FC? A friend of want to buy one and I am gathering list with required hardware
Rub20B is offline
Old 05-29-14, 03:47 PM
  #4
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Only the 7670 will fit on the shorty system for an fc. We do offer a long runner iwg system for the fc3s engine. Now if you have an fd or 13bre in your fc chassis you can use the 8374 versions in shorty configuration . All the info is here : http://www.turbosource.com/mobile/Category.aspx?id=2039

You would swear Shawns car was a 3 rotor riding in it...
Turblown is offline
Old 06-01-14, 11:39 AM
  #5
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
So if we use an FD or excessive FD LIM the short system with the IWG housing should clear it in the FC? thats really nice.
Rub20B is offline
Old 06-02-14, 10:40 AM
  #6
Rotary Enthusiast
Thread Starter
iTrader: (3)

Join Date: May 2011
Location: Minnesota
Posts: 887
Likes: 0
Received 11 Likes on 11 Posts
Originally Posted by Rub20B View Post
So if we use an FD or excessive FD LIM the short system with the IWG housing should clear it in the FC? thats really nice.
Note - If you use the Excessive FD LIM you will need to either shave off about 1/8 inch from the outside of the manifold on the far right runner or like I am having done is sending my LIM to a machinist to mill 1/8 inch off the face of the LIM.
shawnm565 is offline
Old 06-02-14, 01:40 PM
  #7
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Originally Posted by Rub20B View Post
So if we use an FD or excessive FD LIM the short system with the IWG housing should clear it in the FC? thats really nice.
Xcessive FD3S LIM will not bolt to an FC engine...Not only are the ports very tall, but the bolt pattern is also way off..
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 06-02-14, 02:50 PM
  #8
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
on my '87 TII FC I test fit my EFR 7670 on my engine with LIM and in the chassis.

Used an equal length symmetrical shorty HKS FD T04Z stainless tubular manifold (6" runners that meet at the center of the motor).

Mine is an older non v-band wg version of this-
http://i256.photobucket.com/albums/h...D/DSCF3516.jpg


It fits, but I have removed my ACV casting on the LIM- I don't know if the exhaust housing would hit that or not on a stock LIM.

The center housing is centered fairly well at the front runner- the 8374/9180s *might* just fit as well as I have ~1/2" from the backside of the compressor housing to the front LIM runner.

The rear V-band is pretty close to the stock turbo coolant line boss. I think it would work but I am going to trim this casting off as well and plug it.

Well, I better get some pics.
BLUE TII is offline
Old 06-03-14, 03:52 AM
  #9
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Yeah, we planned to use FD front and rear side-housing and S5 center housing to retain the stock FC engine mount location and benefit from the better oilpump on the FD front housing as well as thicker down pin land on the FD rear housing.

Blue TII, photos would be nice!, did you the the T4 IWG 7670 EFR or the EWG T3 or T4?
Rub20B is offline
Old 06-03-14, 12:26 PM
  #10
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
My EFR 7670 is the 1.05 AR T4 external wastegate exhaust housing.

Yeah, we planned to use FD front and rear side-housing and S5 center housing to retain the stock FC engine mount location and benefit from the better oilpump on the FD front housing as well as thicker down pin land on the FD rear housing.

Too many intake manifold problems.

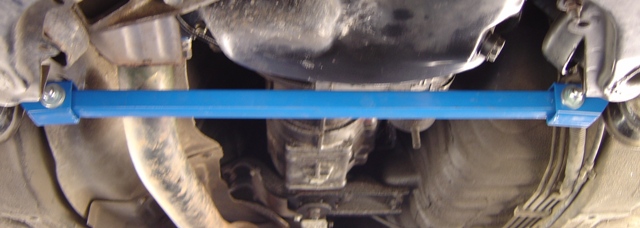

Better to use the entire FD REW and simply make/buy a bar that goes between the FC RX-7 rear pickup points of the front lower arms to mount the stock REW engine mounts to.

http://www.bobbyjasan.com/images/pro...1/Img_8036.jpg

http://i.imgur.com/FOYboh.jpg

https://www.rx7club.com/attachments/...d-bar-full-jpg
BLUE TII is offline
Old 08-06-14, 04:22 AM
  #11
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
@ Turblown, seems he ordered the kit at Turbosource.com. now lets get exited . I told him to wait with the excessive LIM and first see what shape the rotor housing are when we pull the engine. if they're gone because of the tip piece doing its thing at the side, semi PP will be the way ahead.
Rub20B is offline
Old 08-07-14, 12:49 PM
  #12
Senior Member
iTrader: (6)

ricardo.benin's Avatar

Join Date: Dec 2012
Location: U.S.
Posts: 400
Likes: 0
Received 0 Likes on 0 Posts
What a/r
ricardo.benin is offline
Old 08-07-14, 12:56 PM
  #13
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Iwg is always .92...
Rub20B is offline
Old 08-07-14, 01:00 PM
  #14
Senior Member
iTrader: (6)

ricardo.benin's Avatar

Join Date: Dec 2012
Location: U.S.
Posts: 400
Likes: 0
Received 0 Likes on 0 Posts
Ok I did not know that
ricardo.benin is offline
Old 08-08-14, 07:45 PM
  #15
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Originally Posted by Rub20B View Post
@ Turblown, seems he ordered the kit at Turbosource.com. now lets get exited . I told him to wait with the excessive LIM and first see what shape the rotor housing are when we pull the engine. if they're gone because of the tip piece doing its thing at the side, semi PP will be the way ahead.
Yves is your customer? Yes he placed an order for a kit. I advised stock ports would be best for his mainly street driven car with low power goals. We are shipping 1 to 2 of these kits a week so a lot more results should be popping up!
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 08-08-14, 08:01 PM
  #16
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Yep, in case his housings are gone because of the tip piece or he waits so long to open up the engine till one of the 3 piece seals flips in the groove, I will advise him to go semi PP, should be better to make the same power with less boost , heat wise. Will be using rice racing pre turbo WI to keep a safety margin knock wise.
Rub20B is offline
Old 09-05-14, 12:19 AM
  #17
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Making progress, ran out of time to fix completely( needs a high boost actuator anyhow)...

I just noticed peak torque was actually at 30psi. Very curious to see how it goes once ignition misfires are fixed.. Should be around 470+ tq and 575-600rwhp if it flows well uptop..

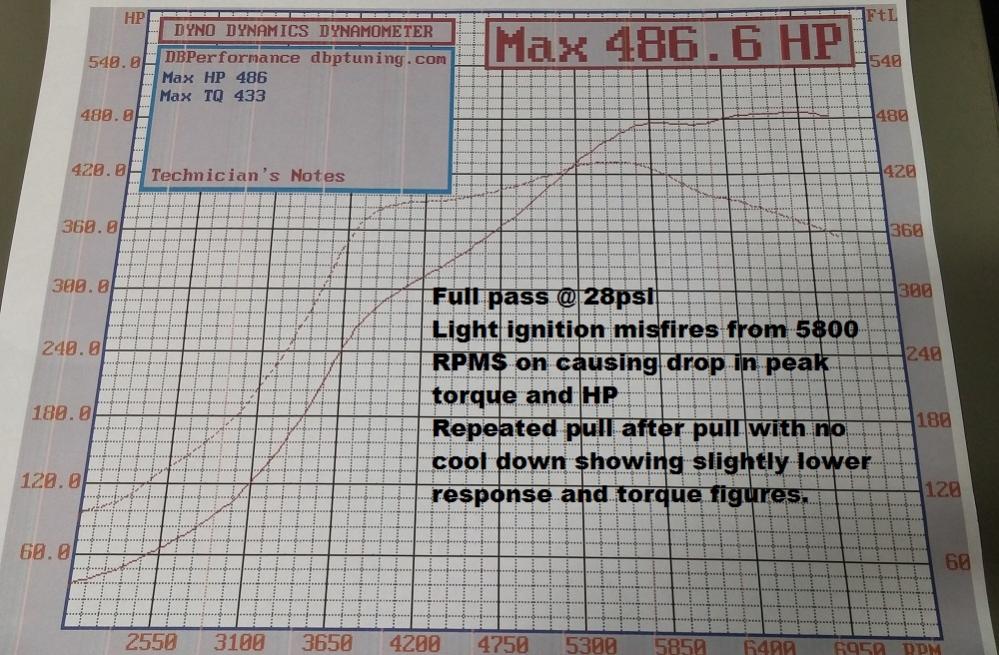

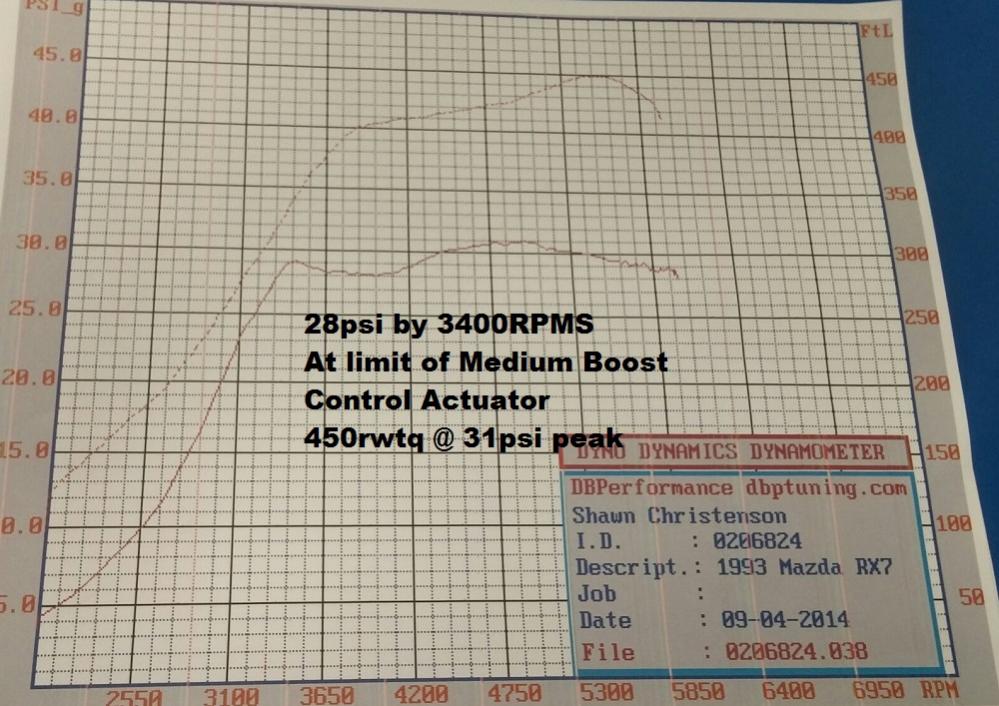

Attached Thumbnails Turblown IWG EFR 8374 26psi-maxtq-response.jpg   Turblown IWG EFR 8374 26psi-fullpass.jpg
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 09-06-14, 01:16 AM
  #18
EFR IWG 8374
10 Year Member

JTurtonRX_7's Avatar

Join Date: Aug 2003
Location: C. Springs
Posts: 638
Likes: 0
Received 0 Likes on 0 Posts
Very nice numbers, good luck getting everything sorted out.
JTurtonRX_7 is offline
Old 09-08-14, 11:05 AM
  #19
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Going very nice.

If you hit the dyno again do you think it would be possible to aslo record pressure before turbine? It would be really nice to compare it to boost. and even nicer would be to do a few pulls at different boost levels.

Keep up the good work!
Rub20B is offline
Old 09-08-14, 04:14 PM
  #20
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Originally Posted by Rub20B View Post
Going very nice.

If you hit the dyno again do you think it would be possible to aslo record pressure before turbine? It would be really nice to compare it to boost. and even nicer would be to do a few pulls at different boost levels.

Keep up the good work!
The shaft speed sensor is being installed, and I have the intention to also monitor EMBP too.

The engine is now out however as the owner say an Apex seal is stuck.
This was an unknown engine with 3+ years of 27psi so no one is surprised.
Built engine coming this winter.
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 09-27-14, 11:20 PM
  #21
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Likes: 0
Received 1 Like on 1 Post
if anyone is interested in a USED EFR kit, i am selling one currently that is very similar to Turblown's bolt-on kit.
jacobcartmill is offline
Old 11-05-14, 11:00 AM
  #22
Full Member

Join Date: Jul 2006
Location: New Jersey
Posts: 153
Received 0 Likes on 0 Posts
It is amazing how these EFR turbos are working with rotaries, I cannot be more excited to see how well they are working and the results people are obtaining from them.
h_turbo is offline
Old 03-21-15, 08:57 AM
  #23
Full Member

Join Date: Jun 2010
Location: Bristol, U.K
Posts: 58
Likes: 0
Received 1 Like on 1 Post
These numbers are all great and everything....but does anyone have results for power and torque at 15psi on 93 octane fuel? how responsive is the turbo....what sort of power to expect on the above setup but on a more realistic....daily driver fd.
rx7srbad is offline
Old 03-21-15, 12:24 PM
  #24
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
jacobcartmill ran his EFR 8374 at 12psi and the response and power was VERY good for that low boost. From memory he was at 340rwhp with full boost ~3,000rpm.
BLUE TII is offline
Old 10-10-16, 09:55 PM
  #25
Rotary Enthusiast
Thread Starter
iTrader: (3)

Join Date: May 2011
Location: Minnesota
Posts: 887
Likes: 0
Received 11 Likes on 11 Posts
Originally Posted by rx7srbad View Post
These numbers are all great and everything....but does anyone have results for power and torque at 15psi on 93 octane fuel? how responsive is the turbo....what sort of power to expect on the above setup but on a more realistic....daily driver fd.
16.5 psi on pump only. 482rwhp/384rwtq

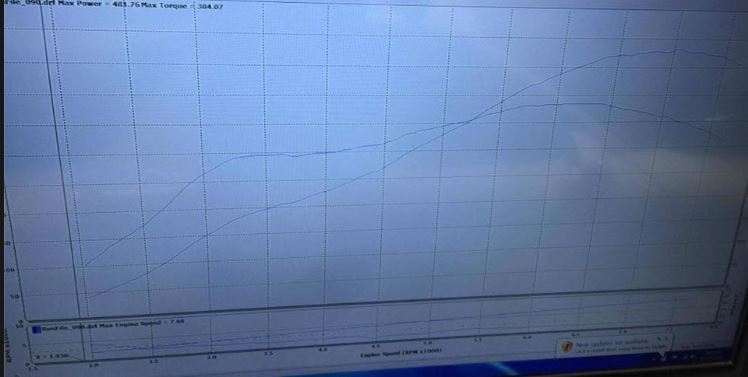

Attached Thumbnails Turblown IWG EFR 8374 26psi-ryancastefr8374iwgdyno-pumpgas.jpg

Last edited by shawnm565; 10-10-16 at 10:35 PM.
