Finaly tunned & Dyno Results ... !

Old 07-06-05, 10:40 AM
  #1
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Smile Finaly tunned & Dyno Results ... !

OK, I finaly had my car tunned yesterday by Tony @ T&R Racing (many of the locals know him for the amazing work he does) which turned out great results.

I realy wanted to hit 380 RWHP more and less but Tony didn't agree with me on that one, and advised me to keep my boost at 12 psi max for 2 reasons:
1- Bad boost controler (HD valve) that spiked the boost to 14-15 psi at times, &
2- Stock injectors.

So we left the boost @ 10-11 psi because we couln't control the boost spike.

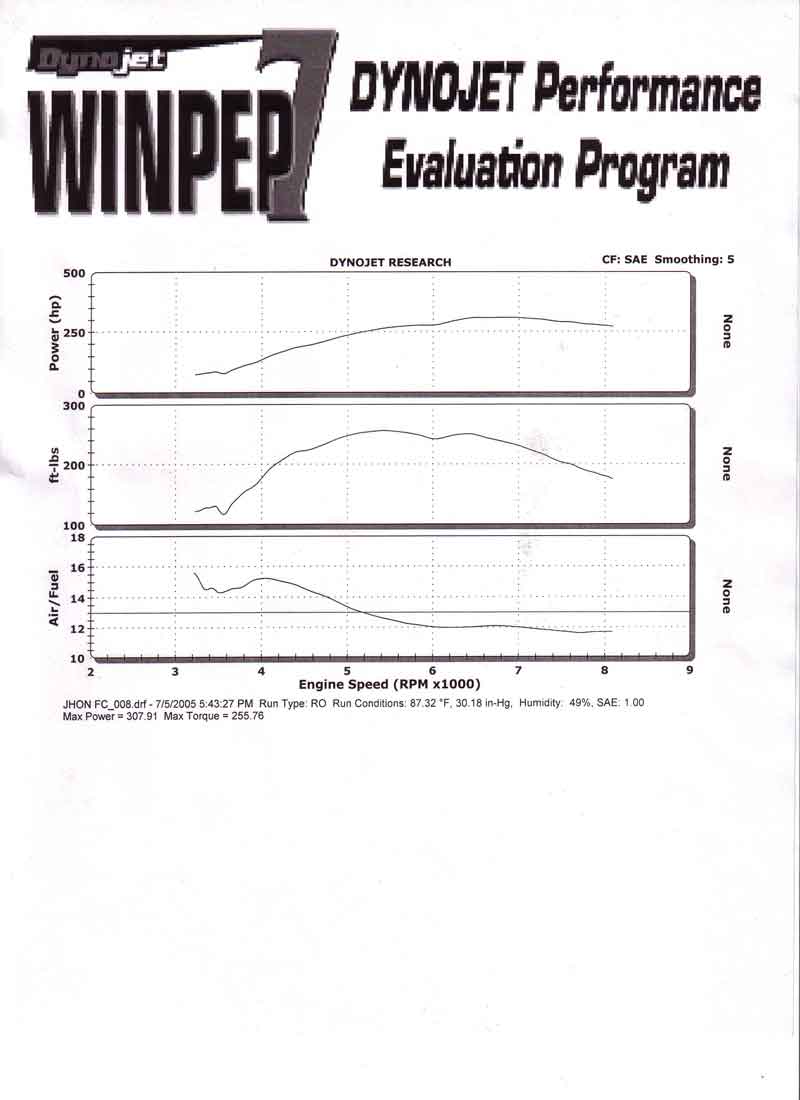

The numbers were:
@ 5psi - 251.XX RWHP
@ 10-11 psi with boost spikes to 14-15psi
301.49 RWHP
307.91 RWHP
311.XX RWHP

The first & last dyno slips we forgot to print, I guess I was pretty happy w/the results and dind't look what I took w/me till I came home, but I will pick them up next time I drive by the shop, b/c the last one is the more important one, I will post it here again.

My H20/Alc. injection was off, I didn't want to tune with it on, since that is just a Deto. prevention device and will not do any help on low boost anyway.

The main thing I need to get in near future is a good elec. B/C, crank the boost to 14psi and than use the h20/alc. inj., will see how many HP that will add...

For the work I recently did in my car click here and for the mod list hit the link in my sig.

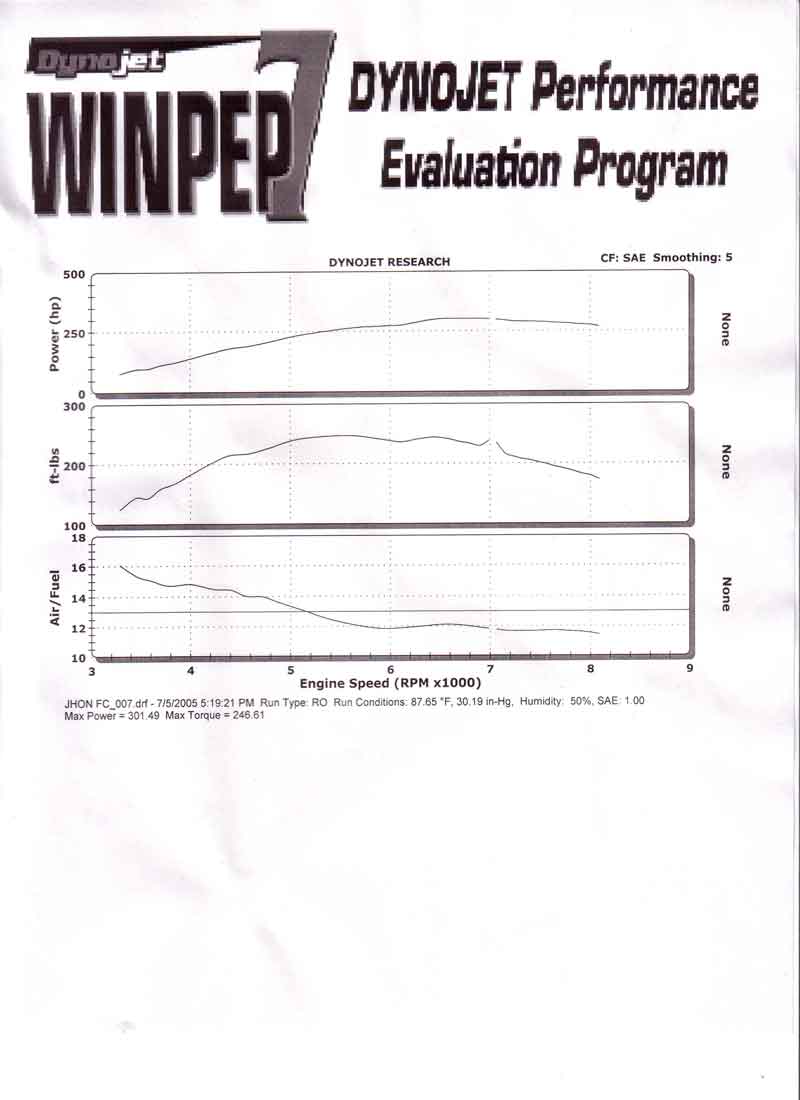

On the second slip it looks like an ignition brake-up of some sort but there was a signal problem with the dynometer.

All comments welcome.

Attached Thumbnails Finaly tunned & Dyno Results ... !-307.91-rwhp-dyno.jpg   Finaly tunned & Dyno Results ... !-301.49-rwhp-dyno.jpg

Last edited by TwinTurbo93; 07-06-05 at 10:44 AM.
TwinTurbo93 is offline
Old 07-06-05, 11:00 AM
  #2
BOYCOTT EXXON MOBIL!!!
5 Year Member

RX7UP's Avatar

Join Date: Dec 2003
Location: Westchester County, New York. USA
Posts: 2,048
Likes: 0
Received 0 Likes on 0 Posts
Great start.... Cant wait to see the numbers go up once you install the electronic boost controller and the bigger injectors... Overall good progress.... I'll give you an (A) for all your efforts....

Keep up the good work and keep us posted on the progress!
RX7UP is offline
Old 07-06-05, 11:00 AM
  #3
Lives on the Forum

rynberg's Avatar

Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,717
Likes: 0
Received 2 Likes on 2 Posts
How were those AFRs measured, because they are leaner than I would be comfortable with on my car.
rynberg is offline
Old 07-06-05, 11:19 AM
  #4
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Thank you my brazhha...
Originally Posted by RX7UP
Great start.... Cant wait to see the numbers go up once you install the electronic boost controller and the bigger injectors... Overall good progress.... I'll give you an (A) for all your efforts....

Keep up the good work and keep us posted on the progress!

Honestly I don't know exactly how he mesuared the AFR's, I know there was a little tube in the exhaust, a wire connected on the motor area to the dyno comp. that's it.

You think 12 is a little lean?
As you can see @ 7K rpm is going lower, closer to 11.5, I beleive it's pretty safe , I don't push my car like that all the time, especialy in hot weather like this, + I'm gonna use the h20/alc. inj. so it will be even safer.

Originally Posted by rynberg
How were those AFRs measured, because they are leaner than I would be comfortable with on my car.
TwinTurbo93 is offline
Old 07-06-05, 11:48 AM
  #5
Lives on the Forum

rynberg's Avatar

Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,717
Likes: 0
Received 2 Likes on 2 Posts
I would think a tailpipe sniffer would read a little leaner than a sensor placed before the cat, but yeah, 12:1 is a little lean. 11.5:1 would be safer, especially at your torque peak.

Pretty good numbers though for your mods, they probably wouldn't drop much running slightly richer. You need a midpipe for that non-sequential setup...

Last edited by rynberg; 07-06-05 at 11:52 AM.
rynberg is offline
Old 07-06-05, 01:21 PM
  #6
BOYCOTT EXXON MOBIL!!!
5 Year Member

RX7UP's Avatar

Join Date: Dec 2003
Location: Westchester County, New York. USA
Posts: 2,048
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rynberg
You need a midpipe for that non-sequential setup...
John is running the Apexi RX6B single Turbo....
RX7UP is offline
Old 07-06-05, 03:13 PM
  #7
silver ghost
iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,050
Likes: 0
Received 1 Like on 1 Post
upgrade your fuel and let that puppy breath!!
G's 3rd Gen is offline
Old 07-06-05, 03:19 PM
  #8
Don't worry be happy...
iTrader: (1)

Montego's Avatar

Join Date: Apr 2001
Location: San Diego, CA
Posts: 6,449
Received 76 Likes on 60 Posts
dayum!!! @ 5psi 251.XX RWHP

I dynoed at 189 RWHP at 6 psi... I guess single turbos really make that much of a difference.
Montego is offline
Old 07-06-05, 09:48 PM
  #9
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by montego
dayum!!! @ 5psi 251.XX RWHP

I dynoed at 189 RWHP at 6 psi... I guess single turbos really make that much of a difference.
That's exactly what I said to when I saw the dyno result.
Yeah, the single is doing it's job very well, + the huge FMIC is helping the proces alot aswell.
TwinTurbo93 is offline
Old 07-06-05, 11:42 PM
  #10
Rotary Freak

2FAST7S's Avatar

Join Date: Oct 2001
Location: Carmel, NY
Posts: 1,884
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rynberg
I would think a tailpipe sniffer would read a little leaner than a sensor placed before the cat, but yeah, 12:1 is a little lean. 11.5:1 would be safer, especially at your torque peak.

Pretty good numbers though for your mods, they probably wouldn't drop much running slightly richer. You need a midpipe for that non-sequential setup...
it is a wide band O2 sensor! I thought the same thing but without a cat i doubt it makes much of a difference. Ovbiously enough with his stock fuel system and the RX6 its gonna be pretty hard to keep it rich! I'm assuming he's running more fuel preasure since hes got a fpr. But seriously invest on a set of secondaries and then get the b/c...pointless without more fuel!!

that said, good numbers for the stock injectors! Just like me searching for more boost!
2FAST7S is offline
Old 07-07-05, 11:20 PM
  #11
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 2FAST7S
it is a wide band O2 sensor! I thought the same thing but without a cat i doubt it makes much of a difference. Ovbiously enough with his stock fuel system and the RX6 its gonna be pretty hard to keep it rich! I'm assuming he's running more fuel preasure since hes got a fpr. But seriously invest on a set of secondaries and then get the b/c...pointless without more fuel!!

that said, good numbers for the stock injectors! Just like me searching for more boost!
Yeah I'm gonna keep the boost @ 10-12psi max till I upgrade my injectors, better safe than sorry, also I bumped the fuel pressure to 50psi and I kept looking at the gauge while under boost the pressure went up a bit and stayd there real steady till 8K rpm .
TwinTurbo93 is offline
Old 07-08-05, 05:42 PM
  #12
10 Year Member

cripsR6's Avatar

Join Date: Mar 2004
Location: new jersey
Posts: 442
Likes: 0
Received 0 Likes on 0 Posts
Will you be making some passes this Sunday, or what?
cripsR6 is offline
Old 07-08-05, 06:20 PM
  #13
White chicks > *
10 Year Member
iTrader: (33)

Join Date: Jul 2003
Location: Secaucus, New Jersey
Posts: 13,150
Likes: 0
Received 0 Likes on 0 Posts
congrats jon, i knew all that hardwork paid off
1QWIK7 is offline
Old 07-09-05, 07:36 PM
  #14
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by cripsr6
Will you be making some passes this Sunday, or what?
Maybe, not sure though, my diff. is pretty weak and afraid to bust that sucka, I ordered the brace but it didn't arrive yet, don't want to get stuck 2-3h away from my house.


Originally Posted by ulost2my7
congrats jon, i knew all that hardwork paid off
Thanks man, I must say, yeah it paid off, just as long as she keeps working fine now...





Last edited by TwinTurbo93; 07-09-05 at 07:39 PM.
TwinTurbo93 is offline
Old 11-17-05, 07:50 AM
  #15
FD / LSX
iTrader: (2)

Join Date: Jun 2004
Location: wawayanda, NY
Posts: 1,359
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TwinTurbo93
I bumped the fuel pressure to 50psi and I kept looking at the gauge while under boost the pressure went up a bit and stayd there real steady till 8K rpm .
that is good. i set my fuel pressure to 56 and on the dyno, it nosed dived to 45psi. turned out the voltage reaching the pump was only 10.9 at WOT near 6000 RPM. so i re-wired it directly from the battery using relay and a fuse. now its 14.1 volts and pressure is steady at 56 psi. My crappy stock wires weren't able to keep up; all should check like you did.

so have you been to the track yet? best ET and mph?
2MCHPWR is offline
Old 11-17-05, 12:59 PM
  #16
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 2MCHPWR
that is good. i set my fuel pressure to 56 and on the dyno, it nosed dived to 45psi. turned out the voltage reaching the pump was only 10.9 at WOT near 6000 RPM. so i re-wired it directly from the battery using relay and a fuse. now its 14.1 volts and pressure is steady at 56 psi. My crappy stock wires weren't able to keep up; all should check like you did.

so have you been to the track yet? best ET and mph?
Are you still using the stock pump?
I'm using a walbro 255lph ,which should flow a little better than the stocker, but the wiring is still the same, that's a good thing what u did, but wiring it directly keeps the pump running on high voltage full time which causes the rotary to run a little rich on idle (not on your case)

Stock fuel delivery system works in 2 fazes, usualy on idle and low rpm the pump runs on something like 9V and once the RPM's rise it swithces to high votlage 14+v .
What ECU are you using? I'm not sure on this but the voltage switchover might be caused by the ECU not switching to high V. thus droping the fuel pressure on higher RPM.


Originally Posted by 2MCHPWR
so have you been to the track yet? best ET and mph?
Attempted 3 times, first one, was so hot that you can fry an egg on the asphalt and decided not to run, afraid from blowing my motor on 100+*F , second attemp I got rained out, track closed, and third attemp, past sunday, made it like 15 min. late, track was already full
I was furious all day, I wanted to see how I will do with my new turbo and the new mods, last years ET's were low 13's with the twins running non-seq. intake and exhaust @ 12psi spiking to 14-15.
TwinTurbo93 is offline
Old 11-18-05, 08:23 AM
  #17
FD / LSX
iTrader: (2)

Join Date: Jun 2004
Location: wawayanda, NY
Posts: 1,359
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TwinTurbo93
Are you still using the stock pump?
yeah, i use the 255 also. 1/2 lines. adjustable FPR mounted near the tank.
if i hit atco over the winter, i'll post up to see if others wanna go too.
we gotta see what these things can do in a straight line
2MCHPWR is offline
Old 11-18-05, 09:19 AM
  #18
0-rotor-0-turbo-0-fd
Thread Starter

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 2MCHPWR
yeah, i use the 255 also. 1/2 lines. adjustable FPR mounted near the tank.
if i hit atco over the winter, i'll post up to see if others wanna go too.
we gotta see what these things can do in a straight line
I'm down brotha, le'me know when...
TwinTurbo93 is offline
Old 12-03-05, 03:07 AM
  #19
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Likes: 0
Received 2 Likes on 2 Posts
i know this is an old thread, but it looks like you're flirting with disaster there in the midrange, TwinTurbo93...

i'd get that down to the 12's in the midrange and bump it down to the mid-high 11's in the upper RPMs. maybe just some food for thought?

i'd say you're right on the edge, but i guess thats where you make the most power

Last edited by jacobcartmill; 12-03-05 at 03:09 AM.
jacobcartmill is offline
