TwinTurbo93

Last years project wasn't delivering much, I rebuilt my twins succesfully, ported the wastegate and converted to full non-seq. mode getting rid of lots of hoses and solenoids, air pump etc..., but I got tired of the lagginess of the non-seq. setup so I decided to go single since my beatifull wife gave me one of the best Valentines gifts a man can get, a dual ball bearing RX6B kit.

Once I got the kit, I took of the compressor housing and polished it, now since I never polished before the job is not the best ever but is pretty acceptable, see pics below.

Since I started polishing I thought some more sh*t under the hood can use the bling-bling factor the turbo got, so I decided ti polish more stuff like:
UIM, TB, Alt., FMIC piping, AST, Tork brace etc...

Also I'm gonna send all the pulleys to Powder coat to a guy here in the forum (Nappy94), btw I got a UR p/s pulley from optionimports.com for $101.15 which most places sell it for $149.00+ .

I also made a FMIC Chiller hoop from a 3/8 brass tube, which is gonna be connected to the winshield washer fluid bottle to spray water to the IC at the same time as the water/alc injection comes online @ 10 psi, so the IC chiller will be connected on the same relay.

Within this project I'm throwing in a new 255 walbro fuel pump and relocating the fuel filter on the engine bay for easyer future access, someone tell me if this is bad to do & why ???

OK nuff said, check out some of the pics I already took.
---------------------------------

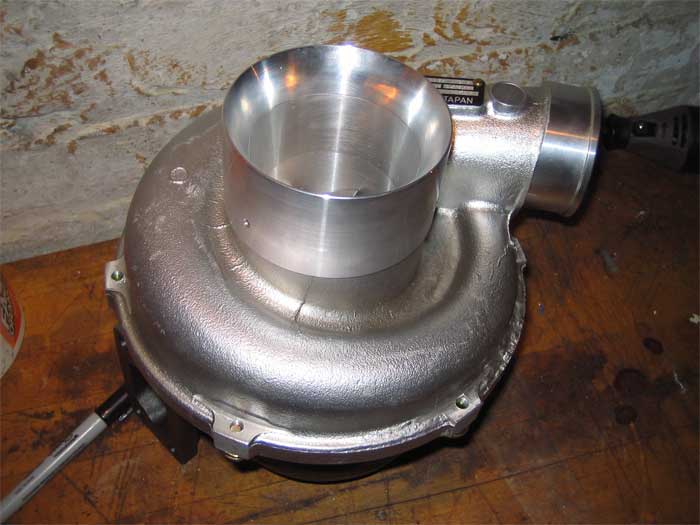

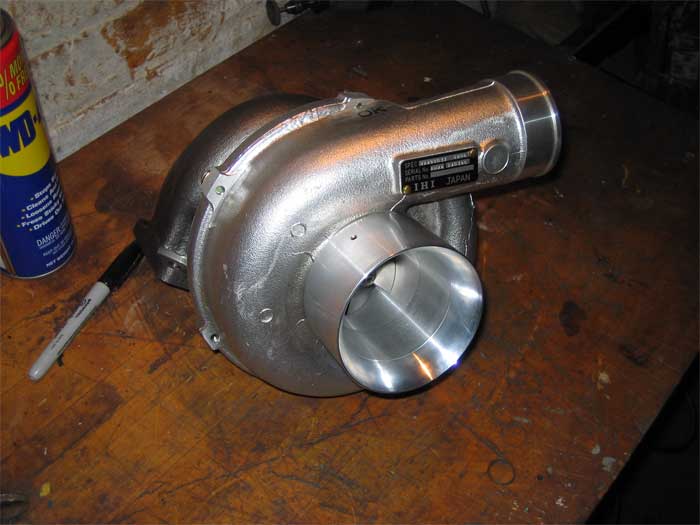

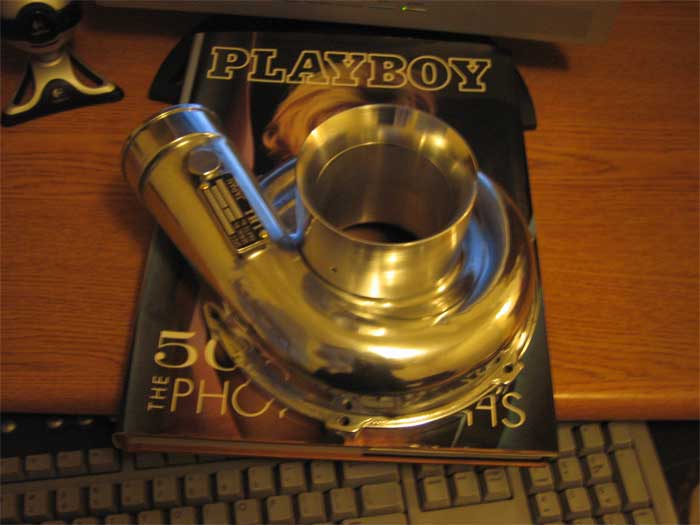

RX6 before polish:

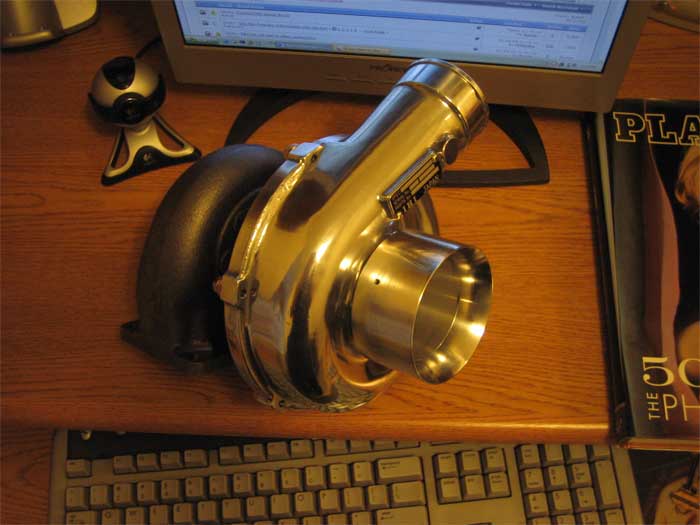

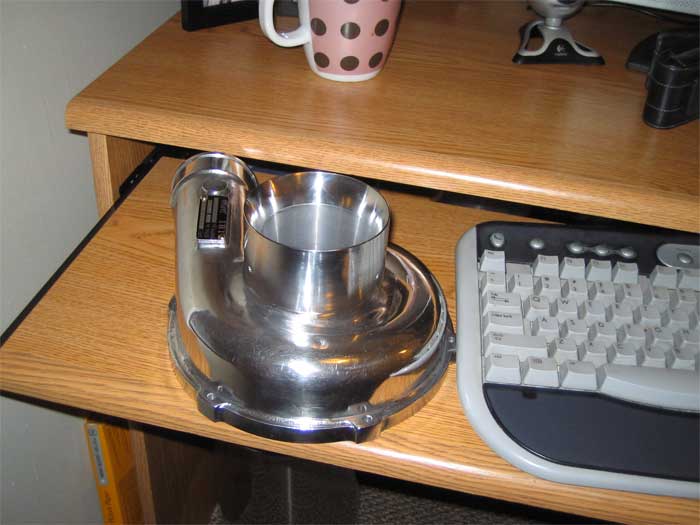

After polish:



No flash:




Lots more to come \/ ... enjoy.

rotoboy661

lookin good sir

keep it up

TwinTurbo93

Thank you sir.
----------------------------------------------



OK, here are some more pics,

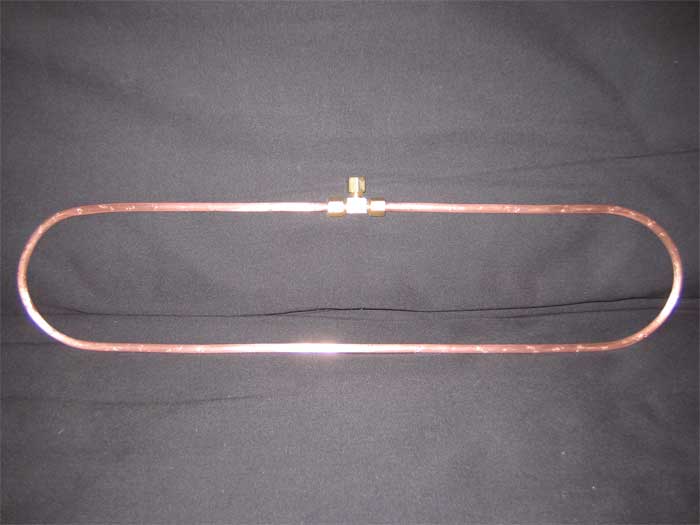

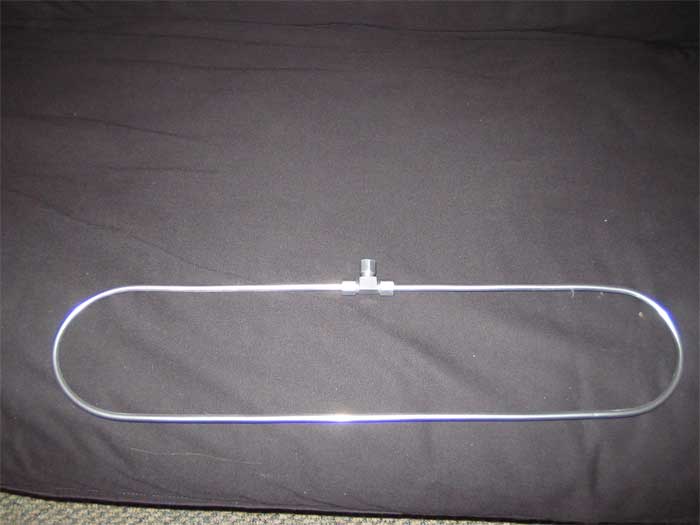

IC chiller, size 22 X 4-1/4, btw I shaped it all by hand!



on this pic you can see the tiny little holes I made on the tube/pipe in criss-cross pattern.

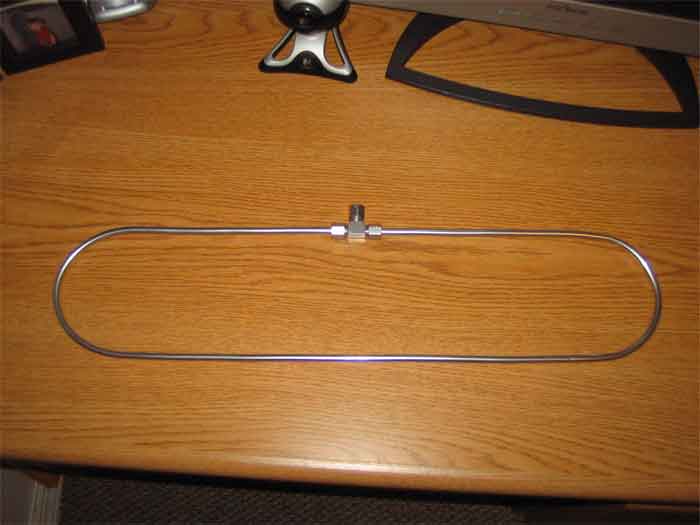

Painted w/high heat silver (all I had at the moment) when it chips I'll get some better paint for it.

TwinTurbo93

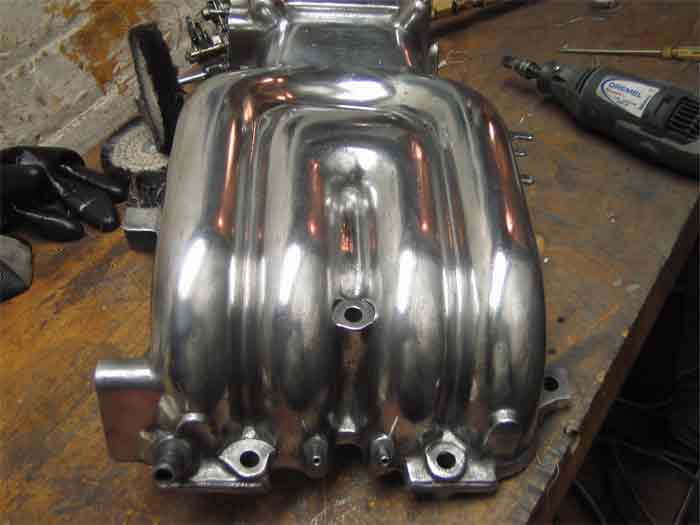

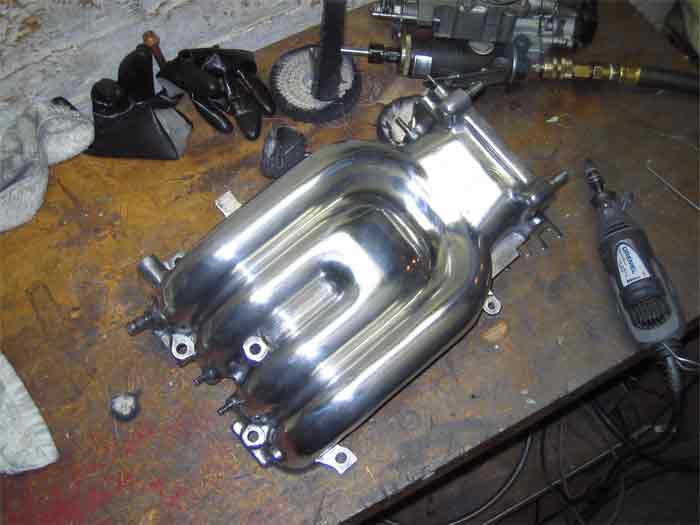

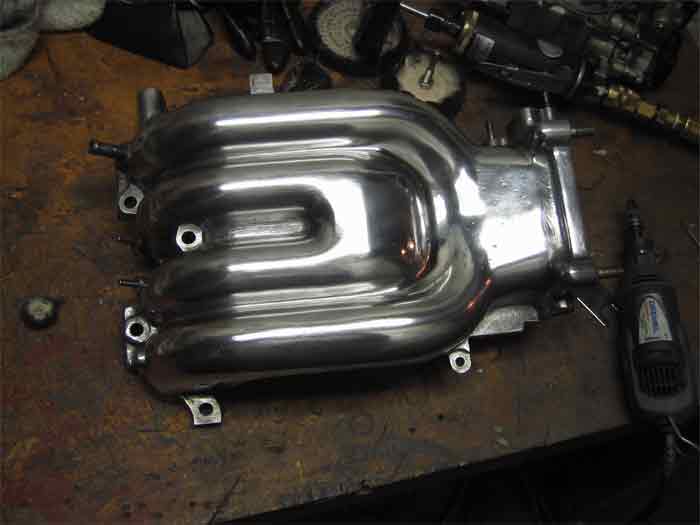

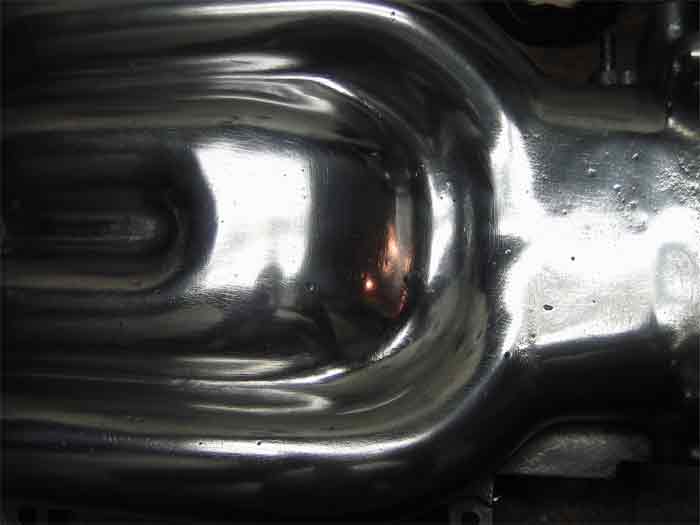

UIM

I'm not to happy w/the uim how it came out and I'm not going to do it again, took me 2 damn days to do it, my neck was stiff for 3 days after...

1987RX7guy

iTrader: (3)

What size Co2 bottle are you using and how long does it last?

TwinTurbo93

No Co2, I will be using water from the windshield washer bottle, I don't want to go that advanced, just water simple... more detailed in the first post /\ up /\

TwinTurbo93

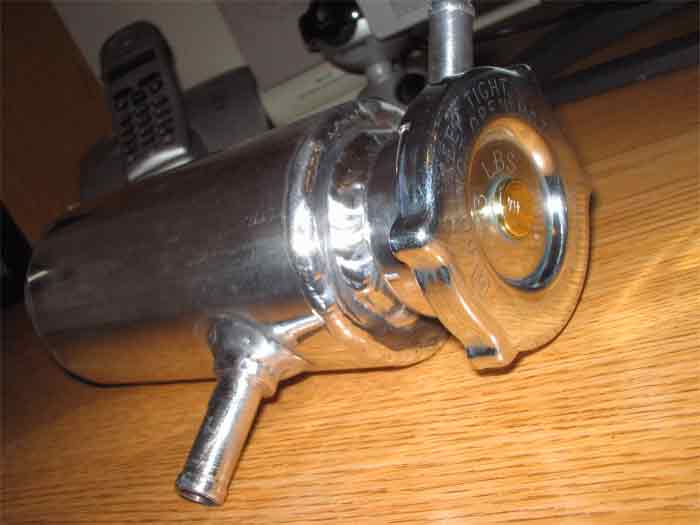

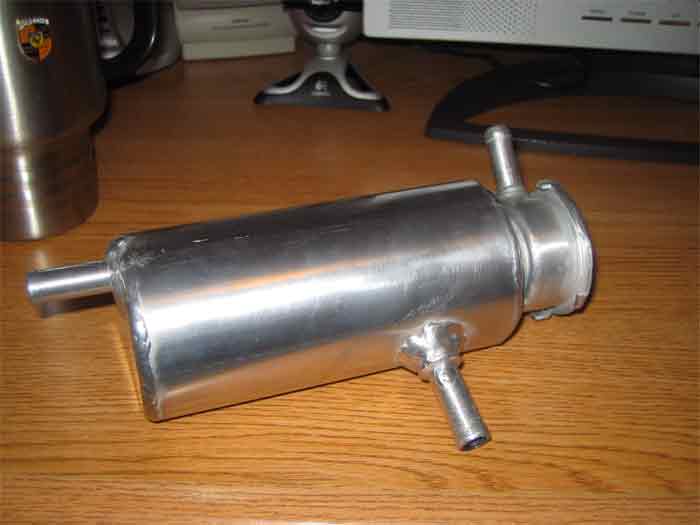

AST

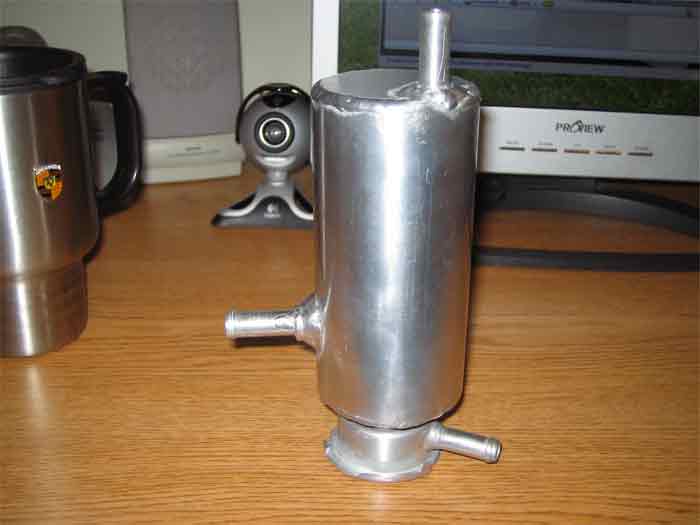

before polish:

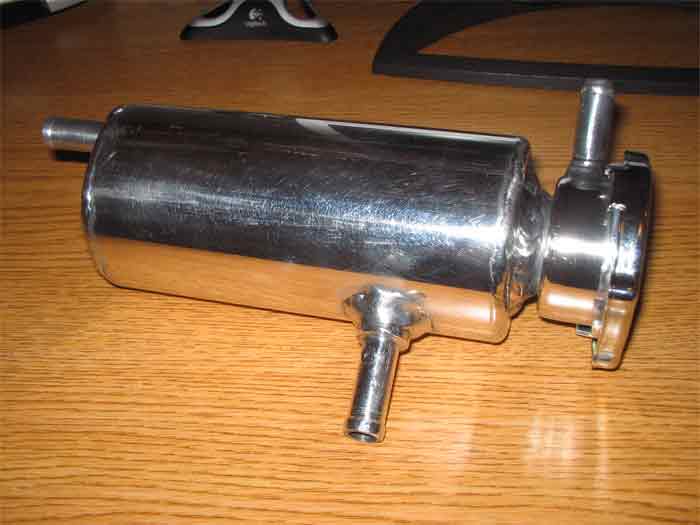

After polish:

1987RX7guy

iTrader: (3)

sweet what brand water injection are you running?

TwinTurbo93

No brand name, I custom made it w/new parts from all over...

1987RX7guy

iTrader: (3)

cool

1sicsol

I tried the water thing man, it doesnt work that graet. It makes a big mess tho. Use CO2


Good job on the polishing. I tried polishing for my first time whei a 6" pipe. It took forever, and I dont want to do it again.

You have alot of patience polishing the UIM

TwinTurbo93

Thanks
------------------------

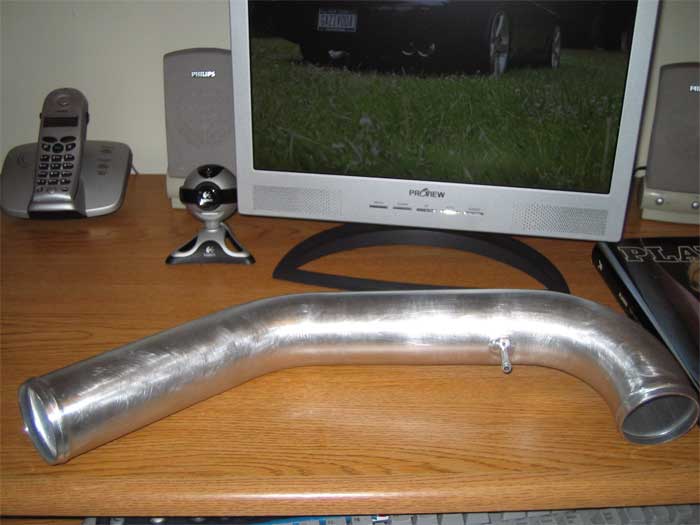

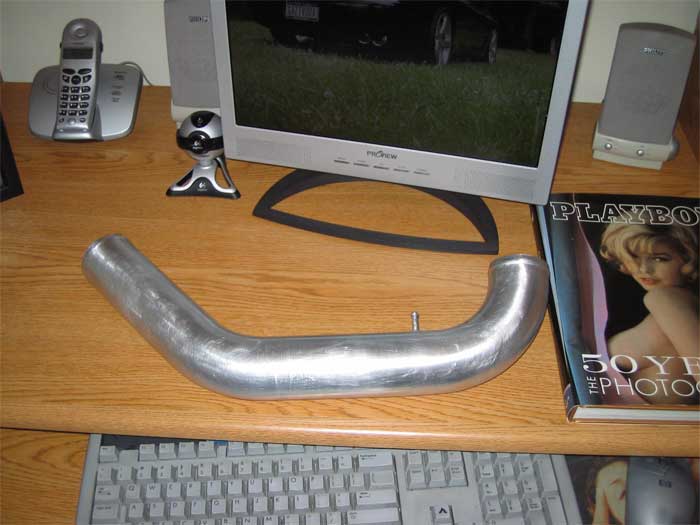

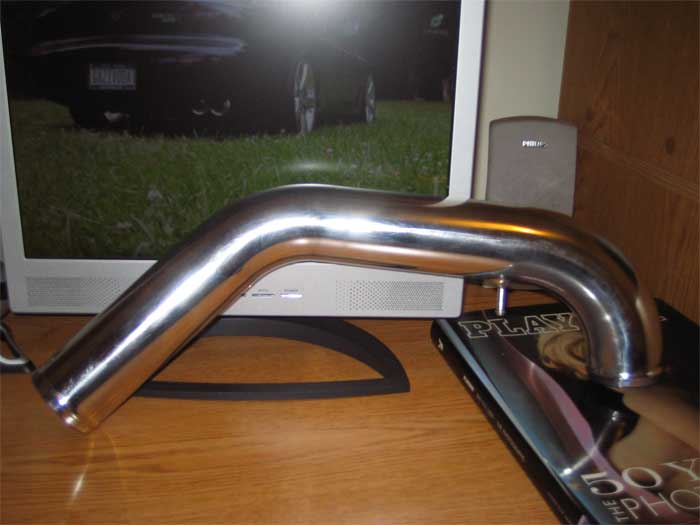

RX6's Cross over/IC pipe,

wet 600 grit

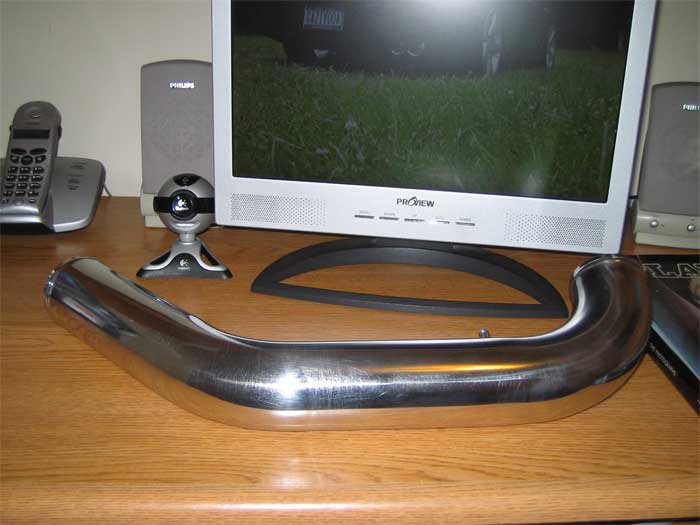

Polished:

TwinTurbo93

I'm gonna try water for now and than in future might consider Co2, thanks for the heads up.

Thanks, polishing is a pain the ***, once I'm done with it, will never polish again.

Now I'm in the process of doing the 2 hardest parts, alt & TB

TwinTurbo93

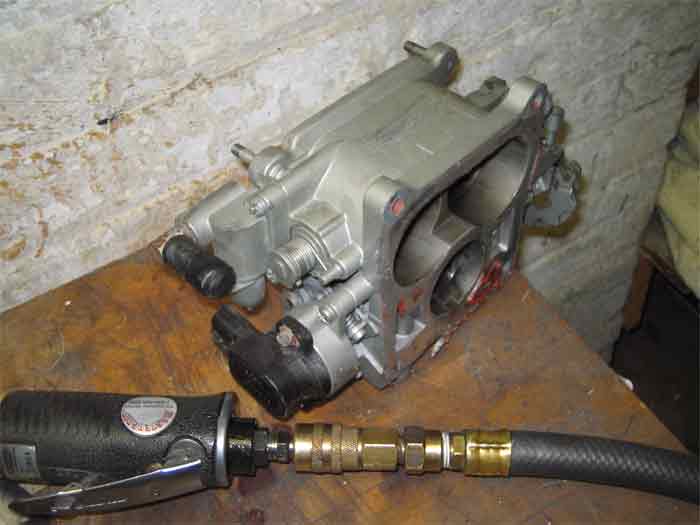

TB now



Who knows how it's gonna look after!



That's all the pics I got for now, more to come soon .

MR_Rick

iTrader: (7)

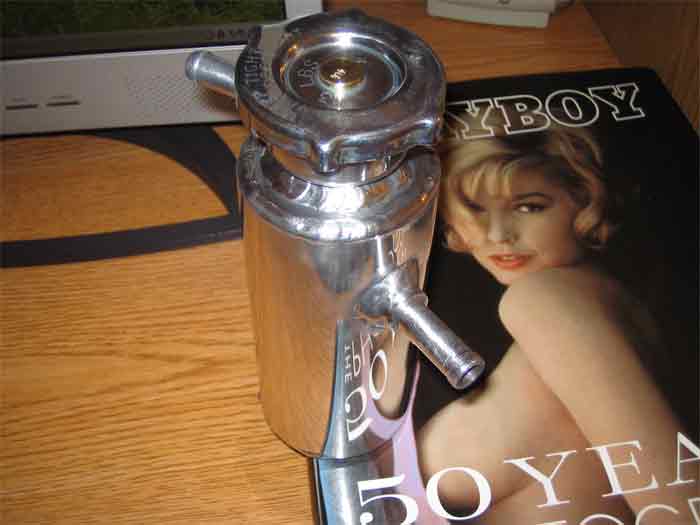

Nice book PERVERT J/K

TwinTurbo93

Hahahhaha, btw that book was signed for me by the MAN himself, Hugh Hefner .

FDeez

Just for ***** and giggles, do you mind showing how the airpump might fit with that single turbo kit. I'm curious to see.

cabaynes

iTrader: (4)

looks great, post some final pics when it's all in the engine bay

HDP

iTrader: (2)

And you are using it to lay parts on?

TwinTurbo93

As a matter of fact my air pump is long gone, last years project.




Thanks, I sure will, my plan is to finish by the end of this month, will see.




hahahaha, I guess a bit, even though I love this book and shouldn't of used it for laying **** on.

REXDEX

iTrader: (1)

Looking good!

TwinTurbo93

Thanks.

TwinTurbo93

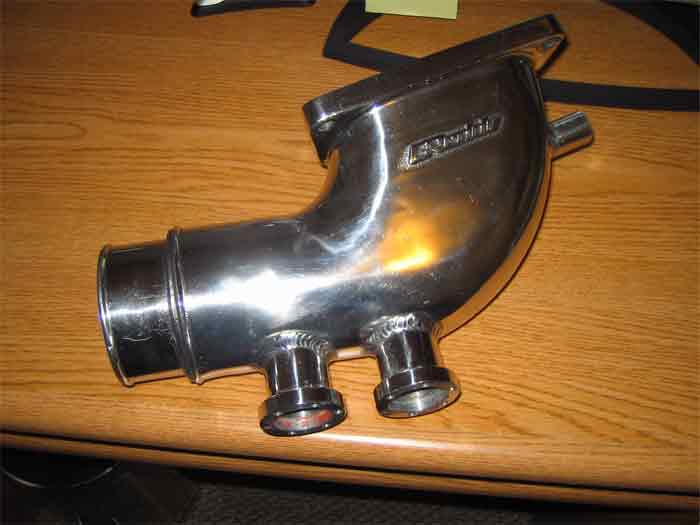

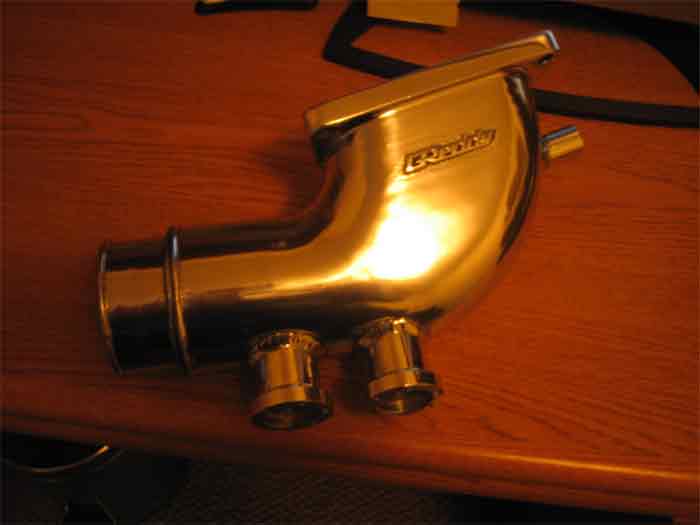

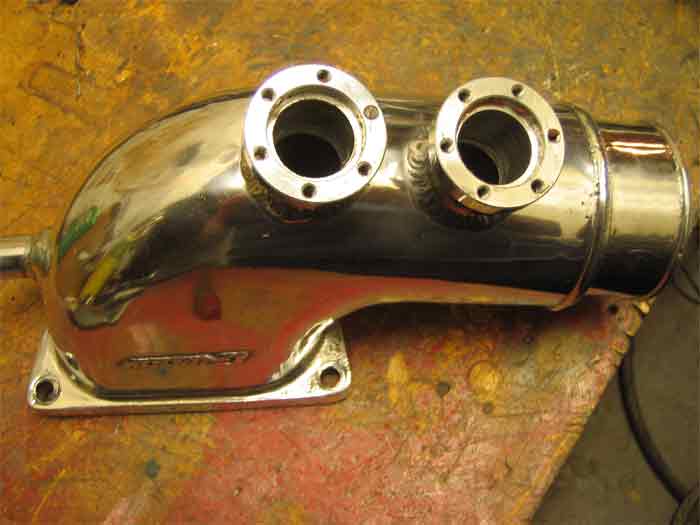

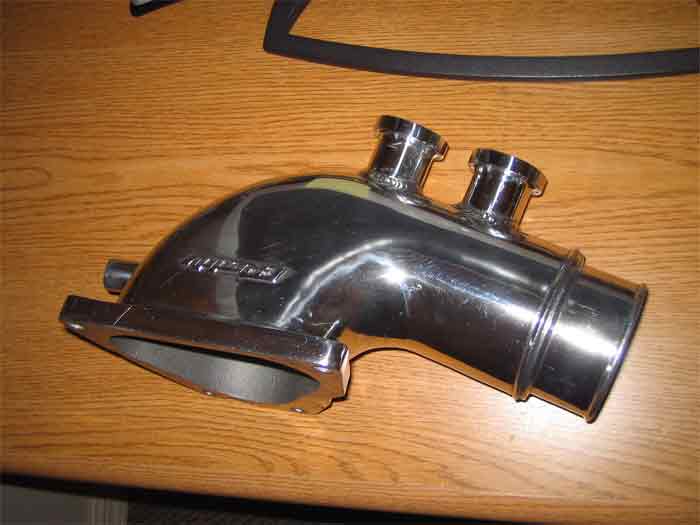

OK, I just did the greddy elbow also, this one didn't need sanding, Thank GOD.






No Flash, I kinda like these without flash, doesn't show all the imperfections

1QWIK7

iTrader: (33)

damn john, looks geat!!

cant wait to see the final look in person

viper_u27

Hey, does this mean youre going to have to change your username on here??? JK...
