Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

Dyno, original twins, 0.87bar

Old 07-28-12, 06:25 AM
  #1
Junior Member
10 Year Member
Thread Starter

AikiO's Avatar

Join Date: Oct 2004
Location: Norway
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Dyno, original twins, 0.87bar

I'ts been 2-3 years since i rebuilt the engine and had it mapped for 1680cc secondary injectors and a small street port on the intake.

Figured I should post the results.
The car has been running trouble free since then, and after every winter (which is long in Norway) it always starts on the first try after 4-5-6 months without running.

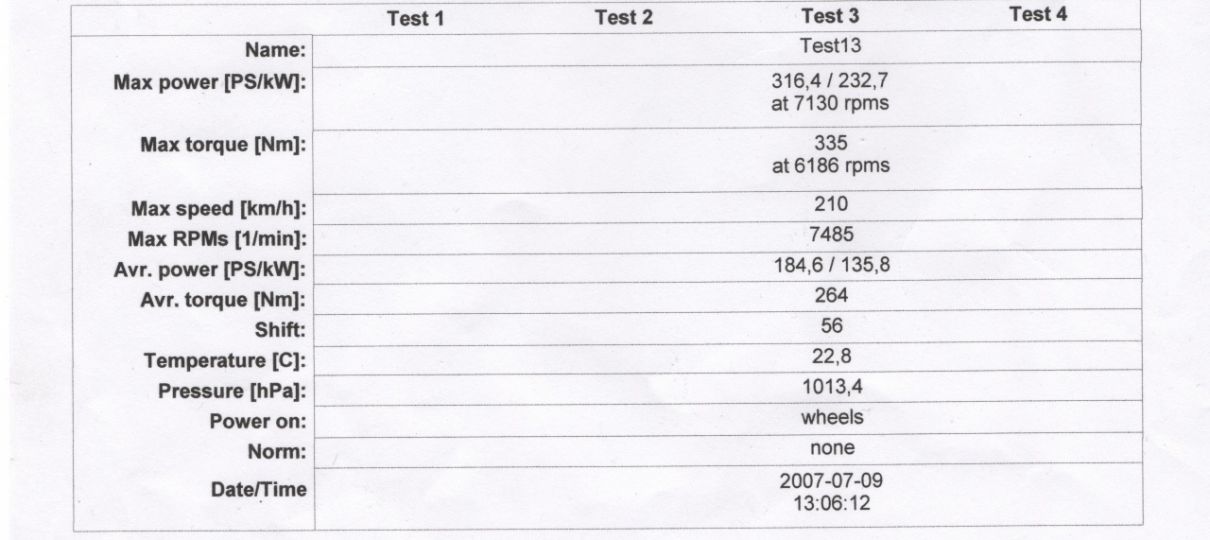

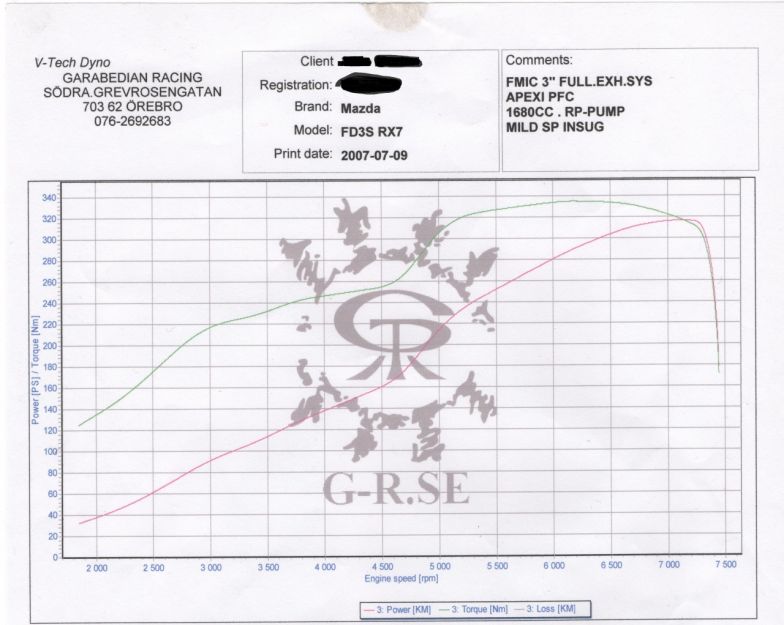

On the wheels:
http://iloapp.aikios.name/data/_gall...784&height=625
http://iloapp.aikios.name/data/_gall...210&height=540

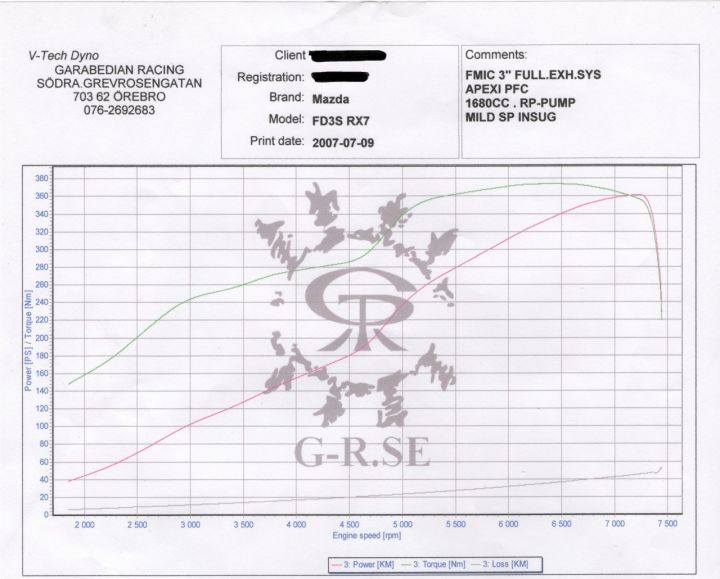

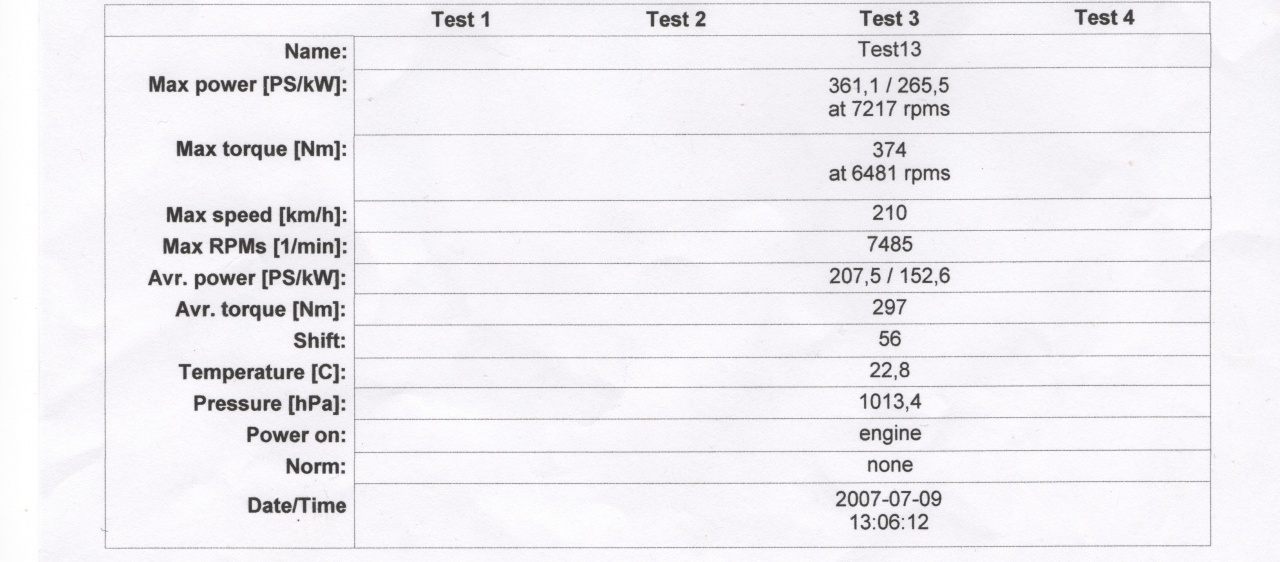

On engine:
http://iloapp.aikios.name/data/_gall...784&height=630
http://iloapp.aikios.name/data/_gall...229&height=540
Attached Thumbnails Dyno, original twins, 0.87bar-kurve-p%E5-hjula.jpg   Dyno, original twins, 0.87bar-tall-p%E5-hjula.jpg   Dyno, original twins, 0.87bar-kurve-p%E5-motor.jpg   Dyno, original twins, 0.87bar-tall-p%E5-motor.jpg
AikiO is offline
Old 07-28-12, 06:38 AM
  #2
Junior Member
10 Year Member
Thread Starter

AikiO's Avatar

Join Date: Oct 2004
Location: Norway
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
List of things done with the car:
Godspeed radiator
Autobahn88 FMIC
KG Parts Secondary fuelrail with 1680cc injectors
RB Racing fuelpump
Small intake streetport
Simplified vacuum
Apex'i Power FC
Relocated battery
Removed AC
Removed original lubrication, running oil in fuel.
Lightened flywheel and ACT street clutch
I've done everything myself, with complete engine rebuild with new housings and sidewalls.

Installed new Kaaz differential last summer after 4x0-60 tries and the original diff broke.

Probably more changes, but I don't remember any more atm.
AikiO is offline
Old 07-29-12, 09:47 PM
  #3
Lenny
iTrader: (9)

Len-Len's Avatar

Join Date: Mar 2010
Location: Albuquerque
Posts: 472
Likes: 0
Received 0 Likes on 0 Posts
Reeeeallll nice!
Len-Len is offline
Old 08-06-12, 10:22 AM
  #4
Junior Member
10 Year Member
Thread Starter

AikiO's Avatar

Join Date: Oct 2004
Location: Norway
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Thanks
AikiO is offline
Old 09-16-12, 03:34 PM
  #5
Full Member

Join Date: Sep 2012
Location: Fort worth, TX
Posts: 49
Likes: 0
Received 0 Likes on 0 Posts
Good numbers for stock twins.
acain817 is offline
