Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

Adaptronic FD PNP, TDX67, pump gas/AI @ 24psi

Old 03-19-15, 04:23 PM
  #1
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,909
Received 28 Likes on 26 Posts
Adaptronic FD PNP, TDX67, pump gas/AI @ 24psi

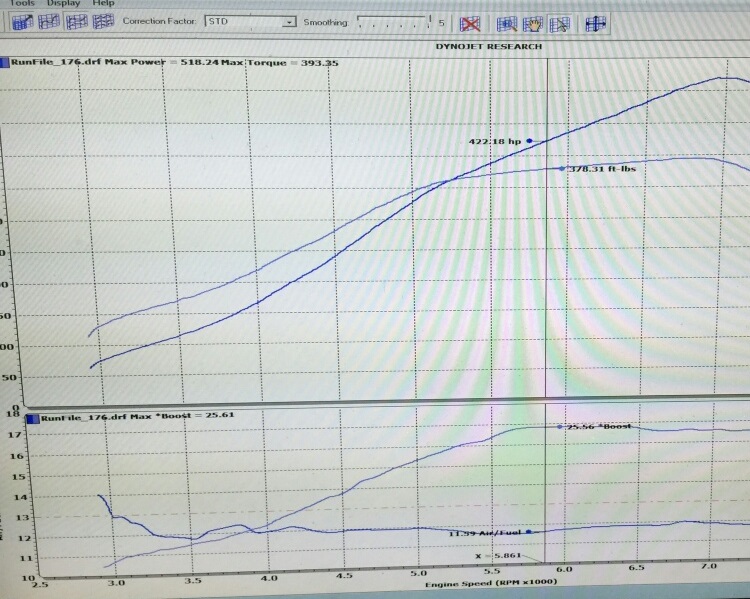

518rwhp/393rwtq @ 24psi on pump gas w/ ECU controlled 50/50 water alcohol injection. This is our TDX67(67mm inducer) journal bearing T4 1.15 turbocharger. We built Addicted Performance Unlimited an open volute manifold for a quick spool valve. Its basically the same FD long runner manifold we make, just joined with an open flange. It still uses twin turbosmart comp40 wastegates. The QSP valve ultimately broke( it was even the heavy duty version). So they removed it. Boost response and peak HP are ultimately hurt because of this( open volute manifold, divided turbine housing). Still not bad numbers for a conservative tune. Tuning & build was done by Zach at APU.
Attached Thumbnails Adaptronic FD PNP, TDX67, pump gas/AI @ 24psi-518rwhpfdapu.jpg
Turblown is offline
Old 03-20-15, 11:06 AM
  #2
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,094
Received 148 Likes on 131 Posts
518rwhp/393rwtq @ 24psi on pump gas w/ ECU controlled 50/50 water alcohol injection.

Hmmn, ECU control of water/meth with the fail safes incorporated could get me on board with this "bandaid".

The QSP valve ultimately broke( it was even the heavy duty version).

This doesn't surprise me at all.

I tried to divide a single wastegate on divided manifold twice and the rotary differential exhaust pulses tore 1/8" stainless like paper.

This is how I got the idea to use the FD stock sequential manifold as the quick spool valve- it can survive.

As a bonus it combines the rotor's exhaust pulses as soon as possible for more velocity into the turbo.

Someone please try this before I have to!
BLUE TII is offline
