Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

350rwhp on pump gas @ 10psi , Garrett To4E, Adaptronic PNP

Old 11-25-14, 04:35 PM
  #1
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,909
Received 28 Likes on 26 Posts
CA 350rwhp on pump gas @ 10psi , Garrett To4E, Adaptronic PNP

An FD I tuned over the weekend at Lucky7Racing in CA. I am not sure on the porting, but I was told a large SP. Vmount, pump gas, 3" exhaust. I think this one was open wastegate, HKS cast manifold, HKS twinpower, ID injectors, FFE rails, Adaptronic FD PNP ecu.

Because of the exhaust manifold it boost crept to 15psi in the midrange at 4500rpms( you can follow the boost curve on the AFR curve in the middle), by 5800 it was down to 10psi. Car drove perfect on the street with a fantastic powerband. It would spin the tires at will WOT.

I left the boost where it was in order to gain a nice flat torque curve, which it has..

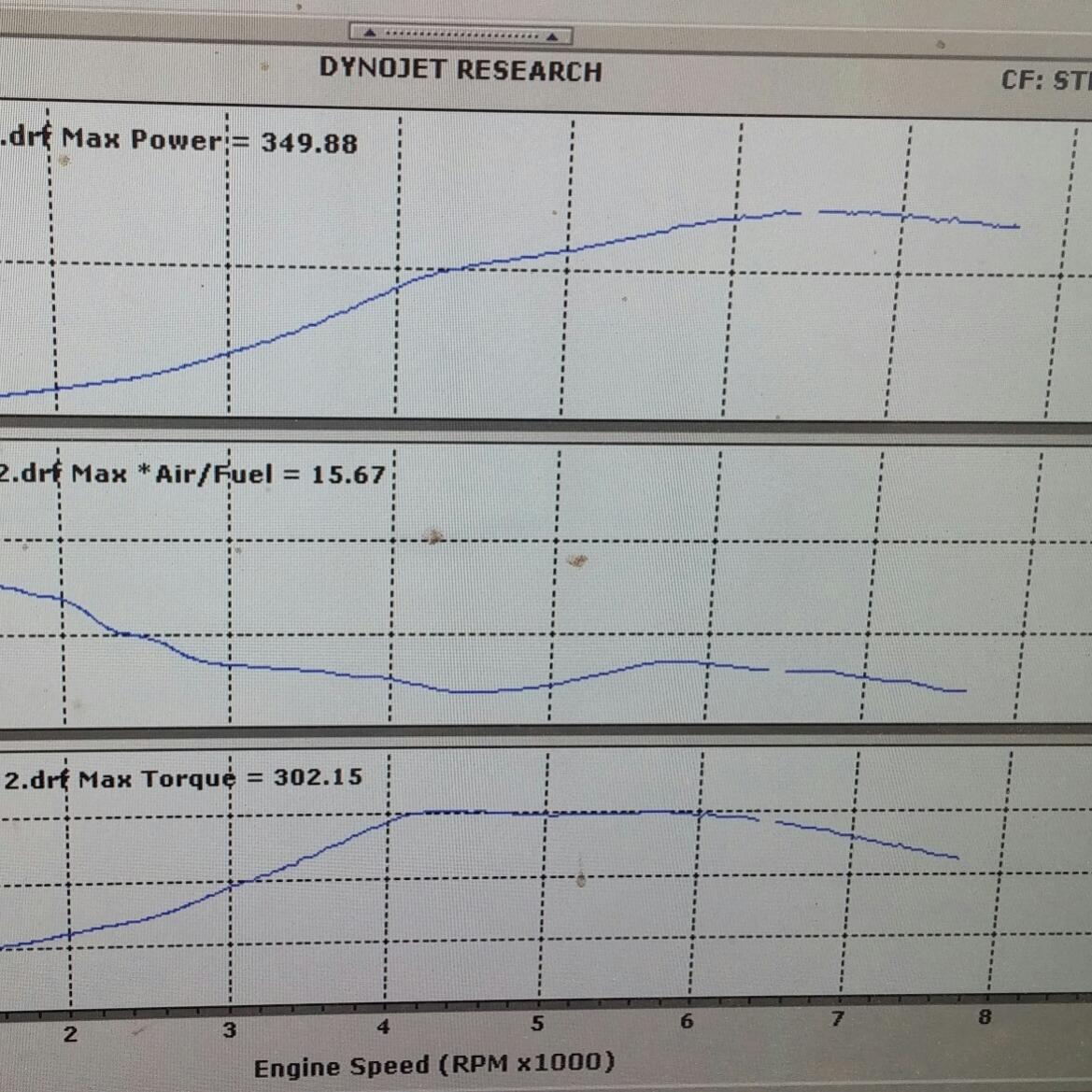

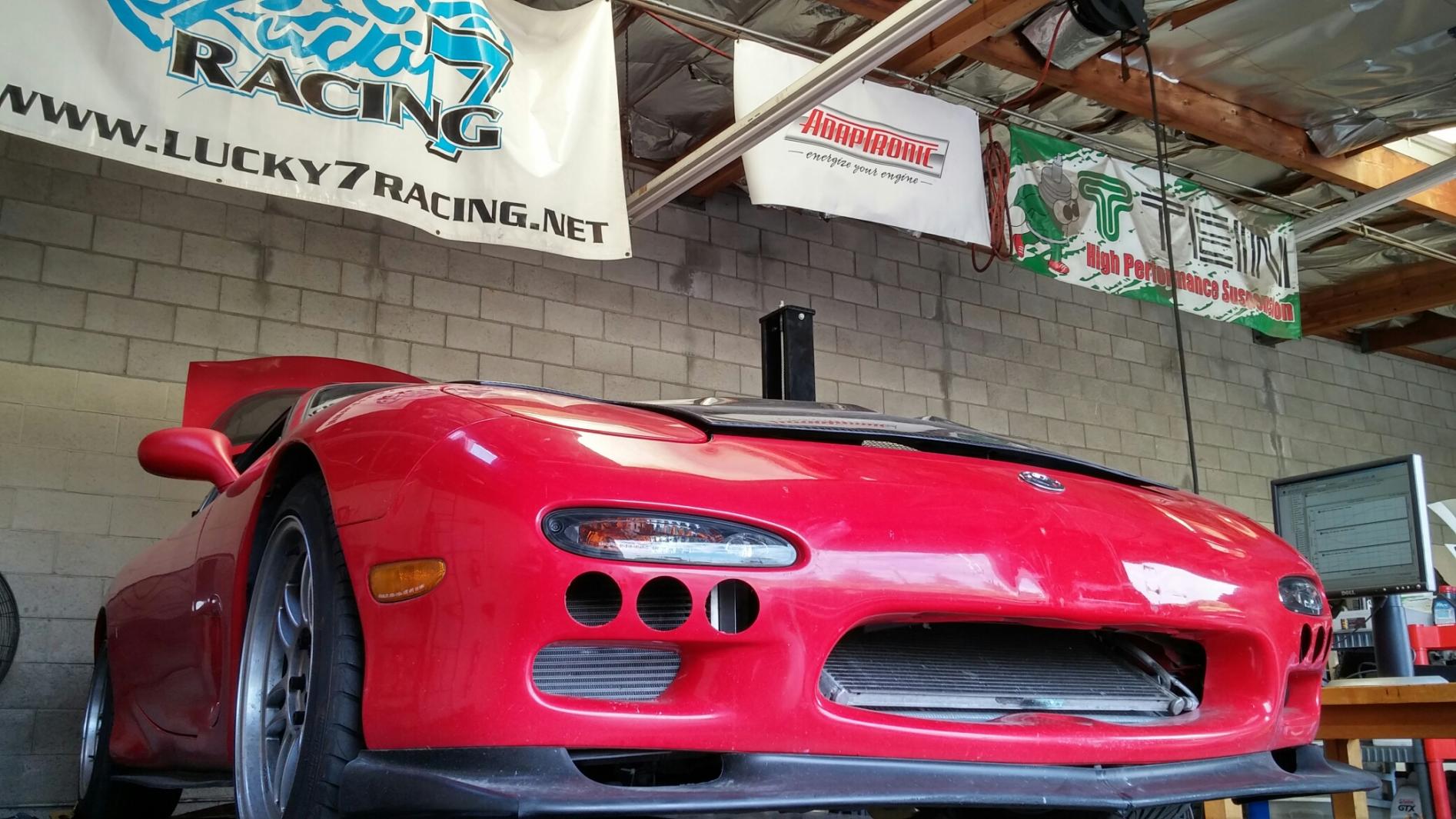

Attached Thumbnails 350rwhp on pump gas @ 10psi , Garrett To4E, Adaptronic PNP-to4efd-10psipumpgas.jpg   350rwhp on pump gas @ 10psi , Garrett To4E, Adaptronic PNP-20141119_132534_hdr_resized.jpg
Turblown is offline
Old 12-04-14, 09:46 AM
  #2
Lenny
iTrader: (9)

Len-Len's Avatar

Join Date: Mar 2010
Location: Albuquerque
Posts: 472
Likes: 0
Received 0 Likes on 0 Posts
Nice! That torque curve looks like it was drawn on with a ruler. That kind of powerband is exactly what I want. It must be a blast to drive.
Len-Len is offline
Old 12-06-14, 09:52 AM
  #3
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,232
Received 54 Likes on 50 Posts
Was it 57 or 60mm?
djseven is offline
Old 12-08-14, 12:16 PM
  #4
Full Member
iTrader: (3)

Join Date: Dec 2007
Location: Tinley Park IL
Posts: 176
Likes: 0
Received 0 Likes on 0 Posts
Sorry for the thread jack but can someone please show me where to hook up the torque pick up lead?

Also that is a very nice graph, perfect daily driven street car imo!
Unkachabull is offline
Old 12-28-14, 06:46 AM
  #5
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Unkachabull View Post
Sorry for the thread jack but can someone please show me where to hook up the torque pick up lead?

Also that is a very nice graph, perfect daily driven street car imo!
That is a perfect track car ! damn I would kill for that kind of torque curve
Tem120 is offline
Old 12-29-14, 11:31 PM
  #6
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,909
Received 28 Likes on 26 Posts
Originally Posted by djseven View Post
Was it 57 or 60mm?

57 trim .84 P trim turbine.

I spoke to the owner recently and the car is running great( outside of boost creeping past 17psi in 5th gear).
Turblown is offline
