steering angle...
#1
Junior Member
Thread Starter
Join Date: Jun 2005
Location: tulsa
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
steering angle...
I have an 81 rx7 and I wanna drift it, I'm doing the rack and pinion swap and gc coil overs with camber plates and 4to5 lug plates for the wheels but what can I do about extra steering angle?
#2
some FC guys use washers where the tie rod goes into the rack for extra angle. . . you can find some info searching or on http://www.fc3spro.com/TECH/DRIFT/dori.html.
#3
it's always broken...
Join Date: Jul 2003
Location: Ft Worth
Posts: 231
Likes: 0
Received 0 Likes
on
0 Posts
I'd say to go for the spindle modification instead. I am researching doing the same thing to my FD. Just be carful to keep the tie rod in the same position vertically in relation to the control arm to avoid bumpsteer.
#5
Junior Member
Thread Starter
Join Date: Jun 2005
Location: tulsa
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by eyecandy
What kind of rack and pinion are you using?
The easist and safest option is one of the SuperNow! kits, they also offer bumpsteer adjustment for lowered vehicles.
The easist and safest option is one of the SuperNow! kits, they also offer bumpsteer adjustment for lowered vehicles.
what is "SuperNow!"?
where does this part in pic go?what is it?
#6
Junior Member
Thread Starter
Join Date: Jun 2005
Location: tulsa
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by B_Rock
I'd say to go for the spindle modification instead. I am researching doing the same thing to my FD. Just be carful to keep the tie rod in the same position vertically in relation to the control arm to avoid bumpsteer.
#7
Originally Posted by mikemizzle
I'm buying the rack conversion kit from cp racing...
what is "SuperNow!"?
where does this part in pic go?what is it?
what is "SuperNow!"?
where does this part in pic go?what is it?
Trending Topics
#9
Junior Member
Thread Starter
Join Date: Jun 2005
Location: tulsa
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ptrhahn
I prefer the SuperLater! kit, because it gives me extra time to set up for a corner.
#11
GET OFF MY LAWN
iTrader: (1)
I want to know when somebody goes all out and installs a sprintcar front axle in one of these cars. Its the only way to get your front wheels totally sideways, that's why they use a straight axle.
As for the FB steering, have some steering arms made shorter and you will get more 'turn'(at the wheel) out of the rack travel.
As for the FB steering, have some steering arms made shorter and you will get more 'turn'(at the wheel) out of the rack travel.
#13
Rotary Freak
iTrader: (19)
Originally Posted by mikemizzle
I'm buying the rack conversion kit from cp racing...
what is "SuperNow!"?
where does this part in pic go?what is it?
what is "SuperNow!"?
where does this part in pic go?what is it?
Hmmm I am not firmilar with the CP Racing kit. what rack are they using?

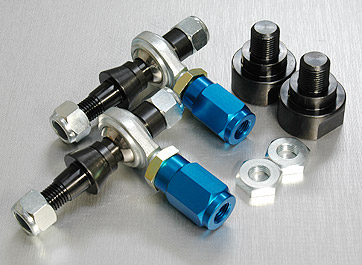

SuperNow! is a Japanese coming specializing in performace products for many vehicles, specificly the FC and FD. The kit consists of a bolt on spacer for the tie rod (gives more steering angle) and new tie rod ends which allow bumpsteer adjustment. The FC gets approx 7-8 degrees more steering angle and the FDs get approx 5 degrees more angle.
These kits are used by many PRO and novice racers both in the USA and Japan, some notables are Tony Angelo (both FC and FD) and Calvin Wan.
