The Official FC Wheel Fitment Thread
Originally Posted by stoko
I'm not finding an answer while looking through the thread, so I suppose I will just ask. I have a set of wheels with tires on them that are 245/50/16 with a +25 offset on an 8" wide wheel. Would these be able to fit on the front without any modification? From everything I am seeing, it is looking like it will be really close if it does fit without rubbing the suspension (just tien s-tech springs on tokiko illuminas, no coilovers).
Anybody know how well they will fit?
I'm not finding an answer while looking through the thread, so I suppose I will just ask. I have a set of wheels with tires on them that are 245/50/16 with a +25 offset on an 8" wide wheel. Would these be able to fit on the front without any modification? From everything I am seeing, it is looking like it will be really close if it does fit without rubbing the suspension (just tien s-tech springs on tokiko illuminas, no coilovers).
Anybody know how well they will fit?
Joined: Jul 2007
Posts: 3,564
Likes: 26
From: Cincinnati, OH
Rear will fit fine, front will need spaced according to: http://fc3spro.com/TECH/MODS/RT/rims.htm
You could run a 255 tire too.
You could run a 255 tire too.
just a side note, 17x8s with a 235/45 tire need +25mm BS or less, any more and it will rub the factory strut.
would prolly be fine with coil-overs
see my anger in my wheel fitment thread: https://www.rx7club.com/2nd-generation-specific-1986-1992-17/search-fail-wheel-fitment-846653/
i found out i needed 15mm spacers, not 5mm the hard way after dumping like $150 on 5mm ichiba spacers.
would prolly be fine with coil-overs
see my anger in my wheel fitment thread: https://www.rx7club.com/2nd-generation-specific-1986-1992-17/search-fail-wheel-fitment-846653/
i found out i needed 15mm spacers, not 5mm the hard way after dumping like $150 on 5mm ichiba spacers.
Junior Member
Joined: Jul 2009
Posts: 20
Likes: 0
From: Albany
G'day
Does anyone the offest specs of any GMAX wheels, Energy in particular
The plan is to get 18x8.5 for the rear and 18x7.5 for the front
Does anyone reckon this should work without any dramas if the offest is the same as standard(+40) or less?
Does anyone the offest specs of any GMAX wheels, Energy in particular
The plan is to get 18x8.5 for the rear and 18x7.5 for the front
Does anyone reckon this should work without any dramas if the offest is the same as standard(+40) or less?
Joined: Jul 2007
Posts: 3,564
Likes: 26
From: Cincinnati, OH
Check that, you need a lower offset in the front. A 5mm spacer should do it.
Junior Member
Joined: Jul 2009
Posts: 20
Likes: 0
From: Albany
Reply to above
Cheers mate, much appreciated. The thing with spacers tho, they are illegal in australia. So which wheels would need the spacers, the front or the back? If they are the back, i can just use 7.5 inch in the back.
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
It's the front that will be iffy. With the stock style suspension it will be close, though you might be able to get away without spacers.
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
Junior Member
Joined: Jul 2009
Posts: 20
Likes: 0
From: Albany
Reply to above
awesome, cheers mate, i finally managed to get some offset specs for some g-max wheels tho, for anyone interested
Drift 6 17x7>>>> ET48, 17x8 and 17x9>>>>> ET35
Z5 17x7, ET42
Boston 17x8>>>>>>ET38 and 17x9>>>>>>> ET35
Drift 6 17x7>>>> ET48, 17x8 and 17x9>>>>> ET35
Z5 17x7, ET42
Boston 17x8>>>>>>ET38 and 17x9>>>>>>> ET35
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
They would be the ones most likely to fit without spacers.
Nothin major... YET

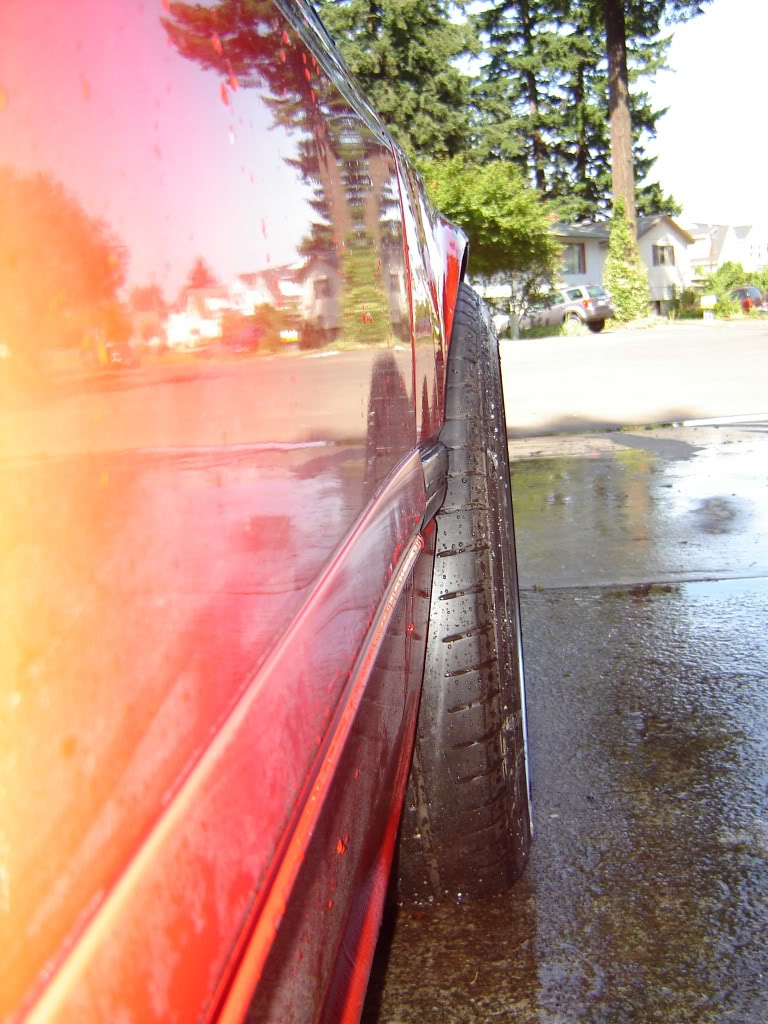

MB Weapons 17x9 +17
215/40/17.
These wheels are for the front, but are on the rear just to see how much camber im going to have to run once I get coilovers.
More will be up later once I get coilovers, 2 more wheels and some time to work on the car :\
MB Weapons 17x9 +17
215/40/17.
These wheels are for the front, but are on the rear just to see how much camber im going to have to run once I get coilovers.
More will be up later once I get coilovers, 2 more wheels and some time to work on the car :\
Last edited by Snoopy240; Jul 8, 2009 at 10:37 PM.
Junior Member
Joined: Jul 2009
Posts: 20
Likes: 0
From: Albany
Reply to a few of above
You probly could get GMAX wheels in US but the shipping from Oz would cost an arm and a leg. I reckon ill go with 17x8 all around with ET38? Which would be more likely to foul on the suspension, the front or the back? Like i said, spacers are out of the question.
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
Some people have already had clearance issues with 17x8 35mm offset using the stock style suspension, you will be 3mm(1/8") closer to the suspension with the 17x8 38mm offset wheel.
Out of all the wheel sizes you listed, the drift 6 17x8 35mm is most likely to fit without spacers. The rest will more than likely need them.
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
Dark Side
Joined: Sep 2005
Posts: 443
Likes: 11
From: Indiana
Probably not.
At the very least you'll need to roll the fenders all around.
Be warned, this is a very aggressive wheel fitment, you could run into fender clearance issues.
Rogier_13Bturbo - VERY nice! Planning on running some spacers to make them flush?
