FD wheel fitment
#1
FD wheel fitment

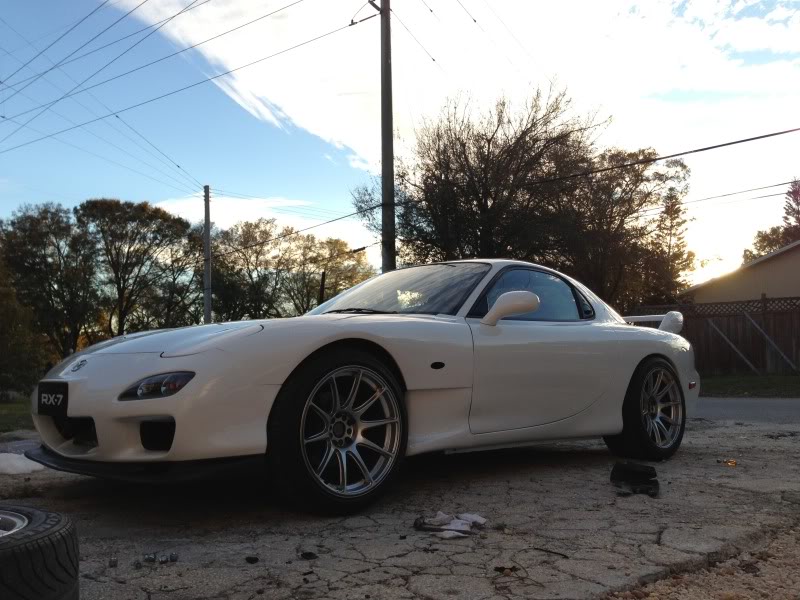

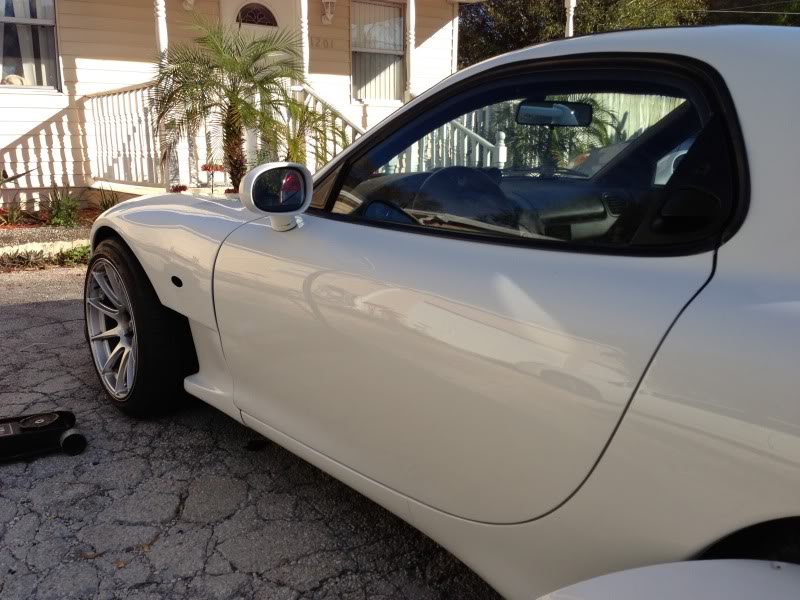

So i purchased a set of XXR 527 wheels and i was hoping that they would fit. I put them on the car and this is how it looks. The rears are not bad with either fender rolling or with the feed rear panels.
The front tires are 245/40
All 4 rims are 18x 9.75 +20 offset
The front tires are 245/40
All 4 rims are 18x 9.75 +20 offset
#3

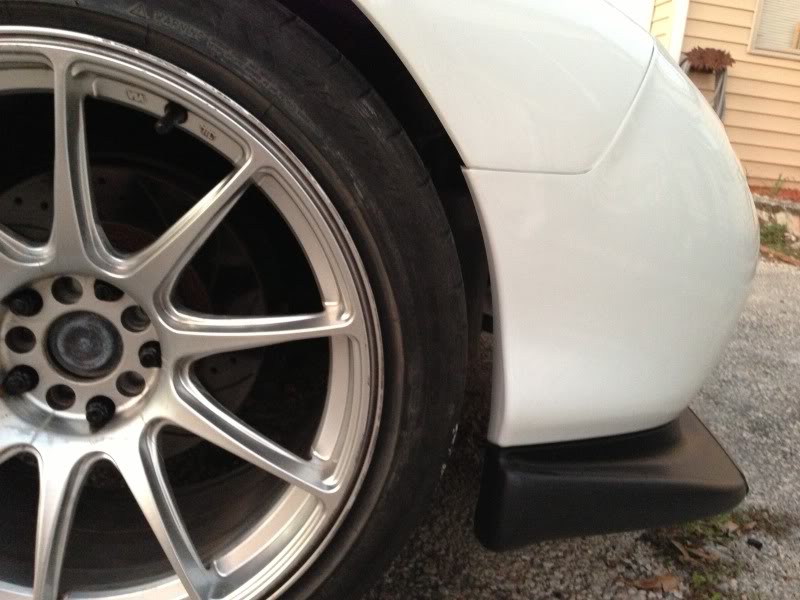

I can tuck it a bit, but the problem I am having is that the 245/40 diameter is too big.
I am scared to lower it more and the tire hit the front fender/bumper.
I am looking for suggestion of tires I could run that would fit a 9.75 rim?
I am scared to lower it more and the tire hit the front fender/bumper.
I am looking for suggestion of tires I could run that would fit a 9.75 rim?
#4
Rotary Enthusiast
iTrader: (19)
Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,169
Likes: 0
Received 11 Likes
on
10 Posts
you could run a 245 35 18. This is stock diameter and it will stretch out on those wheels and give you a little clearence.
Kumho XS sells this size, as does federal 595 RSR....or you could go with a RE760 sport or Hankook V12 if you want a longer lasting tire.
Not sure if you can fit a 255/35/18 tire or not with the fender clearence. This would be the best fit on that size wheel, but not sure of fitment.
Kumho XS sells this size, as does federal 595 RSR....or you could go with a RE760 sport or Hankook V12 if you want a longer lasting tire.
Not sure if you can fit a 255/35/18 tire or not with the fender clearence. This would be the best fit on that size wheel, but not sure of fitment.
#6
Rotary Enthusiast
iTrader: (19)
Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,169
Likes: 0
Received 11 Likes
on
10 Posts
Rotate them outwards or so the indicater on the dial is facing the inside of the car to increase camber. You want the lower arm to move outwards. you need to balance the front and rear one in the front in order to keep the wheels somewhat straight.
#7
I am locating a pair of 245/35s and checking to see how they work. I know, I was looking through pages of people running crazy sizes and offsets and I was confused. I was thinking how in the hell do people run 19s and still tuck them and I cannot run a 18 lol. My buddy has 18s and they look so smaller next to these rims.
I will try the 245/35s and post some pics when I get them on the car. I will def camber the front a little to no risk of cracking these fenders.

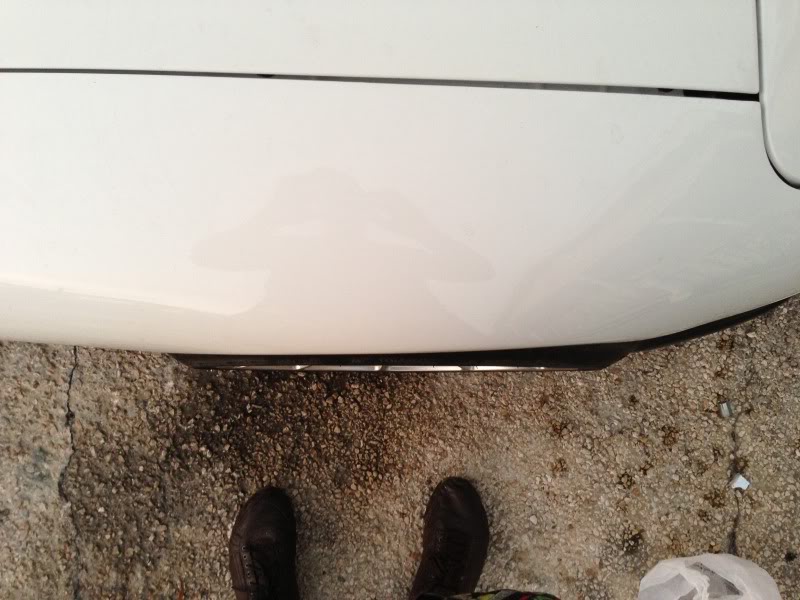

I though they would be stronger but they have cracked from my friend leaning on the edge that sits flush with the hood.
I wanted to re-enfore them with some fiberglass but dont want to ruin them.
I will try the 245/35s and post some pics when I get them on the car. I will def camber the front a little to no risk of cracking these fenders.
I though they would be stronger but they have cracked from my friend leaning on the edge that sits flush with the hood.
I wanted to re-enfore them with some fiberglass but dont want to ruin them.
Trending Topics
#8
Senior Member
Your wheels, they no fit! Agree w/ 245/35-18s and adding a ton of front camber, but you'd be way better off with way more offset. Really don't get the point of having wide fenders, then running way-low-offset wheels that prevent you from running wide tires. Also, scrub radius is out to lunch now.
Worth also mentioning that 9.75" is a bit wide for a 245 tire, 9.5" = max recommended rim width, 8.5" = measuring rim width. Maybe with a lot of camber you could run 255/35s?
Worth also mentioning that 9.75" is a bit wide for a 245 tire, 9.5" = max recommended rim width, 8.5" = measuring rim width. Maybe with a lot of camber you could run 255/35s?
Last edited by ZDan; 02-04-13 at 06:23 PM.
#9
Your wheels, they no fit! Agree w/ 245/35-18s and adding a ton of front camber, but you'd be way better off with way more offset. Really don't get the point of having wide fenders, then running way-low-offset wheels that prevent you from running wide tires. Also, scrub radius is out to lunch now.
Worth also mentioning that 9.75" is a bit wide for a 245 tire, 9.5" = max recommended rim width, 8.5" = measuring rim width. Maybe with a lot of camber you could run 255/35s?
Worth also mentioning that 9.75" is a bit wide for a 245 tire, 9.5" = max recommended rim width, 8.5" = measuring rim width. Maybe with a lot of camber you could run 255/35s?
#11
#12
Rotary Enthusiast
iTrader: (19)
Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,169
Likes: 0
Received 11 Likes
on
10 Posts
a 235/40/18 tire is less wide, but its still a taller tire (25.4") which I think would be tougher to fit IMO. It will also be more stretched than a 245.
This is what a 245/35/18 tire looks like on a 18x9.5 wheel.
http://www.iwsti.com/forums/gd-wheel...kdw-tires.html
#13
¿¿What are pistons??
iTrader: (7)
Join Date: May 2003
Location: Queens NYC
Posts: 1,261
Likes: 0
Received 0 Likes
on
0 Posts

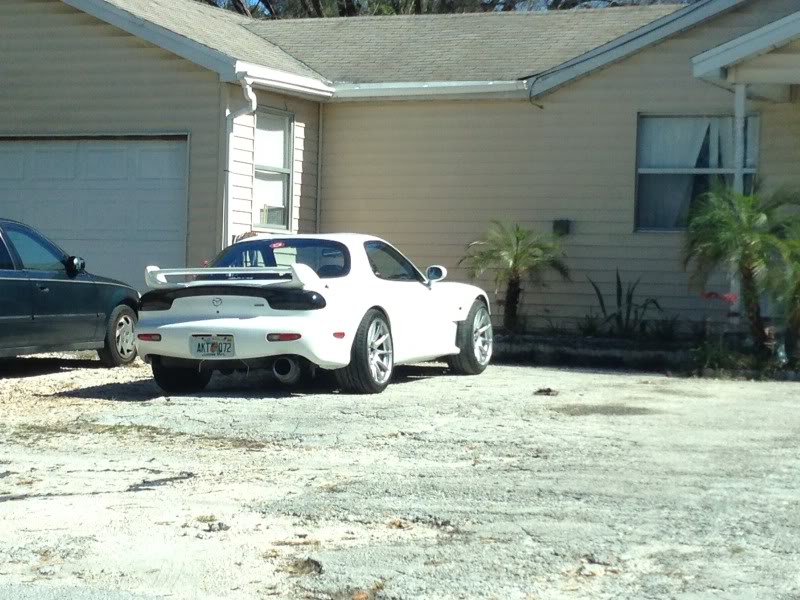

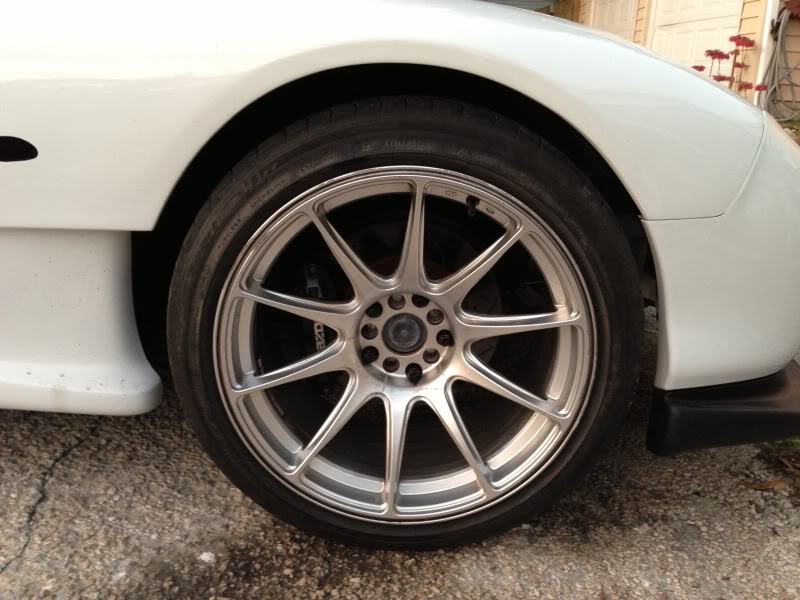

Thats strange, I have the fenders, same sizes and same +20 offset up front and it fits way better than that. As said before, try some more camber and a drop. If I remember right I only have 2º up front though. Check it out:
#16
Rotary Enthusiast
iTrader: (19)
Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,169
Likes: 0
Received 11 Likes
on
10 Posts
I run a 265/35/18 with a 18x10 +38MM and you can do this without a rolled fender in the rear.
if you want a more aggressive fitment with rolled fenders and some working with the fender, go with a 18x10 +18MM (run a 255/35/18 tire) in the rear.
You can run a 18x10 +38MM front with a 255/35/18 tire with rolled lip fenders.
Looks great.
