Coilover to LCA install fitment issues

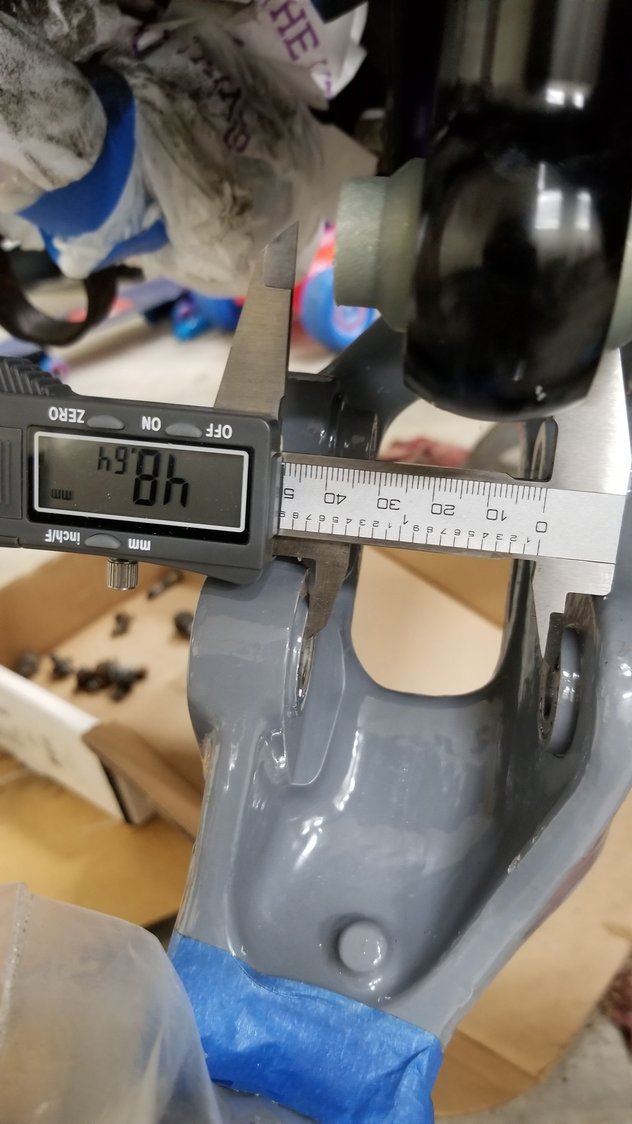

The entirety of my front suspension is in pieces so I thought installing new coilovers would be a 30 minute project max because I wasn't going to have to fight in tight spaces. 5 minutes in and I run into a spacing issue between the bottom of the coilover that goes into the LCA. Before I go smashing and stretching the LCA by another 1.5mm, I just want to make sure I'm not missing anything obvious that I should be doing to get this to work. Any sage advice out there?


Reply
Old Oct 2, 2022 | 11:38 PM
  #2
cr-rex's Avatar
half ass 2 or whole ass 1
Tenured Member 10 Years
iTrader: (114)

Joined: Nov 2011
Posts: 3,425
Likes: 489
From: okinawa to tampa
Step 1 is to not waste your time with those BCs

Step 2 after you get a non crap coilover is the push the bushing out in the LCA so the coilover fits. Its a similar concept to some alternator mount points

Also try searching, referencing the fsm or just browsing in the 3rd gen section where all the 3rd gen specific information is

https://www.rx7club.com/3rd-generation-specific-1993-2002-16/front-suspension-bushing-does-move-1158939/
Reply
Old Oct 3, 2022 | 10:00 AM
  #3
i heart haters's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Dec 2013
Posts: 34
Likes: 5
From: md
Originally Posted by cr-rex
Step 1 is to not waste your time with those BCs

Step 2 after you get a non crap coilover is the push the bushing out in the LCA so the coilover fits. Its a similar concept to some alternator mount points

Also try searching, referencing the fsm or just browsing in the 3rd gen section where all the 3rd gen specific information is

https://www.rx7club.com/3rd-generati...-move-1158939/
Thanks for the link, that is very helpful and makes more sense. I guess mine are so old they all looked like one piece to me ha. BC's are just something cheap for now to get on the car so I can put the front suspension back together. My priority is getting an engine and a trans in this thing first .
