Pop-off valves
05-17-07, 10:55 AM
#1
On flats
Thread Starter
iTrader: (29)
Join Date: Oct 2004
Location: Albuquerque
Posts: 1,379
Likes: 0
Received 0 Likes
on
0 Posts
Pop-off valves
Any chance you could list/link the pop-off valves and the available ranges (boost before pop) that you have them in?
You have sold me and several others on them, and it would be great if there was a nice single source we could go to to see which one is best suited for us. . .some prices would also be helpful.
I bet you'd sell a whole lot more of them with this thread.
please and thank you
ryan
You have sold me and several others on them, and it would be great if there was a nice single source we could go to to see which one is best suited for us. . .some prices would also be helpful.
I bet you'd sell a whole lot more of them with this thread.
please and thank you
ryan
05-18-07, 12:41 PM
#2
Two things
Greddy makes one that sells for pretty cheap. I can get that for you anytime you would like it is adjustable up to 28psi. The second thing is I will be making some of my own in the near future that will hopefully have a bit more abillity than theirs
-S-
Greddy makes one that sells for pretty cheap. I can get that for you anytime you would like it is adjustable up to 28psi. The second thing is I will be making some of my own in the near future that will hopefully have a bit more abillity than theirs -S-
05-22-07, 03:38 PM
#5
On flats
Thread Starter
iTrader: (29)
Join Date: Oct 2004
Location: Albuquerque
Posts: 1,379
Likes: 0
Received 0 Likes
on
0 Posts
there are apparently 3 types of Greddy pop offs
basically a weak, medium and strong
the strong is called the Type R with Stiff Spring according to the sites that I've looked at, which do a very poor job of explaining things, except that the one I described here, is the one needed for 400+hp
which do you have? can you elucidate the lineup for us a little please?
thanks
ryan
basically a weak, medium and strong
the strong is called the Type R with Stiff Spring according to the sites that I've looked at, which do a very poor job of explaining things, except that the one I described here, is the one needed for 400+hp
which do you have? can you elucidate the lineup for us a little please?
thanks
ryan
06-01-07, 01:34 PM
#6
It looks as if the new Synapse Engineering Synchronic BOV will has a built in popoff valve feature that will be available later once they develop a contoller for it.
http://videos.streetfire.net/video/f...2101548a41.htm
http://videos.streetfire.net/video/0...2200059bd3.htm
http://videos.streetfire.net/video/f...2101548a41.htm
http://videos.streetfire.net/video/0...2200059bd3.htm
09-14-08, 10:04 PM
#7

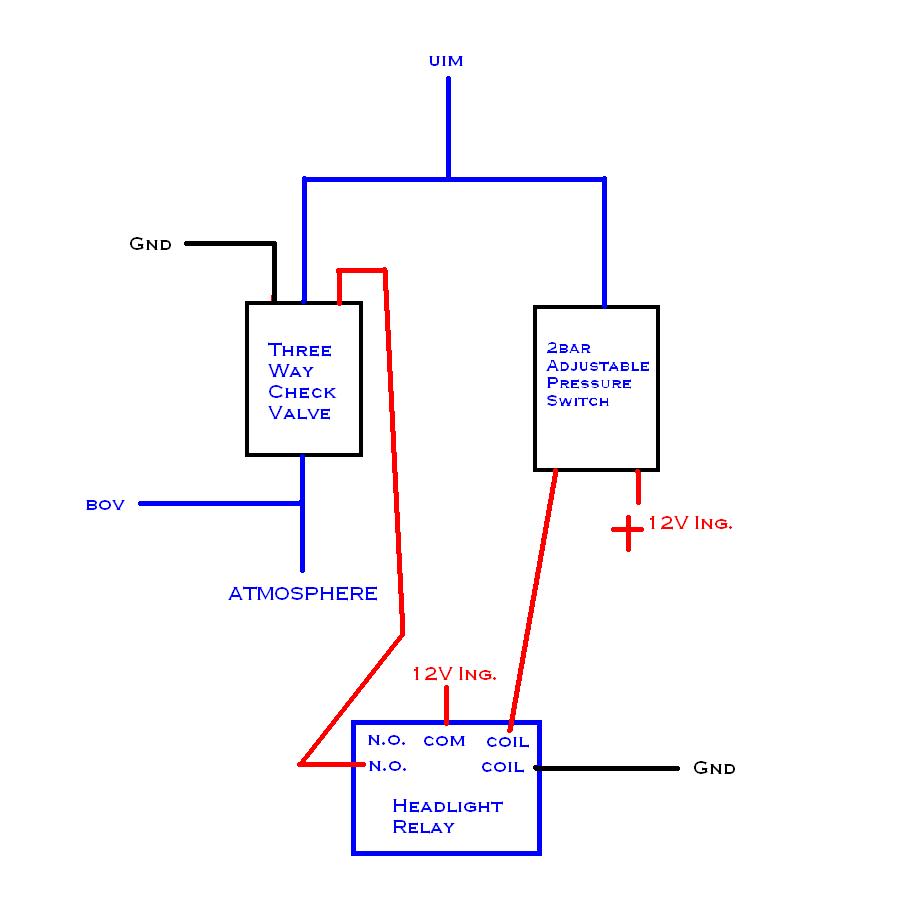

Alright, so I did a bench test on a controller setup I came up with to utilize the POV feature on the Synapse Engineering BOV. Looks like it will work. Will be doing some dyno testing the Thursday before SSXI at Synapse's Dyno in San Diego. I will relay how the testing went, what performance capability this setup provides, etc..
The only thing I'm worried about this setup is how it dynamically affects the EBC and WG. May get unstable flutter when the POV (BOV) goes off, that's why I want to test it in a controlled environment (dyno).

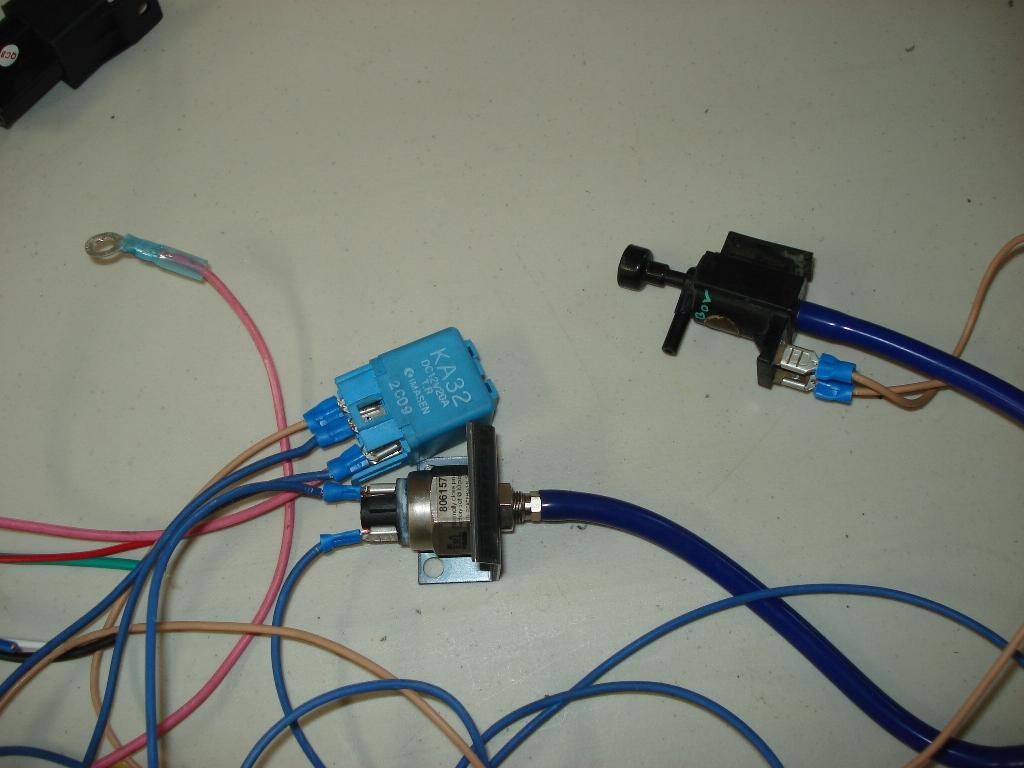

Here's the parts list:
FD3S Emission control three way check valve
Headlight Relay
Water injection adjustable pressure switch - 2bar
Wiring and hose.
The only thing I'm worried about this setup is how it dynamically affects the EBC and WG. May get unstable flutter when the POV (BOV) goes off, that's why I want to test it in a controlled environment (dyno).
Here's the parts list:
FD3S Emission control three way check valve
Headlight Relay
Water injection adjustable pressure switch - 2bar
Wiring and hose.
Last edited by afgmoto1978; 09-14-08 at 10:09 PM.
Trending Topics
10-21-08, 03:50 PM
#8
Update got a pressure switch that doesn't require a relay. I went with a Aquamist "Normally Open" Pressure switch 806 155.
Anyways, did some testing and got rock solid pressure at whatever pressure setting on the POV controller. Though, I need to get a turbo speed sensor to get a better idea what the turbo is doing while the POV is open, the turbo may be getting dangerously close to the rpm limit of the bearings.

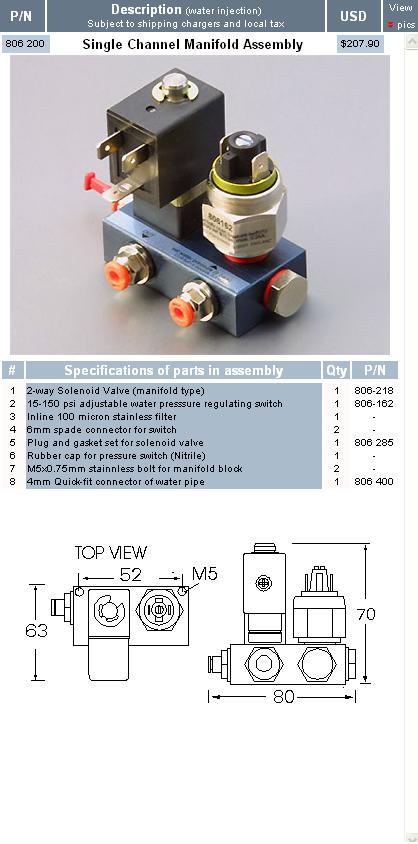

Thinking of making something similar to this Aquamist control unit.
Anyways, did some testing and got rock solid pressure at whatever pressure setting on the POV controller. Though, I need to get a turbo speed sensor to get a better idea what the turbo is doing while the POV is open, the turbo may be getting dangerously close to the rpm limit of the bearings.
Thinking of making something similar to this Aquamist control unit.
10-21-08, 05:27 PM
#10
No it wouldn't be this exact unit, just similar architecture.
Well what I have is a Mechanical/electrical fail safe, just need to improve the packaging and find a two way check valve that would other than a OEM emission check valve.
Well what I have is a Mechanical/electrical fail safe, just need to improve the packaging and find a two way check valve that would other than a OEM emission check valve.
Last edited by afgmoto1978; 10-21-08 at 05:37 PM.
