Does anyone know what size the fitting is that goes where the stock hard oil supply line ends and has the braided line to the single turbo ? It is supplied with the XS to4s turbo kit. I believe the braided supply line is -4an ( don't know the length ).

Anyway I need that -an to ?? fitting, and the briaded line. Anyone help me locate them.

thanks

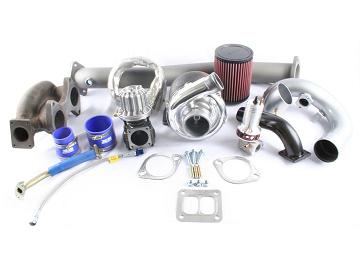

There is the line and fitting I need, under the wastegate there.

Summit may have it if I knew the size.

thanks



i had to go by that too i wanna say its 10mm into the block and -6 out to the line....thats fc tho'. your talking about the fitting out of iron to turbo feed line right?



http://www.amazon.com/exec/obidos/AS...o-20/ref=nosim


Adapter is -3 AN to 10mm x 1.0

my bad. thats for a s4-s5 tho the fd could be different not sure what car you got



I`m interested in this to. I need the thread info coming from the oil feed out of the iron on the FD, I can only find FC details and have been told they are different.



It is an Earls fitting. I believe it is -4an on the turbo hose side - other side may be 10mm. I have the hose now. I will have that fitting number shortly - searching..



I did some measuring today and using my taps found out that the threads on that oil line are 14mm x 1.5 pitch. So the fitting I need is an Earls EAR- 9919bfherl at Summit racing for $11.99.

They have the -4an braided hose also.

Ended up answering my own question....again.

later



So is that the thread on the banjo bolt in the iron or the thread at the end of the hardpipe close to the turbo?



That is the thread at the end of the hard pipe - by the turbos. If you want to know that banjo thread, remove it and use a thread guide on it from a tap and die set. I am not 100% sure, but that banjo bolt seemed to be around 10mm x 1.50 thread. Not sure
