Wastegate Runner Length

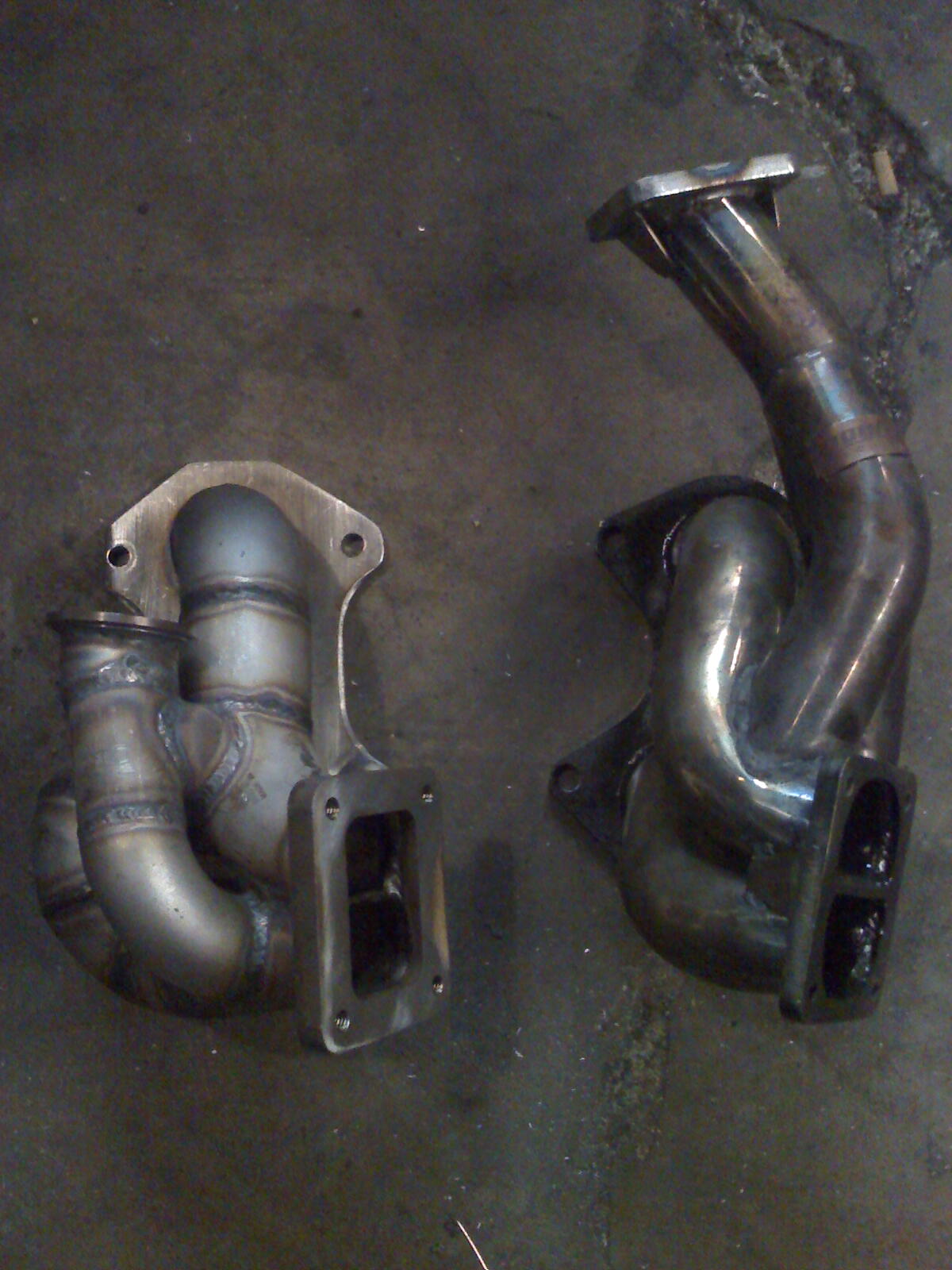

Lately I've been working on my long runner SS304 exhaust manifold that mates up to my GT35R with a Tial SS housing. I designed the manifold to be efficient and maintain good response. I've got everything laid out for the manifold and ready to weld except for the wastegate tubing.
I always see threads about wastegate runner lengths being equal, but not really on the effects of the WG runner lengths. My setup is custom so not too many people have similar setups. Since I have a merge collector, I will only have 1 wg runner that comes out of the elbow right before the turbo.
My main question is what are the effects of wg runner lengths? In my case, (just throwing numbers out there) I would be comparing a 3" runner right out of the elbow to something like a U-bend 12" runner. How much does exhaust theory about pulses/pressure/tuning apply to wg runner length? The wg runner entry is placed right before the turbo either way to control boost creep.
Just look at the pictures so you understand what I'm talking about better. Just imagine that the wg runners are welded on the elbow; I tried to make the pictures look like they were fitted. Really, I would rather use a longer U-bend but I don't know if that is the better option to control boost and such.
Short WG Runner
Short WG Runner Reference
Long WG Runner
I always see threads about wastegate runner lengths being equal, but not really on the effects of the WG runner lengths. My setup is custom so not too many people have similar setups. Since I have a merge collector, I will only have 1 wg runner that comes out of the elbow right before the turbo.
My main question is what are the effects of wg runner lengths? In my case, (just throwing numbers out there) I would be comparing a 3" runner right out of the elbow to something like a U-bend 12" runner. How much does exhaust theory about pulses/pressure/tuning apply to wg runner length? The wg runner entry is placed right before the turbo either way to control boost creep.
Just look at the pictures so you understand what I'm talking about better. Just imagine that the wg runners are welded on the elbow; I tried to make the pictures look like they were fitted. Really, I would rather use a longer U-bend but I don't know if that is the better option to control boost and such.
Short WG Runner
Short WG Runner Reference
Long WG Runner
11-29-09, 02:19 PM
#3
I'm certainly not a fluid dynamics expert, but I would assume you wouldn't want the need to accelerate the mass of air that is stagnant when the gate is closed. The longer the runner, the greater the mass of air that needs to begin moving in that direct when the gate begins to crack open.
I would think the best placement would be to have the v-band right on the outside radius of the bend.
I would think the best placement would be to have the v-band right on the outside radius of the bend.
11-29-09, 03:40 PM
#4
Another question, suppose I do go towards the more direct method with a short runner wg system, would it be best to just run the runner inline with the merge collector (just like I have pictured in my setup) or run the runner tangent at something like 45 degrees?
11-29-09, 03:45 PM
#5
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
do it inline. the more direct, the better. you want absolutely no restriction when it is time for that wastegate to open, otherwise it wont function as well as it could.
11-29-09, 04:07 PM
#6
You should also use a nice brace on the turbine housing to help support the turbo since you are using very thin tubing..
