Turbo selection gt4294r or gt4202r goal 650-700rwhp
07-31-12, 12:36 PM
#1
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Turbo selection gt4294r or gt4202r goal 650-700rwhp
Itīs time to change my turbo.
Which turbo is better choice gt4294r,gt4202r or something else? Goal 650-700hp
My current set up:
13b full bridge ported engine scr apex selas (two piece)
turbonetics T66 TURBO, 60SE-BB-H66-65-TUND0_81
60 series compressor cover with a HP66 (66mm) compressor wheel. F1-65 turbine wheel in a tangential undivided .81 A/R housing. Ball bearing
Injectors 850/1680cc fuel pump boch044 stock lines.Re wired.(if i upgrade turbo i need 2000cc injectors and other boch044 pump?)
Big inter cooler
4"down pipe 3.5" exhaust
devil own water injection 800cc injector start 12psi (0.8Bar)
BMC dual air filter
ngr r 10.5 plugs
hks twin power
Apexi power fc tuned 20psi(1.4bar) ar 11.2-11.7 timing 8 split 8
Fuel octane 98 premix 1:100
Stock intake manifold and throttle body.
Max hp 517
Which turbo is better choice gt4294r,gt4202r or something else? Goal 650-700hp
My current set up:
13b full bridge ported engine scr apex selas (two piece)
turbonetics T66 TURBO, 60SE-BB-H66-65-TUND0_81
60 series compressor cover with a HP66 (66mm) compressor wheel. F1-65 turbine wheel in a tangential undivided .81 A/R housing. Ball bearing
Injectors 850/1680cc fuel pump boch044 stock lines.Re wired.(if i upgrade turbo i need 2000cc injectors and other boch044 pump?)
Big inter cooler
4"down pipe 3.5" exhaust
devil own water injection 800cc injector start 12psi (0.8Bar)
BMC dual air filter
ngr r 10.5 plugs
hks twin power
Apexi power fc tuned 20psi(1.4bar) ar 11.2-11.7 timing 8 split 8
Fuel octane 98 premix 1:100
Stock intake manifold and throttle body.
Max hp 517
07-31-12, 01:13 PM
#2
Either could reach your HP goal, it just depends how much boost you wish to run and how important response is to you versus that given boost needed. A good compromise between the two would be a GTX4294, it essentially has the ability to flow the same as the older cast 4202 but keep the response of the 4294.
~S~
~S~
Itīs time to change my turbo.
Which turbo is better choice gt4294r,gt4202r or something else? Goal 650-700hp
My current set up:
13b full bridge ported engine scr apex selas (two piece)
turbonetics T66 TURBO, 60SE-BB-H66-65-TUND0_81
60 series compressor cover with a HP66 (66mm) compressor wheel. F1-65 turbine wheel in a tangential undivided .81 A/R housing. Ball bearing
Injectors 850/1680cc fuel pump boch044 stock lines.Re wired.(if i upgrade turbo i need 2000cc injectors and other boch044 pump?)
Big inter cooler
4"down pipe 3.5" exhaust
devil own water injection 800cc injector start 12psi (0.8Bar)
BMC dual air filter
ngr r 10.5 plugs
hks twin power
Apexi power fc tuned 20psi(1.4bar) ar 11.2-11.7 timing 8 split 8
Fuel octane 98 premix 1:100
Stock intake manifold and throttle body.
Max hp 517
Which turbo is better choice gt4294r,gt4202r or something else? Goal 650-700hp
My current set up:
13b full bridge ported engine scr apex selas (two piece)
turbonetics T66 TURBO, 60SE-BB-H66-65-TUND0_81
60 series compressor cover with a HP66 (66mm) compressor wheel. F1-65 turbine wheel in a tangential undivided .81 A/R housing. Ball bearing
Injectors 850/1680cc fuel pump boch044 stock lines.Re wired.(if i upgrade turbo i need 2000cc injectors and other boch044 pump?)
Big inter cooler
4"down pipe 3.5" exhaust
devil own water injection 800cc injector start 12psi (0.8Bar)
BMC dual air filter
ngr r 10.5 plugs
hks twin power
Apexi power fc tuned 20psi(1.4bar) ar 11.2-11.7 timing 8 split 8
Fuel octane 98 premix 1:100
Stock intake manifold and throttle body.
Max hp 517
11-26-12, 11:02 AM
#6
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
How abaut this turbo, is this too big for 650-700ps abaut 25psi
Borg Warner S400SX3 Turbocharger With Attenuator "Race Cover" (74mm) - AGP Turbochargers, Inc. Store
Borg Warner S400SX3 Turbocharger With Attenuator "Race Cover" (74mm) - AGP Turbochargers, Inc. Store
11-26-12, 11:43 AM
#7
Rotary Enthusiast
i have the borg warner s400sx fmw, 67.7mm with the race cover t4 divided 1.10 housing.
brand new in box, only scuffs or whatever from test fitting. id like to sell it for $1100 USD.
PM me,
brand new in box, only scuffs or whatever from test fitting. id like to sell it for $1100 USD.
PM me,
Trending Topics
11-26-12, 12:38 PM
#8
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
i think this is abaut same size than my turbonetics t66, maybe biger turbine 75mm?
11-12-13, 01:35 PM
#11
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
What guyīs think this turbo?
BorgWarner AirWerks S400SX3 (179176)
Kompressor: 76,00mm/ 104,90mm
Turbine: 87,37mm / 81,74mm / 1,10ar
Goal +600whp and 200 mph standing mile with 98e5 fuel
http://www.ebay.de/itm/BorgWarner-Ai...item19e0bba556
BorgWarner AirWerks S400SX3 (179176)
Kompressor: 76,00mm/ 104,90mm
Turbine: 87,37mm / 81,74mm / 1,10ar
Goal +600whp and 200 mph standing mile with 98e5 fuel
http://www.ebay.de/itm/BorgWarner-Ai...item19e0bba556
11-12-13, 04:04 PM
#13
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, where i can find compressor maps?
11-13-13, 11:50 AM
#15
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
11-13-13, 12:35 PM
#17
11-13-13, 12:36 PM
#18
GTX4294 will be a bit more efficient on the compressor and response has the potential to be a bit better depending on the setup, GTX4202 is a very efficient compressor at the flow you are considering. The BW is a solid performer with that turbine though and I would say if you do buy the BW at least give the sale to Elliot over someone on ebay.
~S~
~S~
11-14-13, 07:57 AM
#19
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
I know, pressure ratio is not boost pressure.
I think this 86 pounds per minute is absolute maximum for this 67mm compressor?
Sorry, i write very bad english.
11-14-13, 08:14 AM
#20
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
yes i know at turbine wheel limit flow and need to think aggregate, turbo and 13b engine flow etc.
Do you know which one turbine is better for 700whp and hi engine rpm abaut 9000rpm:
Turbine: 87,37mm / 81,74mm / 1,10ar or 83,47mm /74,29mm/ 1.10ar
i probably choose between these turboīs
S400 74mm (179174) 83mm turbine 1.10 a/r
BorgWarner AirWerks S400SX3 Turbo 179174 original Turbolader Borg Warner S400 | eBay
S400 76m (179176) 87mm turbine 1.10 a/r
BorgWarner AirWerks S400SX3 Turbo 179176 original Turbolader Borg Warner S400 | eBay
11-14-13, 02:13 PM
#21
Slow FD
iTrader: (7)
Join Date: Dec 2006
Location: Everywhere
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
I'm not telling you which turbo to pick but here is what I am using.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.

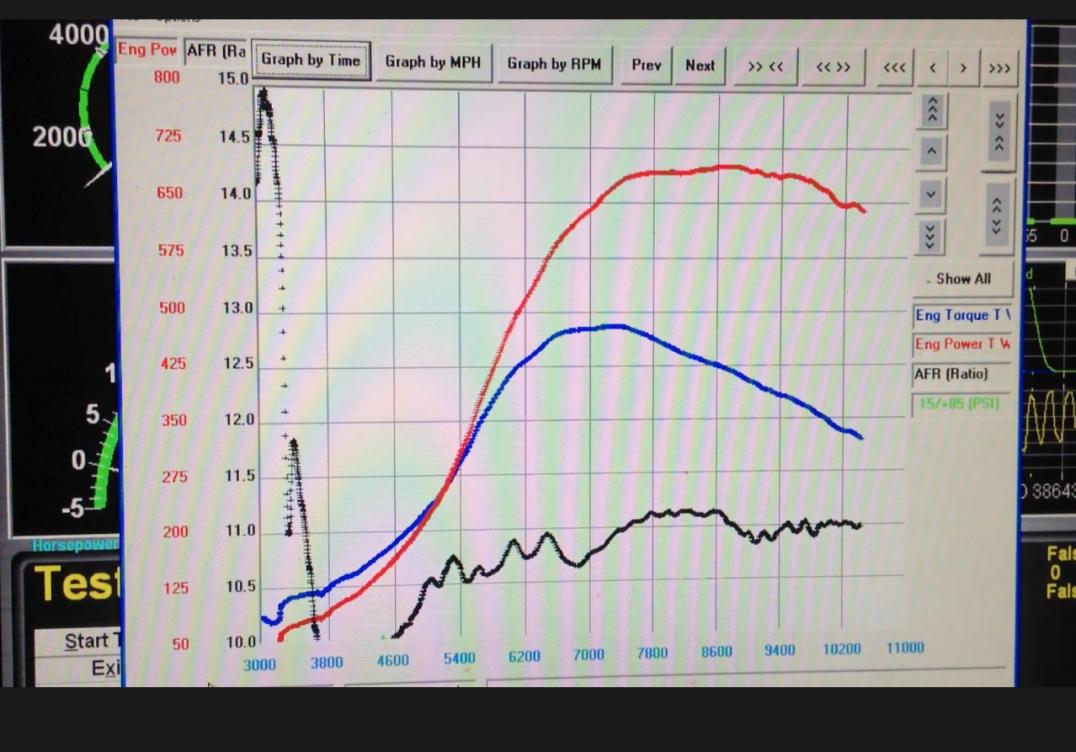

Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.
Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
Last edited by afawaterpolo; 11-14-13 at 02:14 PM. Reason: spelling
11-14-13, 02:24 PM
#22
Full Member
Thread Starter
Join Date: Sep 2008
Location: Finland
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
I'm not telling you which turbo to pick but here is what I am using.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.
Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.
Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
Wow.nice numbers.
What engine managment and ignition you use?
11-14-13, 04:38 PM
#24
I'm not telling you which turbo to pick but here is what I am using.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.
Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
I have a full bridgeport 13B-REW with Cosmo upper and lower intake manifolds. I'm running an HPI (High Power Improvement) T4 exhaust manifold and a Borg Warner 475 with a 1.10 AR and 83mm exhaust wheel. It was the standard 75mm with no race cover. running a 4 inch exhaust from the turbo all the way back.
This set up made 703 RWHP at 23psi on E85 only (no race gas, no water injection) on Steve Kans dual eddy current mustang dyno. When we took it to a dynojet to see what it would make there since the majority of people on this forum post dynojet numbers it put down 810 RWHP at 23psi. We didn't change anything, just made a few runs.
I personally like the "low" readings better of a mustang dyno since it is in my opinion more accurate.
Here is a dyno graph of the set up. It revs up to 10,500 RPM's. Its all done on stock bearings, 2mm Rotary aviation black supper seals, atkins solid corner seals. No stud kit, no extra dowl pins. 6000 miles on this set up with zero issues getting beat on daily. Oh I run 1 ounce of Benol castor oil premix per 1 gallon of E85.
