T04e 60 f1-62 .63 a/r
06-09-09, 02:09 AM
#1
35r 13b first gen
Thread Starter
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
T04e 60 f1-62 .63 a/r
Has anyone used this size turbo or similar? Turbonetics reccomended this for me. I am putting it on a Streetported 12a with 47 OER sidedraft. Do these numbers seem right? What are the characteristics.. i.e when does it come on and how strong etc...
06-09-09, 05:27 PM
#3
35r 13b first gen
Thread Starter
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
thats what im going for... just over 400... hoping it get up to desired boost quickly though... the BB and f1 turbine should help with that...
06-10-09, 07:18 AM
#5
35r 13b first gen
Thread Starter
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
My engine has very low miles and i plan on intercooling it also. I was planning about 15 psi.
thanks
Last edited by zaridar; 06-10-09 at 07:21 AM. Reason: im an idiot
06-10-09, 02:51 PM
#7
35r 13b first gen
Thread Starter
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
Any thoughts about the turbo?
to big/small to big a/r to small a/r compressor size? is it worth the $1000
Trending Topics
06-13-09, 10:15 PM
#9

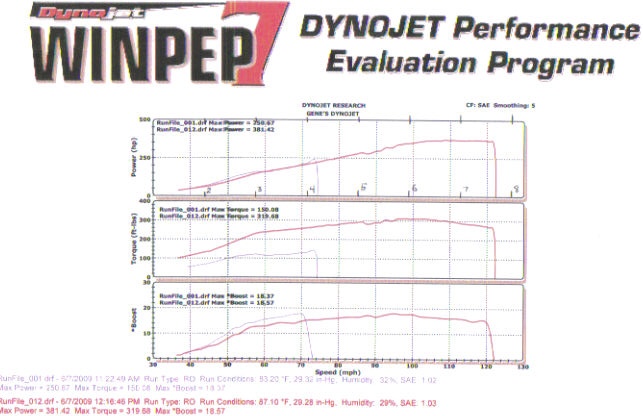

You will want a bigger hotside. Here is the dyno graph of my best pull 7 days ago. TO4E .60/.84 on a stock port S4 motor. I only planned on running 15psi instead of 19psi, but the HKS standard wastegate can't keep up. I drew in the RPM marks in the top section. You can see I reached 15psi by 3500rpm's. This isn't a ball bearing turbo either. I think going smaller than .84 on the hotside will really choke that turbo out.
06-14-09, 02:27 AM
#10
Senior Member
iTrader: (1)
Join Date: May 2009
Location: greece
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
i have the T4/62-1 with 0.82A/R turbine (64mm) and 0.60A/R compressor(66mm).
i do not know if it is the same turbo .i am not familiar with the naming of these equipment. althought it seems to work fine on a 93" rx7 engine
do anyone knows what the T04E diference is with the T04?
i do not know if it is the same turbo .i am not familiar with the naming of these equipment. althought it seems to work fine on a 93" rx7 engine
do anyone knows what the T04E diference is with the T04?
06-14-09, 02:46 AM
#11
Doesn't suck
iTrader: (5)
Join Date: Dec 2004
Location: Pensacola FL
Posts: 701
Likes: 0
Received 0 Likes
on
0 Posts
i have the T4/62-1 with 0.82A/R turbine (64mm) and 0.60A/R compressor(66mm).
i do not know if it is the same turbo .i am not familiar with the naming of these equipment. althought it seems to work fine on a 93" rx7 engine
do anyone knows what the T04E diference is with the T04?
i do not know if it is the same turbo .i am not familiar with the naming of these equipment. althought it seems to work fine on a 93" rx7 engine
do anyone knows what the T04E diference is with the T04?
Go with a 1.00 divided (if you divide your manifold, which you should). Best compromise between response and flow.
06-14-09, 02:54 AM
#12
Senior Member
iTrader: (1)
Join Date: May 2009
Location: greece
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
hi,
what do you mean by t0 is not an actual turbo? i have incorrect turbo type or the turbo is no good?i try to search the google but i am lost with the naming.
thanks
what do you mean by t0 is not an actual turbo? i have incorrect turbo type or the turbo is no good?i try to search the google but i am lost with the naming.
thanks
06-14-09, 10:53 AM
#13
A T04 is a turbo, also known as a T4. Its just a reference to having a T4 turbine and a T4 compressor, but it doesnt tell you anything more than that. T04B, T04E, T04S... all refer to a turbo being a straight T4 with the B, E, S.... being the compressor cover style.
06-14-09, 12:47 PM
#14
Senior Member
iTrader: (1)
Join Date: May 2009
Location: greece
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
thanks,
i think it is a very usefull information and it would be very helpfull if there is some information we have access here in rx7club to find all this info.please someone hwo knows shuch a link to post it .
thanks
i think it is a very usefull information and it would be very helpfull if there is some information we have access here in rx7club to find all this info.please someone hwo knows shuch a link to post it .
thanks
06-14-09, 05:22 PM
#15
Doesn't suck
iTrader: (5)
Join Date: Dec 2004
Location: Pensacola FL
Posts: 701
Likes: 0
Received 0 Likes
on
0 Posts
The link you're asking for is called search, that very information is all over this forum and when I was new I found it in literally 30 seconds. I know this isn't the first time someone has said to do it.
There is no such thing as a t04 turbo. t04 is a family of turbos (garret and subsequent clones) comprised of the b,e,s,r, and z turbos. it is different from t4, which is a flange size, not a turbo. The letter is not just cover style, it's the overall size of the turbos, which generally all have the same compressor cover, but it also indicative of the range of sizes that the possible compressor and exhaust wheels can be.
There is no such thing as a t04 turbo. t04 is a family of turbos (garret and subsequent clones) comprised of the b,e,s,r, and z turbos. it is different from t4, which is a flange size, not a turbo. The letter is not just cover style, it's the overall size of the turbos, which generally all have the same compressor cover, but it also indicative of the range of sizes that the possible compressor and exhaust wheels can be.
06-15-09, 11:01 AM
#16
T4 flanges/housings are also called "T04". A T3/T04 is also called a T3/T4, meaning the compressor cover falls into the T4/T04 size family. A T3/T04E means a T3 turbine housing and a T04E compressor cover.
Yes, the T04+letter also refer to specific turbos. A T04S being P trim and 60-1 compressor, T04Z being a ball bearing P trim with 67mm compressor, etc... but the T04 naming system doesnt always mean a specific turbine/compressor combination, but it can.
Yes, the T04+letter also refer to specific turbos. A T04S being P trim and 60-1 compressor, T04Z being a ball bearing P trim with 67mm compressor, etc... but the T04 naming system doesnt always mean a specific turbine/compressor combination, but it can.
06-15-09, 11:45 AM
#17
35r 13b first gen
Thread Starter
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
You will want a bigger hotside. Here is the dyno graph of my best pull 7 days ago. TO4E .60/.84 on a stock port S4 motor. I only planned on running 15psi instead of 19psi, but the HKS standard wastegate can't keep up. I drew in the RPM marks in the top section. You can see I reached 15psi by 3500rpm's. This isn't a ball bearing turbo either. I think going smaller than .84 on the hotside will really choke that turbo out.
