ssautochrome manifolds
11-15-05, 06:41 PM
#102
DETH TRP
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
hey i have one for sale for the FD if anyone wants it. Flanges are flat. 7/16" turbo and w/g flanges, 1/2" engine flange. It's their newest model, and has never been used, just bolted it on along with a turbo to see how it lined up, so I can tell you that the turbo and engine bolt holes line up just fine and are flat. $90 shipped
11-15-05, 07:49 PM
#103
Originally Posted by 4CN Air
hey i have one for sale for the FD if anyone wants it. Flanges are flat. 7/16" turbo and w/g flanges, 1/2" engine flange. It's their newest model, and has never been used, just bolted it on along with a turbo to see how it lined up, so I can tell you that the turbo and engine bolt holes line up just fine and are flat. $90 shipped
11-15-05, 08:09 PM
#104
DETH TRP
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
Mine has the crescent shaped holes. Actually the only ones i've ever seen with the rectangular ones are the old ones of the manifold "installed". They still use them today in their listing of the crescent shaped ones.
11-15-05, 10:21 PM
#105
Originally Posted by 4CN Air
Mine has the crescent shaped holes. Actually the only ones i've ever seen with the rectangular ones are the old ones of the manifold "installed". They still use them today in their listing of the crescent shaped ones.
11-16-05, 02:00 PM
#107
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by EFINI_RX-7_RZ
Darn, I thought it was the other way around. Why would they do the ports that way? I don't know of any T4 flanged turbo that comes with anything other than rectangular ports.
it's easier to get the pipes lined up that way.
11-16-05, 02:59 PM
#108
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 4CN Air
yeah i have no clue why they do that, of course why would they drill and tap holes that don't line up
they didn't. the holes were probably perfect BEFORE the flange warped when they welded it. but small price to pay for a <$200 manifold.
11-16-05, 04:00 PM
#109
DETH TRP
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
no actually I've seen them so off square they could never have been drilled straight. Like if you put studs in them they would all come out straight, but only 3 of them ar at the corners of a rectangle.
Liek you said though, these are all things that can easily be fixed with the money you save.
Liek you said though, these are all things that can easily be fixed with the money you save.
11-16-05, 06:44 PM
#112
I R SAD PANDA W/O BAW
Originally Posted by Turbo23
ya i just bought one for my fc
11-16-05, 07:04 PM
#114
I R SAD PANDA W/O BAW
Originally Posted by Turbo23
picked it up fr my FC, sorry pics wont be for awhile, Im over in the middleeast till early december, pics wont be till mid december, I can get my bro to take some pics of it when it gets to my house though
11-20-05, 11:27 PM
#116
MP T-70 = Fun
Join Date: Dec 2004
Location: Charlotte and WCU
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by YoshiFC3S
*was too tired to read through 8 pages*
Can someone tell me WHY the XS Power turbos themselves are crap?
Link me if you must.
Can someone tell me WHY the XS Power turbos themselves are crap?
Link me if you must.
https://www.rx7club.com/showthread.p...2&page=1&pp=15
11-22-05, 11:38 AM
#121
Slizzard sippin sizzurp
iTrader: (4)
Join Date: Jul 2001
Location: Cali
Posts: 645
Likes: 0
Received 0 Likes
on
0 Posts
Since it's already been bumped...
I've been running a SSAutochrome manifold on my half-bridgeported FD since April. Approx. 5K miles have been put on the setup, including a recent track day at Willow Springs (4, 30 minute sessions) and my cheap manifold has held up fine. I do have some complaints about it, one I had to modify the bolt holes for the wastegate, and two its a VERY tight fit in the engine bay. The wastegate is almost touching the engine mount and it takes some finesse getting the manifold bolted up. But those are hardly horrible, and overall I'm happy with the manifold. If it cracks, I'll buy another.
I've been running a SSAutochrome manifold on my half-bridgeported FD since April. Approx. 5K miles have been put on the setup, including a recent track day at Willow Springs (4, 30 minute sessions) and my cheap manifold has held up fine. I do have some complaints about it, one I had to modify the bolt holes for the wastegate, and two its a VERY tight fit in the engine bay. The wastegate is almost touching the engine mount and it takes some finesse getting the manifold bolted up. But those are hardly horrible, and overall I'm happy with the manifold. If it cracks, I'll buy another.
11-23-05, 09:20 AM
#122
development
^agreed...except I probably wouldn't buy another...I think spool and power could be better.
$60
$20
+ some welding and coating
17psi for over 10k miles.
Originally Posted by EFINI_RX-7_RZ
Can you show us some good pictures? I'm just wondering if they changed the shape of their turbo flange's ports, from the half-moonish type shown on their earlier pictures to the rectangular ones shown on their later pictures.
$20
+ some welding and coating
17psi for over 10k miles.
11-25-05, 08:52 PM
#124
Senior Member
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts

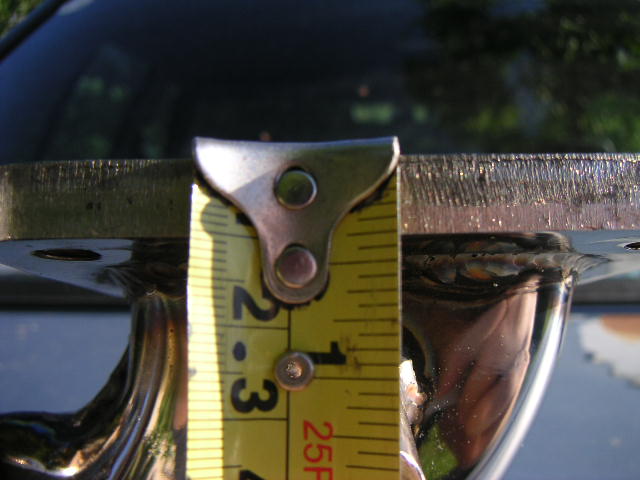

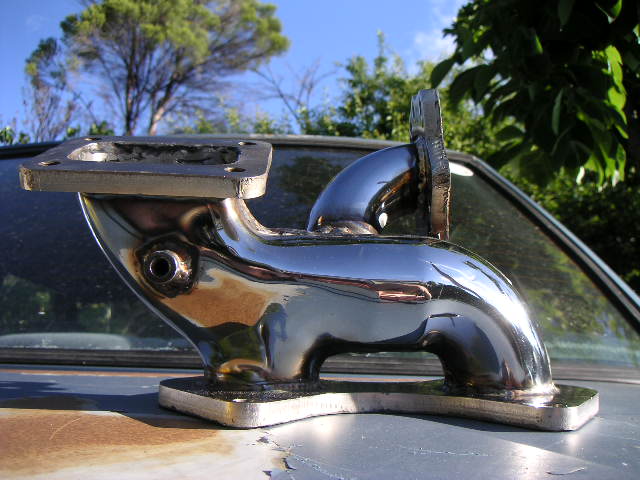

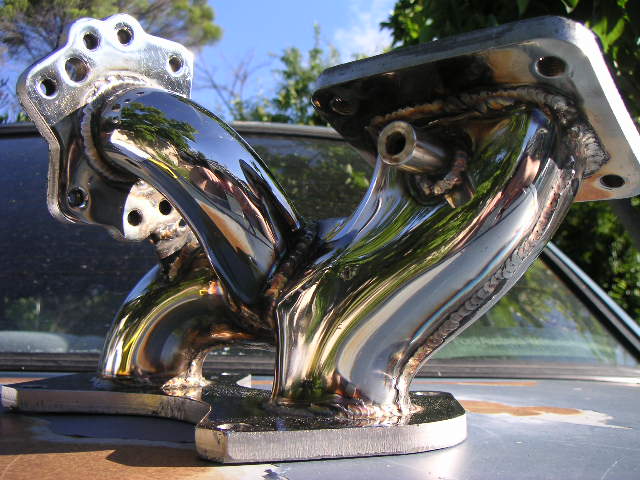

Just got mine. First thoughts, WELL worth the money. Put a strait edge on the flanges and they are strait. IF the mounting holes line up with motor and turbo??? Have not tried that yet. But if I have to enlarge the mounting hole, it's still worth the money.

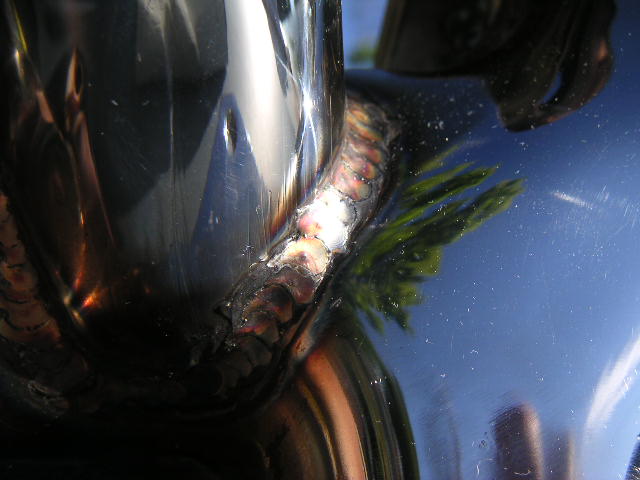

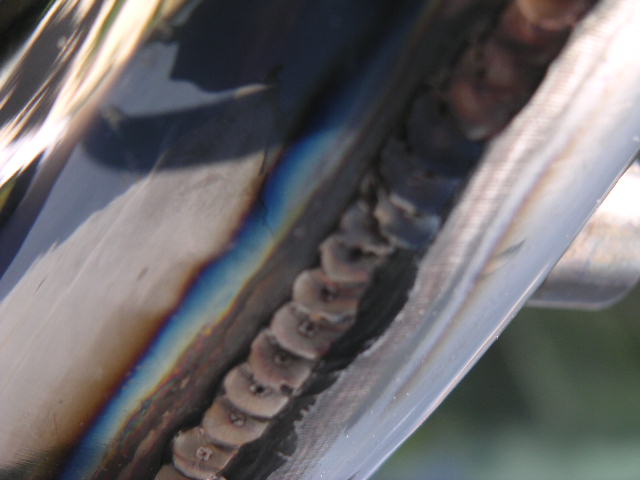

You can see in the photos that SSAC are putting the flanges on a sander after they finish welding it.
Have to add this about SSAC. there service is excellent. I've bought a few things from them and they always ship fast. Paid for this Nov 19 and my zip is 96326 apo
chuck
I'd buy another one!!
You can see in the photos that SSAC are putting the flanges on a sander after they finish welding it.
Have to add this about SSAC. there service is excellent. I've bought a few things from them and they always ship fast. Paid for this Nov 19 and my zip is 96326 apo
chuck
I'd buy another one!!
11-26-05, 05:17 PM
#125
Senior Member
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts

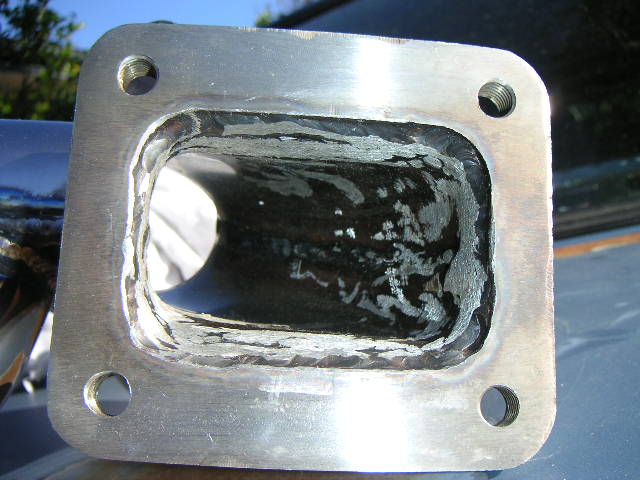

Turbo to manifold mounting= three bolts lined up, one was not tapped strait. I used a 5/16 bolt and nut on that mounting hole. Used the three supplied 3/8 bolts on the others.

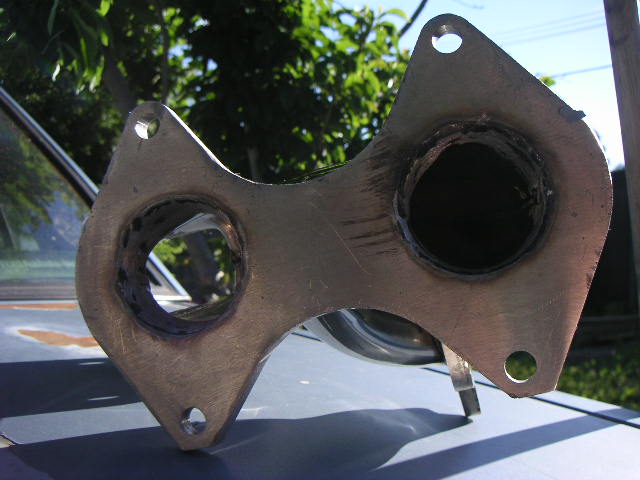

Manifold to motor= bolted right up. Looks like SSAC enlarged these hole.

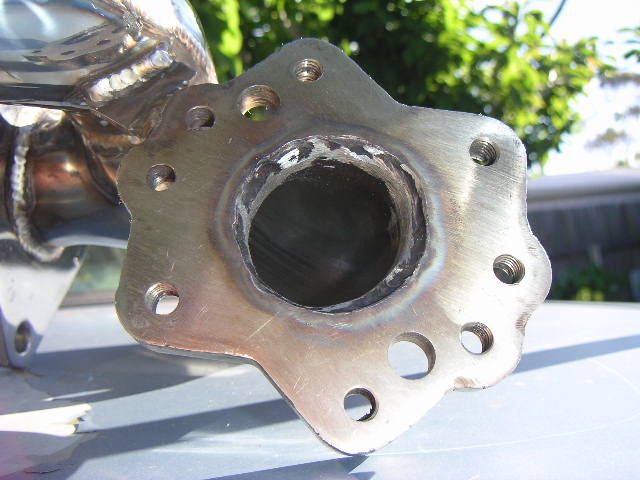

Wastegate to manifold= three holes lined up. Going to have to enlarge the 4th one and use a nut and bolt.
Maybe in two weeks I will have this thing on the car.
chuck
Manifold to motor= bolted right up. Looks like SSAC enlarged these hole.
Wastegate to manifold= three holes lined up. Going to have to enlarge the 4th one and use a nut and bolt.
Maybe in two weeks I will have this thing on the car.
chuck
