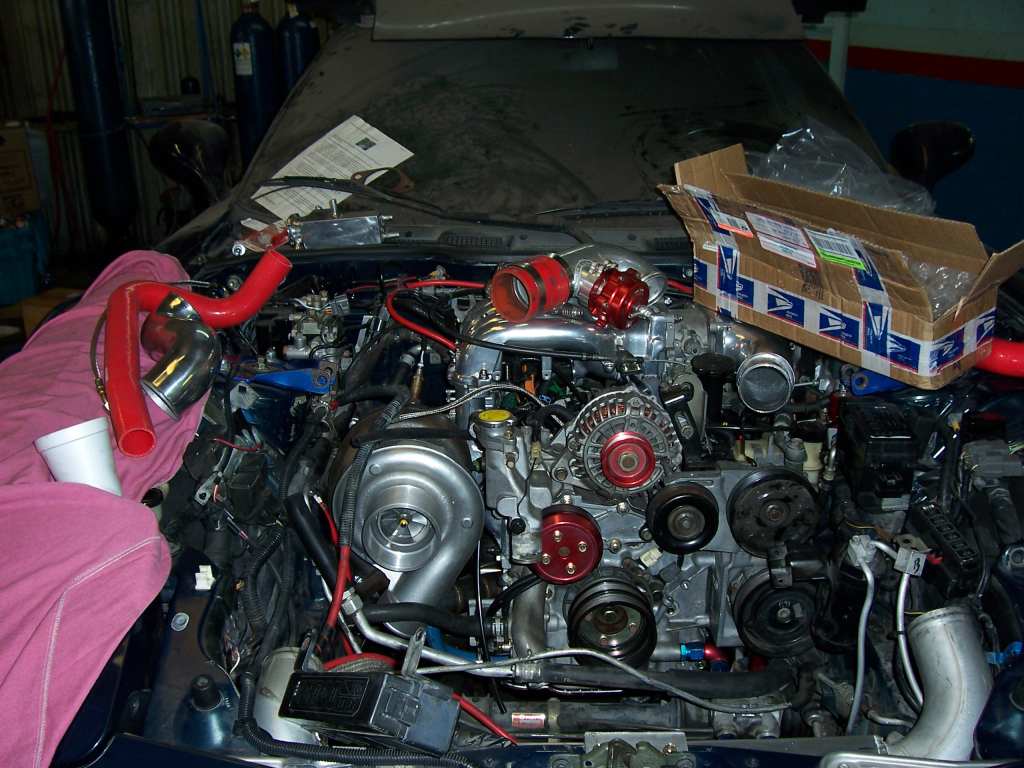

I ran out of time and my car won't make it to SevenStock this year. But it will be done soon and I did take some pics of the R85 turbo installed. I figure some of you chaps might be interested...

-Max

BoostorLose

Very nice Max, congrats. Can't wait to see when she's done.
Mike

Wargasm

Nice nice! Now get that puppy on the dyno

Brian

BoostedRex

Very nice looking Max!! I'm interested to see your numbers as well.

Zach

twokrx7

iTrader: (1)

Max,

What radiator and intercooler setup are you running? The pics look as if you dumped the stock mount.

Kyle

maxcooper

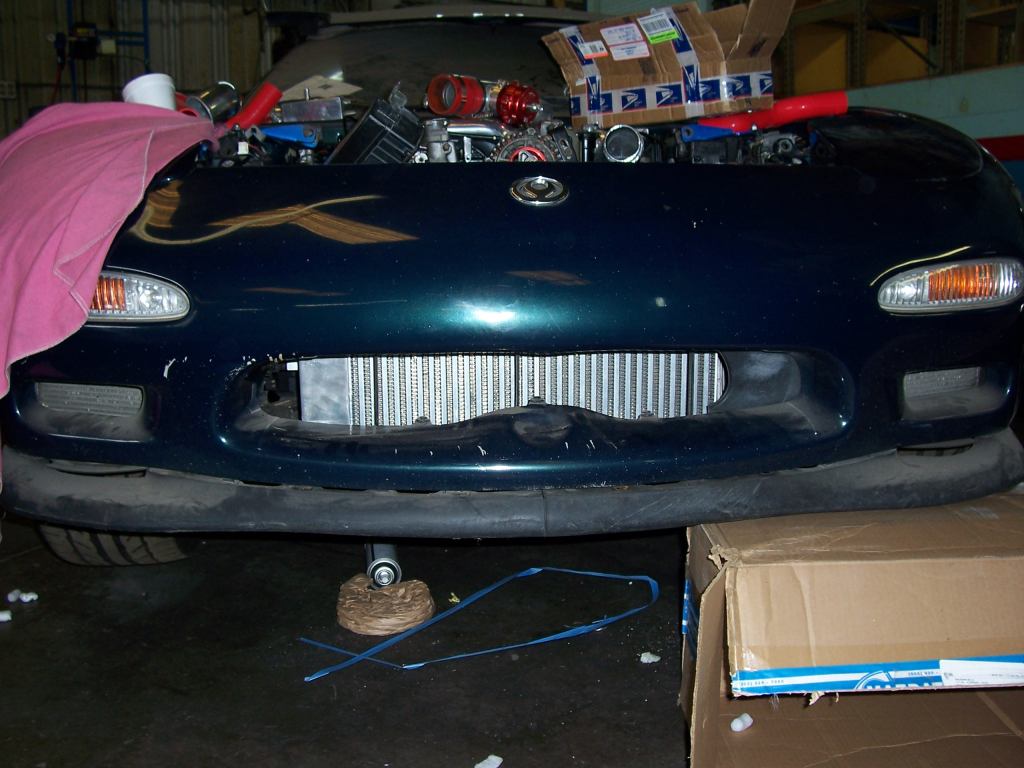

I am switching to a front mount IC. It is the IC that Pettit builds for their 20B cars. I saw it for sale and thought I'd give it a try. Bah, I was going to post a link to the for sale thread from the Classifieds section, but the forum is too slow for me to go find it. Red-Rx7 was the seller and Pettit and 20B would probably turn up the thread if you really want to see the core. It's pretty cool -- the core is about 21x3.5x10.5 and flows vertically.

I will be using my trusty old MazdaComp radiator, though it will be custom mounted vertically behind the IC and AC cores. I'm sure I'll need ducting, etc. to keep engine temps in check, but I'm going to give it a shot. I will be running NPG+ coolant, stock main pulley, an AST, etc. as well so hopefully the cooling system will work out okay. I'll just have to try it and see and make any adjustments that are needed as I go.

-Max

Black97VR4

How smooth was the install?

Looks great. I'm very interested in this turbo myself. Can't wait to see some dyno numbers out it. Should be a beast.

badboi24u

iTrader: (1)

very nice man how is the lag

maxcooper

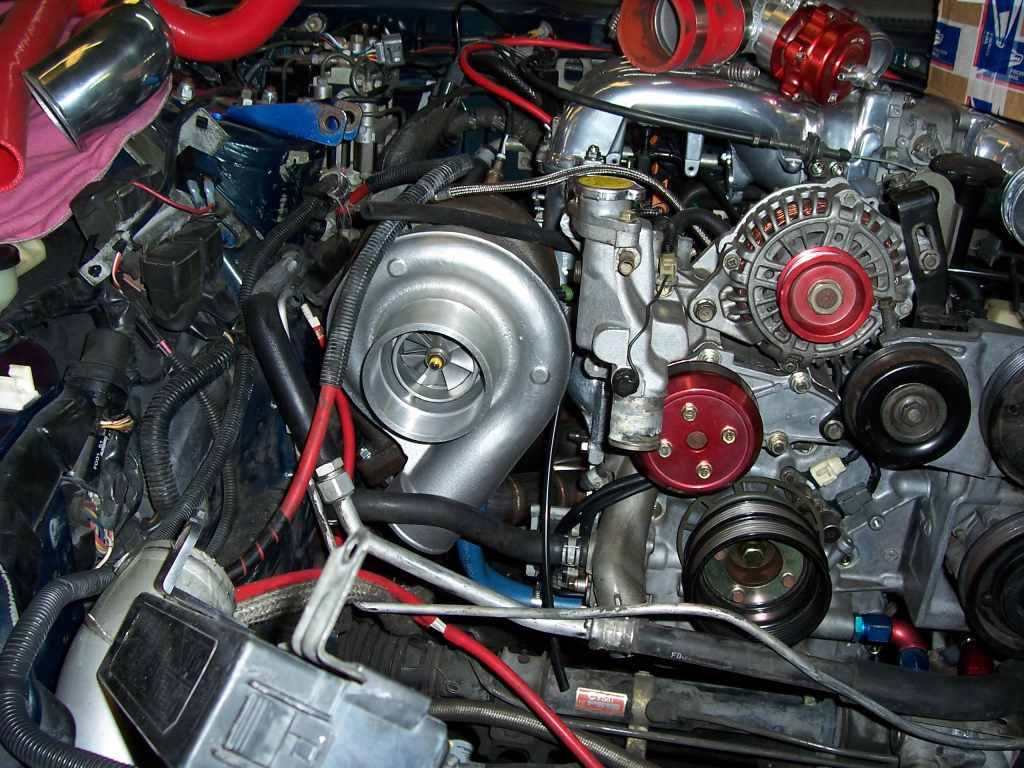

The install was relatively smooth, I think. I had Mazdatrix install it since they just built me a new motor at the same time. They did move the water line that runs along the inside of the fender there, and they also moved the wiring for the ABS wheel sensor to keep it away from the turbine housing. The turbo is big and it is a tight fit, but it does seem to fit in there okay. It doesn't hit the fender or anything.

The car is still being assembled, so I don't know how the lag is yet. I'll report my driving impressions after the car is back on the road, broken in, and tuned. I will probably get a dyno test pretty soon (few months?), too.

-Max

Beast From The East

I speak for the group when I say that is one big-*** turbo. Makes my T04S look small....


Have fun terrorizing the track with that.

Oh, yeah, how much does it weigh?

Beast

Fish

Now all you gotta do is update your site!

Fish

1FooknTiteFD

max, how much boost/octane level will you be running? Also who will do the tuning for you?

rotarypower101

iTrader: (1)

Isn’t that WB a little to close to the turbine exhaust for comfort?
I thought the typical place for correct temperature was near the end of the DP.

Looks like a good install though, can’t wait to see some good reviews Max

maxcooper

The turbo itself weighs 30.2 lbs. The manifold, wastegate, etc. weighs another 15 lbs or so. Part of the huge weight of the turbo is that the turbine housing is simply enormous -- it extends further than most turbine housings do, and it is also divided.

I will update my site when the new setup is complete.

I plan to run pump gas at around 15 psi. I want a setup that I can just run normal gas with, so whatever boost I can run with 91 octane pump gas is what I will be running. I expect that to be about 15 psi. I went big with the turbo because I want to be able to rev it out and still make power at 8K+ RPM.

I plan to do my own tuning. Hopefully I won't blow it up this time.

The WB is pretty close to the turbo. I plan to move it toward the other end of the downpipe and put the stock O2 sensor in that spot. I will be getting the turbo manifold, turbine housing, and downpipe thermal coated, so I will probably need to move the sensor even further down the pipe than would otherwise be optimal.

-Max

maxcooper

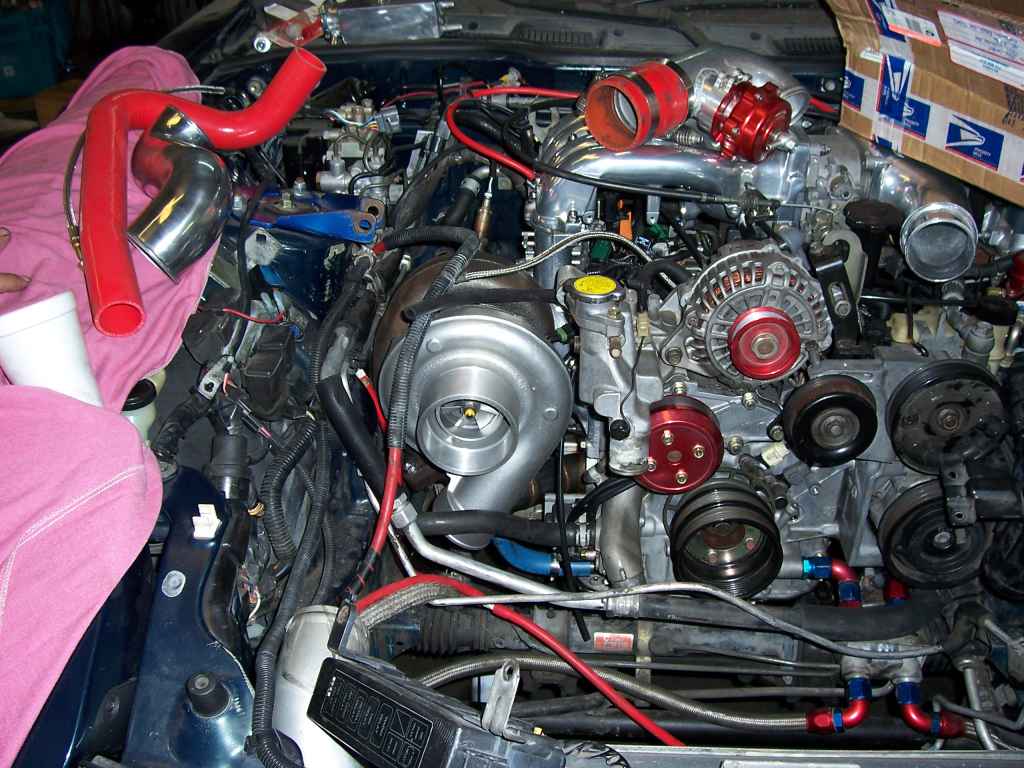

And before anyone mentions it, yes the WG dump is pointing the wrong directions. It is pointed upward in the picture because we were looking at what direction it should go to rejoin with the downpipe. It probably won't be straight up like that anyway (and certainly won't be straight up into the downpipe from there), but we were checking it out.

-Max

Carlos Iglesias

iTrader: (6)

Hey Max,

Thanks for all of the insight and pictures.

Now that I'm slightly more than half-way through this deployment to the Gulf, I'm planning some upgrades when I get back. I suspect that selling my RX6 and picking up one of these is likely. So keep up the always informative work.

Flyin, Fightin and Sweatin my **** off in Rotary Beasts,
LCDR Carlos Iglesias
USS ROOSEVELT (DDG 80) Airboss
Airboss@ddg-roosevelt.navy.mil

1revn3rdgen

iTrader: (27)

Now thats a huge bitch!!

badfish229

Damn that's freakin' huge. I imagine something that large would be 30.2 lbs. Us RX-8 owners can only dream...

gfelber

Very nice setup, Max. A constructive suggestion: get a bigger air filter. That is, you'll want a filter that flows at least 600 CFM (Obviously more is required when the filter is dirty) which is 100 square inches. For a conical frustum (cone style) this is approximately 4.5" at the top, 5.4" at the base, and 6.9" tall (not including the flange).

I can send you the calculations, if desired.

Regards,

Gene

maxcooper

Thanks Gene.

I will be getting a bigger filter. The one in the pic comes with the kit and I think it was selected because it is more likely to fit with whatever the buyer has installed in front of it than a longer filter. I've got lots of room, so I'll be using a larger filter. I might not switch until after I get the car back and start doing the break-in. I will just buy the longest filter that will physically fit at that point. No need to send the calcs, I've got a K&N catalog, too.

-Max

maxcooper

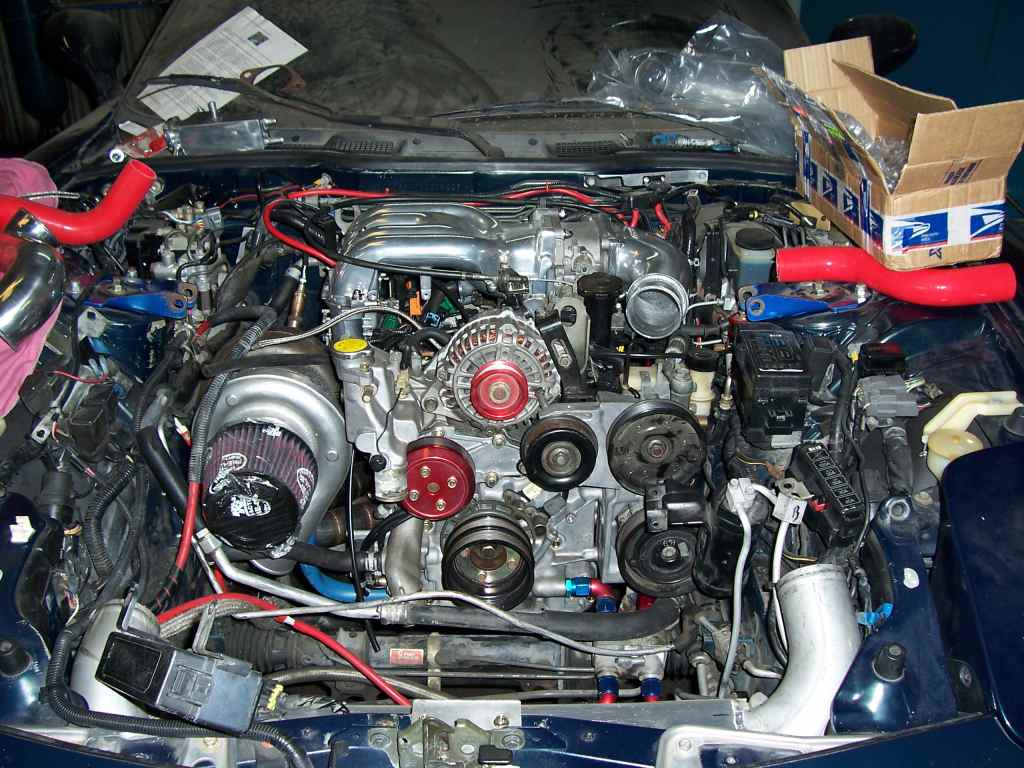

We turned the compressor housing so the exit is at the bottom now. It is a tight fit up top, and I think you would have to weld an elbow to the compressor housing to clear the hood. But it works out better for my setup to exit downward anyway, so we turned it. The IC I'm running is a vertical-flow front mount, and we're going to have the air come in though the bottom. Right now, there is a tank on the side that carries the air from the high-mounted intake pipe down to the bottom of the core. If we move the intake pipe to the bottom, it doesn't have to make that journey and endure those bends.

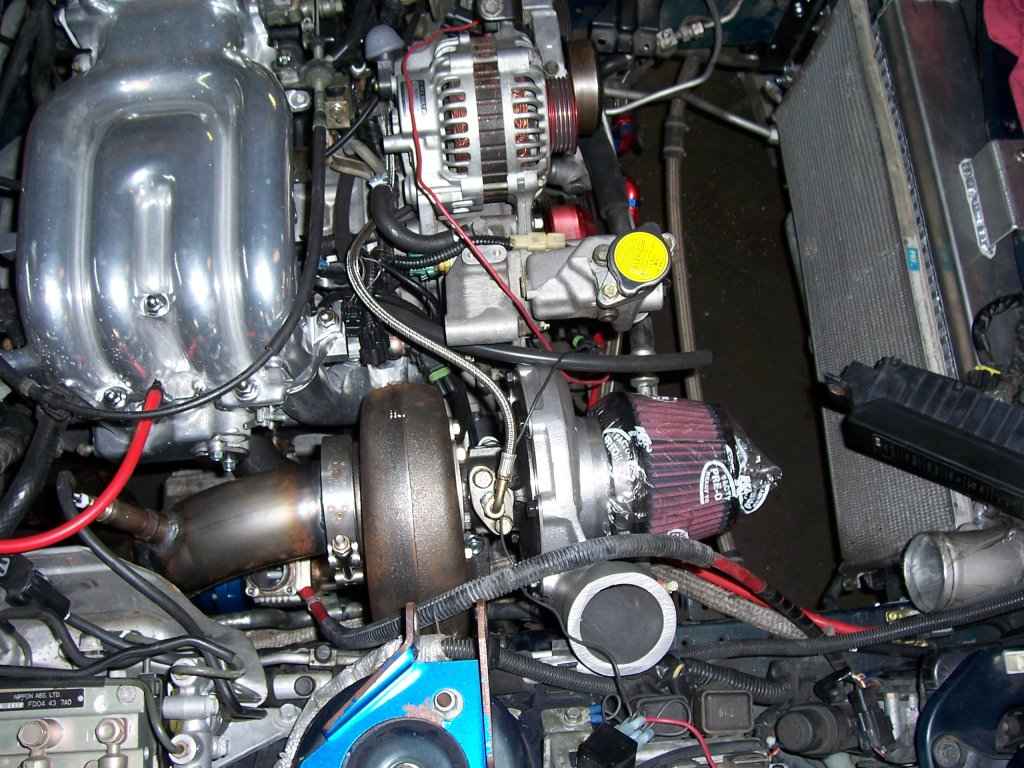

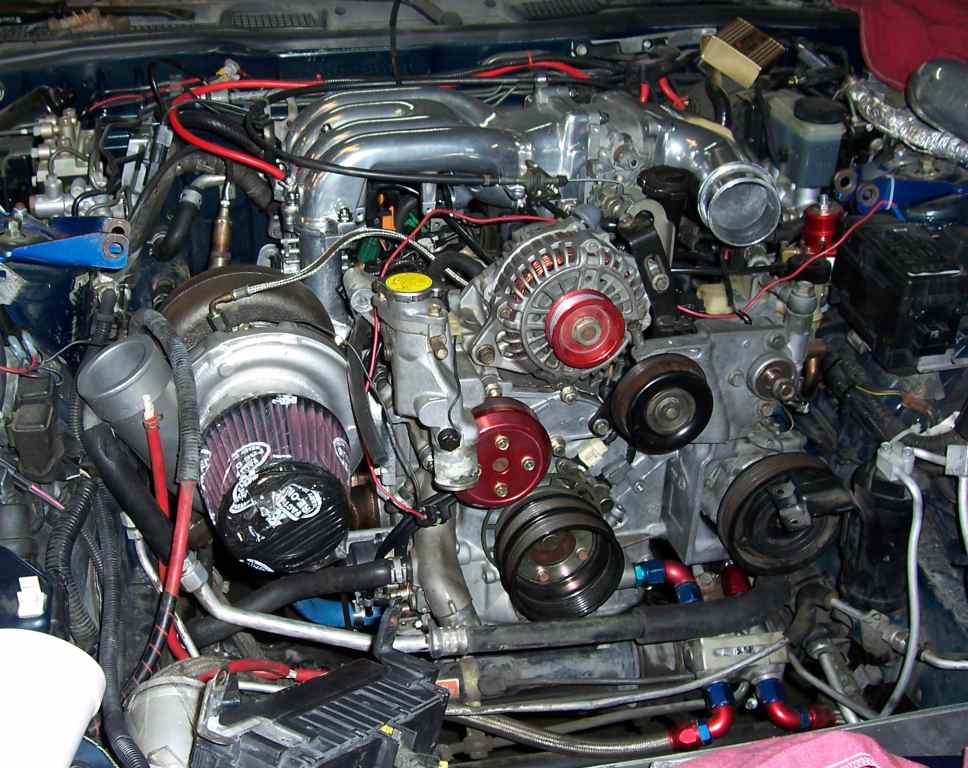

Anyway, here are some more pics.

-Max

maxcooper

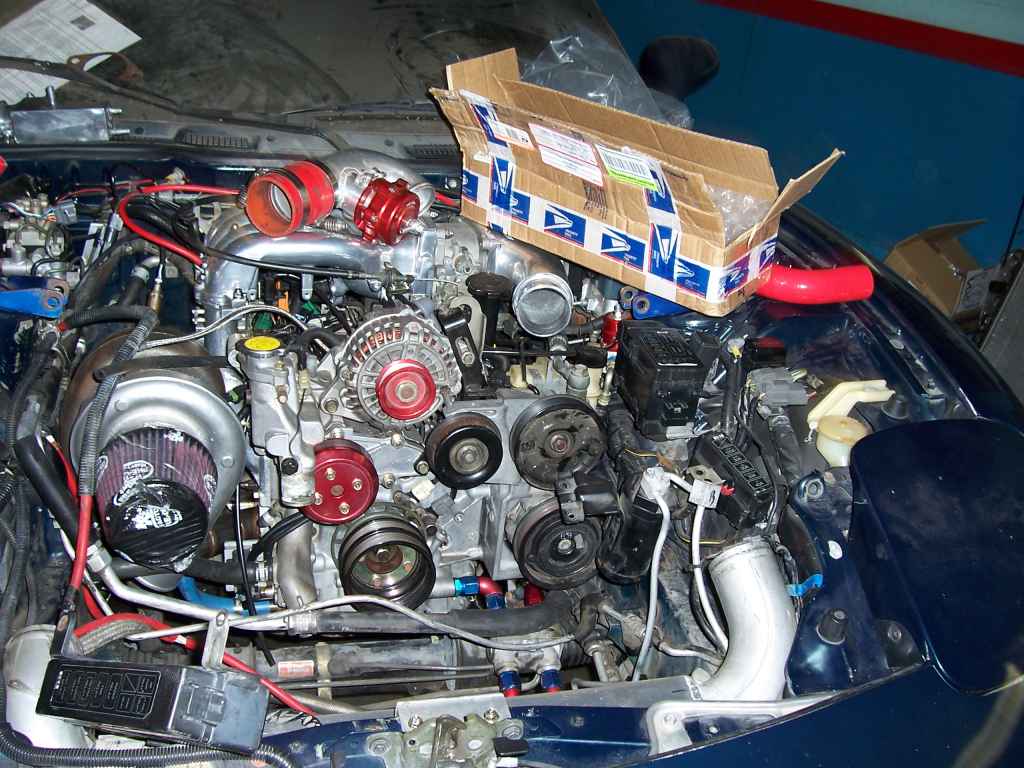

One more...

modrx7

iTrader: (1)

Nice... Looks good. My install of the GT40R is about at the same stage. I'll get some pics and post them this weekend, so people can see a compareo...

CCarlisi

Max,

I'm working on the same thing. I have a 2-row Greddy front mount (which already has the outlets at the bottom of the core) with an upright radiator. The hot pipe will exit outside the belly pan, then pass back in near the sway bar mount. I think this setup has a couple benefits. First, the pipe length is shorter with less curves (at least with the greddy 2-row). Second, it creates a lot more room for a cold air intake setup. Third, it makes it easier to seal the radiator in against the intercooler.

Good luck with the project.

Beast From The East

Why did I know you'd weighed the turbo? Is there any part of the car you haven't weighed?
