Addicted Performance

iTrader: (51)

Hey, Just wanted to share with you all another small project we finished up here at the Shop this week. The owner wanted us to build him a car he could enjoy in the suburbs of Chicago with quick spool and lots of low end power.

Here is the list of mods and final dyno numbers.

-Full Bridge Ported Engine using E & J Seals Built in House
-HKS Cast Manifold
-HKS Wastegate
-Precision 5858
-Greddy 2 Row Intercooler
-FFE Sec Rail
-ID2000 Secondaries
-Adaptronic PNP ECU
-Racing Beat Single Tip Exhaust
-Devils Own Methanol Injection

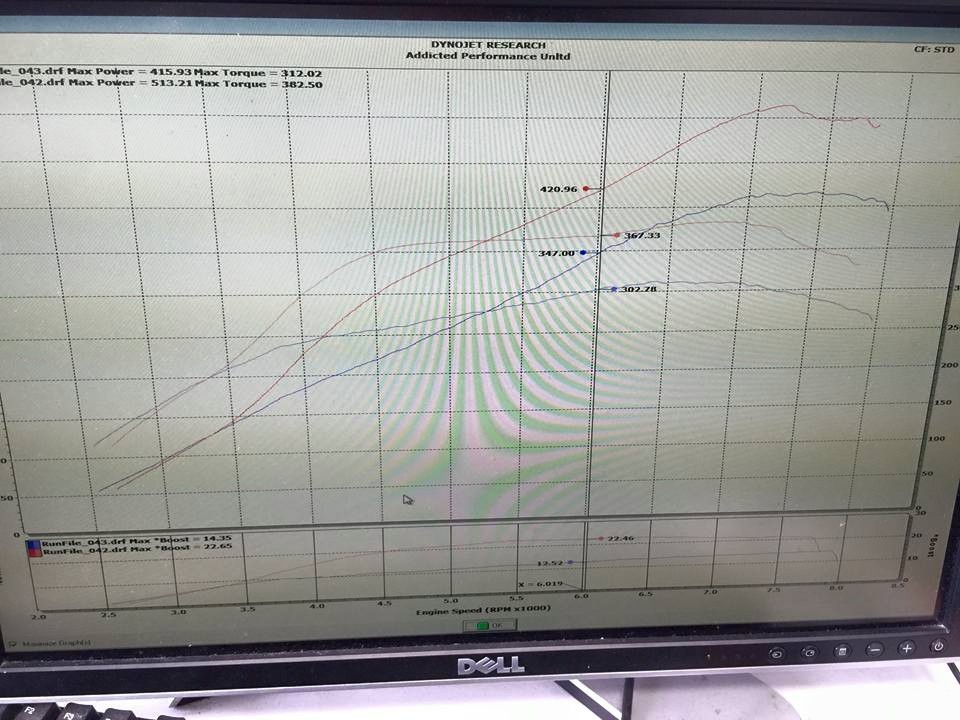

-Pump Gas Only=415whp and 312tq at 14psi
-Pump+Methanol=513whp and 382tq at 22psi

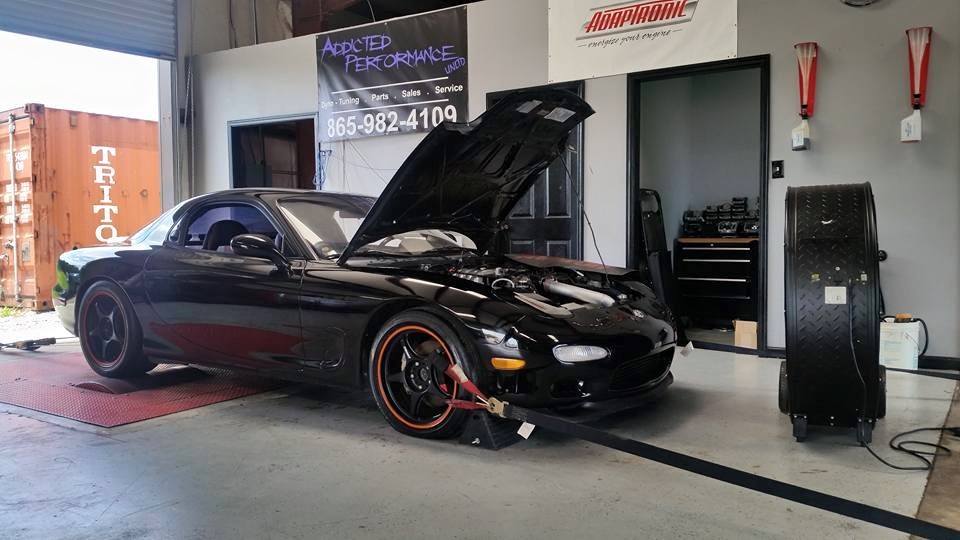

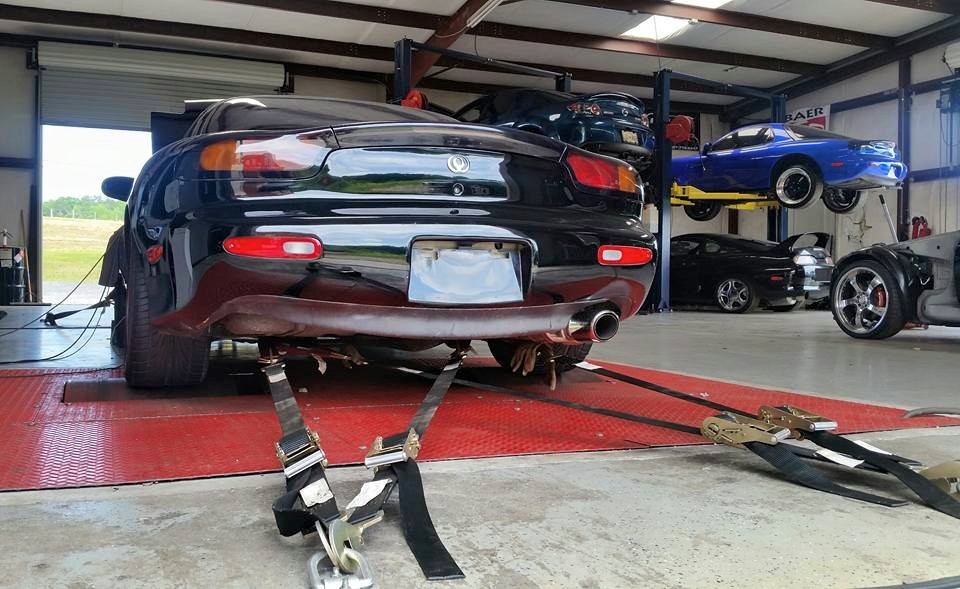

Here are some pictures and the video








https://www.youtube.com/watch?v=Q16Y...ature=youtu.be

djseven

iTrader: (56)

5862 man.

KNONFS

iTrader: (14)

WOW, I was not expecting those numbers out of a 5862

bufferovrflo

iTrader: (7)

I was thinking the same thing; I should have kept my PT6176 and see what it could really do...

Addicted Performance

iTrader: (51)

Yeah we were very pleased with the numbers it produced!

Wildman923

iTrader: (1)

So this is a 5862 or a 5858? ... Curious on the Hotside Specs as I'm running about the same setup in my Miata but with a stock port REW (Comp 5862, T4 Divided, .84 ar hotside, 1k/1600 combo, and Link G4 ECU). I've always thought I've been around 300-330 at 14 psi. Waiting to upgrade my Diff before I ring the turbo out on E85 to see what it really has in it. Think Last logs showed I was around 80% duty cycle at 7k RPM but started trailing off due to stock ports.

Addicted Performance

iTrader: (51)

The Turbo is a 5862!

Wildman923

iTrader: (1)

any info on the hotside specs? Really curious what it would put out on High Boost and E85.

djseven

iTrader: (56)

.84 divided

h_turbo

Nice numbers for such a small turbo. I would really like to see what it would do on stock ports or maybe street ports.

Dyesuperman

Those are great numbers! This makes me want to stick with my idea of using an hx35 on my car now. Flows slightly less, but would be a great street turbo with fast spool

Addicted Performance

iTrader: (51)

Todays turbo technology has gotten very good. Small turbos, proper setups, and good tuning are making good power numbers that have large power bands and not just all up top. This car is a blast to drive on the street. The high boost setting is hard to drive on the street even in 3rd, but as with most people after a large power gain comes a good/larger set of tires.

Jason94R2

iTrader: (3)

Might be an off the wall question from the norm. Does the cast manifold keep the turbo low enough and far enough back for the ACV and airpump to remain if desired?

Jason

Wolf_

Yes it does! Have same manifold and airpump still installed

Jason94R2

iTrader: (3)

All the ACV lines too?

Jason

Wolf_

Have the presicion 6266 with hks cast manifold and no worries for those lines. Heatwrap them is a good idea
