Newb needs help identifying a Turbo
#1
Budget Pimpin'
Thread Starter
Join Date: Aug 2007
Location: Melbourne
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Newb needs help identifying a Turbo
Hello All, I am an FD newb and have recently acquired an exceptional 3rd gen. I'll formally introduce and post pics when I get them, However right now I have a bit of a problem that's preventing from enjoying my new pride and joy. The only information I have on the car is what I can see and what the old owner could give me and he didn't know dik about cars.

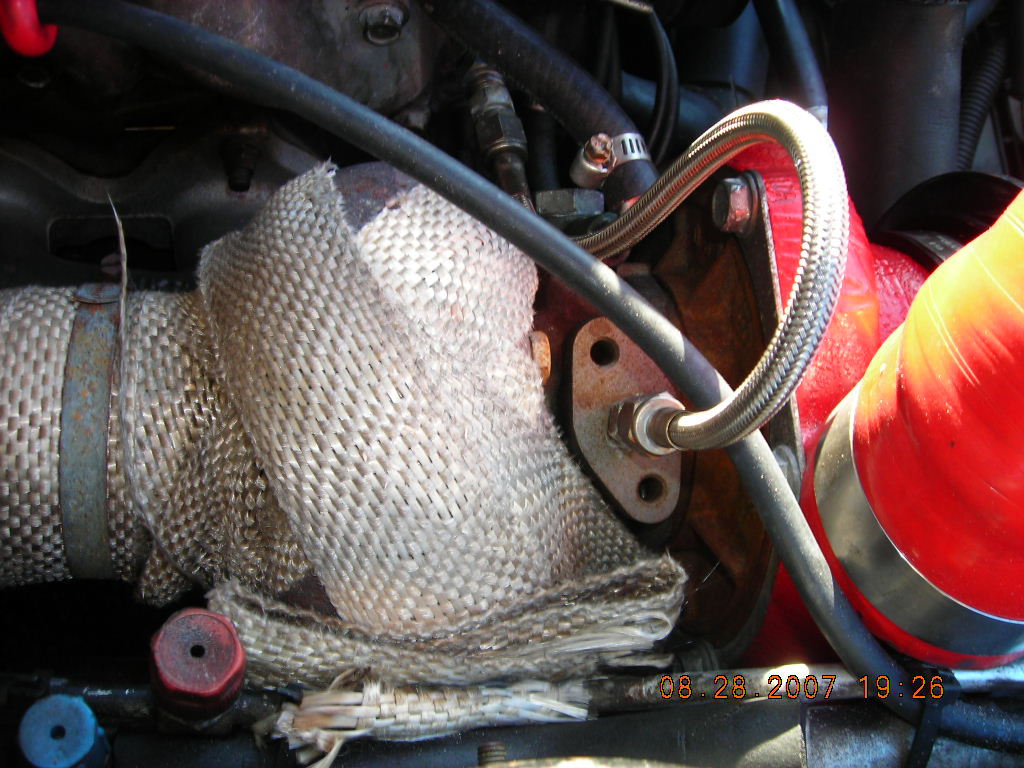

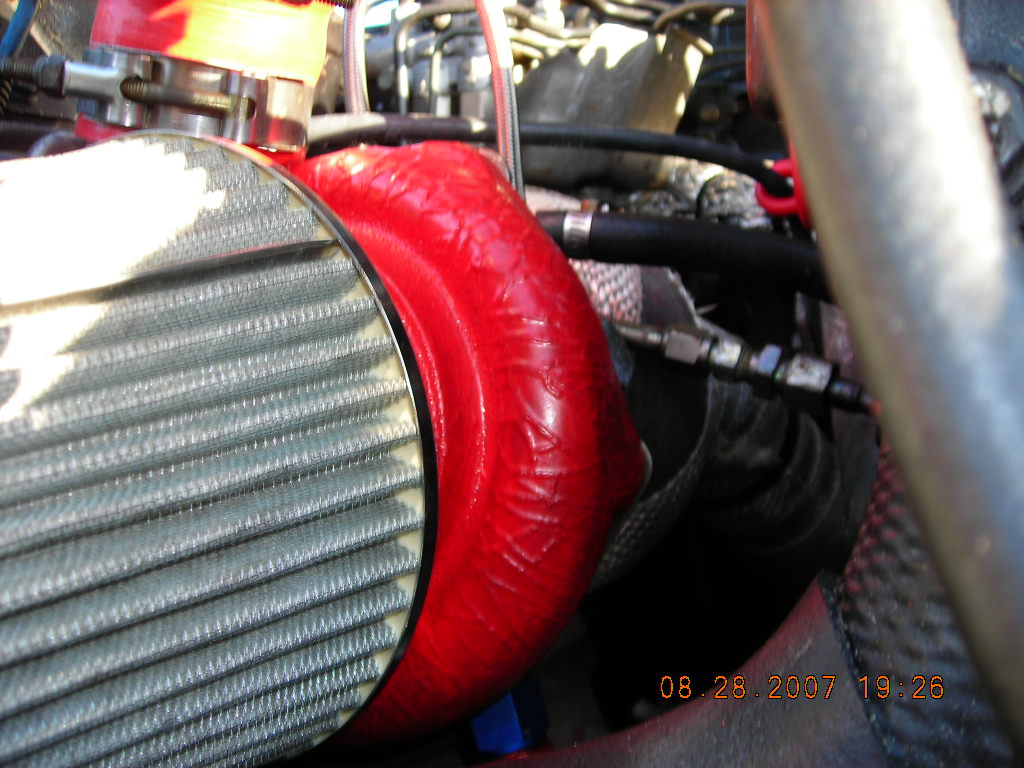

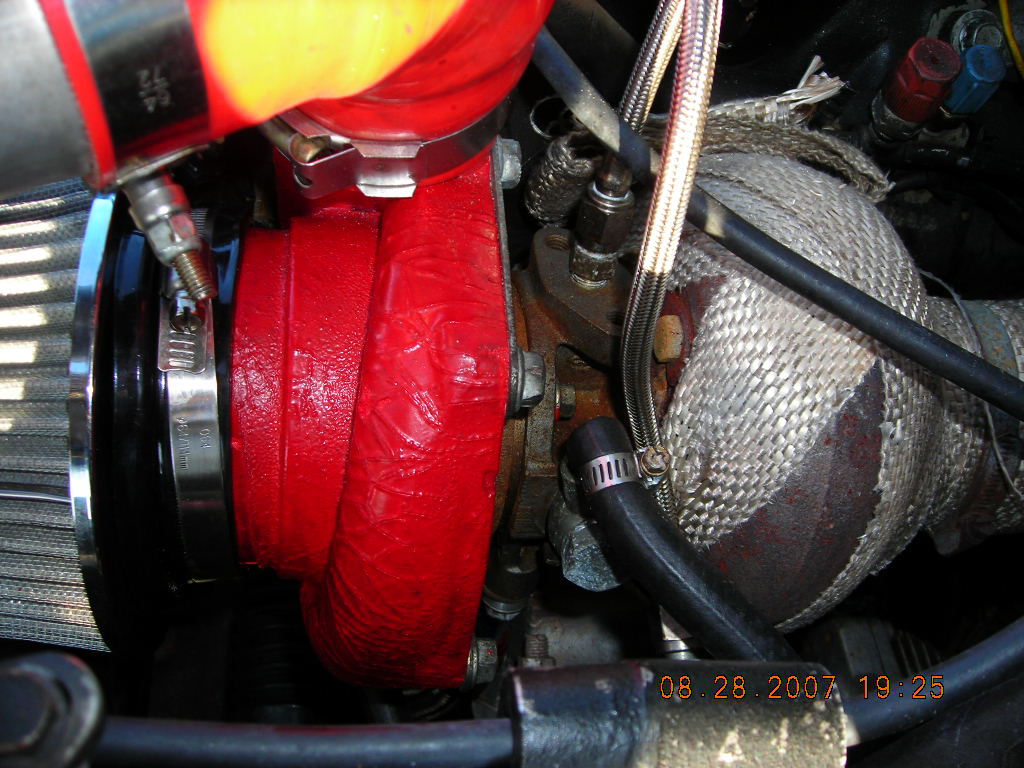

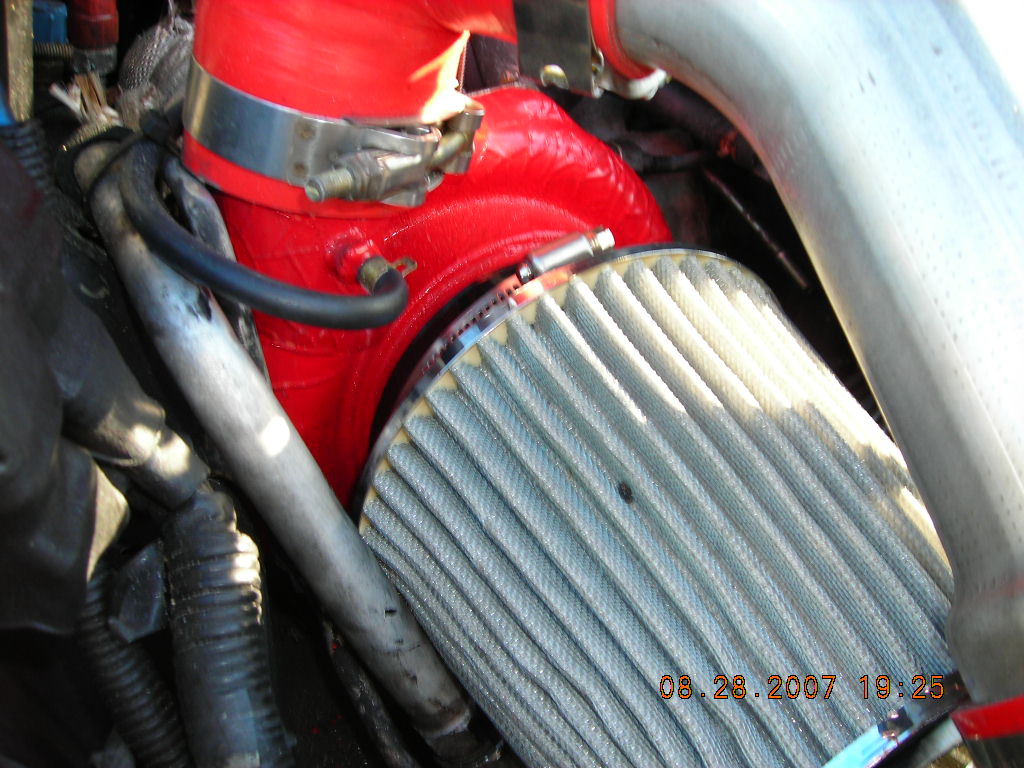

The car has been converted to a single Turbo, apparently very well done, with mostly HKS components. The turbo is allegedly a T60. I Checked around and Garrett makes a GT60 however they recommend it for 6.0l to 12.0l engines up to 2000hp, I seriously doubt it's that one. The compressor housing is painted red and has no stampings or markings on it. The red paint is cracking from the heat but not flaking off so I assume someone painted it after they bought it. The exhaust turbine housing is heat wrapped, but from what I can see also has no markings. Considering it's surrounded by an HKS Exhaust Manifold, MidPipe, 3" Downpipe and Catback, I assume it might be an HKS bolt on kit.

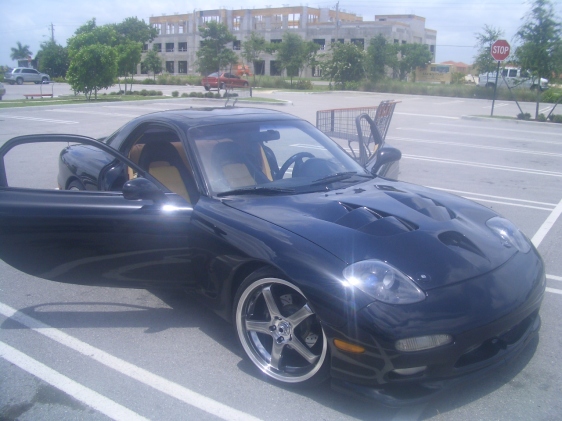

I need to find out what kind of Turbo this is because I blew out the Midpipe to Turbo Gasket and need to get a new one. I spent all this money on a car that looks like a bad-*** sports car and sounds like a '65 Beetle with no exhaust. I am including pics of the Turbo and one of the car, hoping someone recognizes it. I appreciate any help you guys give me.
The car has been converted to a single Turbo, apparently very well done, with mostly HKS components. The turbo is allegedly a T60. I Checked around and Garrett makes a GT60 however they recommend it for 6.0l to 12.0l engines up to 2000hp, I seriously doubt it's that one. The compressor housing is painted red and has no stampings or markings on it. The red paint is cracking from the heat but not flaking off so I assume someone painted it after they bought it. The exhaust turbine housing is heat wrapped, but from what I can see also has no markings. Considering it's surrounded by an HKS Exhaust Manifold, MidPipe, 3" Downpipe and Catback, I assume it might be an HKS bolt on kit.
I need to find out what kind of Turbo this is because I blew out the Midpipe to Turbo Gasket and need to get a new one. I spent all this money on a car that looks like a bad-*** sports car and sounds like a '65 Beetle with no exhaust. I am including pics of the Turbo and one of the car, hoping someone recognizes it. I appreciate any help you guys give me.
#2
Budget Pimpin'
Thread Starter
Join Date: Aug 2007
Location: Melbourne
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
I almost forgot to mention, on the back-side of the compressor housing I found some alpha-numeric characters: A - G2 - 20 (or 2D?) - 66
Each pair was seperated by strengthening ribs cast into the housing. I of-course searched and came up with nothing.
Each pair was seperated by strengthening ribs cast into the housing. I of-course searched and came up with nothing.
#5
Budget Pimpin'
Thread Starter
Join Date: Aug 2007
Location: Melbourne
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
It's not that bad. The piping isn't show worthy and they took a little roll of heat wrap and stuffed it inbetween the exhaust side of the turbo setup and the high side of the AC lines cause it was too close. Other than that, the lines to the turbo are steel wrapped and they used good quality parts so I'm happy with it.
I was hoping I wouldn't have to take it apart. I'm assuming I need to measure the A/R of the housings and trim of the turbine and compressor wheels?
I was hoping I wouldn't have to take it apart. I'm assuming I need to measure the A/R of the housings and trim of the turbine and compressor wheels?
#6
Big Snail
Just looking out for you. You can tell alot about a person from how well they up keep their car. Make sure you have a compression test done before you even think about moving forward. But yes you will need to take the covers off. You need to measure the diameter of the the inducer (small part) and the exducer (larger side) of the compressor and turbine wheels. Its actually better that you do so, that way you can inspect the turbo for any sort of damage (chips, oil seals).
#7
Budget Pimpin'
Thread Starter
Join Date: Aug 2007
Location: Melbourne
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
That is a good idea, when I got the car, the turbo was exposed with no filter so who knows what it sucked in. No worries tho, If it is fubar then I'll fix or replace it.
Would you happen to know what the numbers are for normal compression on a 13B? Also, I assume a digital micrometer is a must when taking the Turbo measurments.
Would you happen to know what the numbers are for normal compression on a 13B? Also, I assume a digital micrometer is a must when taking the Turbo measurments.
