My FD Resurrection
Ok, so after 11 months of neglect, I have finally decided to bring my FD back to life.
the car will be getting an all new set-up with the focus on more useable mower and more power in general.

there will be lots of pics following. heres a few just to get started.

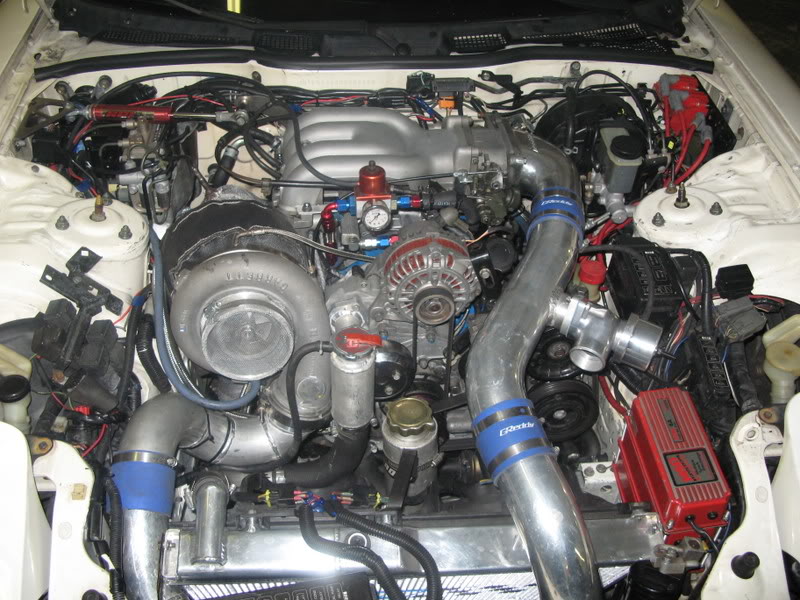

this is the setup from 2006 before the autronic SM2 and CDI ignition
Attached Thumbnails My FD Resurrection-old-bay.jpg
SPEED_NYC is offline
Reply Like
Old 10-10-09, 12:19 PM
  #2
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

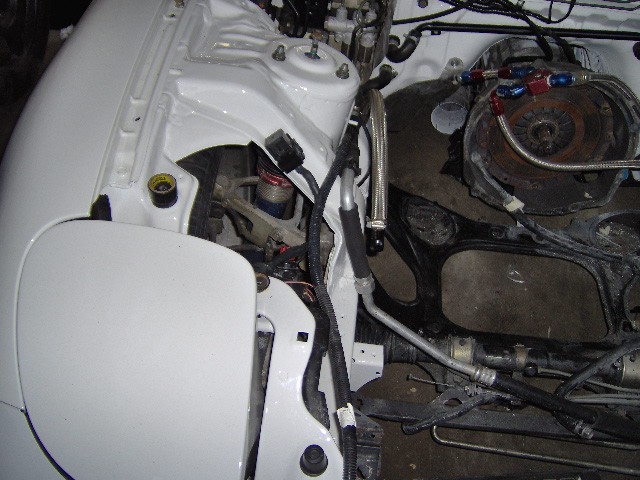

in november of last year I stripped the entire engine bay and had it painted because the little scratches in there were boithering me. this is the only pic i can find of the bay after paint..
Attached Thumbnails My FD Resurrection-002.jpg
SPEED_NYC is offline
Reply Like
Old 10-10-09, 12:28 PM
  #3
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
next came engine porting and building. I decided on a large half bridge again. I have had bridgeported turbo FD's in the past and I LOVE the sound, power and response. IMO its what porting tools were made for. my last setup made over 600 on a mild street port, but I missed the bridge, so we're gonna try that again.

the entire rotating assy west sent to roger manderville for balancing after bearing clearances were done.
SPEED_NYC is offline
Reply Like
Old 10-10-09, 12:29 PM
  #4
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
more later, i need to get back to work on the car...
SPEED_NYC is offline
Reply Like
Old 10-10-09, 01:08 PM
  #5
Senior Member

iTrader: (1)

chohakai's Avatar

Join Date: Sep 2001
Location: San Francisco
Posts: 321
Likes: 0
Received 0 Likes on 0 Posts
Dude! You just put the word "erection" into your thread title! j/k. Good luck and look forward to seeing some good results.
chohakai is offline
Reply Like
Old 10-10-09, 01:39 PM
  #6
Banned. I got OWNED!!!

Chaotic_FC's Avatar

Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts
what upgrades are you planning aside from the bridge? new turbo? fuel?
Chaotic_FC is offline
Reply Like
Old 10-10-09, 02:32 PM
  #7
E85+Boost+Rx2=zoom zoom

iTrader: (2)

rex3's Avatar

Join Date: Oct 2004
Location: Long Island NY
Posts: 499
Likes: 0
Received 0 Likes on 0 Posts
Go get em Roan..... 2010 is going to be sick.
rex3 is offline
Reply Like

Trending Topics

Old 10-10-09, 03:51 PM
  #8
7s before paint!!!

iTrader: (2)

13B-RX3's Avatar

Join Date: Aug 2003
Location: Philly/Texas
Posts: 3,814
Likes: 0
Received 0 Likes on 0 Posts
Damn Roen, your thread reads like a time line! I can't wait to see the finished product!
13B-RX3 is offline
Reply Like
Old 10-10-09, 05:31 PM
  #9
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
Looking good!

Are you going with a different type of manifold/TB?
KNONFS is offline
Reply Like
Old 10-10-09, 10:13 PM
  #10
GorillaRaceEngineering.co

iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,048
Received 0 Likes on 0 Posts
Looking good Roen..... reminds me of my CW fd. I hope to be starting that build again soon(ish). haha. Good luck man!

-J
Gorilla RE is offline
Reply Like
Old 10-11-09, 12:04 AM
  #11
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
Originally Posted by KNONFS
Looking good!

Are you going with a different type of manifold/TB?
yeah I'm running an xtreme rotaries 4 barrel TB, intake and hat combo that I got from www.rxparts.com

real nice peice! I'm running thier stud kit, primary fuel rail and Apex seals too. all from www.rxparts.com

i'll post pics of the intake soon.
Last edited by SPEED_NYC; 10-11-09 at 12:31 AM.
SPEED_NYC is offline
Reply Like
Old 10-11-09, 12:06 AM
  #12
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Chaotic_FC
what upgrades are you planning aside from the bridge? new turbo? fuel?
I'm also gonna be trading in my GT42RS for a BW S475 and running E85.

I'll be running 6x1600cc injectors, which should be good for 750whp
SPEED_NYC is offline
Reply Like
Old 10-11-09, 12:13 AM
  #13
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

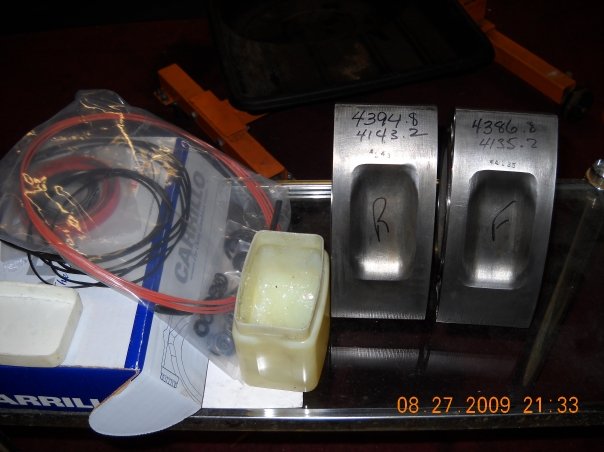

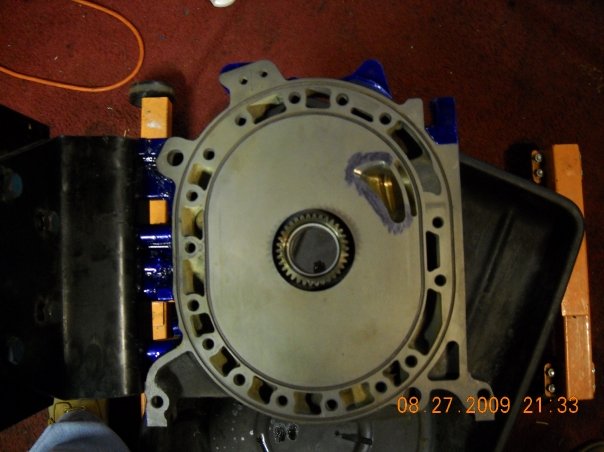

heres some pics of the ports, and engine assy.

no top secret ports here
Attached Thumbnails My FD Resurrection-5614_1201559112513_1034619621_30626286_3213338_n.jpg   My FD Resurrection-5614_1201559232516_1034619621_30626289_3144861_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 12:15 AM
  #14
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

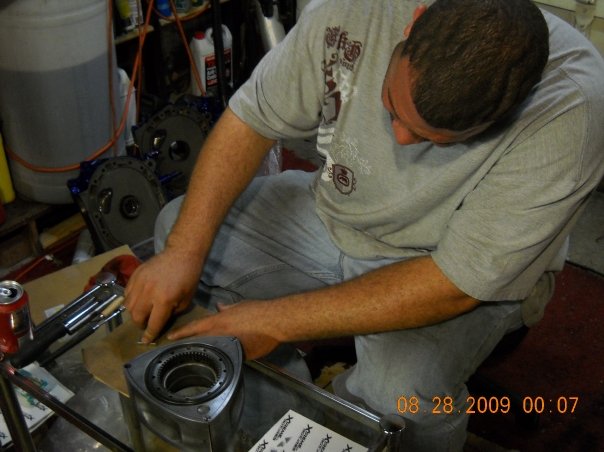

side seal clearancing. thanks Allen for the "tool" rental
Attached Thumbnails My FD Resurrection-5614_1201559272517_1034619621_30626290_7181858_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 12:19 AM
  #15
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
apex seal clearancing..
Attached Thumbnails My FD Resurrection-9116_1231016808937_1034619621_30718357_6318013_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 12:30 AM
  #16
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
..
Last edited by SPEED_NYC; 10-11-09 at 12:49 AM.
SPEED_NYC is offline
Reply Like
Old 10-11-09, 01:22 AM
  #17
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

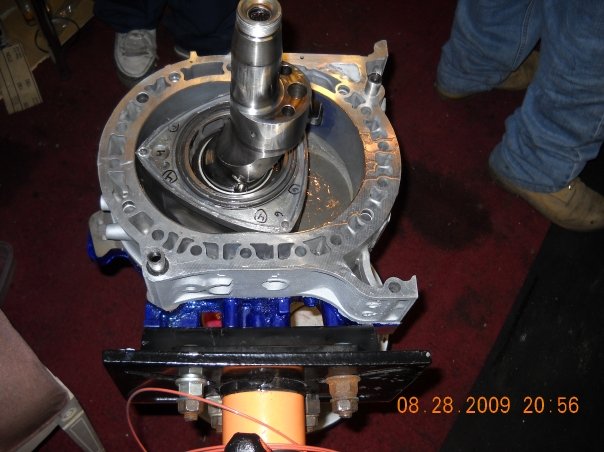

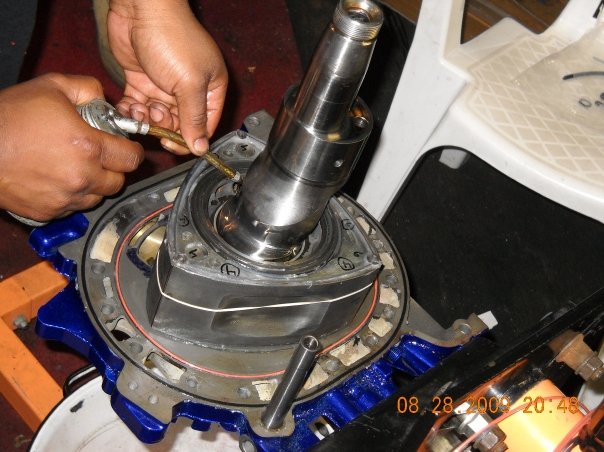

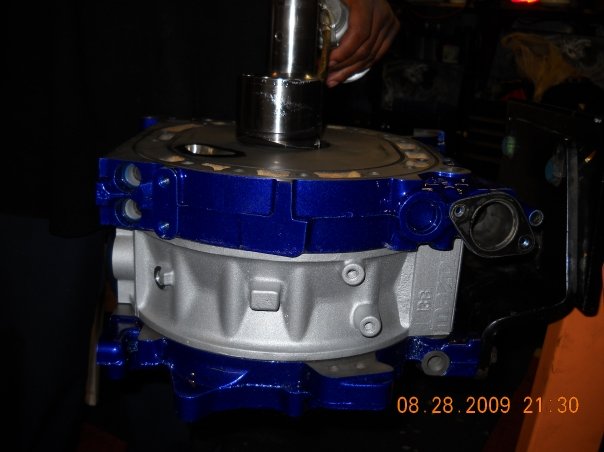

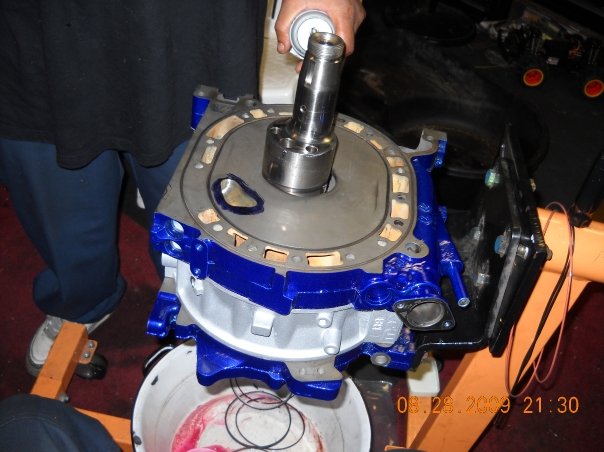

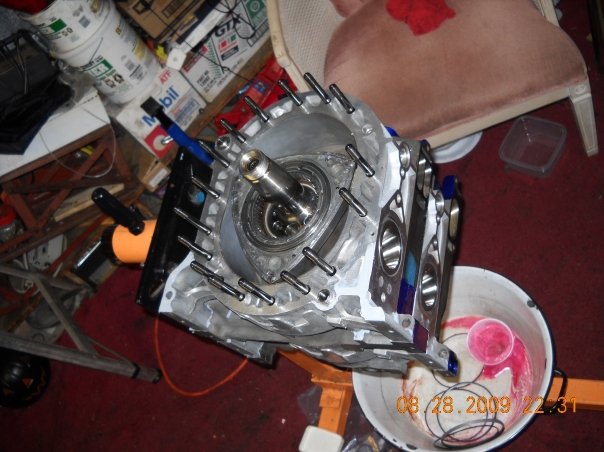

random build pics. thanks to Steve, Marly and Chris for the help. great team of talented mechanics
Attached Thumbnails My FD Resurrection-9116_1231033489354_1034619621_30718452_6616669_n.jpg   My FD Resurrection-9116_1231033529355_1034619621_30718453_3550050_n.jpg   My FD Resurrection-9116_1231033569356_1034619621_30718454_6535167_n.jpg   My FD Resurrection-9116_1231033609357_1034619621_30718455_2077882_n.jpg   My FD Resurrection-9116_1231034209372_1034619621_30718456_3657274_n.jpg

My FD Resurrection-9116_1231034249373_1034619621_30718457_4777707_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 01:27 AM
  #18
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

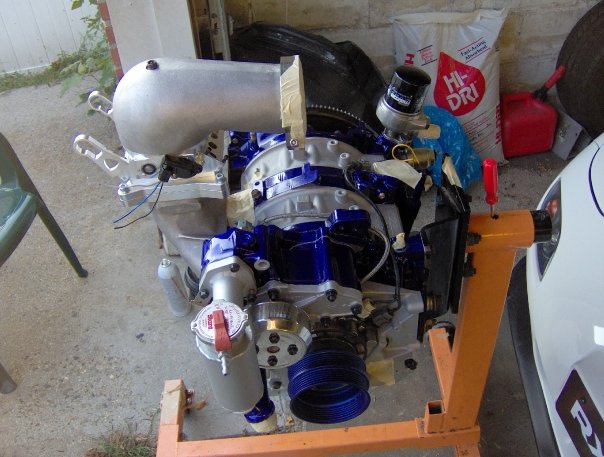

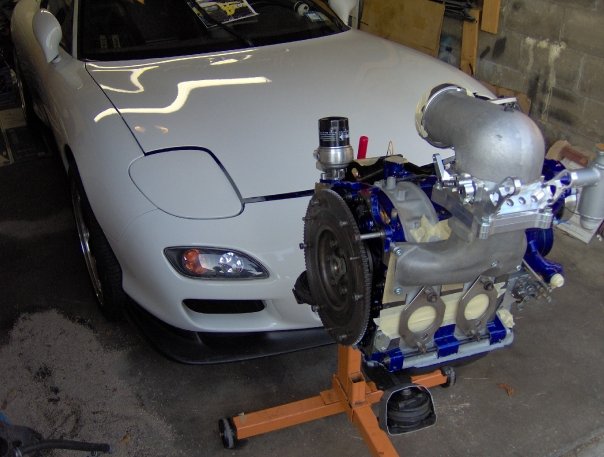

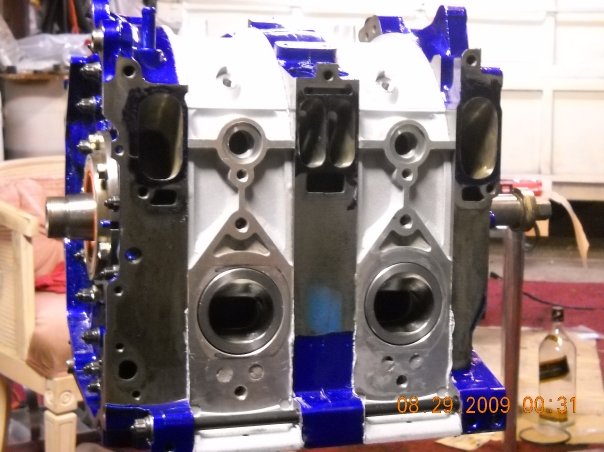

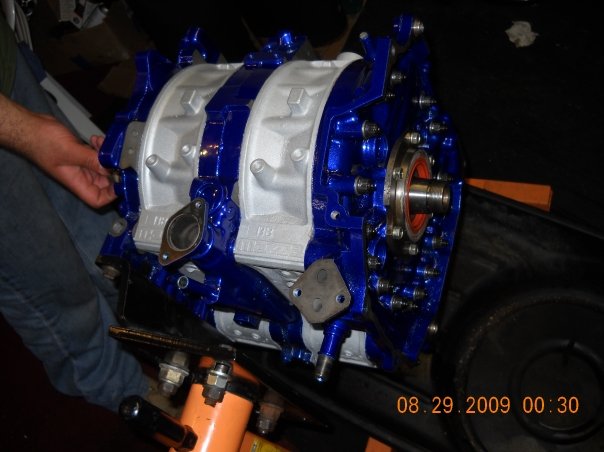

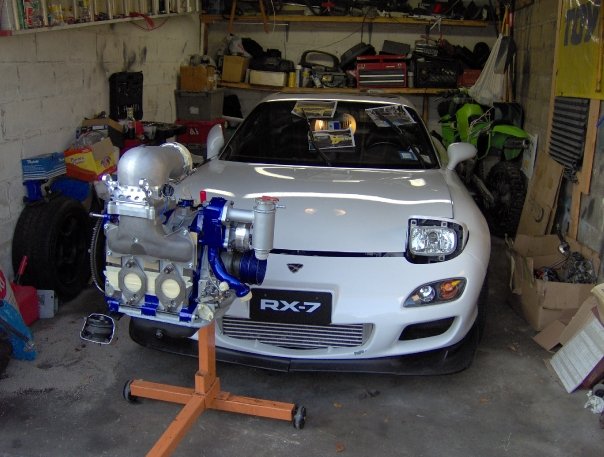

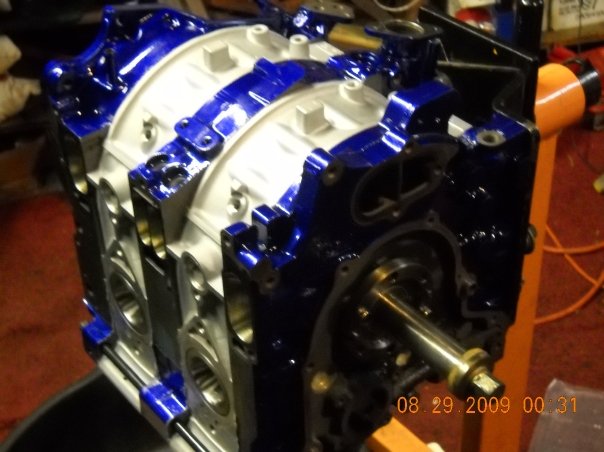

more
Attached Thumbnails My FD Resurrection-9116_1231034289374_1034619621_30718458_7250346_n.jpg   My FD Resurrection-9116_1231034329375_1034619621_30718459_3060729_n.jpg   My FD Resurrection-9116_1231034369376_1034619621_30718460_8196961_n.jpg   My FD Resurrection-9116_1231034449378_1034619621_30718462_6891751_n.jpg   My FD Resurrection-9116_1231034489379_1034619621_30718463_3693386_n.jpg

My FD Resurrection-9116_1231034529380_1034619621_30718464_1481594_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 01:29 AM
  #19
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post

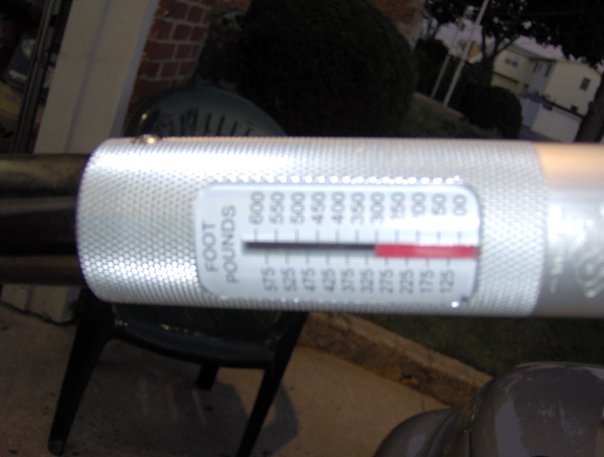

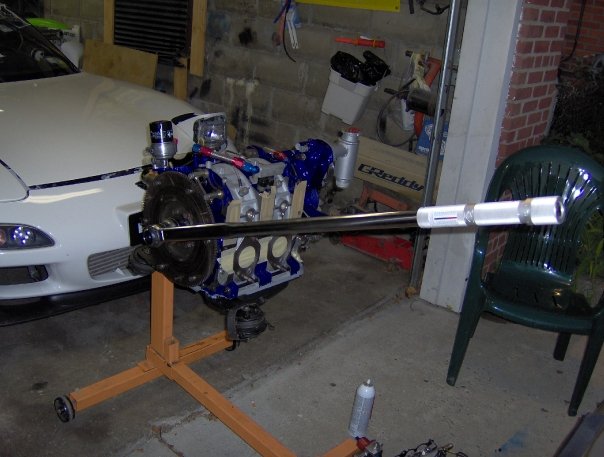

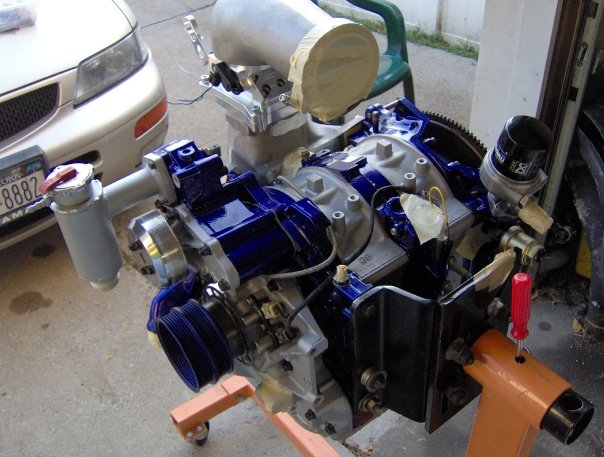

few more
Attached Thumbnails My FD Resurrection-9116_1231034569381_1034619621_30718465_6521642_n.jpg   My FD Resurrection-9116_1231034609382_1034619621_30718466_1088399_n.jpg   My FD Resurrection-9116_1231034649383_1034619621_30718467_828578_n.jpg
SPEED_NYC is offline
Reply Like
Old 10-11-09, 01:30 AM
  #20
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
more pics, updates tomorow. I need to be awake to head to the track in 5 hours
SPEED_NYC is offline
Reply Like
Old 10-11-09, 01:43 AM
  #21
SLEEPER

iTrader: (3)

siguy2k's Avatar

Join Date: Nov 2005
Location: nebraska
Posts: 1,121
Received 5 Likes on 2 Posts
How much was the intake manifold, throttle body and top hat? Looks great! Cant wait to see some numbers!
siguy2k is offline
Reply Like
Old 10-11-09, 05:35 AM
  #22
Moderator

iTrader: (3)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 10,819
Received 307 Likes on 268 Posts
peer pressure's got you coming out of "retirement", eh?







don't tell Speed NYC i said this, but good job to all of you bad influences.
diabolical1 is offline
Reply Like
Old 10-11-09, 12:27 PM
  #23
Rotary Enthusiast

iTrader: (6)

Islander's Avatar

Join Date: Aug 2002
Location: Charlotte NC
Posts: 814
Received 7 Likes on 3 Posts
Man i don't see how you can have such a nice fd and let it sit for 11 months. You guys have an awesome crew and i love to see how your car is gonna perform.

I've had my car for 6 months and its driving me crazy that its not running. Good luck again, hope to see it in action soon.
Islander is offline
Reply Like
Old 10-11-09, 02:49 PM
  #24
RX-Parts

Thread Starter
iTrader: (3)

SPEED_NYC's Avatar

Join Date: Mar 2001
Location: Queens, NY
Posts: 2,368
Likes: 0
Received 1 Like on 1 Post
intake manifold & TB with o rings, TPS sensor, intake mani gasket, and all new hardware is $1350 standard and $1400 semi perif. its a direct bolt on and doesn't require any shortening of the manifold like others on the market do.

thanks for all the compliments guys
SPEED_NYC is offline
Reply Like
Old 10-11-09, 02:53 PM
  #25
Eats, Sleeps, Dreams Rotary

iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
The build looks top notch. Looks like it's going to be a beast.
ultimatejay is offline
