Single Turbo RX-7's Questions about all aspects of single turbo setups.

My Custom turbo exhaust manifold

Thread Tools

Search this Thread

Old 03-13-10, 11:23 AM
  #1
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
My Custom turbo exhaust manifold

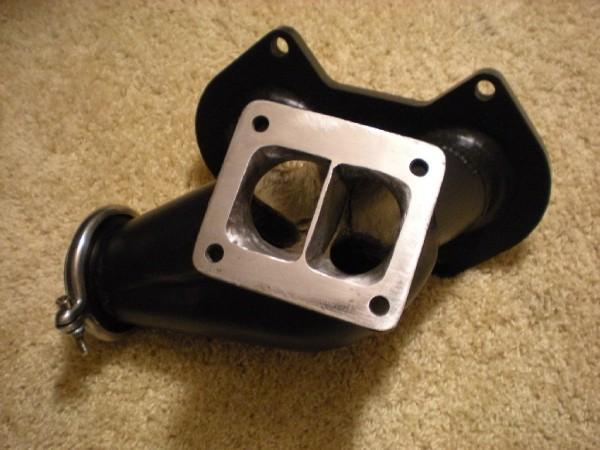

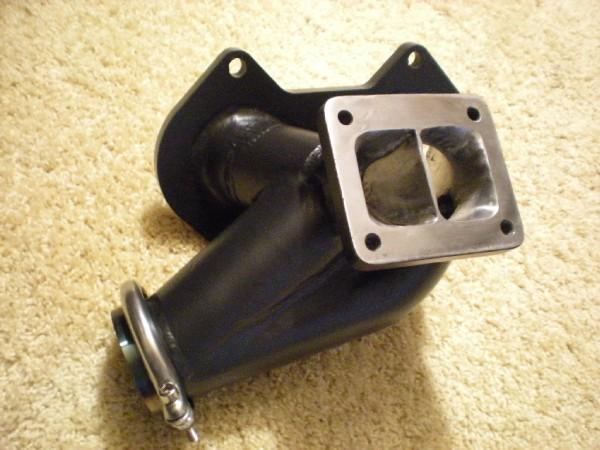

Just got my custom 13bt exhaust manifold built and ceramic coated! I wanted shorter waste gate runners for better spool and response, plus due to my H-mount intercooler my radiator sits angled back and all the aftermarket manifolds i found placed the turbo too close to the front of the car making no room for a filter on the intake of the turbo.



New custom manifold places the turbo sunken down in the engine bay and dead center of the exhaust ports. Its a steel manifold fully divided t4 flange with v band for 50mm waste gate. Cant wait to get my car running and test this baby out!
Attached Thumbnails My Custom turbo exhaust manifold-l_06c2e408d7f941b0b485ea2f4de994bb.jpg   My Custom turbo exhaust manifold-l_76ab5d559a9c47e481165bdb24617ad8.jpg   My Custom turbo exhaust manifold-l_fb7ba7bed30642fab78d720670c046bd.jpg
TOOSHORT_88 is offline
Reply Like
Old 03-13-10, 11:58 AM
  #2
Noob Member

iTrader: (1)

infinite7z's Avatar

Join Date: Aug 2009
Location: Mesa, Az, Pheonix, Az
Posts: 336
Likes: 0
Received 0 Likes on 0 Posts
who welded it??

reall nice manifold man! what type of turbo are you using?
I want one now
infinite7z is offline
Reply Like
Old 03-13-10, 12:12 PM
  #3
Just in time to die

iTrader: (1)

Zero R's Avatar

Join Date: Nov 2001
Location: look behind you
Posts: 4,143
Likes: 0
Received 1 Like on 1 Post

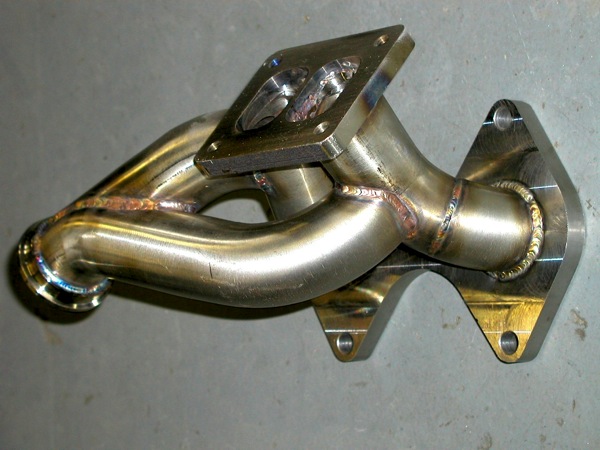

Looks very similar to what we run should perform for you.
Attached Thumbnails My Custom turbo exhaust manifold-09.jpg
Zero R is offline
Reply Like
Old 03-13-10, 12:54 PM
  #4
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
Local shop (Fourtynine industries) built my manifold, down pipe with V band and he is now in the process of building me a clean custom lower intake manifold since i dont need any of the coolant passages,oil injector bungs,emissions crap on the stock one.

My turbo is a garret t04e ptrim,.96 hotside oil cooled only.
TOOSHORT_88 is offline
Reply Like
Old 03-13-10, 01:33 PM
  #5
Registered User
iTrader: (1)

CorkSport's Avatar

Join Date: Aug 2002
Location: Vancouver, WA USA
Posts: 1,761
Likes: 0
Received 0 Likes on 0 Posts
Nice looking manifold you have there. Who did you use for the ceramic coating?

-Derrick
CorkSport is offline
Reply Like
Old 03-13-10, 02:22 PM
  #6
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
Fourtynine industries did the coating on my manifold, turbo hot side , and soon my down pipe will have the same coating. I just talked to him today and the down pipe will be ready monday and i will post pics....

Do you think it would make a big difference to have the lim,and uim ceramic coated? I was going to just spend all day sanding down the cast on my uim and polish it for the bling factor.
TOOSHORT_88 is offline
Reply Like
Old 03-13-10, 04:01 PM
  #7
Junior Member


JDM Kid 510's Avatar

Join Date: Sep 2006
Location: Bay Area
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
Very nice.
JDM Kid 510 is offline
Reply Like

Trending Topics

Old 03-13-10, 06:42 PM
  #8
Rotary Enthusiast


ronbros3's Avatar

Join Date: Jun 2004
Location: Austin TX.
Posts: 862
Received 0 Likes on 0 Posts
exhaust manifolds

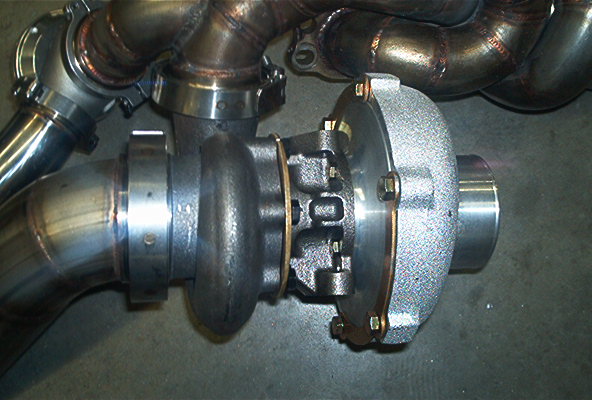

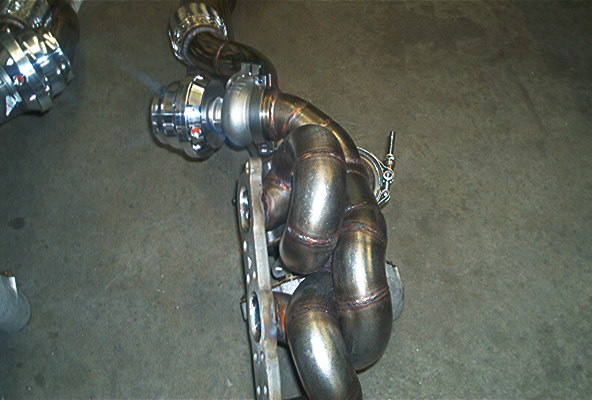

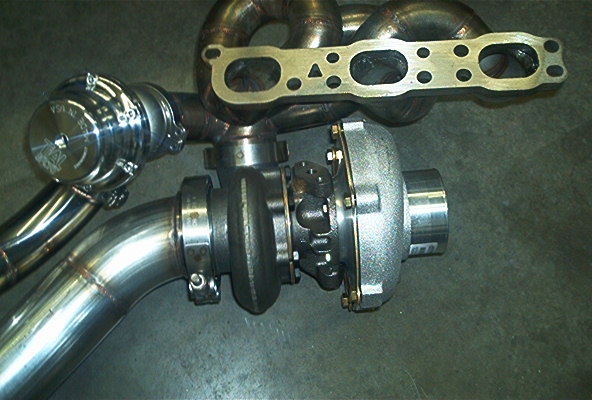

check out these manifolds and turbos,,LOOK CLOSE AT TURBINE HOUSING INLETS, V-band for tight spaces and adjustments after in place.
Attached Thumbnails My Custom turbo exhaust manifold-elitemtrspts-011.jpg   My Custom turbo exhaust manifold-elitemtrspts-012.jpg   My Custom turbo exhaust manifold-elitemtrspts-013.jpg   My Custom turbo exhaust manifold-elitemtrspts-014.jpg
ronbros3 is offline
Reply Like
Old 03-13-10, 06:45 PM
  #9
Rotary Enthusiast


ronbros3's Avatar

Join Date: Jun 2004
Location: Austin TX.
Posts: 862
Received 0 Likes on 0 Posts
OH YEAH!! 2010 Nissan GTR, upgrades,, 823WHP ,, factory stock engine. SO FAR!!!
ronbros3 is offline
Reply Like
Old 03-13-10, 06:53 PM
  #10
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
Very nice manifold you got there...
TOOSHORT_88 is offline
Reply Like
Old 03-13-10, 06:56 PM
  #11
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts

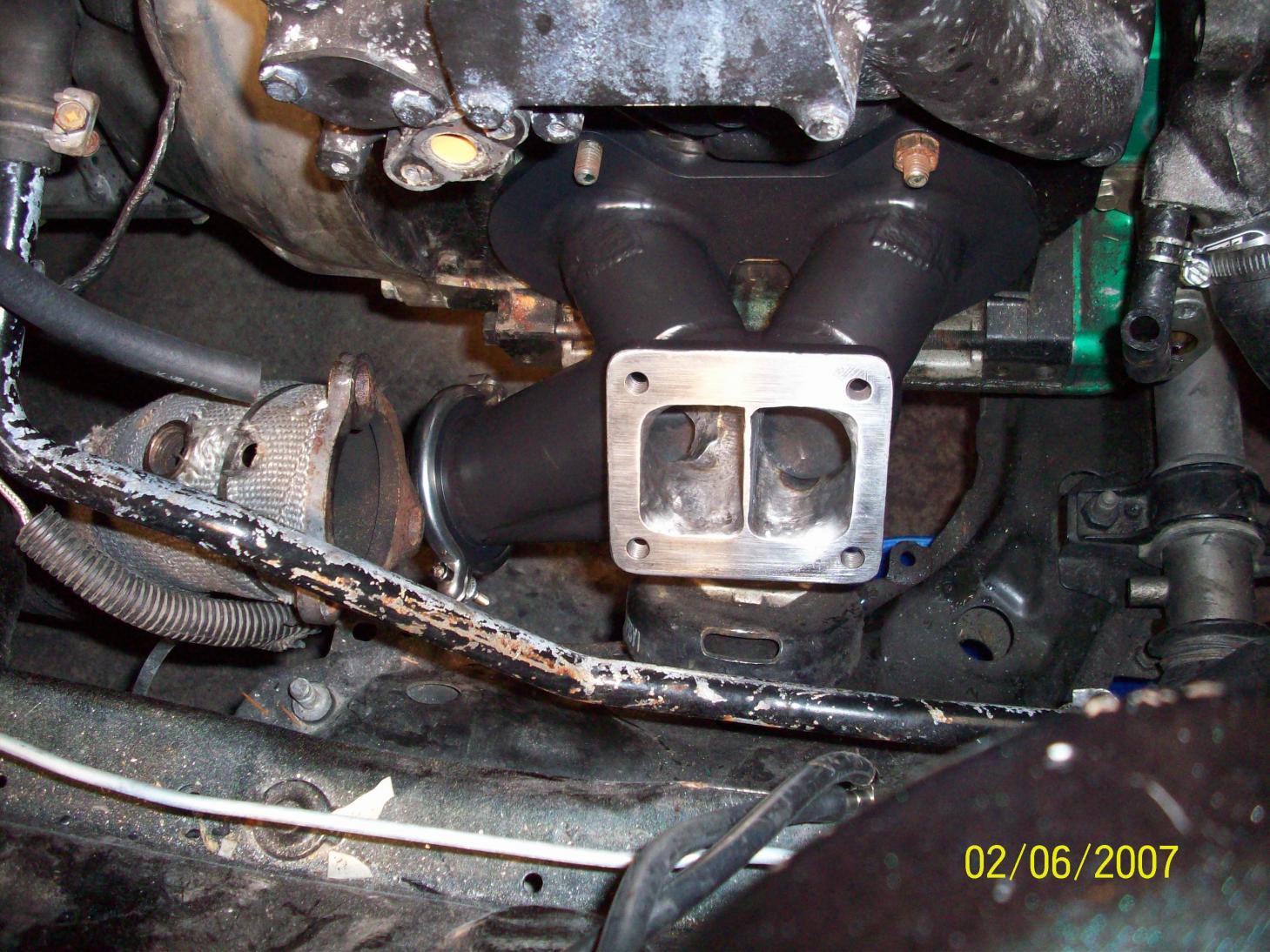

Here is the manifold bolted to my engine. U can see where the trbo will sit.
Attached Thumbnails My Custom turbo exhaust manifold-picture-024.jpg
TOOSHORT_88 is offline
Reply Like
Old 03-13-10, 06:57 PM
  #12
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
lol i guess i have to manually change the date to 2010 lol This was with my stock lim and stock downpipe as you can see.
TOOSHORT_88 is offline
Reply Like
Old 03-14-10, 09:53 PM
  #13
Noob Member

iTrader: (1)

infinite7z's Avatar

Join Date: Aug 2009
Location: Mesa, Az, Pheonix, Az
Posts: 336
Likes: 0
Received 0 Likes on 0 Posts
that was your stock down pipe? to me it looks bigger than stock
infinite7z is offline
Reply Like
Old 03-15-10, 01:18 AM
  #14
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
Oh ya my bad, down pipe is the cork sport down pipe and the shop is extending it then ceramic coating it to match my exhaust manifold and trbo hot side
TOOSHORT_88 is offline
Reply Like
Old 03-15-10, 11:03 AM
  #15
Just in time to die

iTrader: (1)

Zero R's Avatar

Join Date: Nov 2001
Location: look behind you
Posts: 4,143
Likes: 0
Received 1 Like on 1 Post
Originally Posted by ronbros3
check out these manifolds and turbos,,LOOK CLOSE AT TURBINE HOUSING INLETS, V-band for tight spaces and adjustments after in place.

Those look real similar to some audi headers I had to make awhile back.


~S~
Zero R is offline
Reply Like
Old 03-15-10, 02:01 PM
  #16
NASA geek

iTrader: (2)

RacerXtreme7's Avatar

Join Date: Mar 2002
Location: Virginia
Posts: 2,215
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by TOOSHORT_88

My turbo is a garret t04e ptrim,.96 hotside oil cooled only.
You went through the trouble and expense for a custom divided manifold, yet your running a non-divided turbine housing? You'd be better off using a.84 divided turbine housing to take advantage of that manifold you just paid to have built.


~Mike...........
RacerXtreme7 is offline
Reply Like
Old 03-15-10, 06:43 PM
  #17
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts
I had the manifold built divided so i can always upgrade to a divided turbine housing in the near feature.
TOOSHORT_88 is offline
Reply Like
Old 03-16-10, 06:41 PM
  #18
"On the grind"

Thread Starter
iTrader: (15)

TOOSHORT_88's Avatar

Join Date: Jan 2005
Location: everywhere
Posts: 1,339
Received 37 Likes on 29 Posts

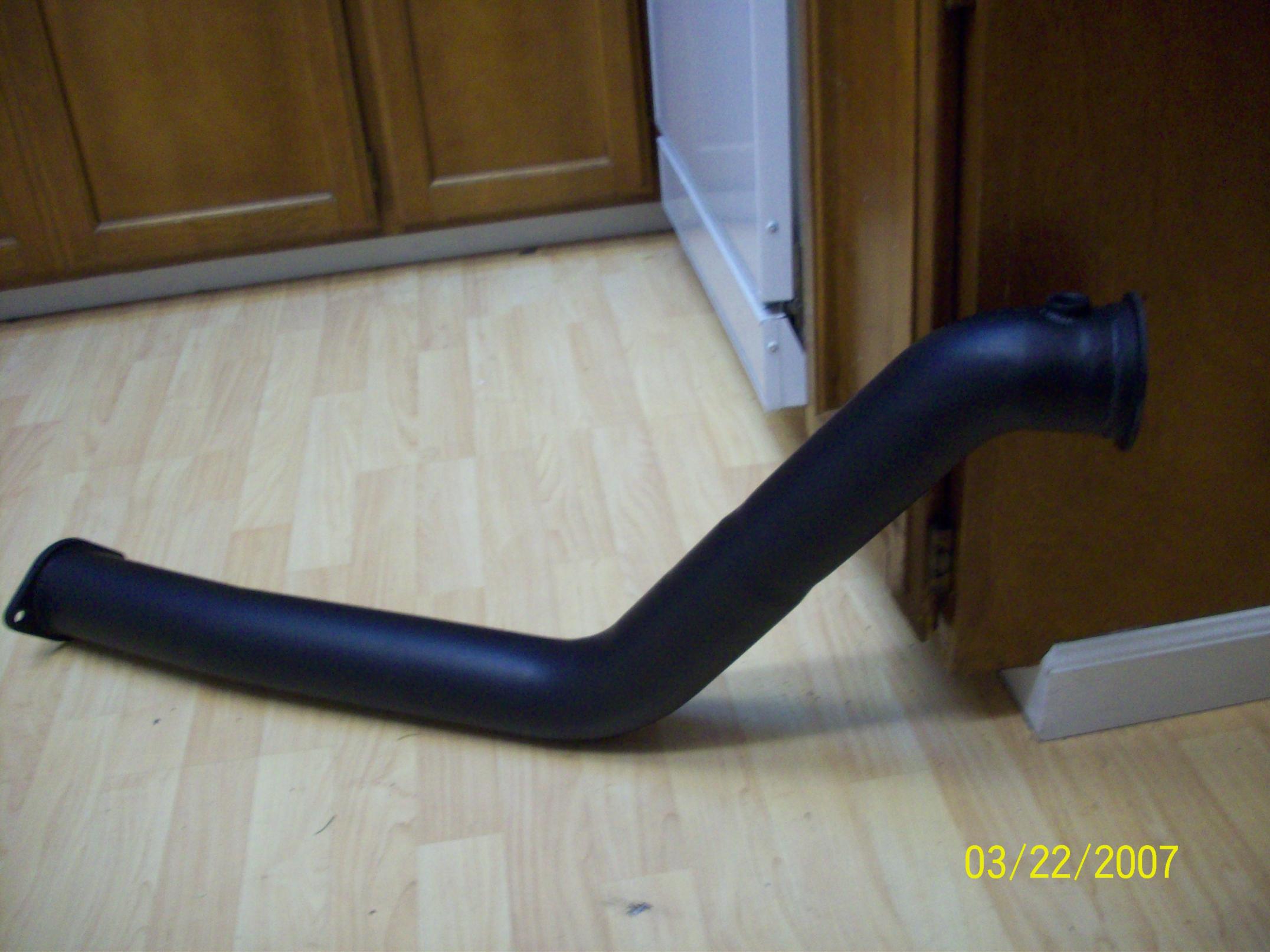

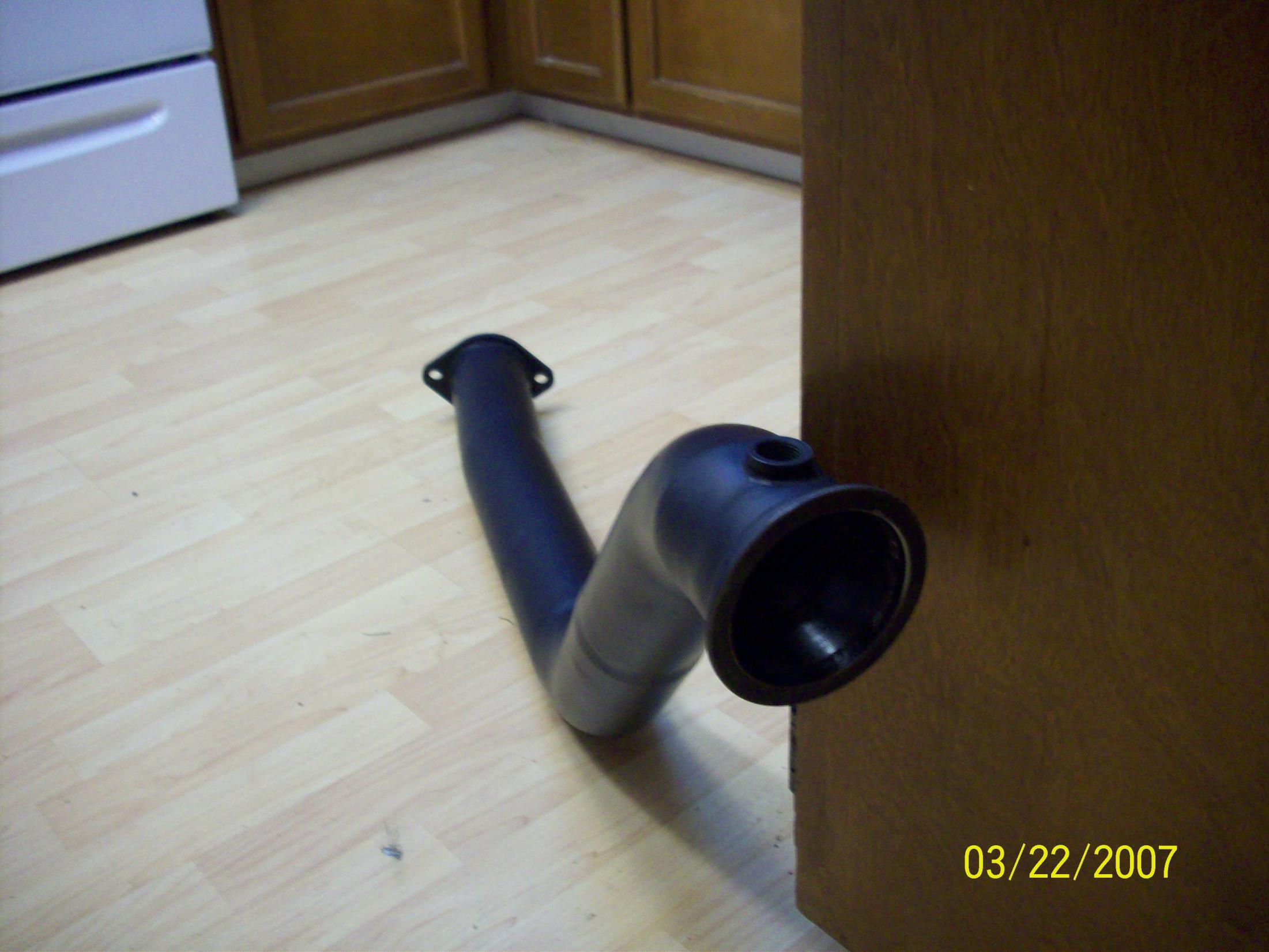

Down pipe ceramic coated
Just got the down pipe last night! All thats needed is my Lim and a good tune and i can get her started...
Attached Thumbnails My Custom turbo exhaust manifold-picture-032.jpg   My Custom turbo exhaust manifold-picture-033.jpg
TOOSHORT_88 is offline
Reply Like
Old 03-18-10, 01:44 PM
  #19
Jesse

iTrader: (9)

R3AL.CH1CK3N's Avatar

Join Date: Feb 2009
Location: Cincinnati, OH
Posts: 493
Received 0 Likes on 0 Posts
nice manifold. gl with the rest of your build.
R3AL.CH1CK3N is offline
Reply Like
Old 03-19-10, 02:23 AM
  #20
Noob


oyy0's Avatar

Join Date: Mar 2008
Location: AR
Posts: 182
Likes: 0
Received 0 Likes on 0 Posts
that looks nice.
what material did they use, size and type?
any reason you coated it? other the obvious.
oyy0 is offline
