Single Turbo RX-7's Questions about all aspects of single turbo setups.

My creeping problem...

Old 02-05-10, 07:07 PM
  #1
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
My creeping problem...

Now ive been having this problem from when i first got the car back on the road last year. hitting my boost cut(18psi) in [email protected], i switched out the greddy 38mm wastegate for a tial 44mm(10psi spring). it was better after that but slower but its the same thing in [email protected] hitting the boost cut. i also have a blitz boost controller(D-SBC with the single solenoid) that is off but i still have the lines hooked up could that be my problem or could it be the manifold?

thanks
666cody666 is offline
Old 02-05-10, 07:29 PM
  #2
4th string e-armchair QB
5 Year Member
iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
run lines direct from compressor housing to the side port on the wg, that will give you the lowest boost possible, see what your max boost is then.
Trots*88TII-AE* is offline
Old 02-05-10, 07:31 PM
  #3
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Trots*88TII-AE* View Post
run lines direct from compressor housing to the side port on the wg, that will give you the lowest boost possible, see what your max boost is then.
ya i'll try that
666cody666 is offline
Old 02-05-10, 07:35 PM
  #4
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
forgot the add i do have a very little exhaust leak right at the turbo v-band. think i need a smaller clamp. would that cause it aswell?
666cody666 is offline
Old 02-05-10, 08:03 PM
  #5
4th string e-armchair QB
5 Year Member
iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
No, the only other things that would cause creep are improperly designed WG runners on your manifold, something internal in the WG (Spring, or sticking valve), or improperly sized WG - which I dont think would be the case.
Trots*88TII-AE* is offline
Old 02-05-10, 08:19 PM
  #6
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Trots*88TII-AE* View Post
No, the only other things that would cause creep are improperly designed WG runners on your manifold, something internal in the WG (Spring, or sticking valve), or improperly sized WG - which I dont think would be the case.
if it is the runners would you re-do them or just go to a twin-wastegate setup?
666cody666 is offline
Old 02-05-10, 09:45 PM
  #7
NASA geek
10 Year Member
iTrader: (2)

RacerXtreme7's Avatar

Join Date: Mar 2002
Location: Virginia
Posts: 2,215
Likes: 0
Received 0 Likes on 0 Posts
I've seen this problem on a few cars were after the wastegate there was a small section of flex tubing. The internal mesh/stainless fibers/wires of the flex tubing had collapsed internally blocking flow after the wastegate. If you have one of those flex section you might want to take a peek in there.

~Mike............
RacerXtreme7 is offline
Old 02-07-10, 12:26 PM
  #8
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RacerXtreme7 View Post
I've seen this problem on a few cars were after the wastegate there was a small section of flex tubing. The internal mesh/stainless fibers/wires of the flex tubing had collapsed internally blocking flow after the wastegate. If you have one of those flex section you might want to take a peek in there.

~Mike............
No flex pipe after the wastegate. its a screamer
666cody666 is offline
Old 02-07-10, 07:58 PM
  #9
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
Why not just run 18psi, problem solved
Turblown is offline
Old 02-07-10, 11:22 PM
  #10
4th string e-armchair QB
5 Year Member
iTrader: (11)

Trots*88TII-AE*'s Avatar

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 666cody666 View Post
if it is the runners would you re-do them or just go to a twin-wastegate setup?
I'm not sure what would be best for you. This would be worst case scenario, so check everything else you can before considering manifold design. Wanna post pics of your manifold?

Oh, and you may want to think about boost cut, if you go lean at 18psi, you may blow your engine.
Trots*88TII-AE* is offline
Old 02-09-10, 05:01 PM
  #11
Junior Member
5 Year Member

Join Date: Jan 2008
Location: Sussex, UK
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
Hey, what manifold are you using?
I'm having the same problem on my FD, even with the hks 50mm wastegate fully open(spring removed) I'm hitting 18psi.

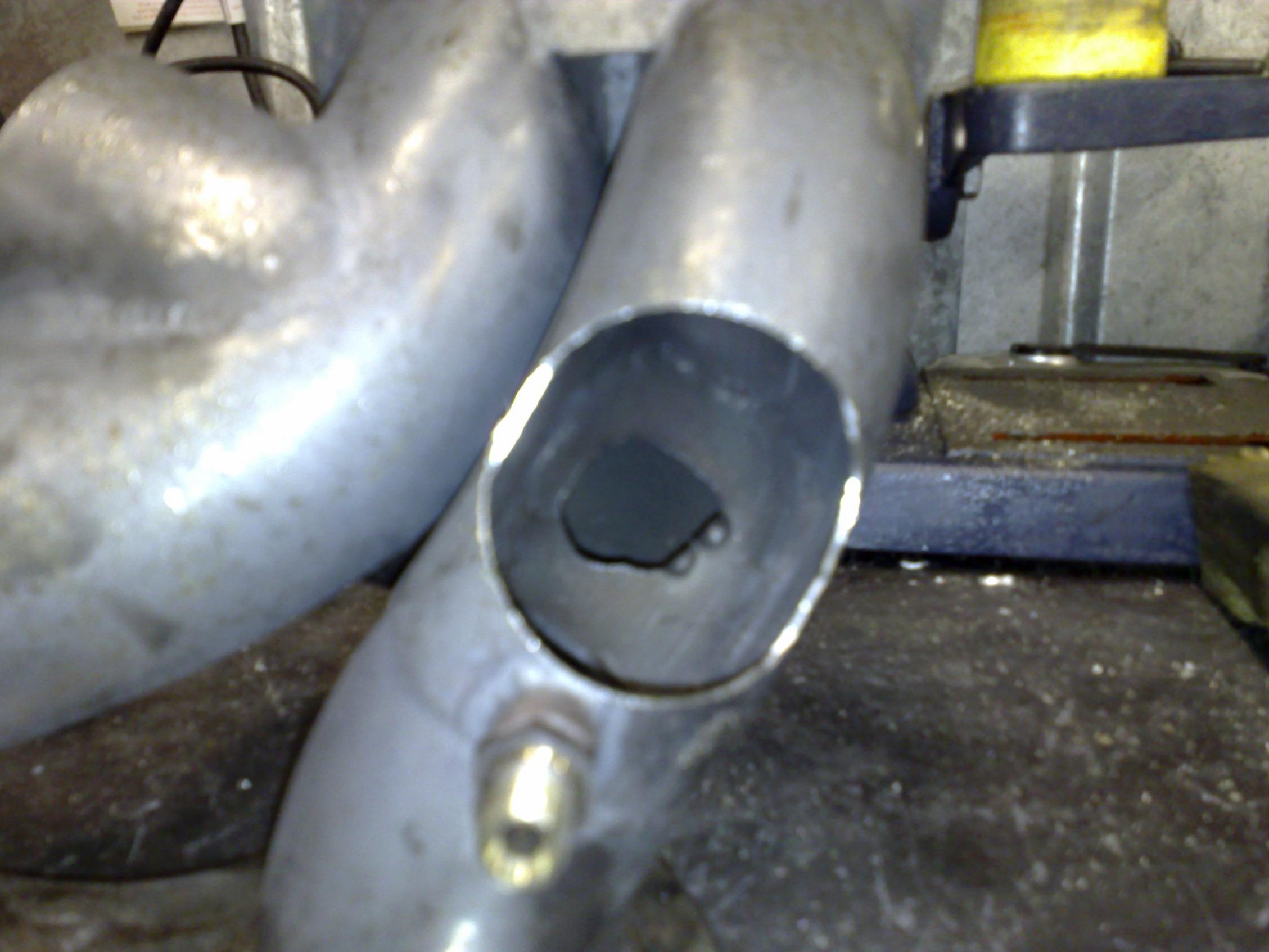

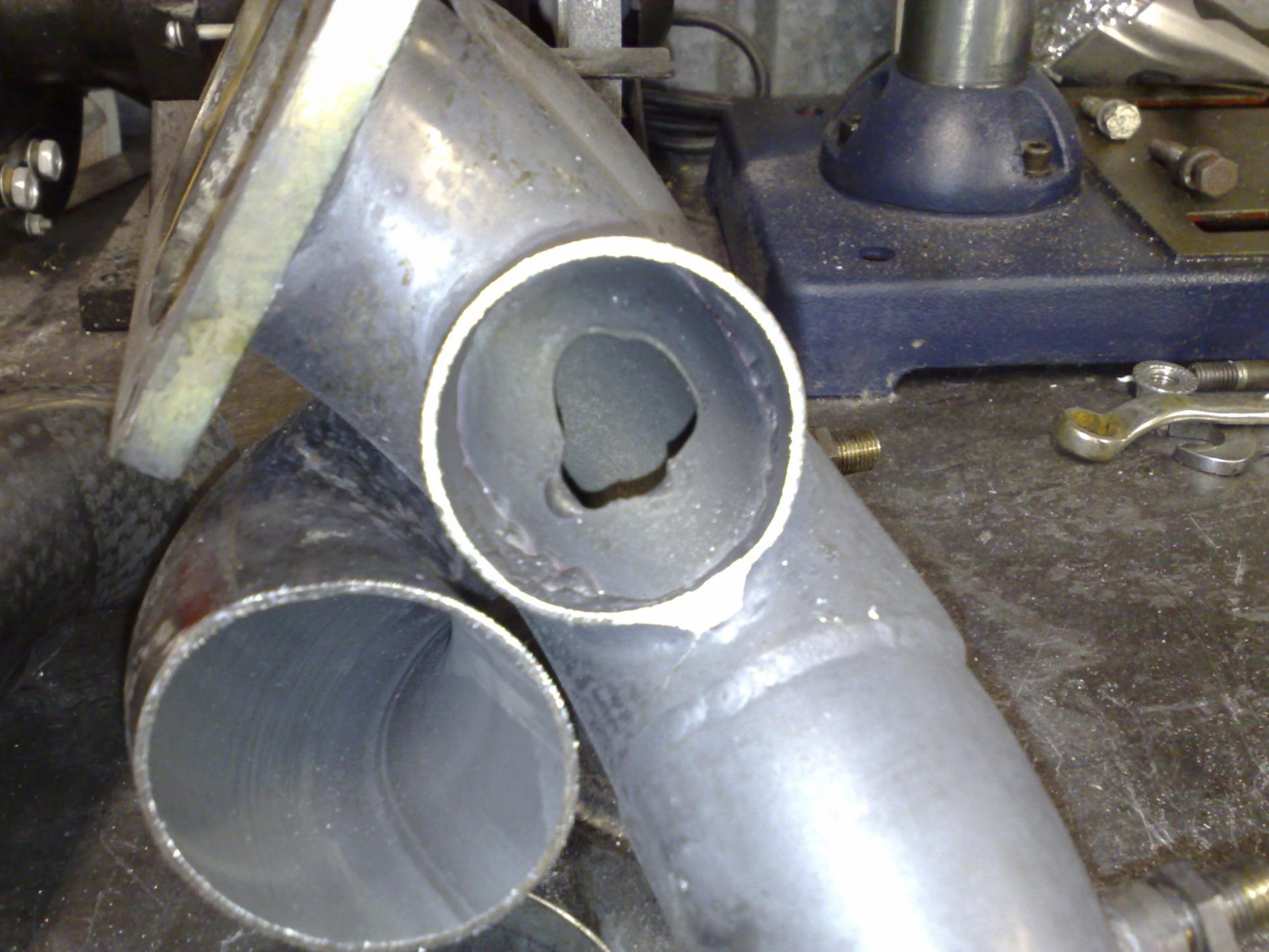

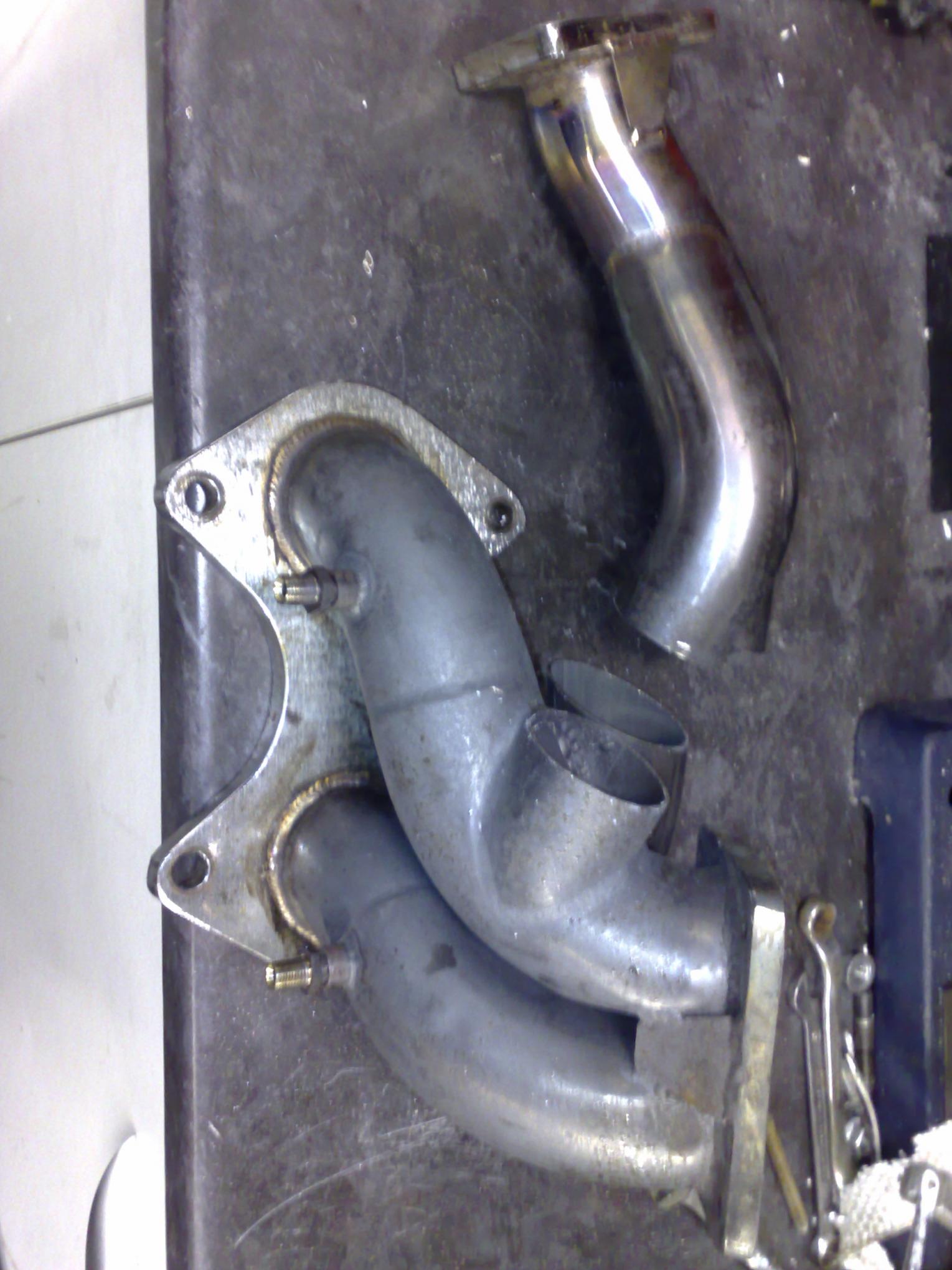

I decided to take a look at the manifold wastegate runners( ebay stainless manifold) this is what I found.
Although the runners are 40mm the holes into the primary runners are only about 20mm.
Chinese crap!
I bought this kit from the guy in Texas who sells the Turbonetics kits on ebay.
The turbo is great but it came with a .81 turbine housing which is also too small, I've had to buy a new 1.00 A/R housing to sort it out.
Does anyone know what manifold these chinese ones are copied from?
I need for change it to a good quality one but I want to use the existing downpipe, hence I need a manifold that positions the turbo in the same place.
Attached Thumbnails My creeping problem...-09022010324.jpg   My creeping problem...-09022010325.jpg   My creeping problem...-09022010327.jpg
Fsmotorsport is offline
Old 02-09-10, 05:18 PM
  #12
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,887
Received 26 Likes on 24 Posts
wow
Turblown is offline
Old 02-09-10, 05:39 PM
  #13
NASA geek
10 Year Member
iTrader: (2)

RacerXtreme7's Avatar

Join Date: Mar 2002
Location: Virginia
Posts: 2,215
Likes: 0
Received 0 Likes on 0 Posts
This absolutely cracks me up (not the OP situation, but those manifolds)! When these POS manifolds first came out everyone had a hard-on over how cheap they were and like little Raccoons’ couldn't get past the shinny-ness of them. There were DIE HARD defenders of those damn things and they constantly called for "proof" and "pictures" of failed manifolds. Fast forward a couple years and all you see now on a daily basis (I view many other car forums as well) are complaints after complaints and picture after picture of cracked this and poorly assembled that...... GARBAGE!

~Mike..........
RacerXtreme7 is offline
Old 02-09-10, 07:21 PM
  #14
In the burnout box...
10 Year Member
iTrader: (32)

mono4lamar's Avatar

Join Date: Oct 2003
Location: New York
Posts: 4,453
Likes: 0
Received 0 Likes on 0 Posts
That's obviously a terrible mistake (someone not taking their job seriously). I would never have thought I would see something that bad...
mono4lamar is offline
Old 02-09-10, 09:02 PM
  #15
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Trots*88TII-AE* View Post
I'm not sure what would be best for you. This would be worst case scenario, so check everything else you can before considering manifold design. Wanna post pics of your manifold?

Oh, and you may want to think about boost cut, if you go lean at 18psi, you may blow your engine.
ill get pics on the manifold. the boost cut isnt that hard really. alot softer then the rev limiter. the a/f under boost is like 12-13 cant remember. car is going back on the road on monday
666cody666 is offline
Old 02-10-10, 04:00 AM
  #16
rotor toter
5 Year Member
iTrader: (8)

Join Date: Apr 2007
Location: nc
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
Those holes in the ebay wastegate runners look to be "machined" with a quick torch blast!
hella24 is offline
Old 02-10-10, 12:56 PM
  #17
Junior Member
5 Year Member

Join Date: Jan 2008
Location: Sussex, UK
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
Yes they have been blown through with the welder. lazy Bastards!
Fsmotorsport is offline
Old 02-10-10, 03:57 PM
  #18
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
this pic is before i got it ceramic coated

666cody666 is offline
Old 02-16-10, 05:41 PM
  #19
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,081
Received 145 Likes on 128 Posts
Easiest fix for the manifold pictured above would be to cut the engine side of the wastegate runners/manifold and weld in a wedge of pipe so the entry to the wastegate passages has a radius to it.

There is less restriction for the exhaust to flow through the turbine housing and create boost as the manifold is now than make the 90 deg turn into the wastegate passage.

The exhaust gas is at very high velocity and you have to give it a reason to turn into the wastegate passages.

I had this same problem and a 60mm wastegate did not fix it, only easing FLOW through the wastegate solved the boost creep.

The wastegate design on these manifolds are holdovers from piston engine cars where it takes very little wastegate flow to regulate boost as the peak power and peak boost arrive at very close to the same rpm.

We are making peak boost many thousand rpm (and several hunderd hp of exhaust flow) before peak power so the wastegate has to FLOW a lot more exhaust gas.
BLUE TII is offline
Old 02-21-10, 12:14 PM
  #20
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
forgot to mention in my first post that i wasnt hitting boost cut untill a couple weeks after i got the car back from the tuner. also i had small zap straps holding the line on the turbo and wastegate. i replaced them with hose clamps. another thing i got the car tuned when it was 20+C in the summer, now its like 10C and the air is super cool could that be another reason?
666cody666 is offline
Old 02-22-10, 11:09 PM
  #21
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Canada,B.C
Posts: 385
Likes: 0
Received 0 Likes on 0 Posts
Got the manifold off the car the holes for the wastegate tubing are the same size as the tube. im bring it tomorrow to get them re-done... Thanks for the help
666cody666 is offline
