muibubbles

iTrader: (36)

so it looks like i will have clearance issues with my LIM... does anybody know the how much more room i will get if i got a Jspec LIM? could i just shave my LIM? is it difficult?

R-R-Rx7

iTrader: (24)

from the looks of it jspec will suit u just fine. IF you want i have a shaved off jdm that i wanna get rid of

PvillKnight7

iTrader: (16)

Put a dent in the downpipe or make an exhaust manifold spacer out of some steel. Are the coolant and oil lines to and from the turbo flexible?

FDSeoul

iTrader: (8)

What mani are you running?? it seems that the hot side is sitting rather high?

ronbros3

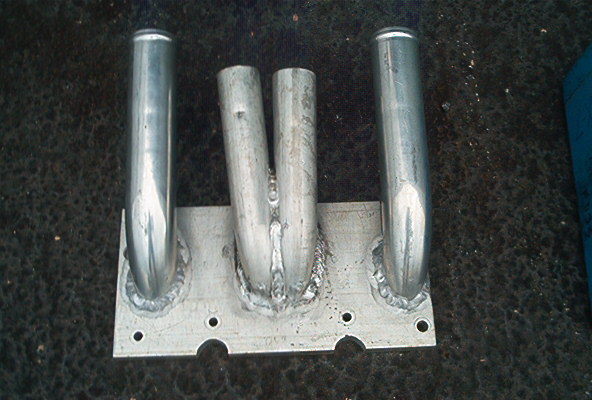

this custom LIM will give more clearence, course youd have to finish the plenum, according to you rneeds.

muibubbles

iTrader: (36)

lol no way, no point of denting the dp if it can be resolved another way... my friend was telling me about a spacer but the jdm LIM seems liek a better option.. no coolant lines (journal bearing) and oil is somewhat flexable? why do you ask? feed and return lines arent made yet if thats your concern...

its a custom manifold i guess... its made by Jim @ JPR Imports in south NJ
http://jprimports.com/

FDSeoul

iTrader: (8)

Okay since your Mani is done and installed i would option for the LIM to be removed and have the EGR area shaved down this should give you the best options. I would not even worry about locating a JDM spec LIM.

muibubbles

iTrader: (36)

how hard is it to shave it down? what do you use to plug the area where the block off plate use to be?

FDSeoul

iTrader: (8)

Your fabricator should be able to shave down the area with a grinder ie: with dremel tool and weld a aluminum plate much like the EGR block off plate.

PvillKnight7

iTrader: (16)

A mani spacer will move the turbo. The lines won't line up if they're hard lines.

FDSeoul

iTrader: (8)

this may work but will only create more issues with exhaust leak points and extending the lines for oil/water and you may also hit the fender wheel wallside.

Much easier shaving down the LIM IMO

Zero R

iTrader: (1)

This isn't that hard buy bends in the appropriate size and work the DP around the intake.

~S~

SiH

Wow, I didn't realise the LIM was so big and lumpy on the US LIM.

JDM one should see you fine I reckon.

JDM inlet mani here:


Not the best piccy to illustrate, but I've got a shedload of clearance with my 35r:



Will try to get another piccy tonight from a better angle

cewrx7r1

iTrader: (2)

How about a Xcessive LIM, http://www.pineappleracing.com/xcess...emanifold.aspx

Zero R

iTrader: (1)

By looking at the pic it will make the discharge flange on the turbine housing an issue as it shifts the runners forward.

~S~

mono4lamar

iTrader: (32)

Just route that area of the downpipe from the turbine housing around that portion of the LIM. It's not that hard. If you're having problems bring it to a competent fabricator...

TwinCharged RX7

iTrader: (14)

Why don't you purchase a 13b exhaust flange and use it as a spacer to get your turbo a little farther away from the intake? They are pretty cheap.

ronbros3

custom LIM you finsh it. 100. FD PM

big runner secondarys, smaller Primes,, 3/4 T6 plate

TwinCharged RX7

iTrader: (14)

^ Where do the secondary injectors go on that ?

ronbros3

they can be put anywhere that is a good location, cost about $6. each and weld on for what ever going rate, dont get ripped by a welder, a good guy can do it in 30-45min..
if you knew where you want them i can get them welded for nothing.

you get mani. for 100. you buy injector bungs, and i get it welded.

and this fab.man can make anything you want anyway you want, like finishing the plenum and TB mount (id go with a ford mustng TB) cheap, or what ever you prefer.

you cant make the lim for what im askin.

FJDRX7

iTrader: (32)

this is what i do on that problem, easy
