Interesting Timing Map from Japan
#1
Junior Member
Thread Starter
Join Date: May 2021
Location: TN
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Interesting Timing Map from Japan

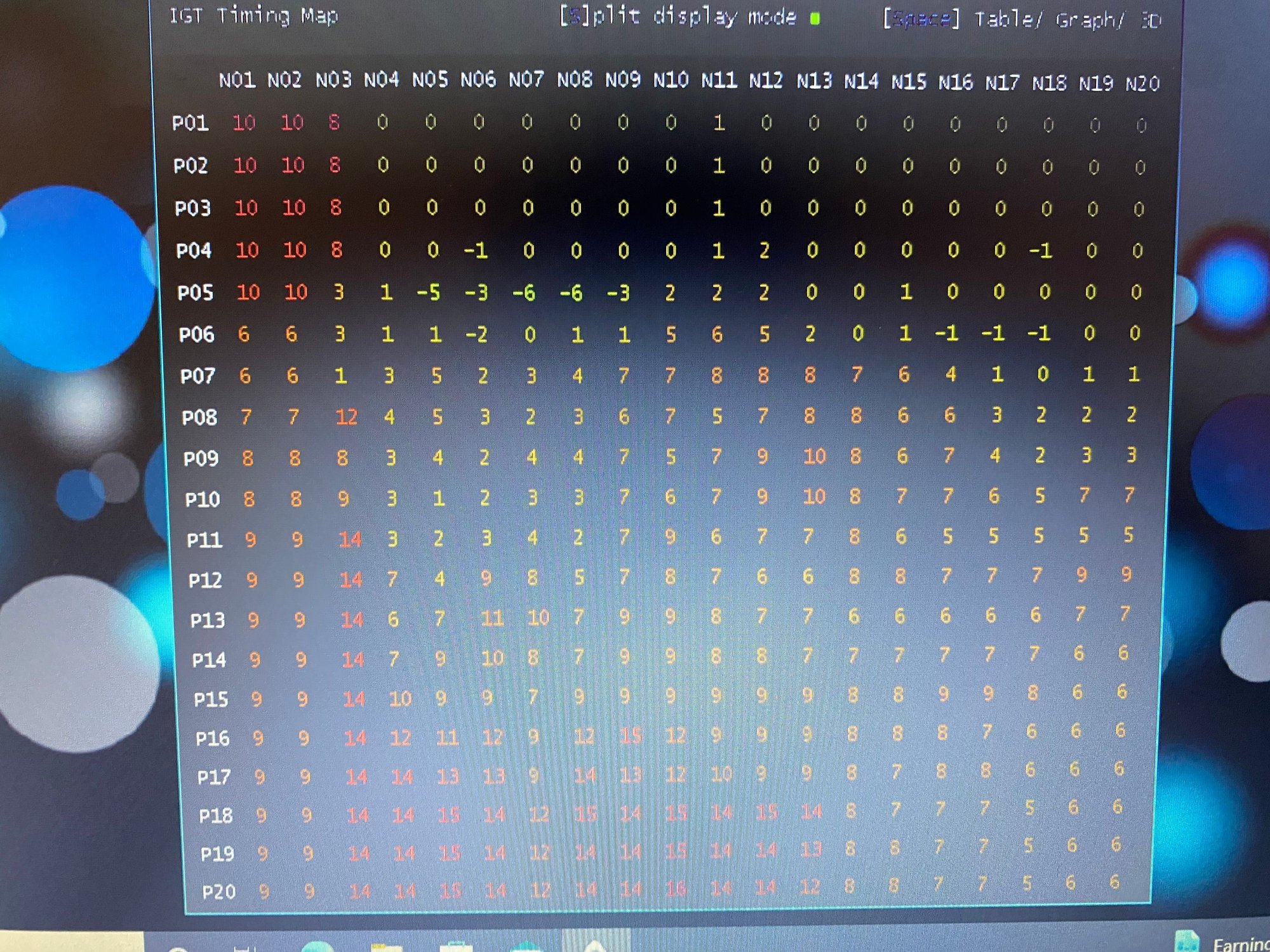

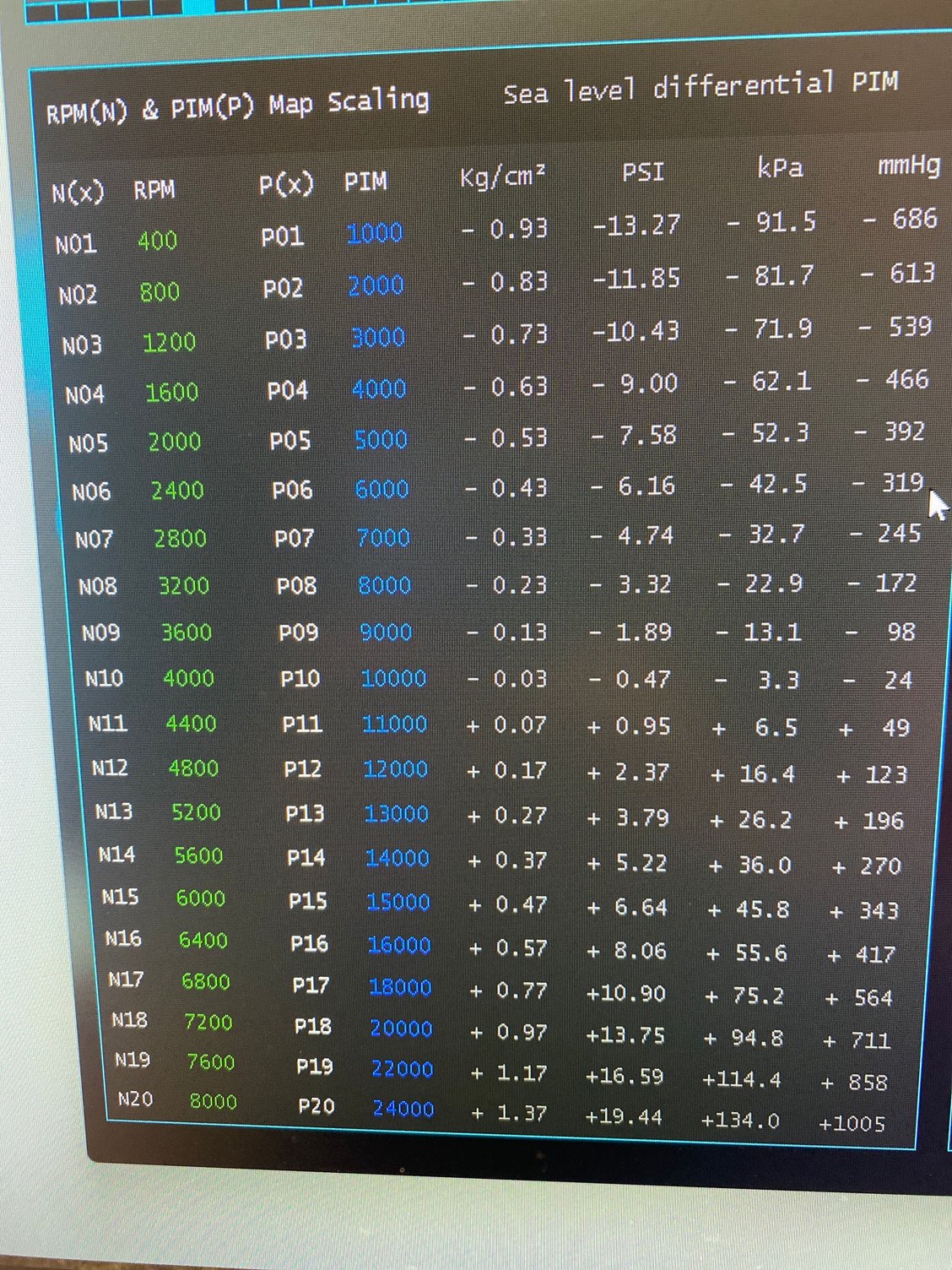

I have an imported car that was built in Japan and would love some other opinions on this timing map. When I saw the map I was pretty shocked, but I might be wrong and it be a perfectly fine way of tuning timing. Just to preface this, this car wasn’t built recently it is a time capsule and has remained virtually unchanged since the early 2000s up into my ownership. Some hard track time, and the compression test was perfectly fine. It has an old HKS kit on it and was set to ~12psi when I got it, which was the ragged edge of duty cycles. First picture leading, second picture show split taken from Xavier’s FC-Tweak.
