mattdavispv9

iTrader: (7)

i just picked up a turbo that a buddy of mine gave me, i am just now learning the aspects of how the turbo really works. anyway, the turbo is a turbonetics turbo and it is not labeled at all... i am trying to figure out if this is a turbo i can use.

the turbo has an A/R of 96. it is a t4 turbine housing
i measured the trim of the of compressor wheel and its 54
when i looked up on the turbonetics website i came to the conclusion that this might be a to4e, not 100% sure

can anyone else help/or lead me in the right direction... thanks
here is the product catalog look on pages 34,35,36

http://viewer.zmags.com/publication/...9#/f9428139/34

mattdavispv9

iTrader: (7)

according to the compressor map and the formula that is calculated to find your rwhp i can only make 340hp... does that sound right??? if so it seam like this is a crappy setup for my 7... anybody have a input

arghx

iTrader: (3)

when you say you measured the trim of the compressor wheel as 54, do you mean that's the inducer length or did you use the actual trim formula to calculate it?

what are all the measurements for both wheels?

mattdavispv9

iTrader: (7)

I used the actual trim formula to calculate it... I only really want around 350rwhp... i can live with 340... is this turbo even worth using... Its brand new and was a pretty expensive turbo... Also could i switch around the housings to possibly make a little more power??? or is it not worth it?
thanks much

mattdavispv9

iTrader: (7)

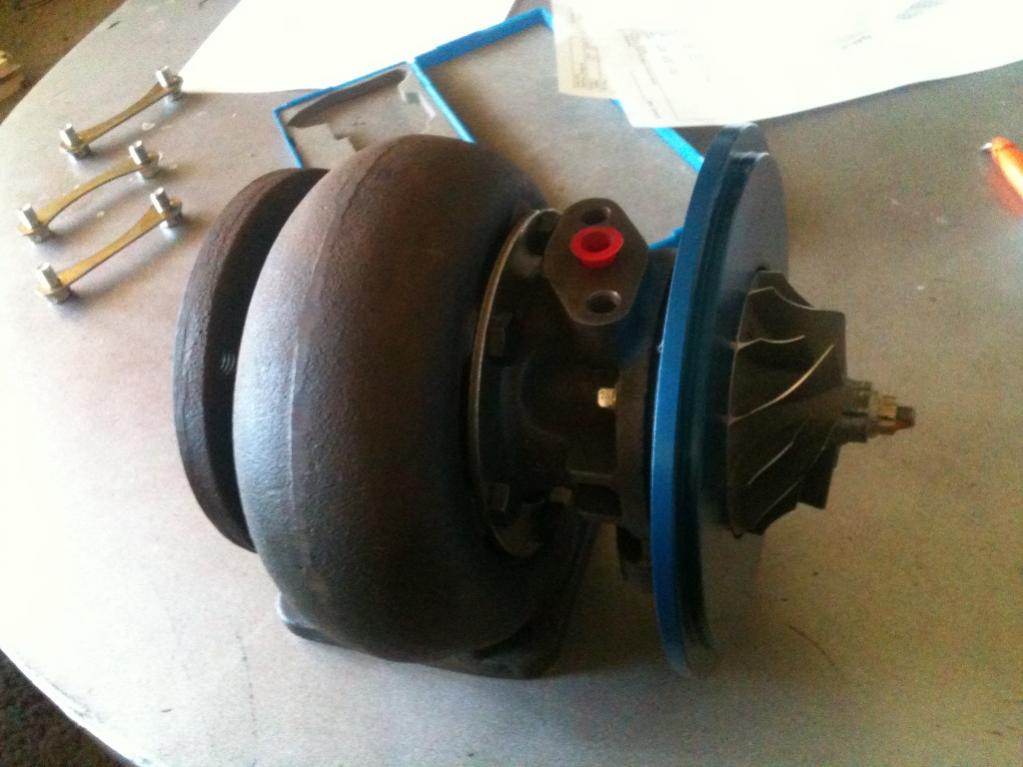

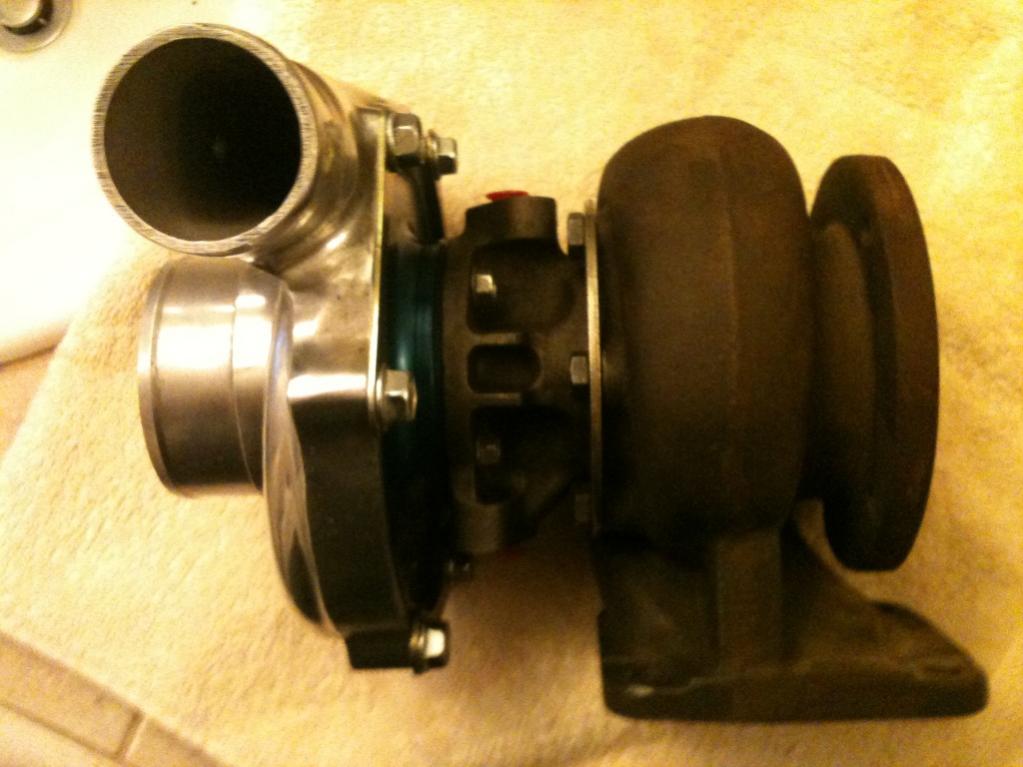

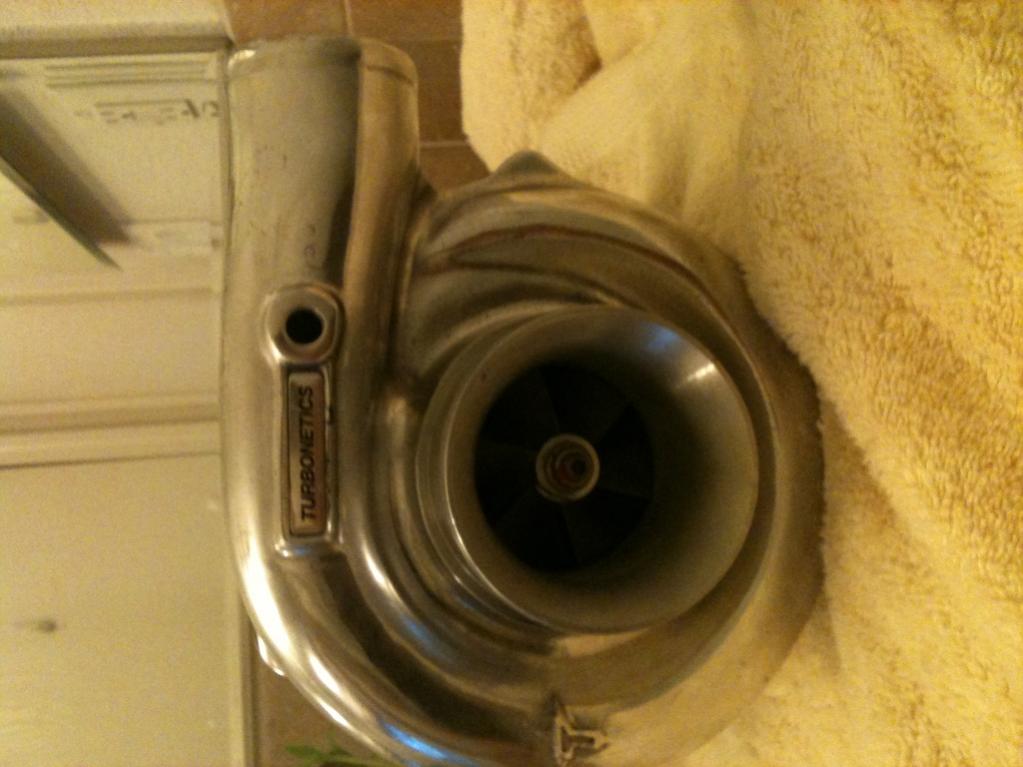

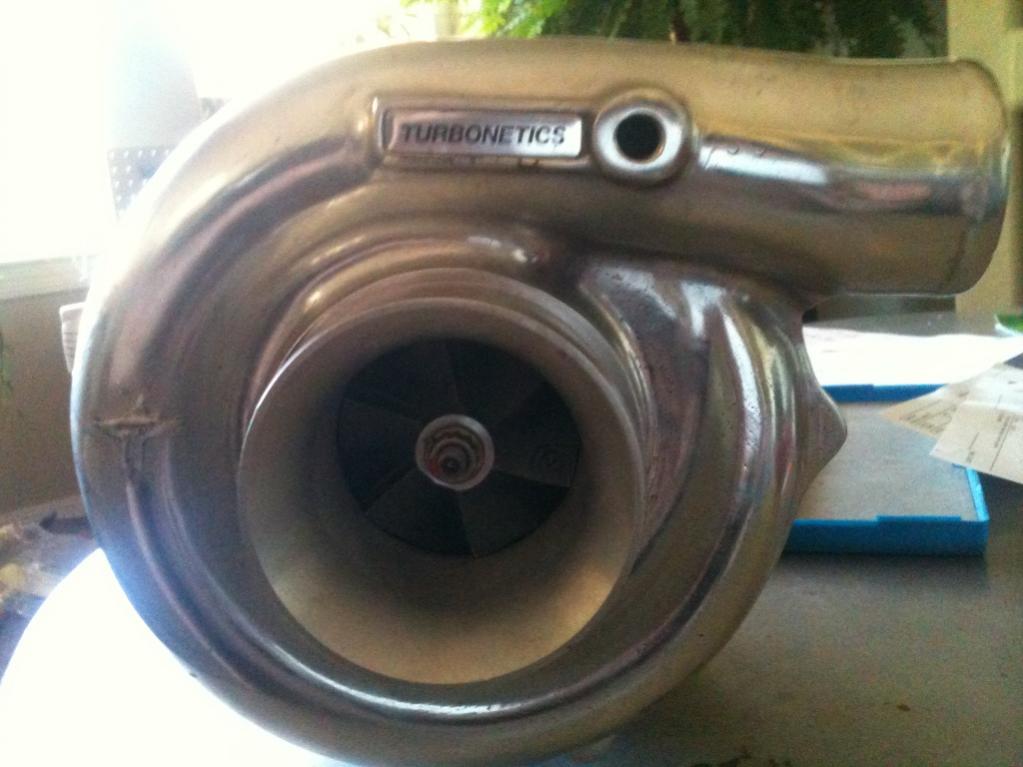

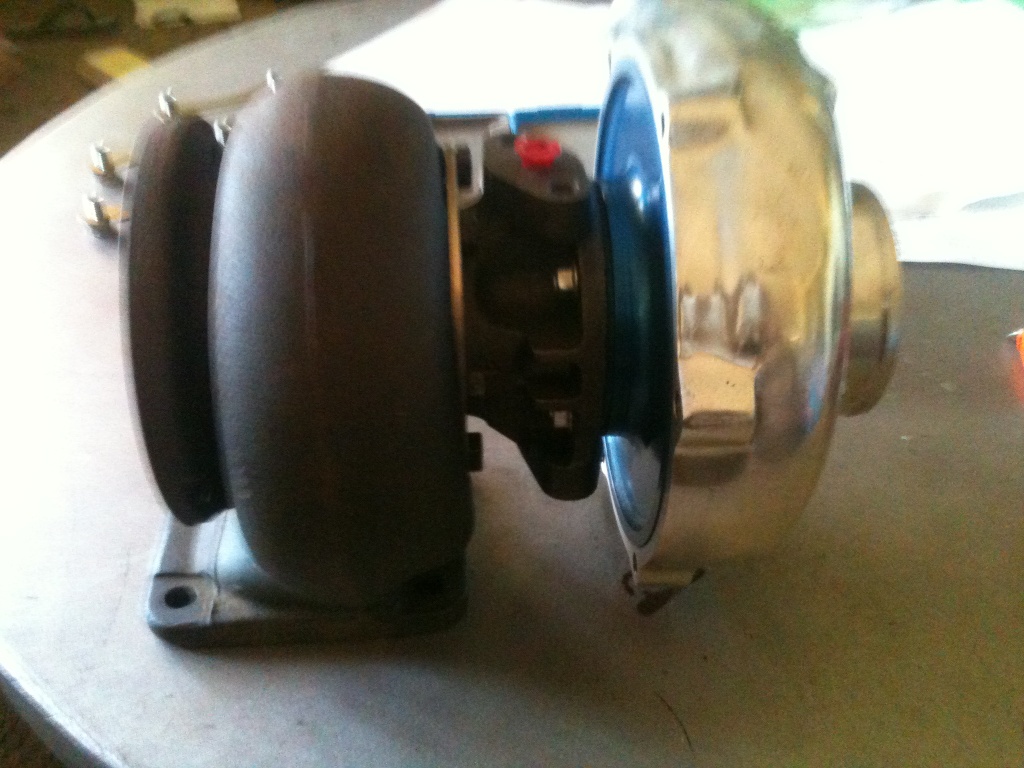

here are some some pics

12AllWays

iTrader: (20)

Sounds like its a little small for what you want, but it would make a great one for my 12a turbo. You want to pass those savings on?

Keith

mattdavispv9

iTrader: (7)

i did the math by switching to a 60 trim housing and the according to the compressor map the turbo can produce a maximum of 380rwhp...

mattdavispv9

iTrader: (7)

possibly, haha pm'd you

mattdavispv9

iTrader: (7)

this turbo is now up for sale!!!

$450 shipped obo
this turbo is brand new and was around $1000 WHEN BOUGHT

Bearzah

iTrader: (6)

any update? still for sale?

FelixIsGod29X

iTrader: (50)

This thread is over 2 years old buddy.

fendamonky

iTrader: (6)

The first post happened in June, of this year..

FelixIsGod29X

iTrader: (50)

Haha wow i must have been really shot yesterday.

GoodfellaFD3S

iTrader: (213)

..... and this isn't the classifieds section. OP has his car on the block in the FS section, btw.
