How to remove nipple from water pump housing?

Thread Tools

Search this Thread

Old 08-06-12, 07:07 AM
  #1
Senior Member

Thread Starter
iTrader: (1)

Ehron's Avatar

Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Received 0 Likes on 0 Posts
Question How to remove nipple from water pump housing?

What's the preferred method for removing a nipple from the water pump housing?

Do you simply cut the nipple off with a cut-off wheel, and drill and tap for the required plug or fitting?

Can you heat up the WPH and pull it out with vice grips or a slide hammer, or use some other technique altogether? Grind it off and weld it closed?

What sort of tools do you need? I'll break, er, try anything once before taking it somewhere to have it done... Thanks.

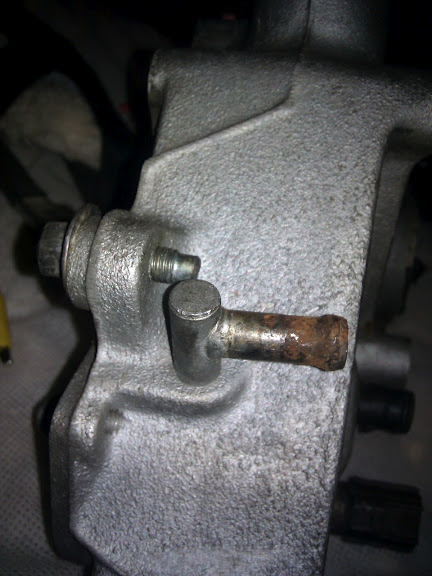

I need to remove this:

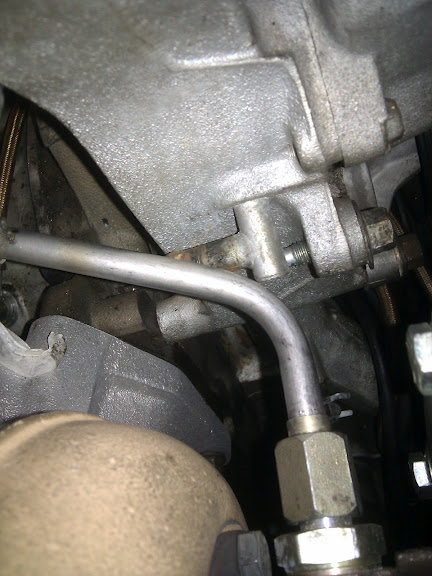

... because of this:
Old 08-06-12, 07:33 AM
  #2
IRS 4 Life

iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes on 2 Posts
Their press fit, but will most likley tear off b4 you get them out, Soak in PB, heat, and twist, then tap and thread and plug
easy as pie
Old 08-06-12, 07:48 AM
  #3
www.lms-efi.com

iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,236
Received 129 Likes on 85 Posts
Cut them off flush with a cutoff wheel and then drill and tap for a 1/4" NPT thread. The drill size is just big enough to remove all of the pressed in fitting.
Old 08-06-12, 07:50 AM
  #4
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
I had mine welded.It just has a small nub there now..like a zit..lol!
Old 08-06-12, 09:05 AM
  #5
Senior Member

Thread Starter
iTrader: (1)

Ehron's Avatar

Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Received 0 Likes on 0 Posts
Thanks. I think I'll go the cut-off wheel route.
Old 08-06-12, 11:14 AM
  #6
F-IT

iTrader: (5)

rxspeed7's Avatar

Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes on 0 Posts
Smack it with a hammer then use plyers to grab it be twist it back and fourth as you pull it out.
Old 08-06-12, 11:32 AM
  #7
Wastegate John

iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes on 9 Posts
The drill method is best, listen to C. Ludwig
Old 08-06-12, 12:07 PM
  #8
In the burnout box...

iTrader: (32)

mono4lamar's Avatar

Join Date: Oct 2003
Location: New York
Posts: 4,453
Likes: 0
Received 1 Like on 1 Post
Originally Posted by rxspeed7
Smack it with a hammer then use plyers to grab it be twist it back and fourth as you pull it out.
This is the BEST method. You'd really be surprised how easily these things can come out...
Old 08-06-12, 12:13 PM
  #9
F-IT

iTrader: (5)

rxspeed7's Avatar

Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes on 0 Posts
I've honestly prob taken thousands of pressed in tubes out with theis method. Only time it doesn't work is if the tube is rusted out. In that case then either drill it out,use a tap then twist and pull or use a e-z out to take it out.
Old 08-06-12, 12:54 PM
  #10
Senior Member

Thread Starter
iTrader: (1)

Ehron's Avatar

Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Received 0 Likes on 0 Posts
Rx, do you need to heat it up before you hit it with a hammer? Or just clamp it down in a vice, whack it with a hammer driving it into the housing, and then wiggle it out with pliers?
