I need help if anyone can help me id this turbo.

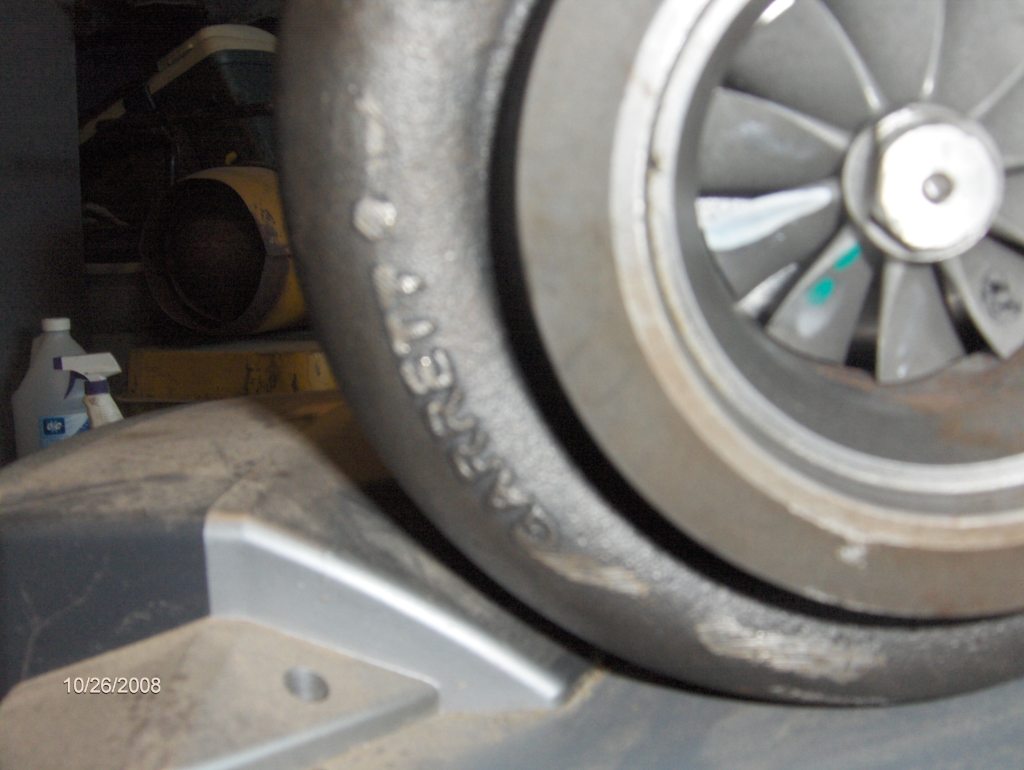

Has garrett forged on to both housings

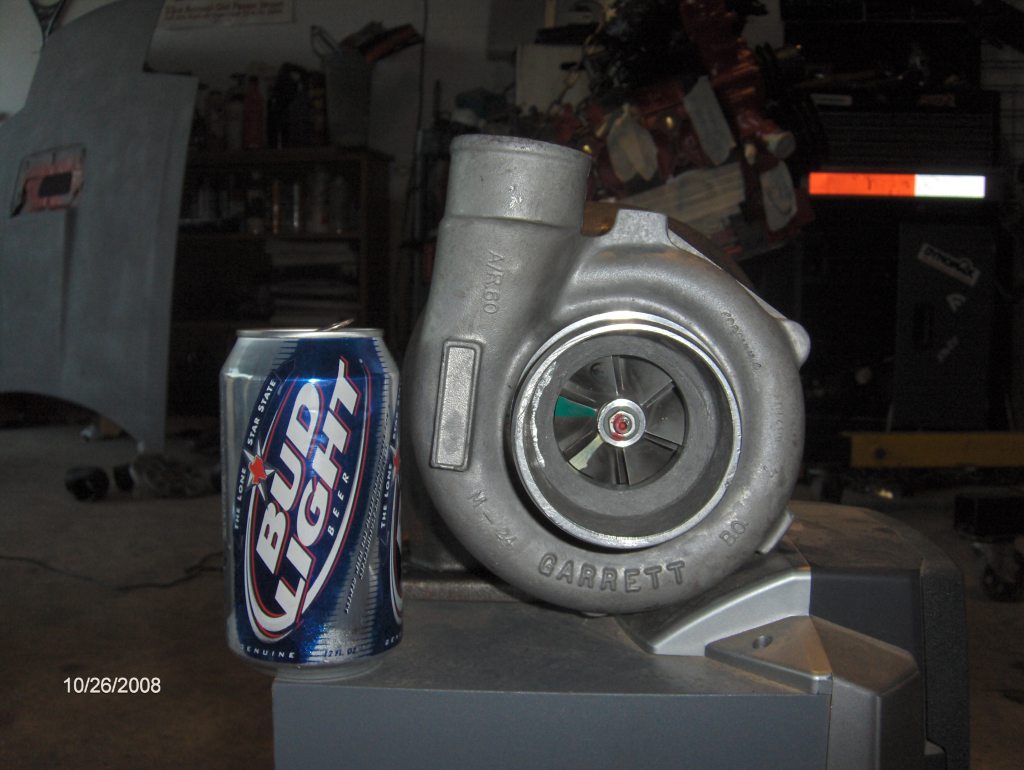

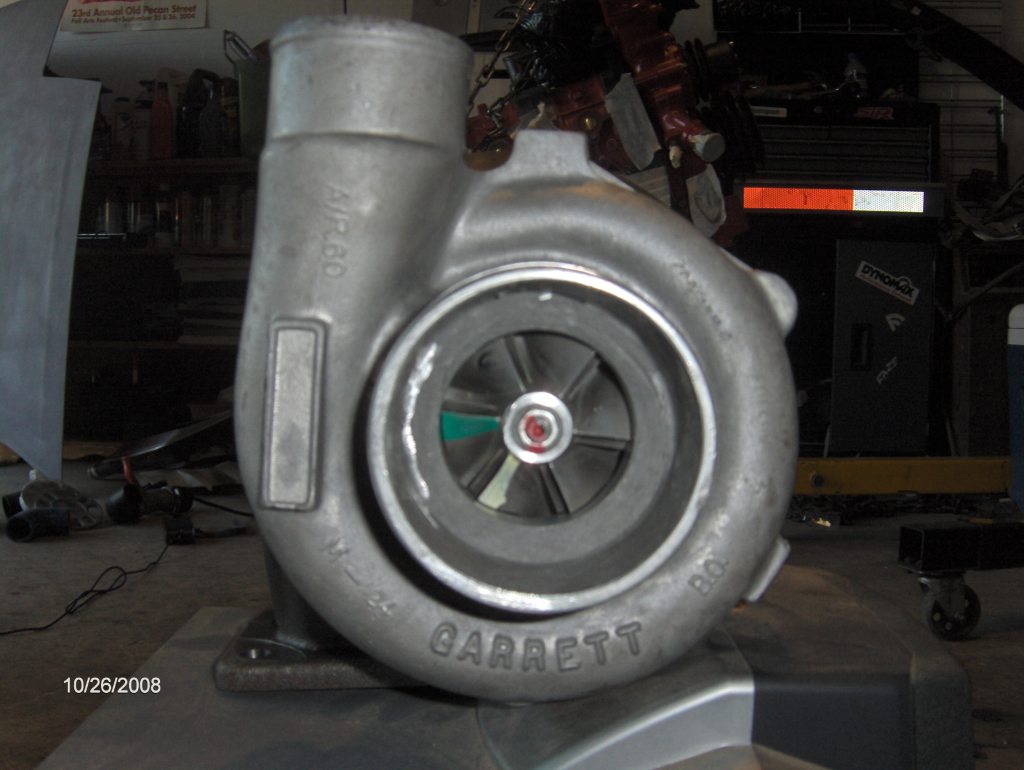

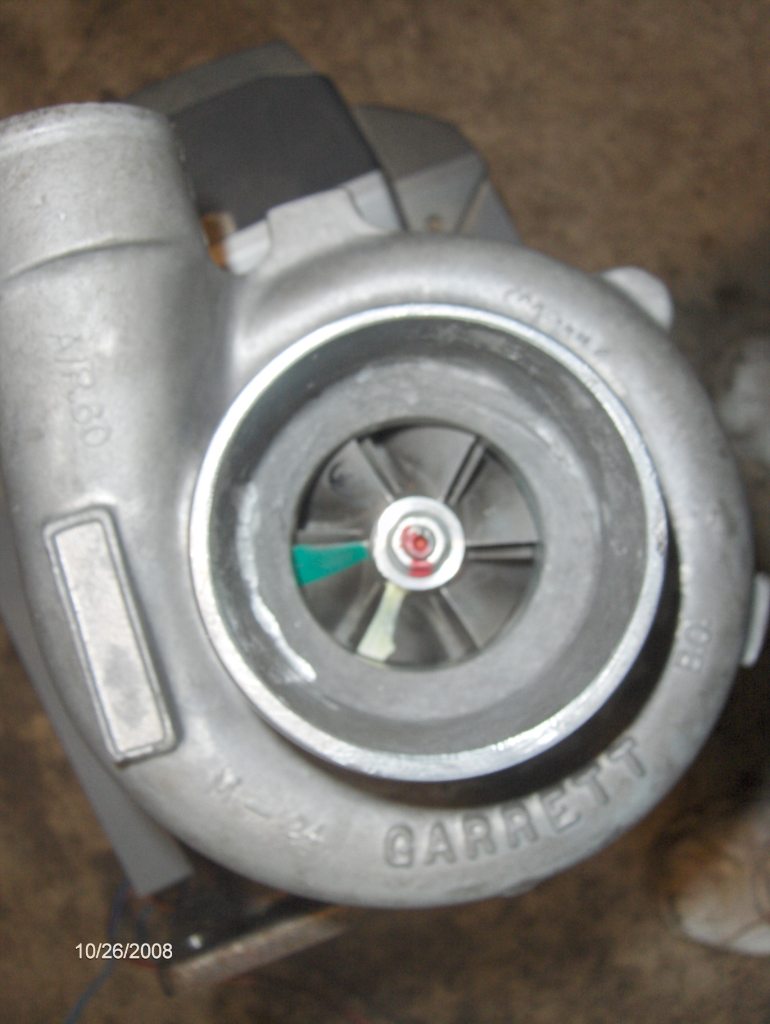

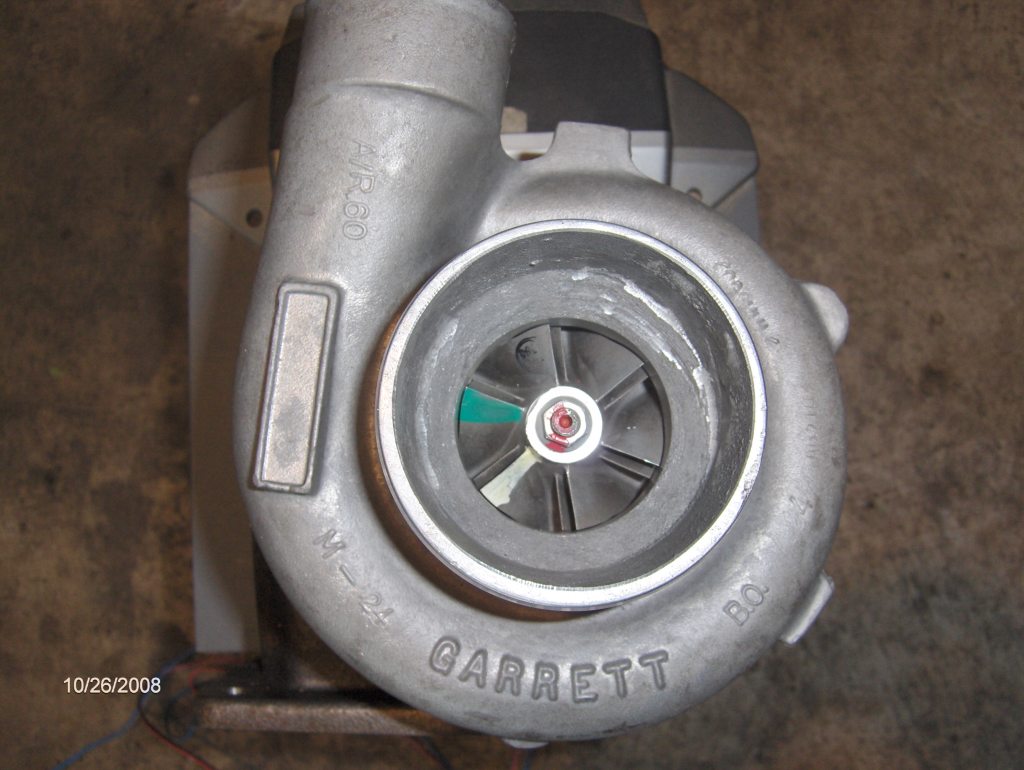

compressor
A/R .60
inducer 50mm
exducer 69mm
m24
2.7" inlet
2" outlet
--------------

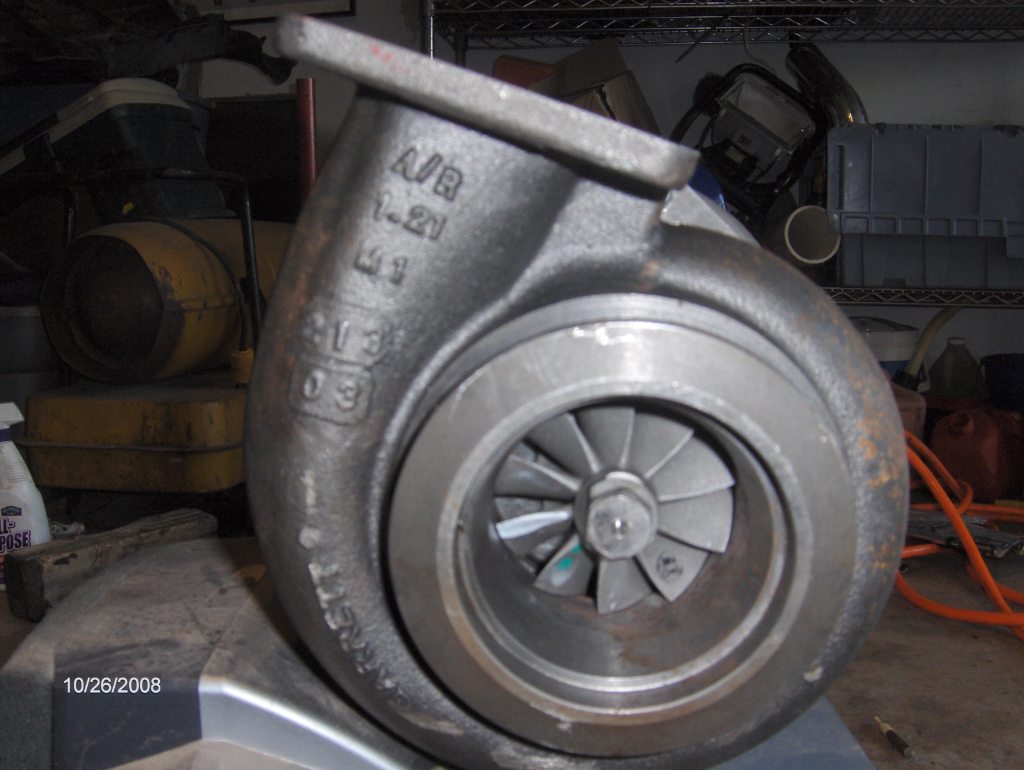

Turbine

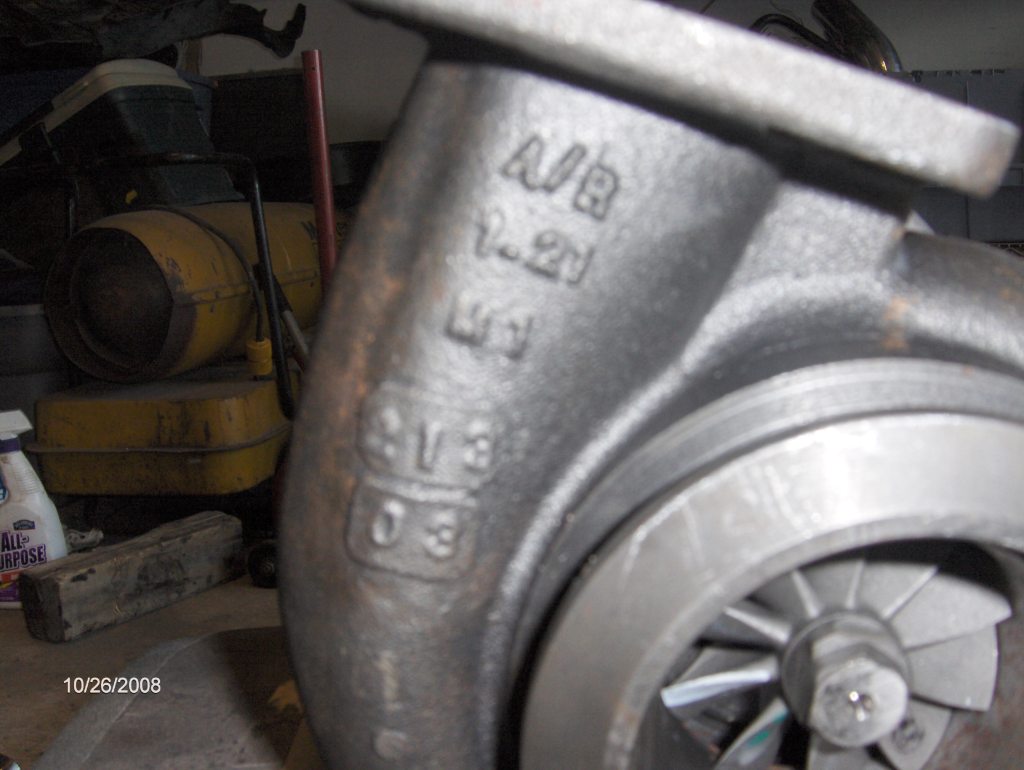

A/r 1.21
outlet 3"

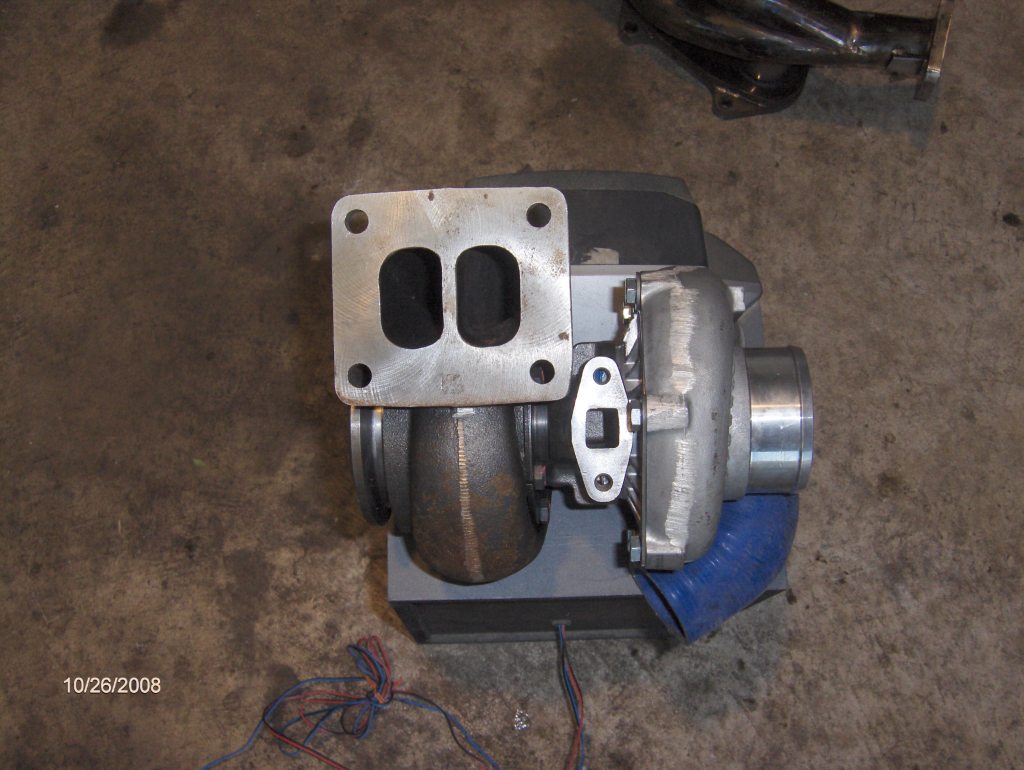

the flange is just 2-3mm short of fitting my t4 manifold is that a t-3 ?
I will post pics if i can



more pics



turbine exducer about 60mm



Wonder if it would be a good selection for a twin turbo setup?



The comp side looks almost like mine which is a to4e "60". The turbine is bigger though it looks like. Search the fc3spro websites turbo chart.



Ok I just figured out someone on this forum sold me a fd manifold and forgot to mention it was modded to accept a t-6. And the old turbo I wanted to put on, I thought was a t-4. Sucks since im new to turbo's and didnt notice the differences. So I think the turbo is looking like a gt35 with the t-4 flange. HMM does that make since? Anyone know what the largest compressor housing will fit? Any one have anymore suggestions? Think that compressor housing is too small for a half bridge? Im sure it is though.



OK where can I find the info on changing compressor housings?I think I need at least a .70a/r ,62-1 or 67mm wheel? any help would be great. thanks
