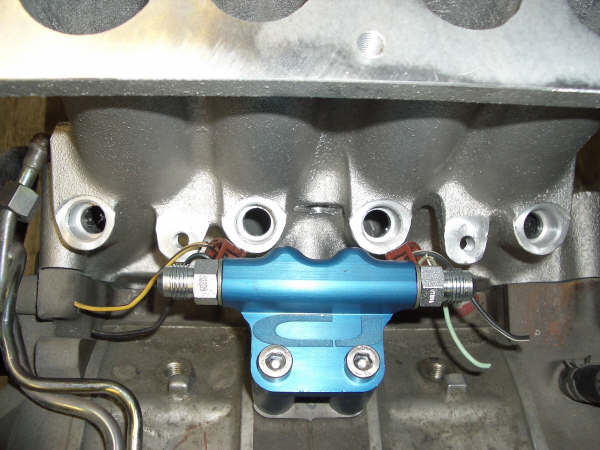

The original CJM S1 fuel system does in fact fit with the GZ LIM.

You just need to rotate the injectors a little. Perhaps there are some very large clips that would make this more difficult, but sure enough... they work together.



You're slacking Rich.

Thanks for the pics!



sweet thats what i was gonna look into in relation to the gz manifold..... alright 6 injectors oh ya
z



The commonly used clips we have are quite a bit larger and there's no way it was fitting.....glad you got it to work, you saved yourself a lot of time . As I mentioned in the other thread, consider offering these lower profile clips with the kit, save people some major headaches.



im pretty sure these ones are about the same size as the ones that RC sells, ill have to check. er maybe not...

actually the RC ones i think are the push button release type. perhaps its the push button release type that doesnt fit since they are larger...

the clips we fit with are the snap ring oem style, they are off a DSM harness but I have seen tons of clips like them



They may be common in the DSM world, but in the rotary world the clips I have always seen used on over 100 builds are the ones we're using at the shop.

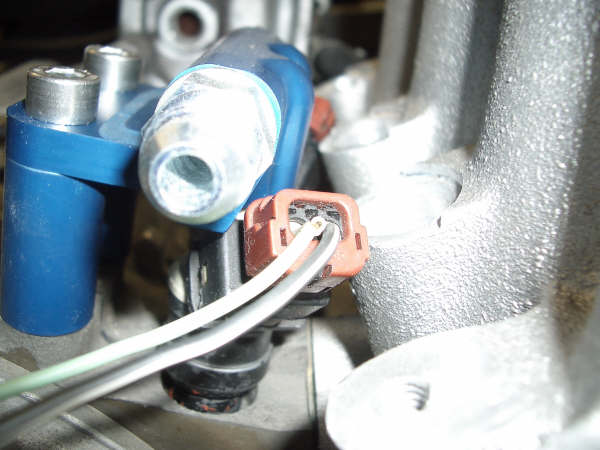

Just to add, the clip part is not the red/brown plastic piece. It is actually black and looked like all others I have seen as well. I was thinking that these were actually larger than the standard RC Engineering injector clip, because of the red/brown part.

You also have to put the clip on before you bolt down the rail. This might make the install harder, having to work with the wire harness in the way. but it will allow you not to have to do any modification.

We are still going to make changes to the design on the rail so that the clips can come out the front. We are just trying to make it possible for the people who have purchased our kit already.

Rich, I appreciate your help in this matter. We are a small shop and want to provide the best product we can.


~Brandon



understood! no problems at all really, just wanted to make sure people know that if they are having clearance issues with the clip, they can just swap out some $10 clips rather then a $700 fuel system!



yeah, definitely good news. I wish like hell we'd have known about this a few weeks ago
