Got my TD07 today :)
08-07-02, 07:32 PM
#26
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by soul assassin
never heard of a tdo8 and that is completly different than a t88! what is the size of the a/r on that td07?
never heard of a tdo8 and that is completly different than a t88! what is the size of the a/r on that td07?

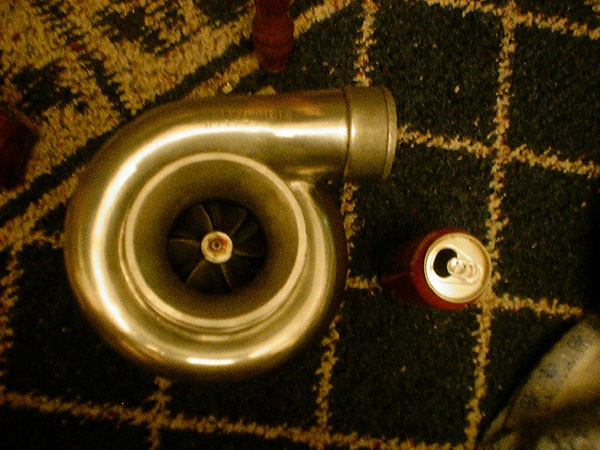

I'm not sure of the a/r of the comp housing. All I know about it's a 4" inlet and had a 2.5 o/d outlet (haven't measured the i/d).
Has a 25g compressor, full TD07 cartrage and a 17cm turbine housing.
Anyone guess what the a/r of the comp housing housing is by looking at it? Has a couple long numbers stamped into the housing but they don't make any reference to a/r.
08-07-02, 11:35 PM
#27
GTR eater
Join Date: Feb 2001
Location: Tucson Arizona
Posts: 664
Likes: 0
Received 0 Likes
on
0 Posts
yeah i guess that did not come out right! lol! why would mitsu make a td-08 and a t88 if the were the same size though? a 25g compressor won't get ya much. If i'm not mistaken the mitsu line up goes from biggest to smallest is i n the following order
TD-07
TD-08
T-67
T-78
T-88
So as you can see a TD-08 is no where near the size of a t88 let alone a TD-07 bein close to a T78depending on the turbine you have TD-07 or TD-07s the compressor housing is either a 25 a or 25 g
the compressor on a T-78 is a 33D
and a T-88 being the 34D while the TD-08 is a 29 B
in other words they are completly different turbines
TD-07
TD-08
T-67
T-78
T-88
So as you can see a TD-08 is no where near the size of a t88 let alone a TD-07 bein close to a T78depending on the turbine you have TD-07 or TD-07s the compressor housing is either a 25 a or 25 g
the compressor on a T-78 is a 33D
and a T-88 being the 34D while the TD-08 is a 29 B
in other words they are completly different turbines
08-08-02, 12:39 AM
#28
Just Call Me Terminator!
iTrader: (4)
Join Date: Feb 2001
Location: NJ
Posts: 7,848
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by MIKE-P-28
Mucho gracias
Excellent speed and even tho I cant understand a freaking word of it, it does however has nice video of building/porting a motor
Mucho gracias
Excellent speed and even tho I cant understand a freaking word of it, it does however has nice video of building/porting a motor
08-08-02, 05:36 PM
#31
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Intresting read there Soul. I guess all I care about is the bottom line and that is it made 320rwhp @10psi and thats good enough for me I'll have to see what I can get out of it @ 15psi in my FB.
I'll have to see what I can get out of it @ 15psi in my FB.
08-09-02, 02:46 AM
#36
GTR eater
Join Date: Feb 2001
Location: Tucson Arizona
Posts: 664
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Greg
Td08 is clsoe to a Greddy T88
Td08 is clsoe to a Greddy T88
the ar size is close to the same but comletly different size compressor wheels with different trims
but yeah they are the same, thats like saying a to4e is like a t51kai
08-09-02, 06:02 PM
#39
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
I got Gregs manifold today and bolted it all up, too damn bad the manifold is made to place the turbo so close to the intake manifold because it hits on my engine
The exh housing of the turbo hits the front bolt that holds on the intake. You can sorta see in this pic where it hits and also how much more the turbo needs to rotate to bolt onto the flange with more than one bolt. I might end up moding it to fit but we'll see.
The exh housing of the turbo hits the front bolt that holds on the intake. You can sorta see in this pic where it hits and also how much more the turbo needs to rotate to bolt onto the flange with more than one bolt. I might end up moding it to fit but we'll see.
